Control panel, Clock, The Sabbath Option, Demo mode, and Temperature adjust: NX60*851*** / NX60**851*****
The range has control knobs for the cooktop and a control panel above the oven door.
Control panel, Clock, The Sabbath Option, Demo mode, and Temperature adjust: NX60*851*** / NX60**851*****
Control panel
- Oven modes
- Air Fry
- Keep Warm
- Bread Proof
- Self Clean
- Dehydrate
- Timer Off (3 sec)
- Cook Time
- Delay Start
- Smart Control
- Oven Light
- Numbers
- Clock
- Lock
- OFF/CLEAR
- START/SET
Clock
- Press the Clock/Setting button.
- To select AM/PM, press the clock again.
- Enter the current time using the number pad.
- Press START/SET to confirm the settings.
Sabbath option
- Press Bake.
- Enter a desired temperature using the number pad. The default temperature is 350 °F.
- Press START/SET. The display temperature changes after the oven temperature reaches 175 °F.
- Press Bake and Timer Off (3 sec) simultaneously for 3 seconds to display "SAb". Once "SAb" appears, the oven control no longer beeps or displays any further changes.
Demo mode
- Press and hold the Clock/Setting button for 3 seconds.
- Press 0 to enter Demo mode.
- Press 1 or 2 to turn Demo mode on or off. (1 to on, 2 to off)
- Press START/SET to save the change.

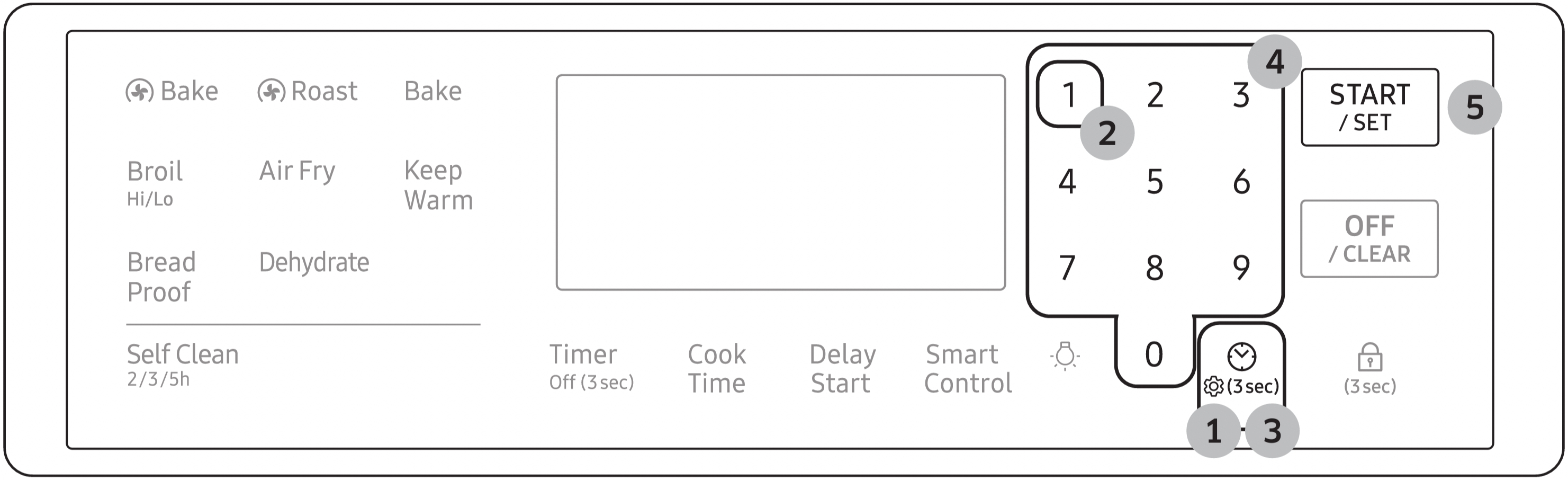

Temperature adjust
- Press and hold the Clock/Setting button for 3 seconds.
- Press 1 to enter Temperature adjust.
- Press Clock to select a higher(+) or lower(-) temperature.
- Enter and adjusting temperature value (0-35) using the number pad.
- Press START/SET to save the change.
