Feature panel, Sabbath Mode, and Cooling Off mode: RS22T5201**/RS27T5201**
Feature panel, Sabbath Mode, and Cooling Off mode: RS22T5201**/RS27T5201**

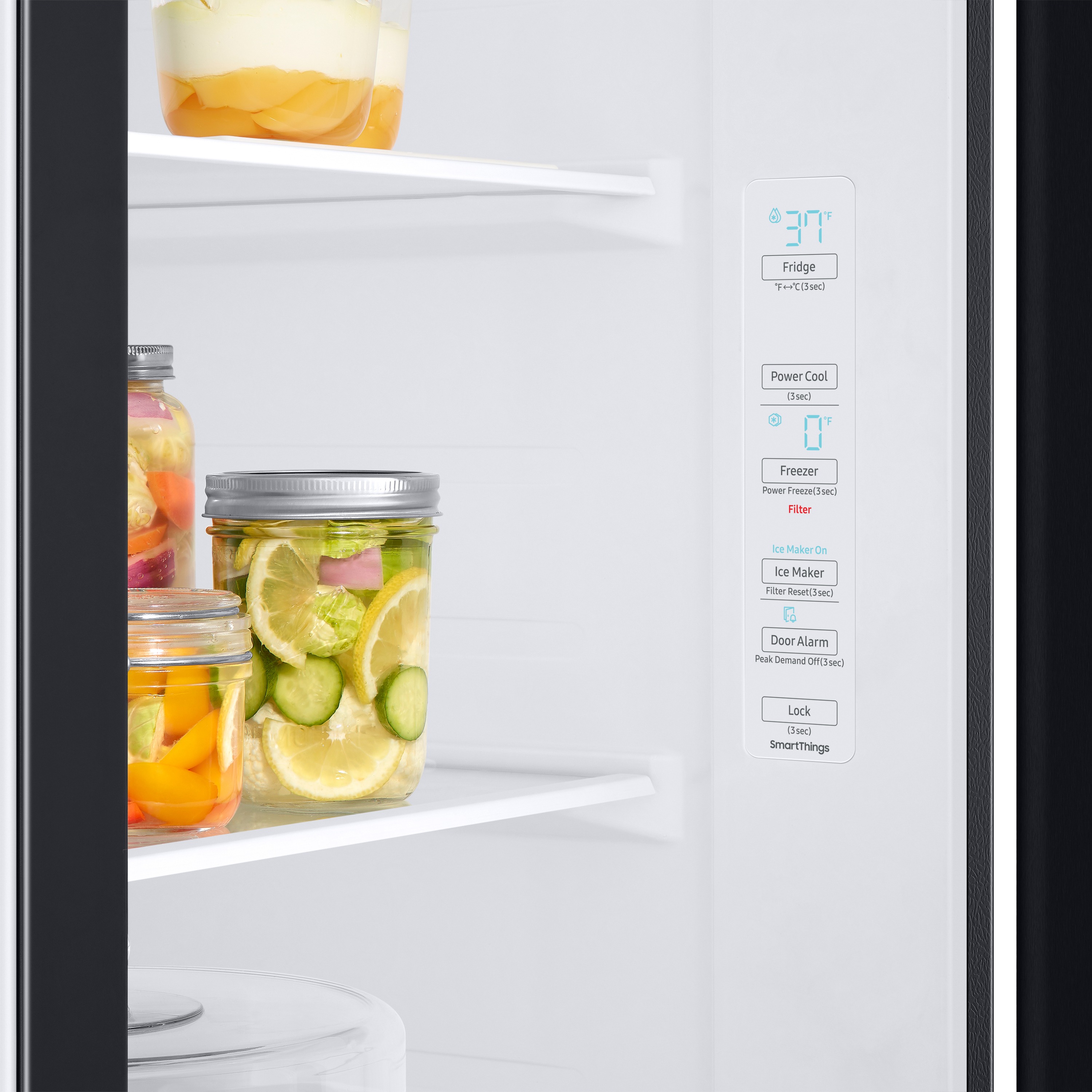

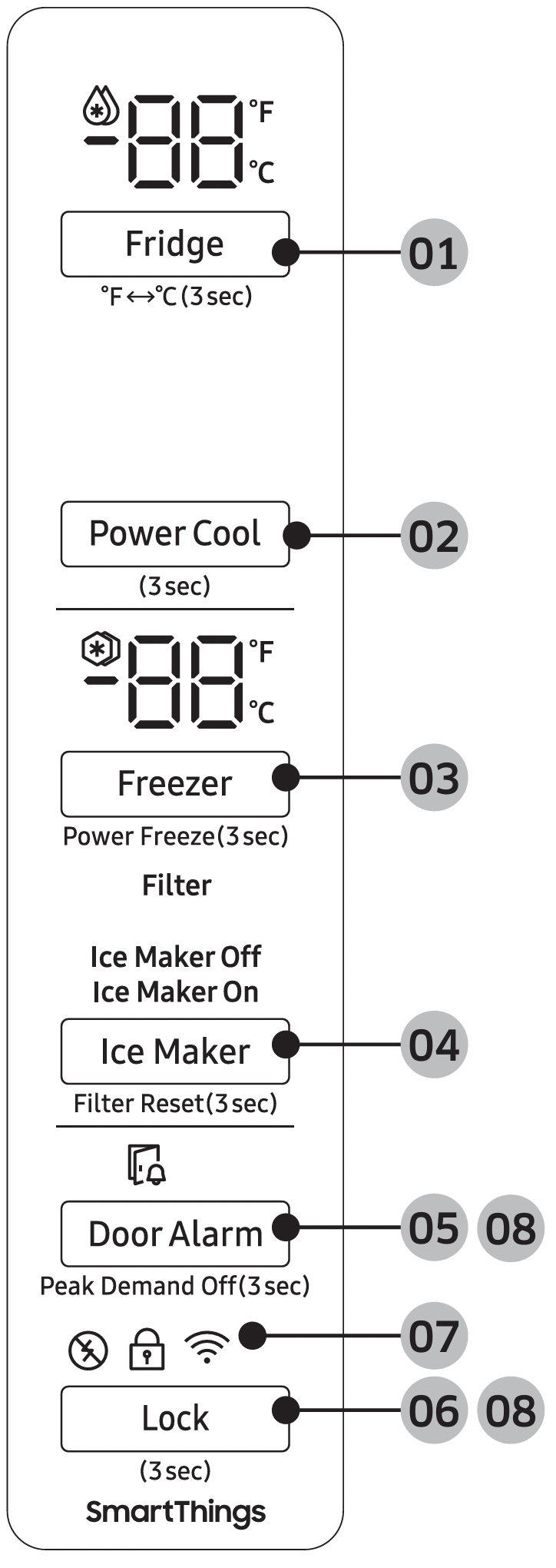

Feature panel
- Fridge / °F ↔ °C
- Power Cool
- Freezer / Power Freeze
- Ice Maker / Filter Reset
- Door Alarm / Peak Demand Off
- Lock
- Network connection
- Sabbath Mode

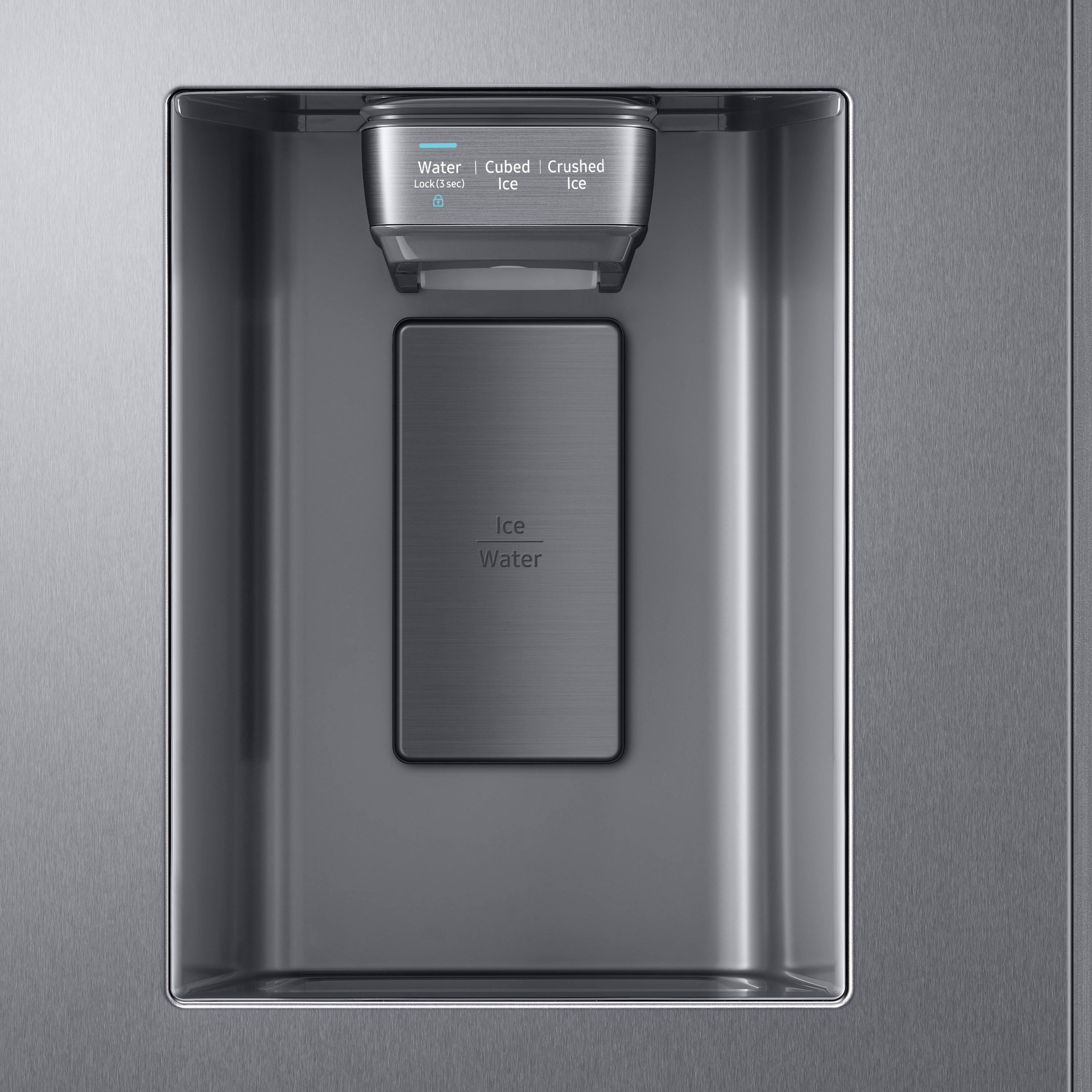

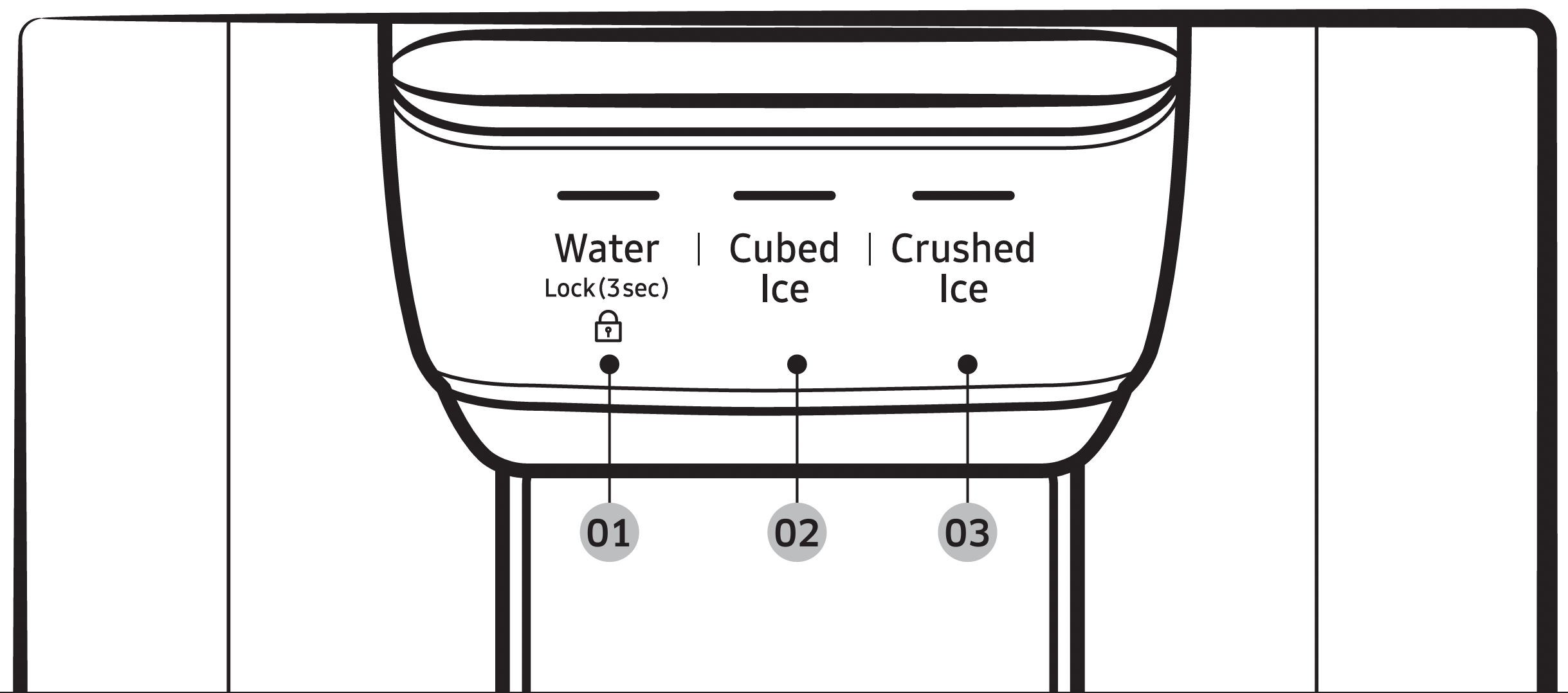

Dispenser panel
- Water / Lock
- Cubed Ice
- Crushed Ice
Sabbath Mode
The Sabbath mode stays active for 85 hours once it is activated. After that, it will be deactivated automatically.
- To activate, press and hold Door Alarm and Lock simultaneously for 5 seconds to enter Sabbath mode. Then the refrigerator operates in Sabbath mode where the buttons, the display, and the room lamps are all under control.
- To deactivate, press and hold the buttons again for 5 seconds to exit Sabbath mode.
Cooling Off mode
Cooling Off mode (also called Shop mode) is designed for use by retailers when they are displaying refrigerators on a retail floor.
In Cooling Off mode, the refrigerator’s fan motor and lights operate normally, but the compressors do not run so that neither the refrigerator nor the freezer run the cooling process.
To enter or exit the Cooling Off mode, press and hold Fridge and Power Cool simultaneously for 6 seconds. Then, when the display blinks, press Lock.
When the Cooling Off mode is on, the refrigerator chime sounds, and the refrigerator shows “0” on the fridge temperature display and “FF” on the freezer temperature display.
