The oven control panel, Clock, The Sabbath feature, Calibrate Temp, and Demo mode: NE63*871*** / NE63**871*****

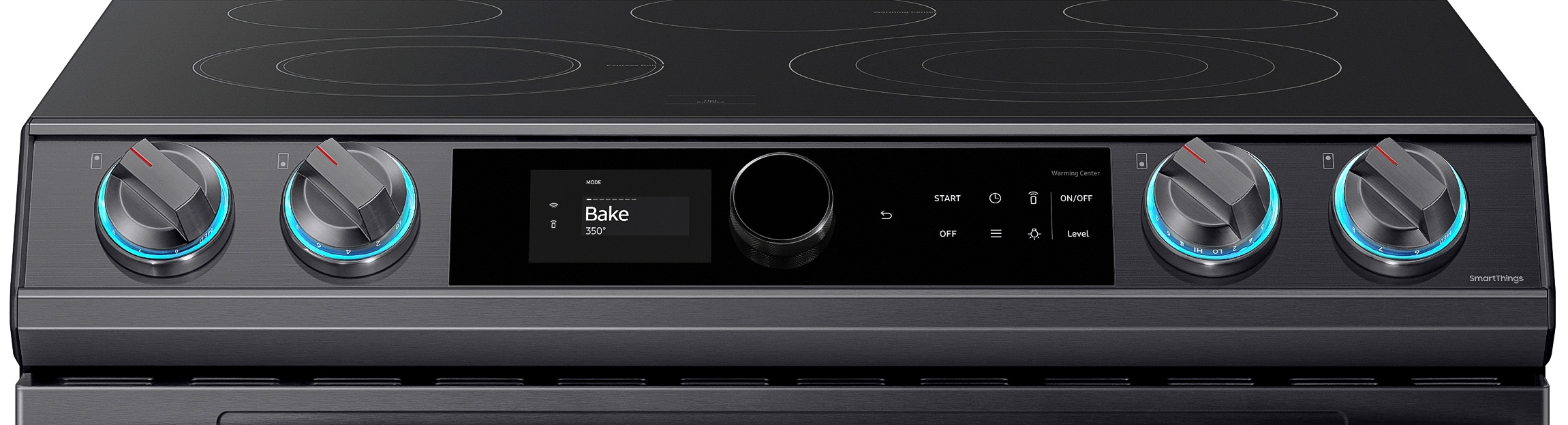

The range has control knobs for the cooktop above the oven door and a control panel in the center.
The oven control panel, Clock, The Sabbath feature, Calibrate Temp, and Demo mode: NE63*871*** / NE63**871*****
Control Panel
- START: Press to start oven operation.
- OFF: Delete all information entered, return to the first step. Stop the oven operation.
- Time Option: Go to set time options. (Cook time, Delay start)
- Options: Go to set options. (Timer, Cleaning, Favorite, My mode list, Lock, Screen timeout, Set time, Time format, 12hr energy saving, Sound, Sabbath, System settings)
- Smart Control: Set Smart Control function On/Off.
- Light: Tap to turn oven light On/Off.
- Dial Knob: Turn Clockwise - Move focus to next / increase value. Turn Counterclockwise - Move focus to previous / decrease value. Push - Select the current value.
- Back: Go to upper depth, previous page, etc.

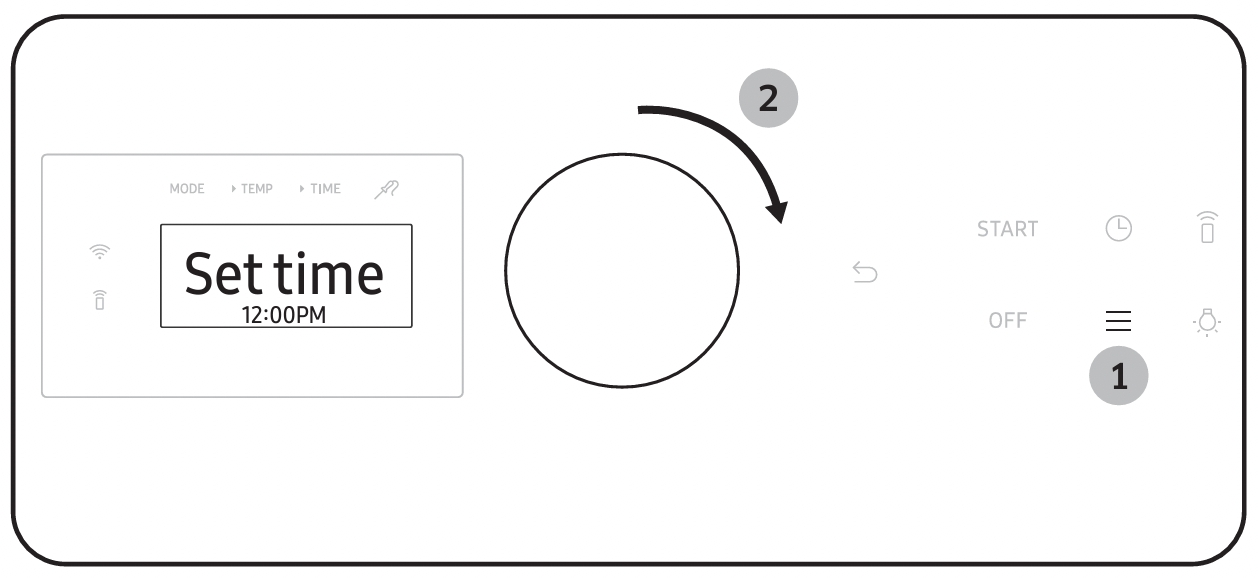

Clock
- Tap Options.
- Select Set time using the dial knob.
- Enter the current time using the dial knob.
- Push the dial knob to confirm the settings.
Sabbath feature
- Start a Bake mode.
- Tap Options, and select the Sabbath feature.
- Turn the dial knob to select On/Off.
- Push the dial knob to save the changes.
Calibrate Temp
- Tap and hold Options for 3 sec.
- Select Calibrate Temp using the dial knob.
- Turn the dial knob to adjust temperature value.
- Push the dial knob to save the changes.
Demo mode
- Tap and hold Options for 3 sec.
- Select Demo mode using the dial knob.
- Turn the dial knob to select On/Off and push to save the changes.
