Control panel, Vent blockage test, and Cycle chart: DVE(G)60A9900*

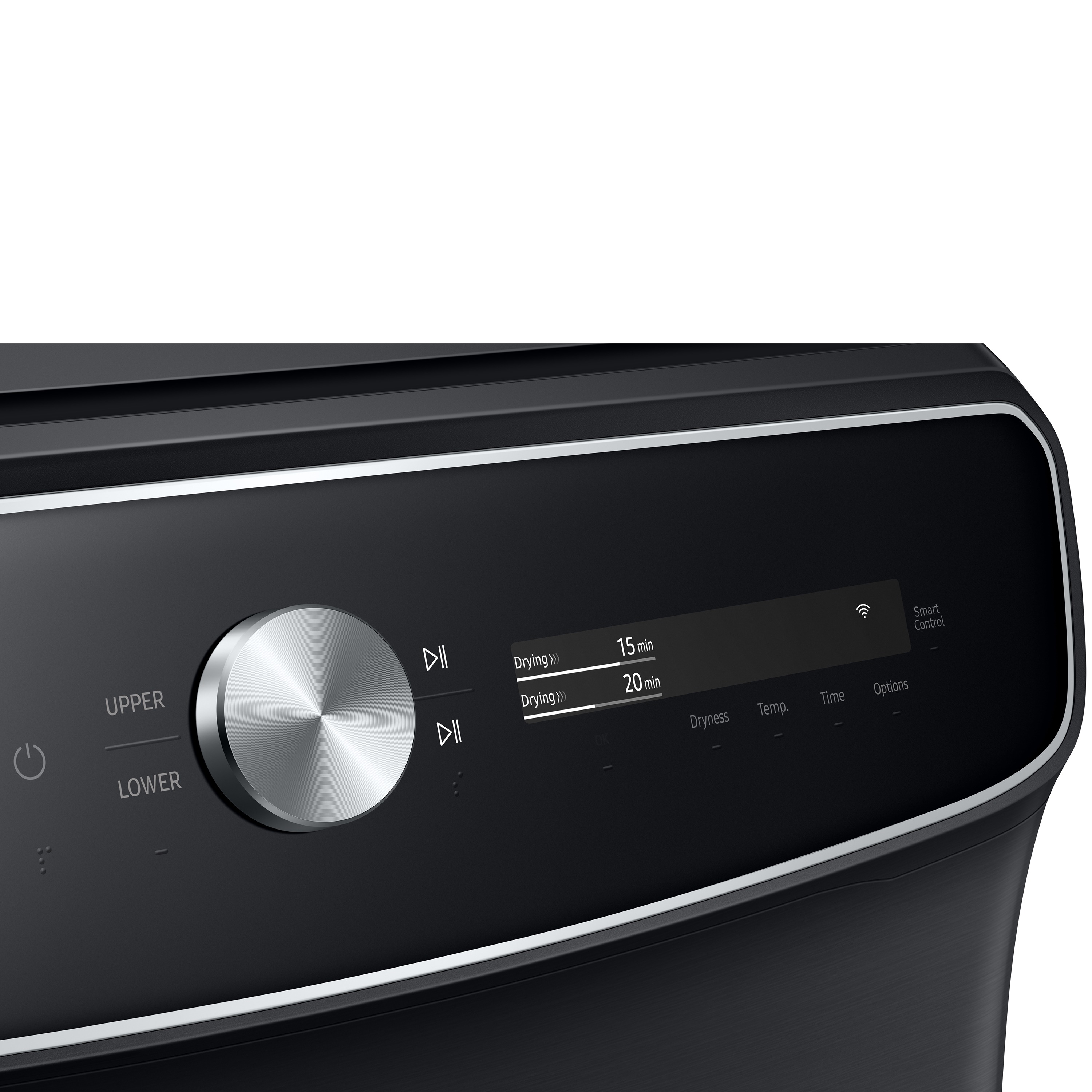

The controls are on the front of the dryer, at the top.
Control panel, Vent blockage test, and Cycle chart: DVE(G)60A9900*

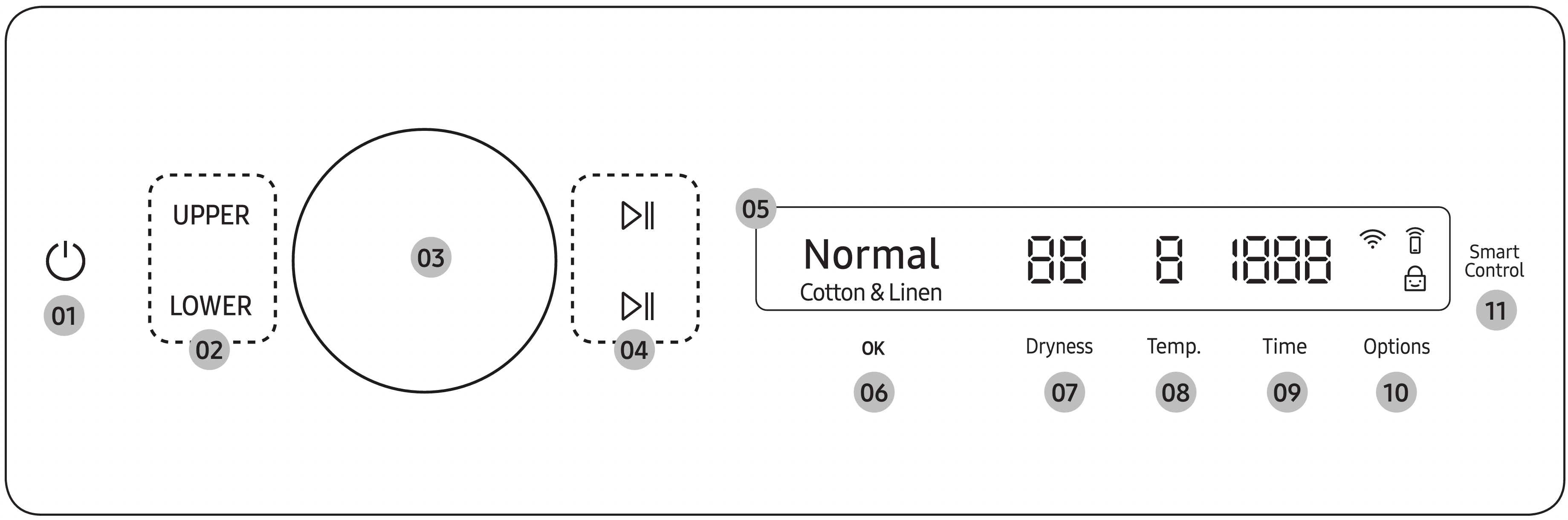

Control Panel
- Power
- UPPER/LOWER
- Navigation dial
- Start/Pause
- Display
- OK
- Dryness
- Temp.
- Time
- Options
- Smart Control (Electric models only) / Smart Monitor (Gas models only)
Vent Blockage Test
Detects the status of the ducts and reports any blockage or problems.
- Tap and hold Options for 3 seconds.
- Turn the Navigation dial to select Vent Blockage Test, and then tap OK.
- Vent Blockage Test starts immediately.

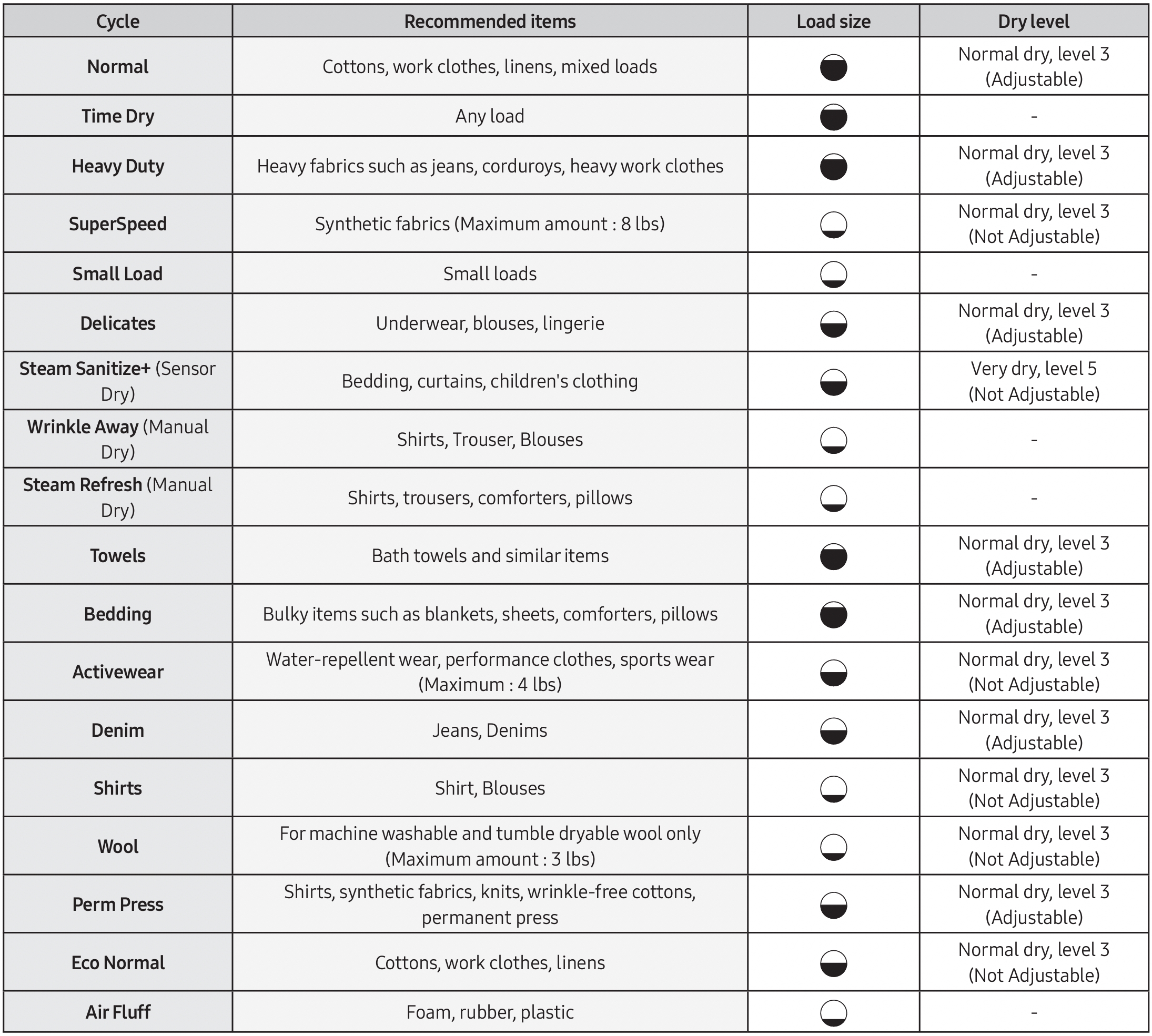

Cycle chart
Note
For the best results, follow the load size recommendations for each dry cycle.
