Main panel, Dispenser panel, Cooling Off Mode, and Sabbath Mode: RF28*

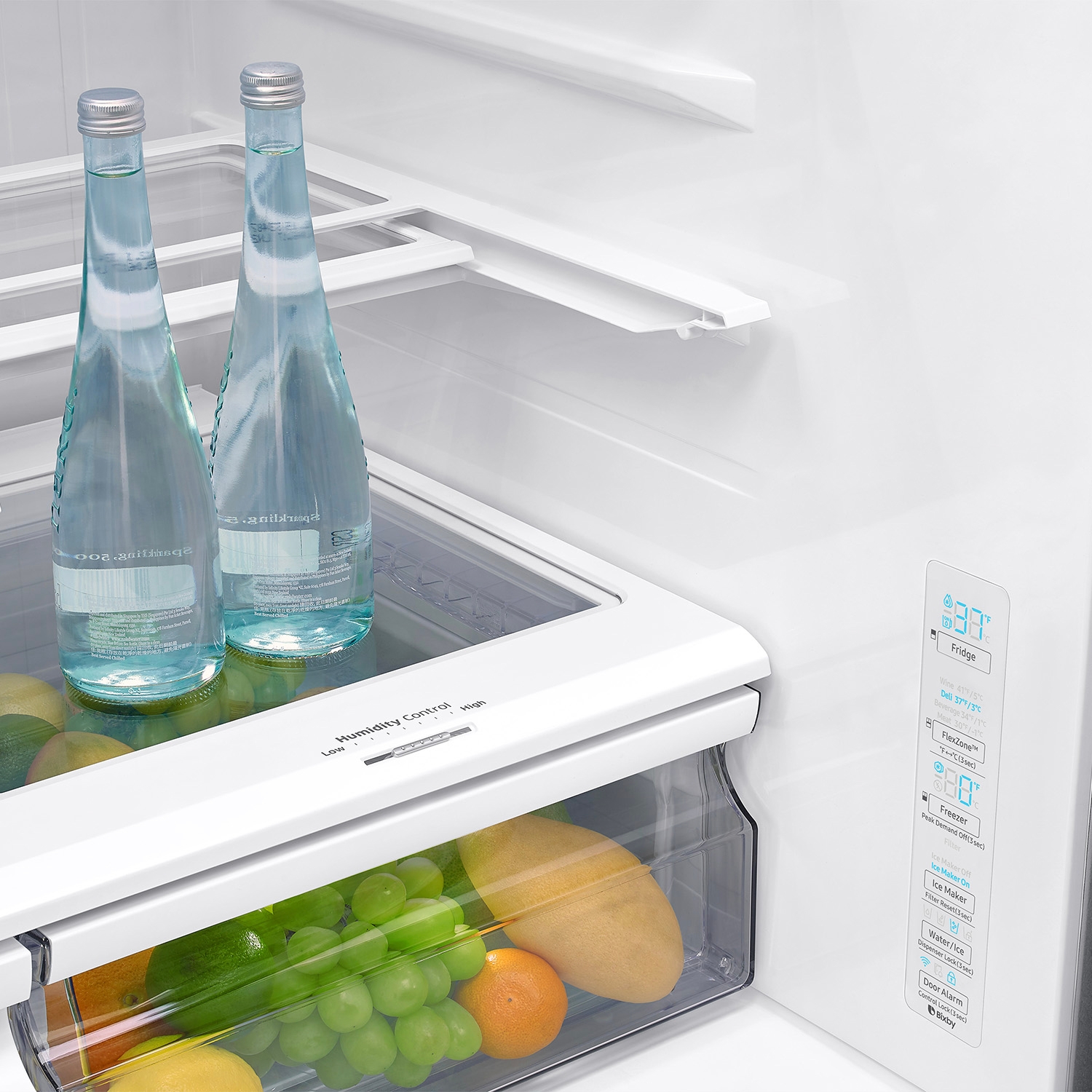

The main panel for the refrigerator is inside on the right.
Main panel, Dispenser panel, Cooling Off Mode, and Sabbath Mode: RF28*

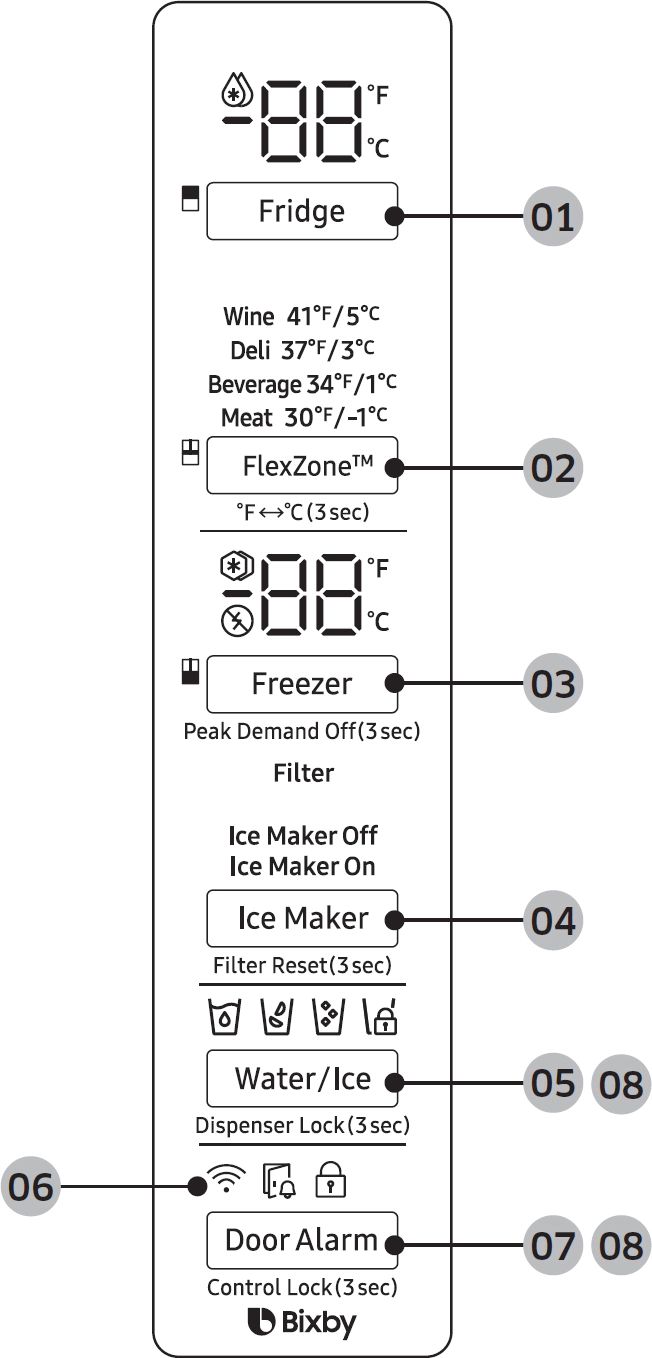

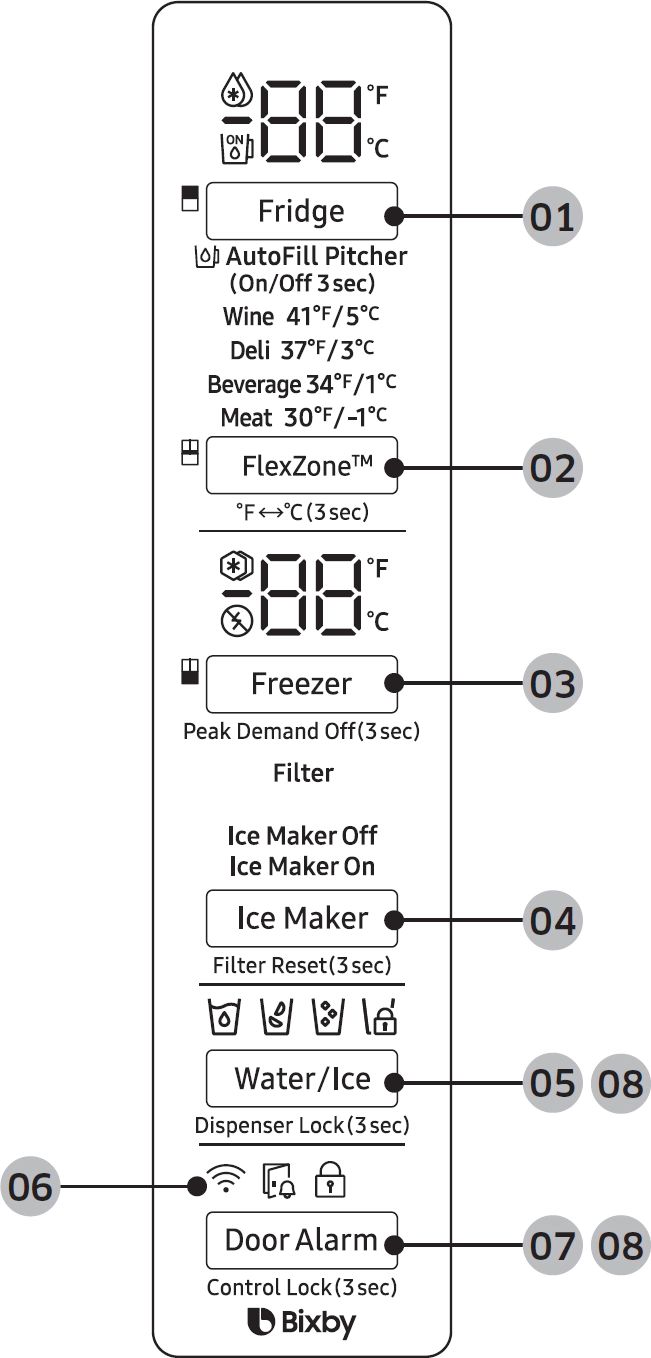

Main panel
- Fridge / Autofill Pitcher
- (Autofill Pitcher is RF28R7351 only)
- FlexZone™ / °F <-> °C
- Freezer / Peak Demand Off
- Ice Maker / Filter Reset
- Water/Ice / Dispenser Lock
- Network connection
- Door Alarm / Control Lock
- Sabbath Mode

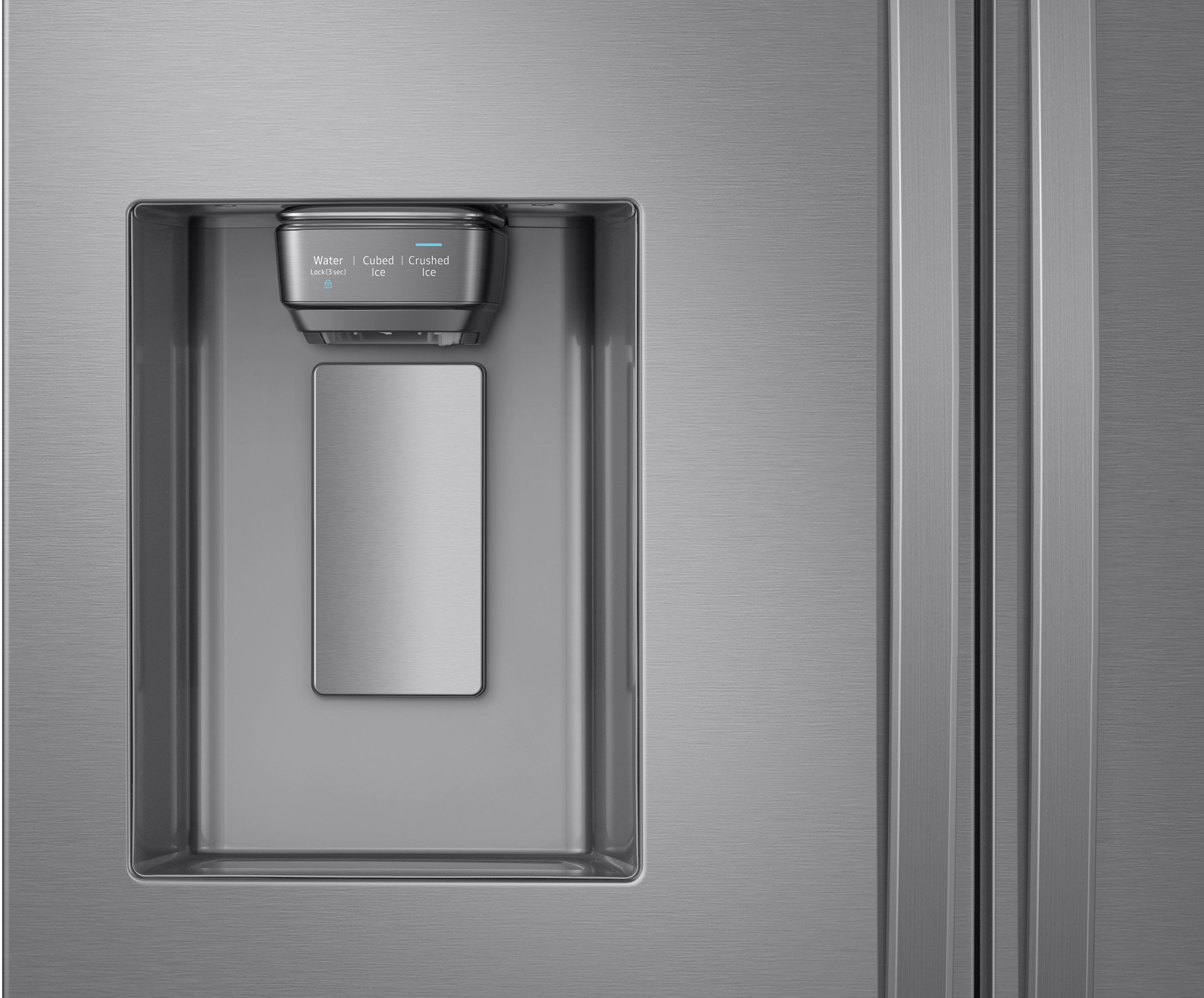

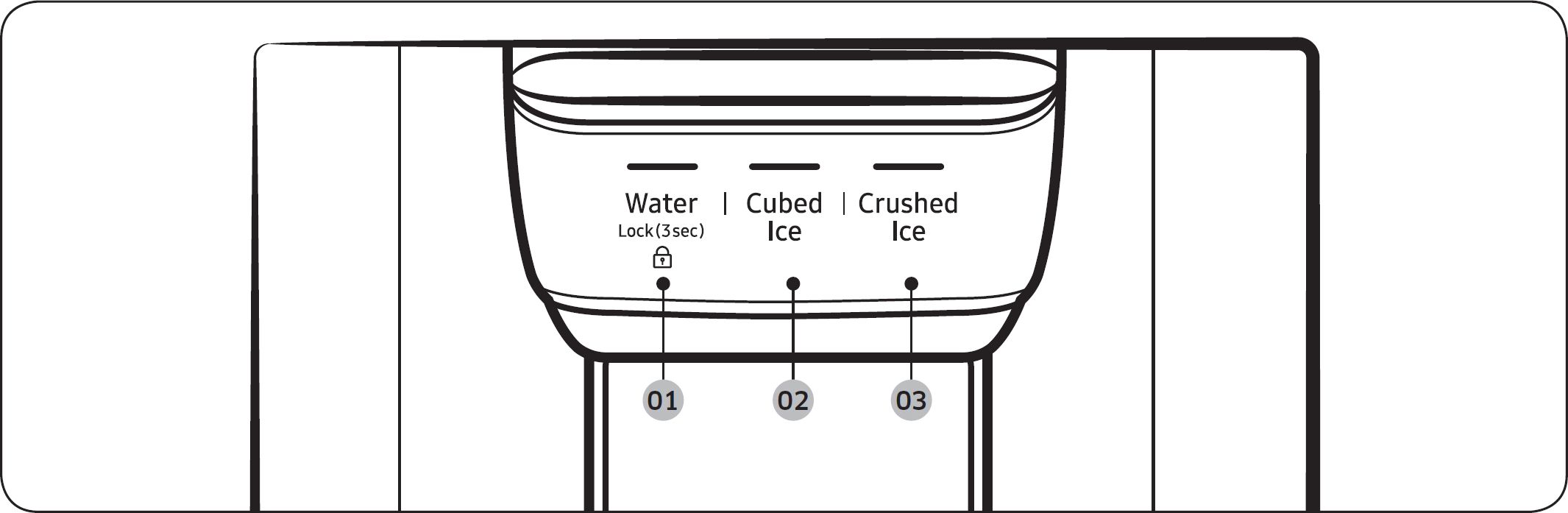

Dispenser panel
- Water / Lock
- Cubed Ice
- Crushed Ice
Cooling Off
Cooling Off mode (also called Shop mode) is designed for use by retailers when they are displaying refrigerators on a retail floor. In Cooling Off mode, the refrigerator’s fan motor and lights operate normally, but the compressors do not run so neither the refrigerator nor the freezer become cold.
- To enter or exit the Cooling Off mode, press and hold Fridge and FlexZone™ simultaneously for 6 seconds. Then, when the display blinks, press Door Alarm.
- When the Cooling Off mode is on, the refrigerator chime sounds, and the refrigerator shows “0” on the fridge temperature display and “FF” on the freezer temperature display.
Read more
Read less
Sabbath Mode
The Sabbath mode stays active for 85 hours once it is activated. After that, it will be deactivated automatically.
- To activate Sabbath Mode, press and hold Door Alarm and Water/Ice simultaneously for 5 seconds. When the refrigerator is in Sabbath mode, the buttons, the display, and the internal lights do not function. The refrigerator and freezer, however, continue to cool.
- To deactivate Sabbath Mode, press and hold Door Alarm and Water/Ice simultaneously again for 5 seconds.
Read more
Read less
