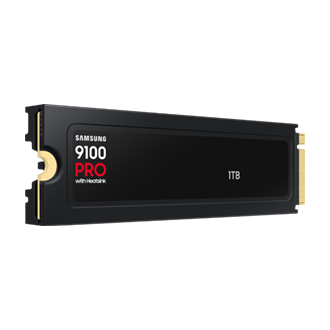

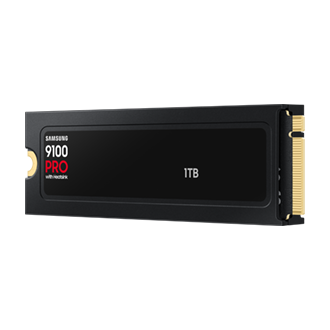

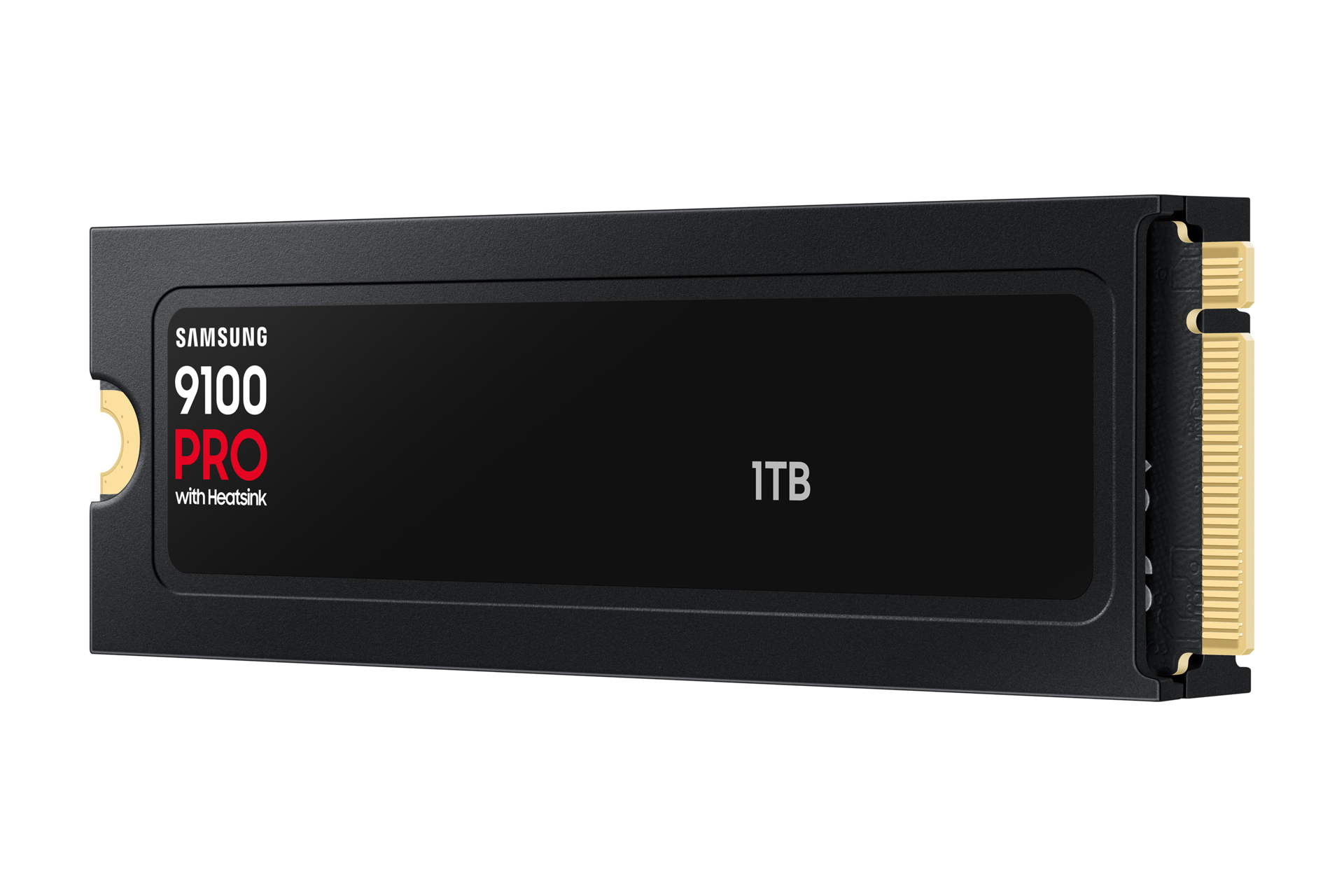

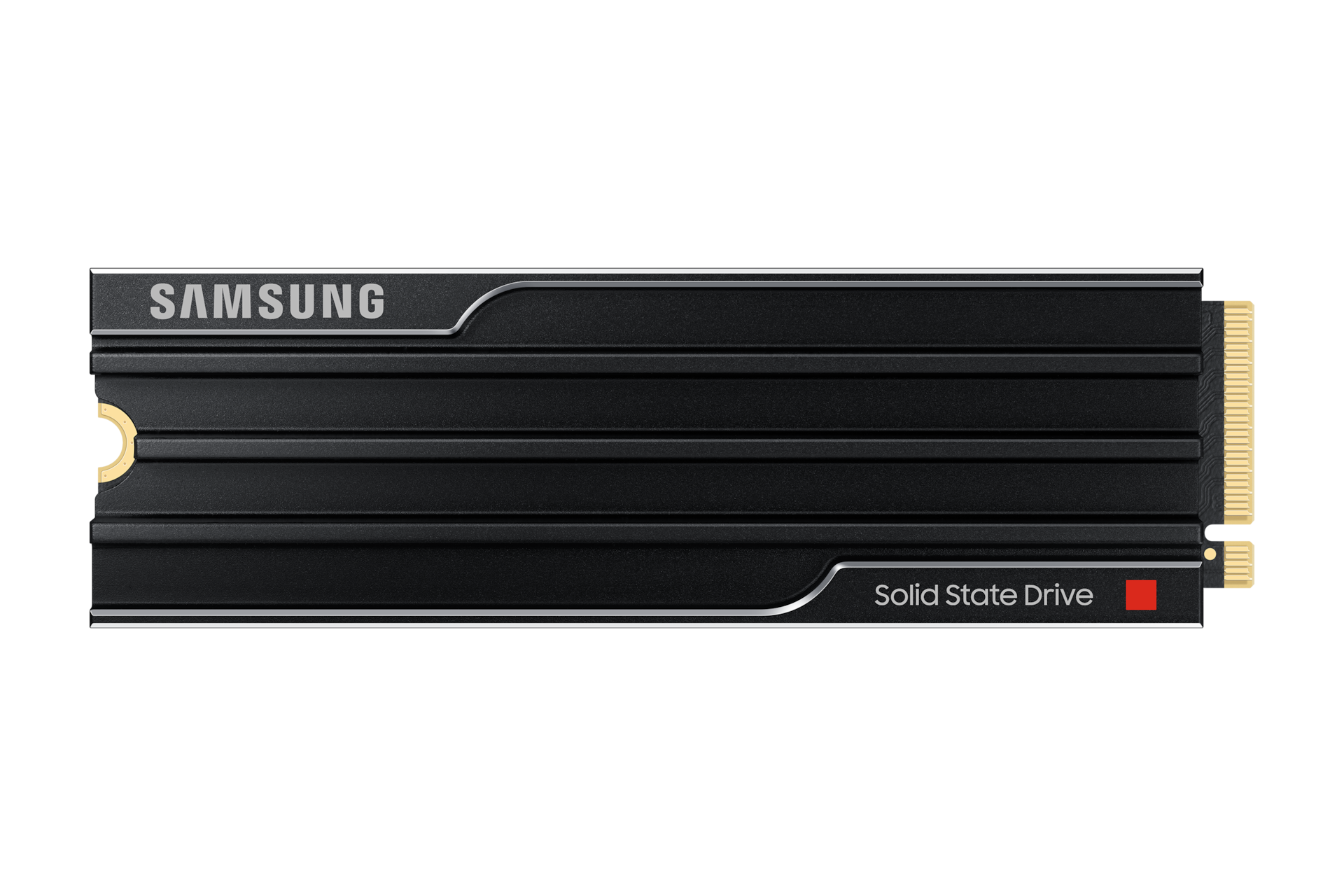

9100 PRO with Heat Sink 1TB 14,800 / 13,400 ( Read / Write )
Gallery popup
Scan this QR code with your phone and place the object in your space.
Features
Top 3 features
Breakthrough PCIe® 5.0 performance
Push PCIe® 5.0 performance to the max. 9100 PRO with Heatsink achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.
*Sequential and random performance was measured with Intelligent Turbo Write technology activated, which only operates within a specific data transfer size.Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service center.
*To maximize the performance of the 9100 PRO with Heatsink, please check whether your system supports PCIe® 5.0 on Intel or AMD website.
Every task, powerfully parallel
Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.
Create with AI in an instant
Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO with Heatsink’s exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.
*Performance may vary depending on SSD's firmware, system hardware & configuration and other factors.
Conquer any game instantly
Boundless gaming freedom. Join forces with the 9100 PRO with Heatsink on PC, laptop, or PlayStation® 5, and experience otherworldly performance with the latest PCIe® 5.0 interfaces. Equip yourself with the ultimate winning edge to devastate opponents and reign supreme. Any arena, any device.
*For M.2 SSD requirements for PlayStation® 5, please visit https://www.playstation.com/support/hardware/ps5-install-m2-ssd/

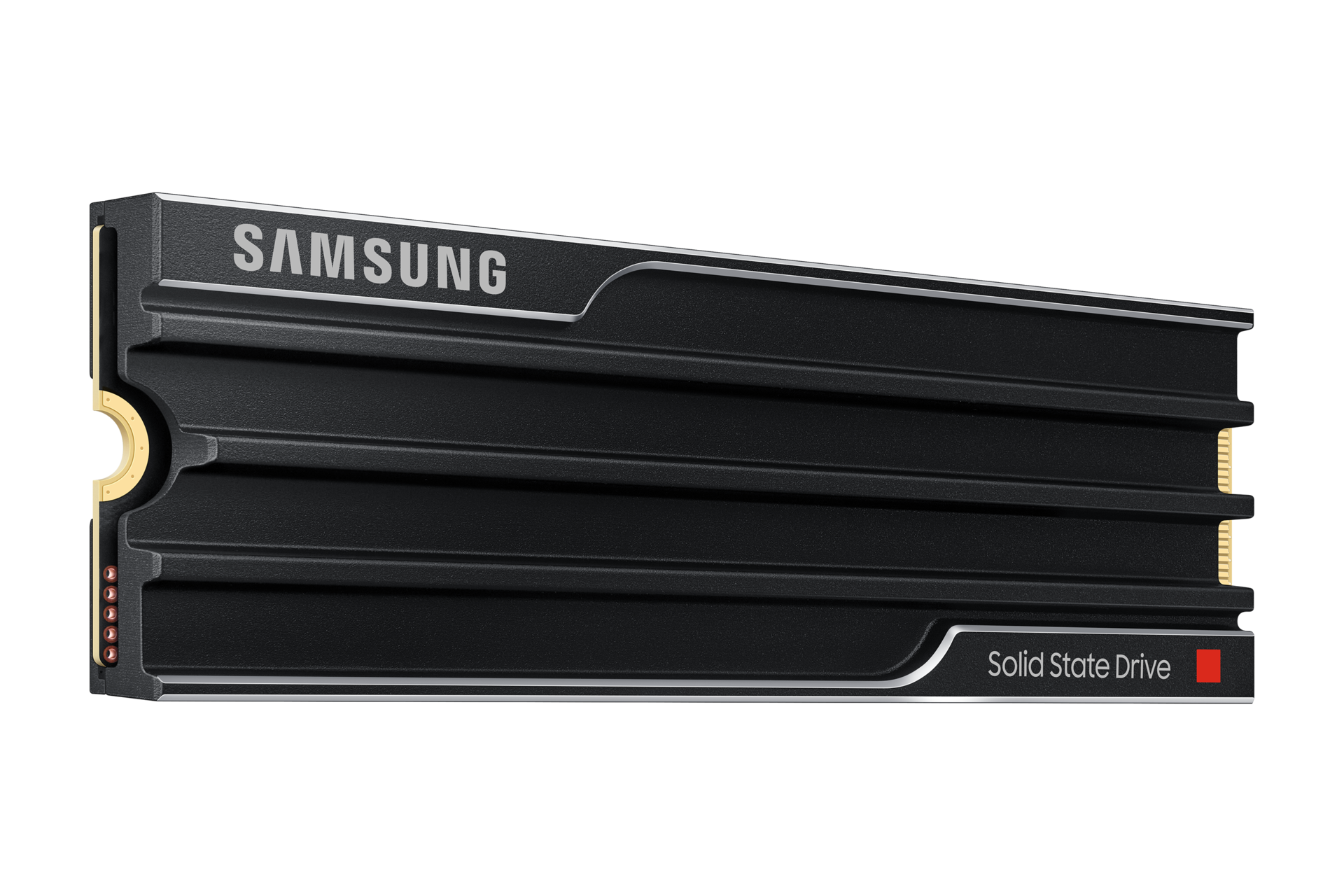

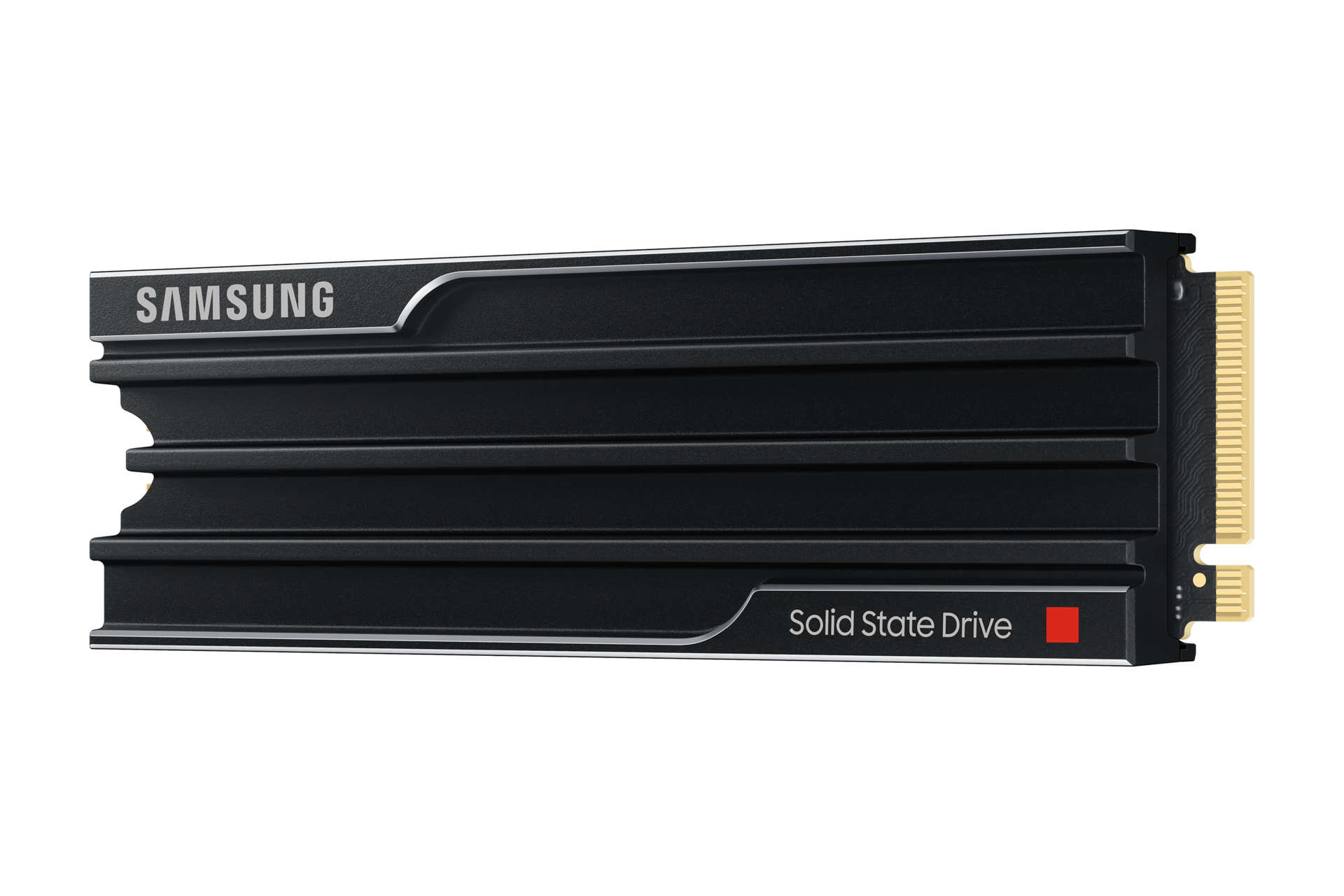

Extraordinary thermal efficiency
Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.
*Image shown for illustrative purposes only.
*990 PRO sequential read/write 1,221/1,255 MB/s per Watt, 9100 PRO with Heatsink sequential read/write 1,822/1,703 MB/s per Watt based on the internal test result of the 2TB capacity model.
Slim build. Seamless fit.
Super slim fit. 9100 PRO with Heatsink boasts an incredibly thin 8.8mmT body, compatible with PlayStation® 5, PC, and on laptops, meeting PCI-SIG® D8 specs. Overcome space limits and get ultimate design flexibility to build your most efficient, high-performance system, with the compact M.2 form factor.
*Heatsink in 1/2/4TB with 8.8mmT fits to laptop, desktop PC and PlayStation® 5.
*In 8TB with 11.25mmT fits to PlayStation® 5.*For M.2 SSD requirements for PlayStation® 5, please visit
https://www.playstation.com/support/hardware/ps5-install-m2-ssd/
*Image shown for illustrative purposes only. Actual usage environment may vary.
Secure every victory
Lock in every win with astronomical 8TB capacity. 9100 PRO with Heatsink delivers unthinkably vast space to expand your ever-growing game library. Break free from storage constraints, save every title, and never delete a favorite again.
*Availability may vary depending on market and timing.
Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimization tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.
*For detailed information, please visit Samsung Magician software website.https://semiconductor.samsung.com/consumer-storage/magician/
*For detailed information, please visit Samsung Magician software website.https://semiconductor.samsung.com/consumer-storage/magician/
Bringing innovations to life
For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.
Specifications
-
Interface
PCIe® 5.0 x4, NVMe™ 2.0
-
Sequential Read
Up to 14,700 MB/s * Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 13,300 MB/s * Performance may vary based on system hardware & configuration
-
Warranty
5-year Limited Warranty or 600TBW Limited Warranty
-
Application
Client PCs, Game Consoles
-
Weight
Max 30.0g Weight
-
Dimension (WxHxD)
Max 80.15 x Max 25 x Max 8.88mm (with Heatsink)
-
Application
Client PCs, Game Consoles
-
Capacity
1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Form Factor
M.2 (2280)
-
Interface
PCIe® 5.0 x4, NVMe™ 2.0
-
Dimension (WxHxD)
Max 80.15 x Max 25 x Max 8.88mm (with Heatsink)
-
Weight
Max 30.0g Weight
-
Storage Memory
Samsung V-NAND TLC
-
Controller
Samsung in-house Controller
-
Cache Memory
Samsung 1GB Low Power DDR4X SDRAM
-
TRIM Support
Supported
-
S.M.A.R.T Support
Supported
-
GC (Garbage Collection)
Auto Garbage Collection Algorithm
-
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
-
WWN Support
Not supported
-
Device Sleep Mode Support
Yes
-
Sequential Read
Up to 14,700 MB/s * Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 13,300 MB/s * Performance may vary based on system hardware & configuration
-
Random Read
Up to 1,850,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Write
Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration
-
Average Power Consumption (system level)
Average: Read 7.6 W / Write 7.2 W* Actual power consumption may vary depending on system hardware & configuration
-
Power consumption (Idle)
Typical 4 mW * Actual power consumption may vary depending on system hardware & configuration
-
Power Consumption (Device Sleep)
Typical 3.3 mW * Actual power consumption may vary depending on system hardware & configuration
-
Allowable Voltage
3.3 V ± 5 % Allowable voltage
-
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Operating Temperature
0 - 70 ℃ Operating Temperature
-
Shock
1,500 G & 0.5 ms (Half sine)
-
Installation Kit
Not Available
-
Management SW
Magician Software for SSD management
-
5-year Limited Warranty or 600TBW Limited Warranty
