How to set up an eSIM and nano-sim card on your Galaxy device

Last Update date : 2024-06-03

SIM cards are a vital part of your Galaxy phone. Without one, you won't be able to do anything. It's important to know how to insert and activate a SIM card, or eSIM, just in case you need two phone numbers for a single device.


Before you try the recommendations below, be sure to check if your device's software and related apps are updated to the latest version.

What are a nano-SIM card and an eSIM?

SIM cards give you access to your wireless service provider's mobile data network, so you can make calls, send messages, and more. To have two phone numbers or service providers for a single device, you can activate an eSIM or insert two SIM cards.

Unlike a physical nano-SIM card, an eSIM is an embedded digital SIM. Please note that using both the nano-SIM card and eSIM at the same time may result in slower data transfer speeds in some areas.

SIM card comparison2 SIM card comparison2


SIM card comparison3 SIM card comparison3


  • Dual SIM Scenario: SIM1 (physical SIM) + SIM2 (physical SIM or eSIM)

Insert the dual SIM card tray properly

If you do not insert the SIM card properly, your phone may not recognize it. Check that your SIM card is placed on the tray with the gold-colored contact facing upwards and is fixed firmly into the tray.

Galaxy S22 Series phones that are designed to support dual SIM cards can be placed on both the front and back of the dual SIM card tray with the gold-colored contacts facing outwards.

SIM card tray1 SIM card tray1

SIM1 (Front side)

SIM card tray2 SIM card tray2

SIM2 (Back side)

install SIM card step 1 install SIM card step 1

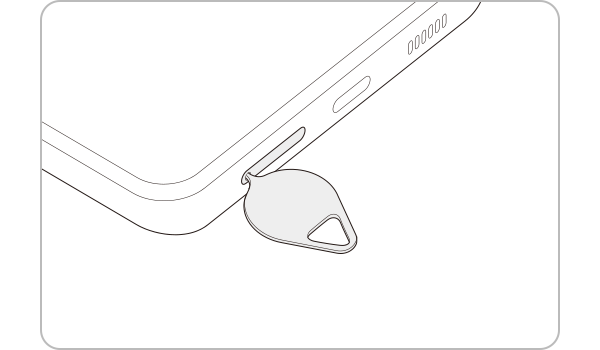

Step 1. Insert the ejection pin into the hole on the tray to release the tray.

install SIM card step 2 install SIM card step 2

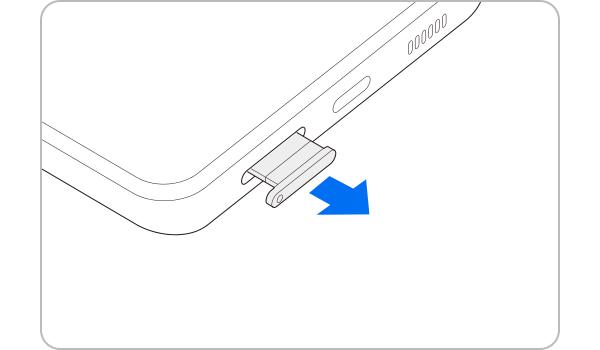

Step 2. Pull the tray out gently from the tray slot.

install SIM card step 3 install SIM card step 3

Step 3. Place the SIM or USIM card on the tray with the gold-colored contacts facing outwards, and gently press the SIM or USIM card into the tray to secure it.

install SIM card step 4 install SIM card step 4

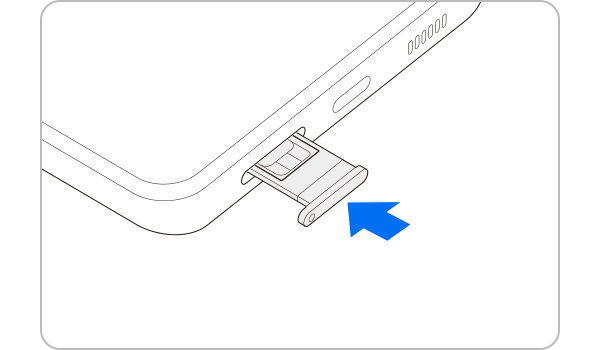

Step 4. Insert the tray back into the tray slot.


  • If the SIM card is not placed exactly in the slots on the tray, returning the tray to the tray slot may not work, or the SIM card may not be recognized once inside.
  • Use only a nano-SIM card.
  • Ensure that the ejection pin is perpendicular to the hole; otherwise, the device may be damaged.
  • If the card is not fixed firmly into the tray, the SIM card may fall out of the tray.
  • If you insert the tray into your device while the tray is wet, your device may be damaged. Always make sure the tray is dry.
  • Fully insert the tray into the tray slot to prevent liquid from entering your device.

Your Galaxy phone includes an eSIM, which functions as a SIM card. You can use the mobile network after activating the eSIM or installing a nano-SIM card. To activate an eSIM, follow the steps below.

activate an eSIM step 1 activate an eSIM step 1

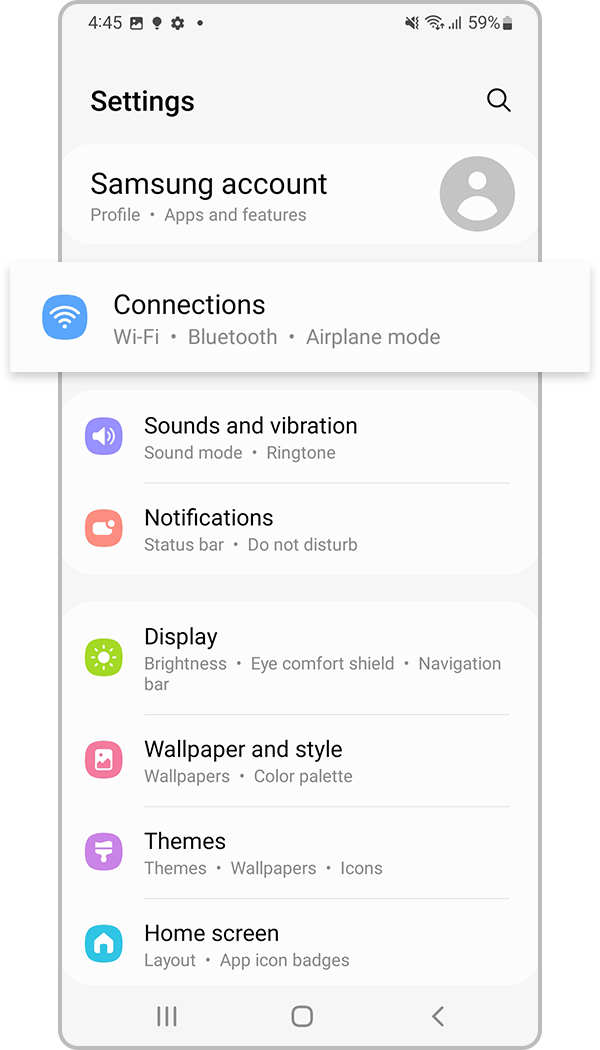

Step 1. Launch the Settings app and tap Connections.

activate an eSIM step 2 activate an eSIM step 2

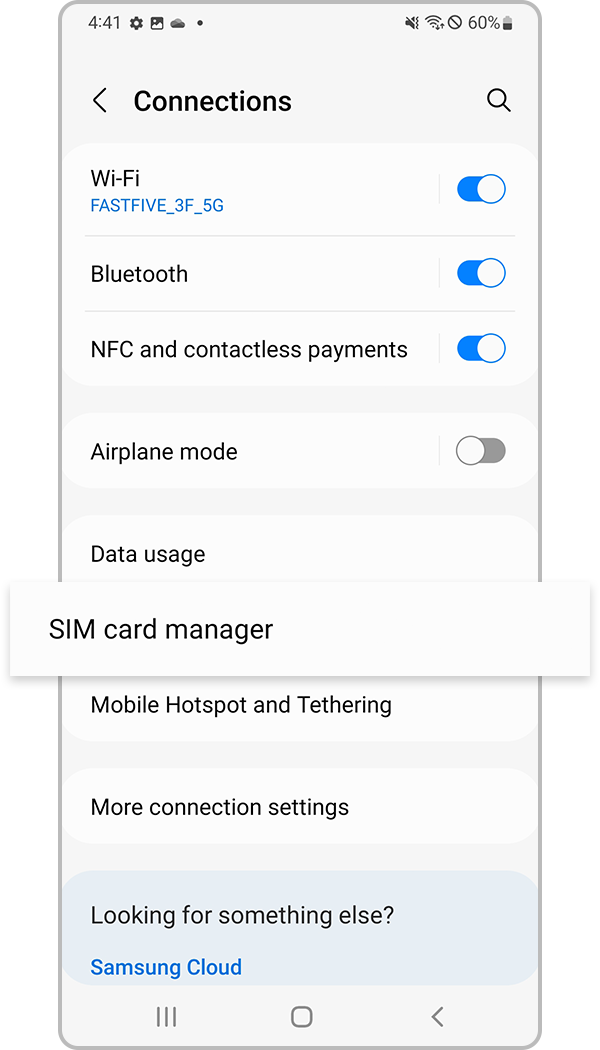

Step 2. Tap SIM card manager.

activate an eSIM step 3 activate an eSIM step 3

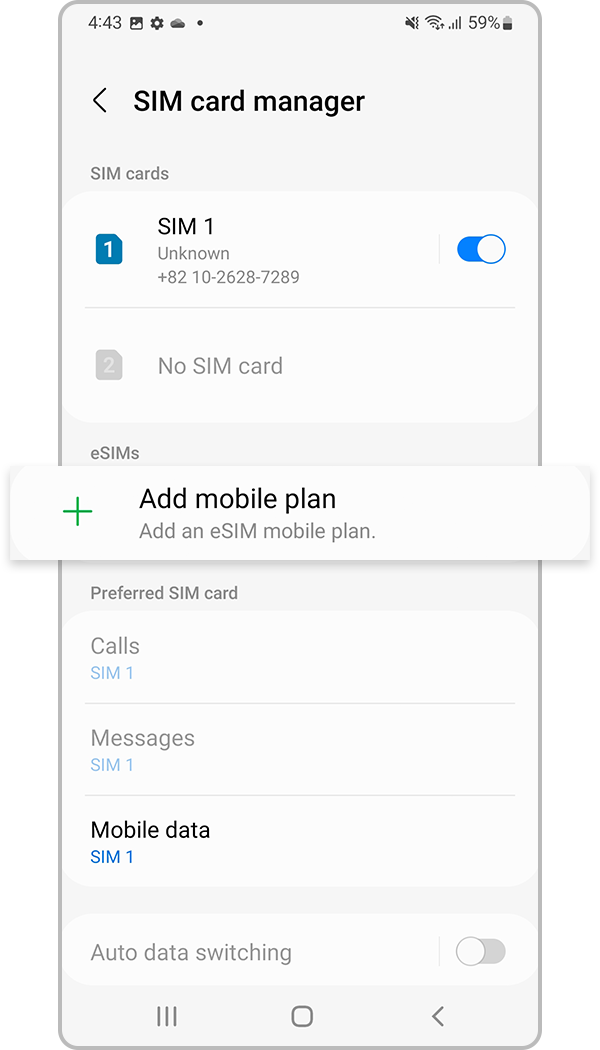

Step 3. Tap Add mobile plan.

activate an eSIM step 4 activate an eSIM step 4

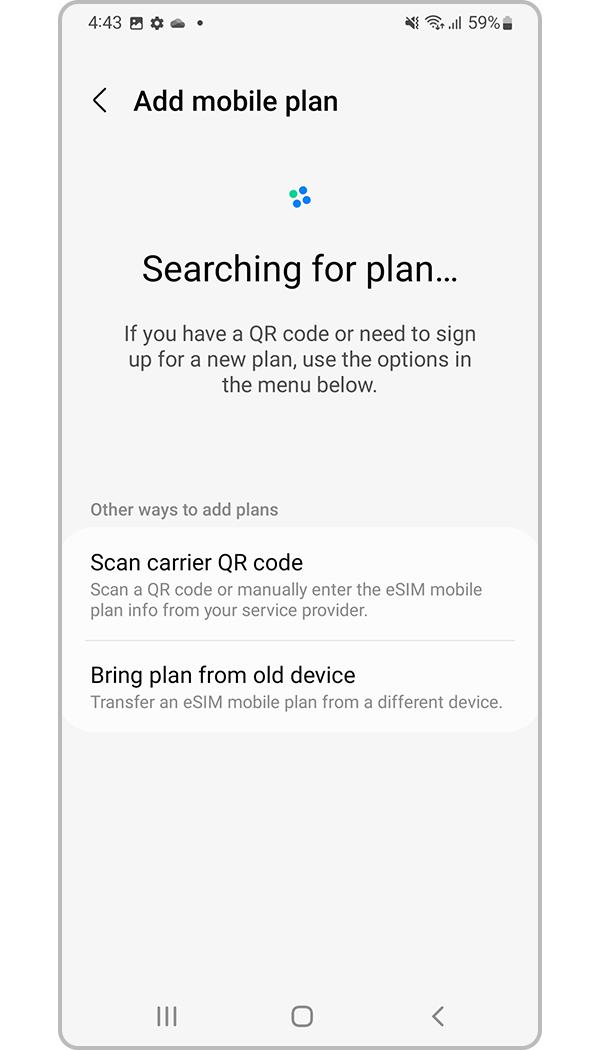

Step 4. When a mobile plan is found, follow the on-screen instructions to activate the eSIM.

If you have a QR code provided by your service provider, launch the Settings app, tap Connections > SIM card manager > Add mobile plan > Scan carrier QR code, and then scan the QR code.


  • An eSIM requires a wireless service plan and allows you to activate a mobile network plan without the use of a nano-SIM.
  • eSIM usage may not be available depending on the region, service provider, or model.
  • You can have only one active eSIM at the same time.

You can customize the SIM card settings and activate or deactivate installed SIM cards in the SIM card manager menu. Launch the Settings app and tap ConnectionsSIM Card Manager.

  • SIM cards: Activate the SIM card you want to use and customize the SIM card settings.
  • eSIMs: Activate the eSIM.
  • Preferred SIM card: Specify which SIM cards you want to use for specific features, such as voice calls, when there are two cards activated.
  • Auto data switching: Set the device to use another SIM card for data services, if the preferred SIM card cannot connect to the network.
  • More SIM card settings: Customize the call or eSIM settings.


  • Some services that require a network connection may not be available, depending on the service provider.
  • Device screenshots and menus may vary depending on the device model and software version.
  • To verify If your device is compatible with eSIM, please call our contact center and our helpful agents will assist you.
