Connect Devices to Samsung TV

Last Update Date : Feb 13. 2020

Note: This help content is only applicable to the product purchased from Indian retailers. If you require help for the products purchased from US, Kindly visit Samsung US support section and for other countries, kindly contact your local Samsung Subsidiary.

You can watch live broadcasts by connecting an antenna and antenna cable to your TV and can get access to the Internet by using a LAN cable or wireless router. Using various connectors, you can also connect external devices.

Auto ConnectionClick to Expand

Note: This option is only available in latest TV series.

The TVs found in most homes these days have various connected entertainment devices such as over-the-top devices, set-top boxes, Blu-ray players, and game consoles. It can be a pain to manage the connections. But Auto Detection makes finding connected devices simple. Ever connected multiple HDMI devices to your TV only to get confused about which device was on which HDMI channel? Perhaps you’re familiar with flicking through the TV/AV channel input selection menu trying to find where the DVD player is? Ready to give up? No need, as Auto Detection solves those problems. It knows more about your various devices than you’d expect. When a device is connected via one of the TV’s HDMI ports, the Auto Detection function finds it automatically and displays the name of the device. No more wondering whether your game device is HDMI1 or 2.


Alternatively, you can also use Remote to select Source.

View the Connection GuideClick to Expand

If you're not sure how to connect a device, like a video game console or PC, you can view a connection guide on your TV for help. Just use the TV remote to select Source, and then select Connection Guide. It will show you how to connect various devices.

Note: This option is only available in latest series of TVs.

Connecting an Antenna (Aerial)Click to Expand
1 Connect the RF cable wire into the coaxial cable port of your Cable box / Satellite receiver.
2 Please apply the auto tuning and check whether TV is working well.

Steps to Auto Tune:

New Model Line Up: Home > Settings > Broadcasting > Auto Tunning

Old Model Line Up: Menu> Broadcasting > Auto Tunning

Connecting Video Device through Composite CableClick to Expand

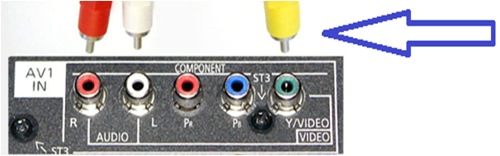

1 Plug white & red jack to white (L) & red port (R), Yellow to the green socket (will only work if the TV is actually compatible to a composite signal )
2 Press Source button from TV remote, select AV.
Connecting Video Device through Component CableClick to Expand
1 Plug white & red jack to white(L) & red port (R), Yellow to the green ,Red goes to red(Pr), blue to blue (Pb) socket

Note: New Series with One Connect Box has different port. Check below Image for connectivity.

2 Press Source button from TV remote ,select component.
Connecting through HDMI cableClick to Expand
1 Connect HDMI cable into the HDMI In port of the One Connect Box /LED TV.
2 Connect the other end of the HDMI cable into the HDMI Out port of your Set top box.
3 Press the Home button on your OneRemote.
4 Using the Directional pad on your remote, navigate to and select Source HDMI.
5 if problem not solved then try to replace cables or contact to set top box service provider.
Audio Input and Output ConnectionsClick to Expand

Make the correct audio connections between your TV and your external devices.


a) Connecting with an HDMI (ARC) cable:

Audio Input and Output Connections

b) Connecting with a digital audio (optical) cable:

Audio Input and Output Connections

c) Connecting through a wireless network:


You can connect the TV to a Samsung Audio Device that supports the Wi-Fi function through your wireless network. The two devices must be connected to the same network. For more information, refer to the user manual for your audio model.


d) Connecting Bluetooth Devices:


For more information about how to connect and use external speakers, refer to the Connection Guide: Home > Source > Connection Guide > Audio device > Bluetooth) and their user manuals.


Learn How to connect Bluetooth Headphones in QLED?

Connecting a computerClick to Expand

Use the TV as a computer monitor or connect the TV to a computer via your network and access the computer's content.


Connecting through the HDMI port ― Screen Sharing (HDMI)

Audio Input and Output Connections

Please note: When you have connected a PC, go to Source, and then select the PC icon from the external device icon list
