How to set up the video display/output options on Home Cinema System (HT-BD1252)?

Last Update Date : Dec 06. 2018

Refer to the information below to know the way to setting up the video display/output options.

Blu-ray Disc playback

Table

HDMI

Component
(HDMI & Comp. connected/Comp. connected only)

Video

1080p Movie Frame (24 Fs) only

1080p @ 60F

1080i

480i

1080p/1080i, Movie Frame (24 Fs) on

1080p @ 24F

480i/1080i

480i

1080i, Movie Frame (24 Fs) off

1080i

1080i

480i

720p

720p

720p

480i

480p

480p

480p

480i

480i

480p

480i

480i

DVD playback

Table

HDMI

Component
(HDMI & Comp. connected/Comp. connected only)

Video

1080p

1080p @ 60F

480i/480p

480i

1080i

1080i

480i/480p

480i

720p

720p

480i/480p

480i

480p

480p

480i/480p

480i

480i

480p

480i

480i

Please note:
• In DVD playback, if both HDMI and Component jacks are connected and you have selected the Component 1080p, 1080i or 720p mode, the Display Setup menu will show the output resolution as 1080p, 1080i or 720p in the menu. The resolution is actually 480i
• This player has the HDMI Auto Detect Feature. When the player is first connected to a TV via HDMI, the player's output will be set automatically to HDMI
• If the HDMI Auto Detection feature does not work, you can't select the 1080p resolution or Movie Frame (24Fs)
• The Blu-ray Disc must have the 24 frame feature in order to use the Movie Frame (24Fs) mode

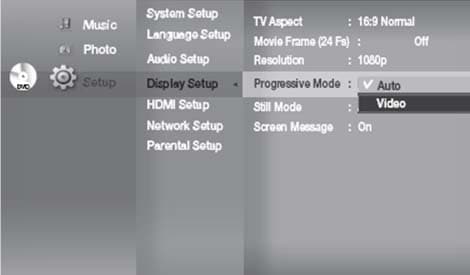

Progressive Mode

The Progressive Mode helps to improve picture quality when viewing 480i resolution DVD discs.

Progressive Mode

• Auto: Select this to have the player automatically set the best picture for the DVD you're watching
• Video: Select this for the best picture from Concert or TV show DVDs

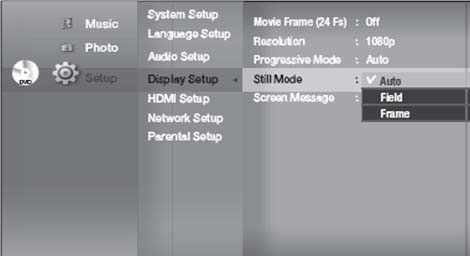

Still Mode

Set the Auto, Field or Frame setting for the best possible still picture (pause mode) from a DVD.

Still Mode

• Auto: Select this setting to have the player automatically display the best Still picture depending on the content
• Field Mode: Select this when pausing a scene with a lot of action
• Frame Mode: Select this to increase the resolution of the Still picture

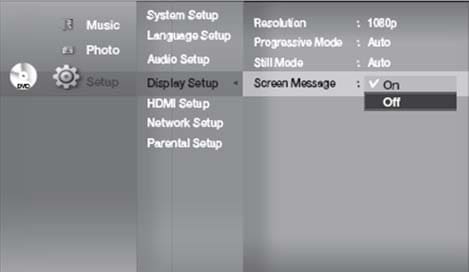

Screen Message

Screen Message

• On: Displays messages related to operation mode
• Off: Does not display messages related to operation mode
