IEC Series Indoor LED Cabinet (P0.9)
IEC Series Indoor LED Cabinet (P0.9)
LH009IECCACZA


- Images must be in BMP, PNG, GIF or JPEG format.
- File size must be 5 MB or less.
- Image must be at least 100 pixels tall.
- Image must be at least 100 pixels wide.
- It contains copyrighted media (and you don't hold the copyright)
- It contains media not related to the product
We may not publish your review if:
- It contains copyrighted media (an you don't hold the copyright)
- It contains media not related to the product
- for Business
- • Samsung's IEC series indoor LED display features 600nit brightness for brilliant, captivating visuals
• Flexible design supports various scenarios including hanging, stacking, and L-type installation
• Compact design with a super-slim, 38mm lightweight cabinet can
Unlock Net 30, 60, 90 terms or pay in monthly installments Apply Now

Finding the perfect fit can be a challenge. Now you can shop worry-free unlike ever before.
- Buy now by paying in full or with unbeatable Samsung Financing.
- Try out your purchase for up to 100 days, risk-free.
- Then, keep it or return it and get a full refund.

Captivate potential customers with brilliant displays
Samsung’s IEC series indoor LED display creates a brilliant centerpiece in any environment. Crisp, clear visuals capture audience attention while its flexible design supports various installation scenarios, giving customers a more immersive experience.
Maximize customer immersion with eye-catching visuals
The IEC series provides consistent, flawless content even when viewed from a close distance. Featuring 600nit brightness, the vibrant visuals will catch the eye of potential customers, whether they're passing by or already on their way into the store.

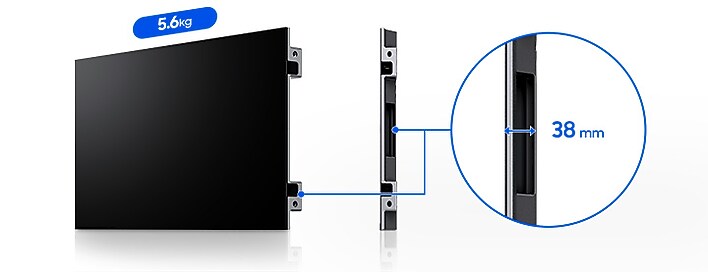

Compact design for effortless installation
Install with ease. Samsung’s IEC series now offers much simpler installation, meaning the display can be up and running quicker than ever before. Measuring just 38mm in depth and weighing only 5.6kg,* the super slim and lightweight cabinet can be set up easily by one person.
Versatile displays for installation in any location
More options for every environment. A variety of installation options make the IEC series an optimal solution for any business. Multiple accessories are provided to enable an easy display set up across a range of environments, including hanging, stacking, and L-type installation.

Specifications
Specifications
-
Physical Parameter Pixel Pitch
0.9375
No. of Modules (WxH ,per Cabinet)
2 x 2
Dimensions (mm ,WxHxD ,per cabinet)
600 × 337.5 × 38
Physical Resolution of Cabinet (W x H)
640 x 360
Pixel Density (㎡)
1,137,777
Pixel Density (Cabinet)
230,400
Physical Resolution of Module (W × H)
320 × 180
LED Module Dimensions (WxH) (mm)
300 × 168.75
Weight per Cabinet (kg)
5.6±0.3
Weight per ㎡ (kg)
28±1.5
Cabinet Material
Aluminum Diecasting
-
Optical Parameter Contrast Ratio
4,000 : 1
Viewing Angle - Horizontal
160°
Viewing Angle - Vertical
140°
Bit Depth
14
Color Temperature (Default)
12,000K±500K
Color Temperature (Adjustable)
3,500 ~ 12,000K
Colours
4.4 trillion
-
Electrical Parameter Power Consumption (Max)
626 (W/㎡) / 126.76 (W/Cabinet)
Power Consumption (Typical)
208.6 (W/㎡) / 42.24 (W/Cabinet)
Power
AC100-240V, 50/60Hz
Heat Power Consumption per Cabinets (BTU)
Max 432.5 / Typical 144.12
Refresh Rate (Hz)
3,840
-
Operation Conditions Cooling
Self
IP Rating
IP 30
Operating Temperature
-10°C to 40°C
Operating Humidity
10% to 80%
Storage Temperature
-20°C to 60°C
Storage Humidity
10% to 90%
LED Lifetime Hr
100,000
-
Package Box Dimension (mm ,WxHxD)
892 x 568 x 708 (8 in 1)
Box Volume (m³)
0.359
Package Weight (kg)
70±1 (1 Box & 8 cabinets)
Accessory in Box
Module, Sending box, Receiving card, Hub boards, SMPS, Screws, Cables and so on
-
Certification EMC
Class A
-
Service Service
Front
-
Etc. Info. Curve Support (-:concave : convex) (˚)
-90° ~ 0°
