Use the racks in your Samsung wall oven

Samsung Flex Duo oven with racks and divider inserted

Where you put your racks matters. Different rack positions for the racks (including the gliding rack) will have effects on your cooking, and so each type of food has a recommend rack to use. Your divider (which splits the oven into two ovens on supported models) only has one specific slot it can go in. When it's inserted, there's a different set of recommendations for rack positions.

Use the oven racks

Caution: Use oven mitts when inserting or removing the racks, and make sure the oven is cool before proceeding.

Remove the Racks

    1. Pull the rack straight out until it stops.

    2. Lift up the front of the rack, and then pull it out completely.

    Illustration demonstrating rack removal from a Samsung oven

Replace the Racks

    1. Place the back end of the rack on the support.

    2. Tilt the front end up, and then push the rack into place.

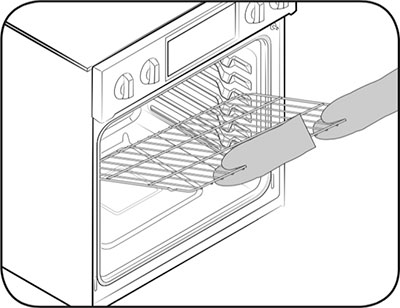

    Illustration demonstrating rack insertion in a Samsung oven

Oven rack positions

Oven Rack Positions (Single Mode)
• Broiling hamburgers                      6
• Broiling meats or small               4-6
cuts of poultry, fish
• Bundt cakes, pound cakes,     4 or 3
frozen pies, casseroles
• Angel food cakes, small                2
roasts
• Turkey, large, roast, hams,           1
fresh pizza

Oven Rack Positions with Divider (Flex Mode)
Note: The upper oven has 2 rack positions (5,6).
The lower oven has 4 rack positions (1-4).
• Frozen pies                                    5 or 2
• Angel food cakes                             2
• Bundt or pound cakes                    2
• Muffins, brownies, cookies,     5 or 2
cupcakes, layer cakes, pies,
biscuits
• Casserole                                       5 or 2
• Small roast, hams                       5 or 2
• Small turkey, medium roast         1

Picture demonstrating rack positions of a Samsung oven. They are numbered 1-6 starting at the bottom.

Oven rack and pan placement

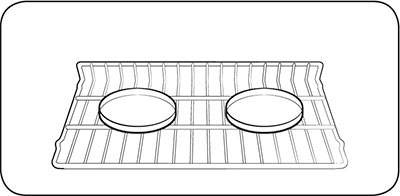

Center the baking pans when placing them on the racks for the best result.

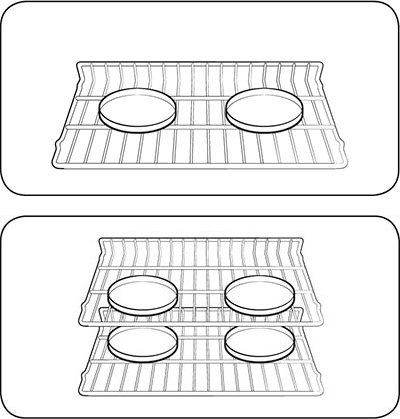

Illustration depicting pan spacing for single oven or flex duo cooking on a Samsung oven

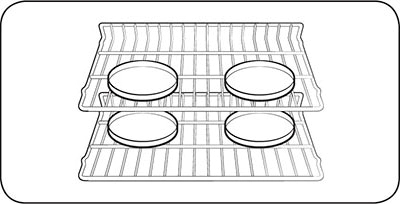

When baking cakes and cookies on multiple racks, place the oven racks in position 3 and 5.

Use the oven's gliding rack

Caution: Make sure the gliding rack is in a closed position, and the oven is off and cool.

Install and uninstall the gliding rack

    1. To install the gliding rack, with the gliding rack in a closed position, carefully insert the gliding rack between the guides until it reaches the back.

      Note: Do not install the gliding rack directly above the flat rack. The rack could fall.

    2. To remove the rack, grasp the rack and frame together, and then pull both forward.

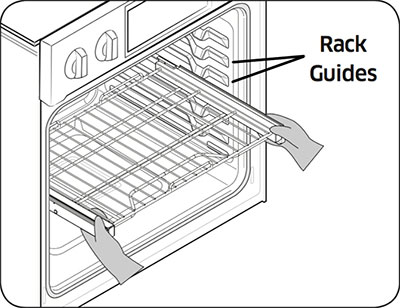

    Illustration depicting the gliding rack and its guides on a Samsung oven

Use the gliding rack

Caution: Make sure you use oven mitts when handling the gliding rack while cooking.

    1. Pull in and out the gliding rack, holding the handle of the rack.

      Note: If you grasp the frame to slide the rack out, the entire gliding rack will be removed.

    2. To glide the rack back in, grasp the handle of the rack, and then push it into place.

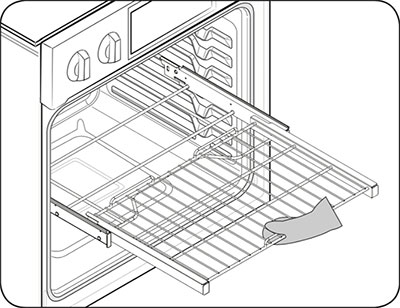

    Illustrating showing the gliding rack extended in a Samsung oven

Install the oven's divider (Flex Duo)

Caution: Handle the divider with both hands, and use oven mitts when you insert or remove the divider.

Note: To use flex mode, you must insert the divider.

To install the divider into the oven cavity

    1. Insert the divider into the 4th rack position.

    2. Push the divider in until its back end rests against the back of the cavity.

      Note: When the oven displays -dC-, check if the divider is installed correctly.

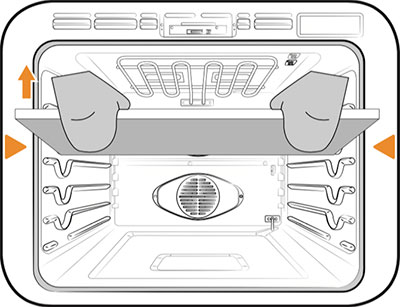

    Illustration showing the divider being inserted into a Samsung oven
