Control panel, Run calibration, and Cycle chart: WA50B5100** / WA49B5105**

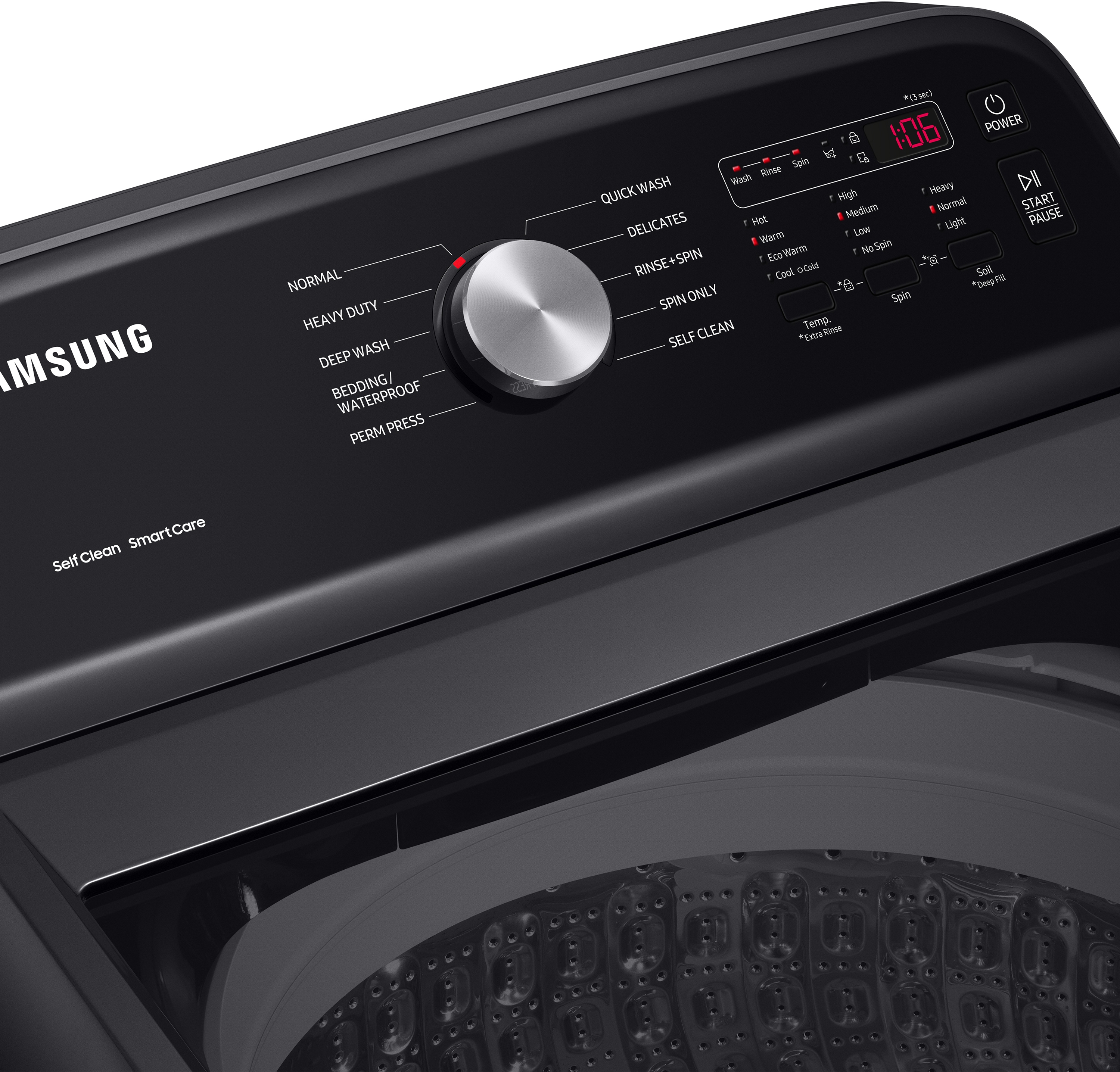

The control panel can be found at the top of the washer, in the back.
Control panel, Run calibration, and Cycle chart: WA50B5100** / WA49B5105**

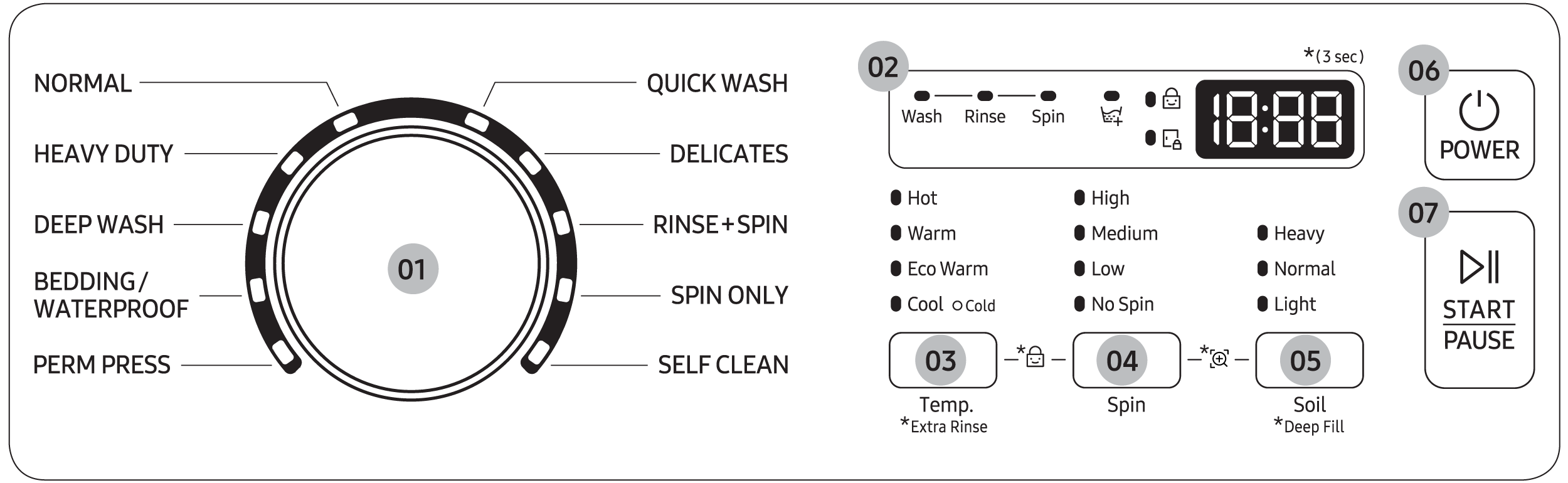

Control Panel
- Cycle Selector
- Display
- Temp.
- Spin
- Soil
- Power
- Start/Pause
Calibration
You can run calibration for accurate weight detection. Make sure the tub is empty before running calibration.
- Press POWER to turn on the washer.
- Press and hold Temp. and Soil simultaneously for 3 seconds.
- Press and hold START/PAUSE to start calibration.
Note: The tub rotates clockwise or counterclockwise for approximately 2 minutes. - When complete, "0" appears on the display, and the washer turns off automatically.

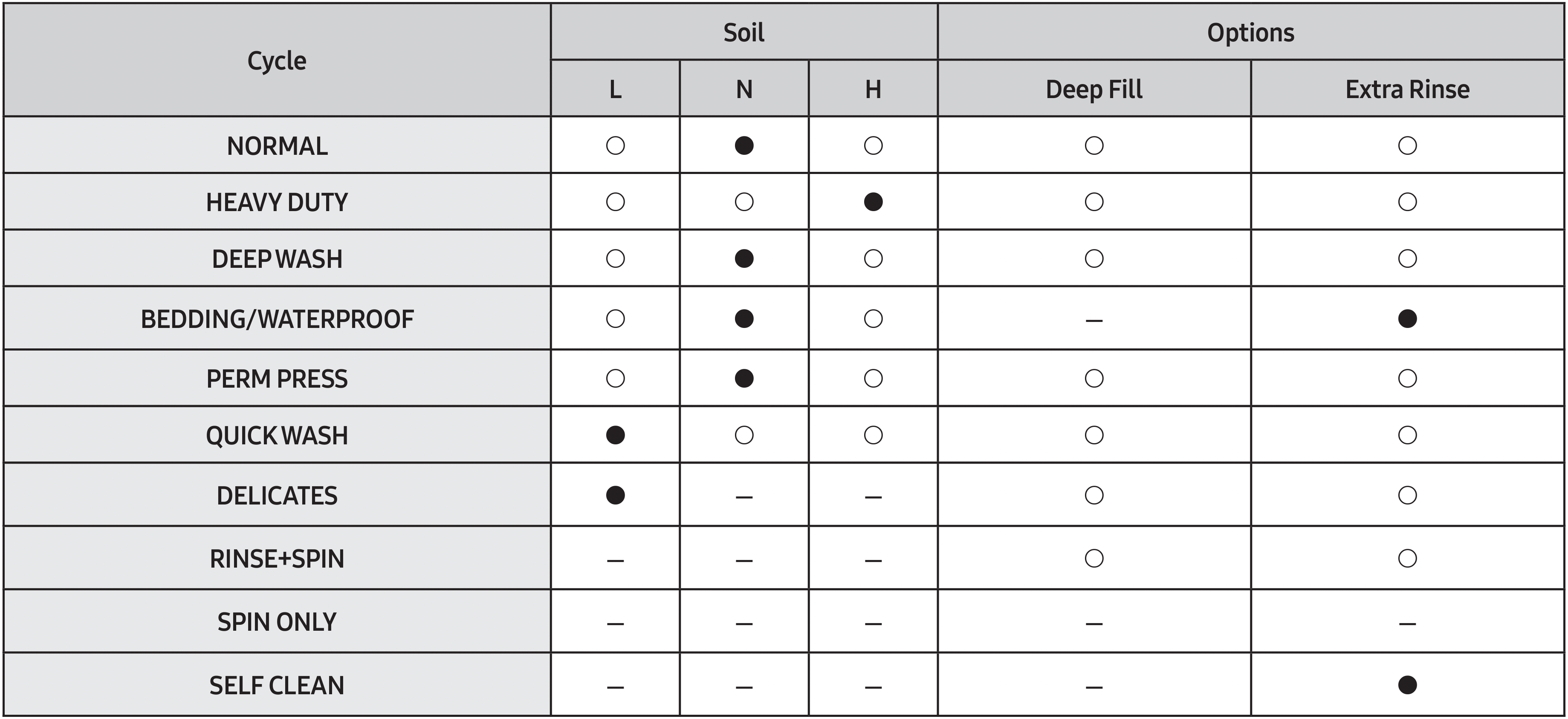

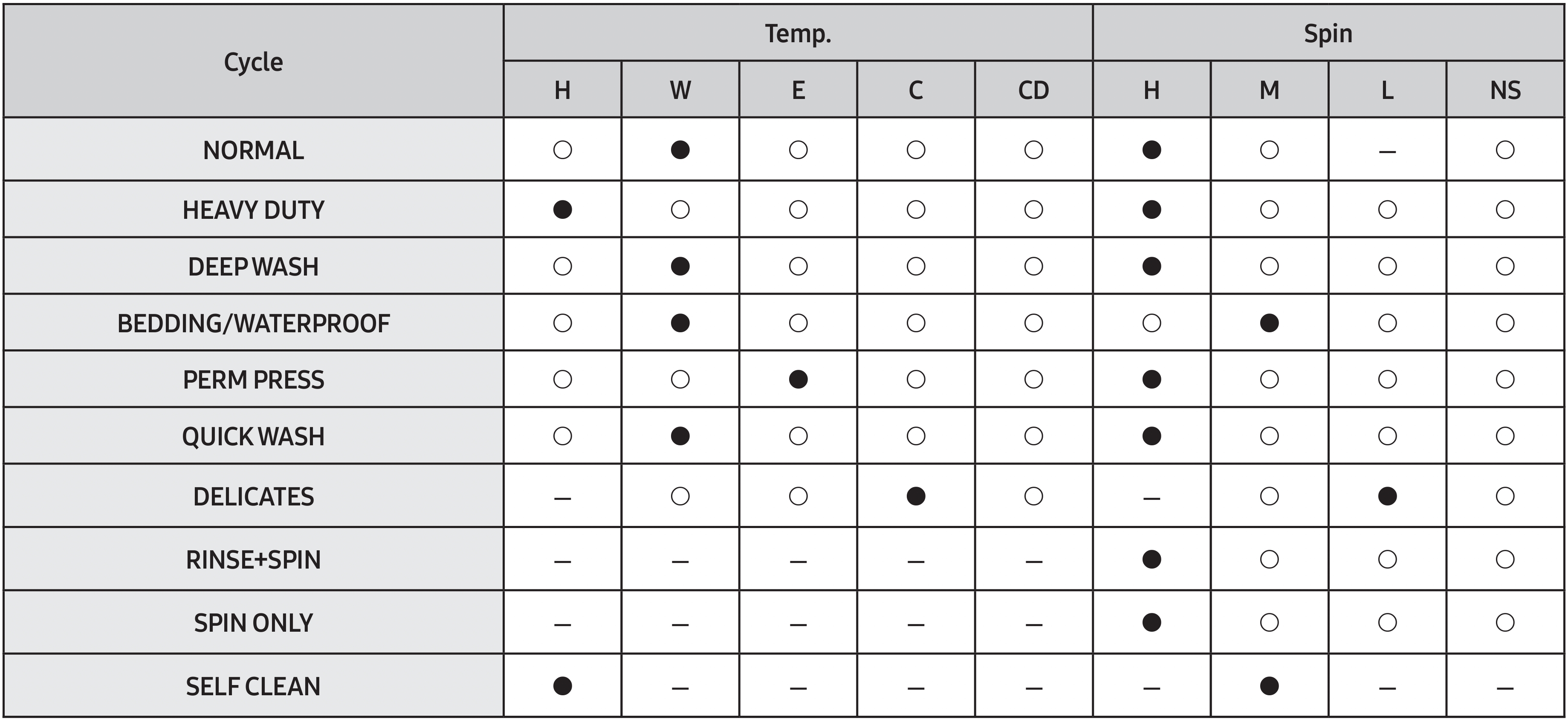

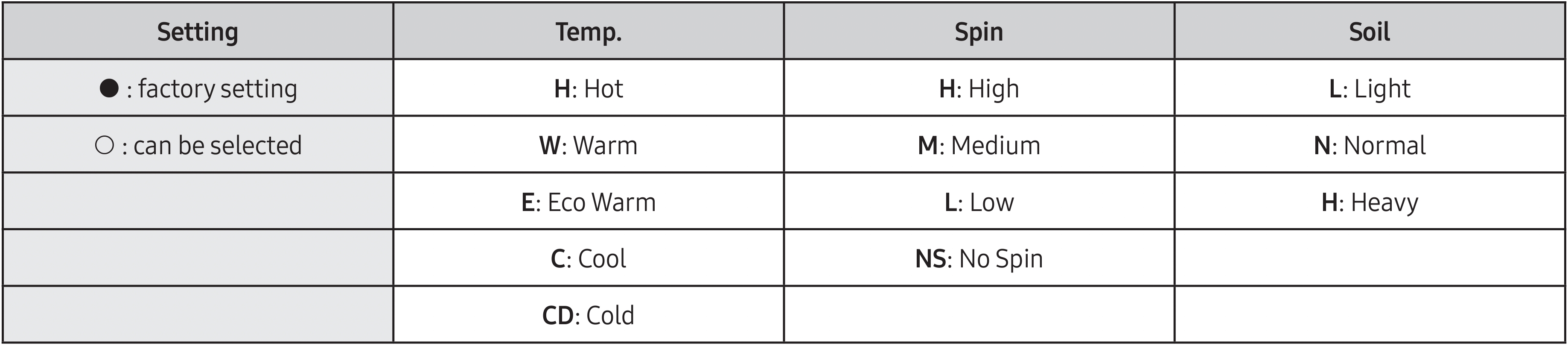

Cycle Chart
Use this chart to set the best cycle and options for your laundry.
