Control panel, Clock, The Sabbath Option, Demo mode, and Temperature adjust: NX60*65**S*

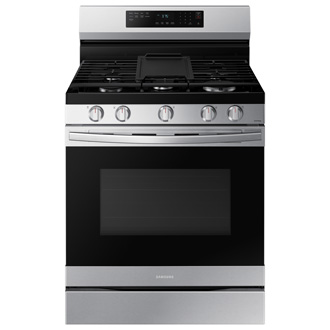

The range has control knobs for the cooktop above the oven door and a control panel for the oven at the back, above the cooktop.
Control panel, Clock, The Sabbath Option, Demo mode, and Temperature adjust: NX60*65**S*
Control panel
- Oven modes
- Air Fry
- Self Clean
- Keep Warm
- Bread Proof
- Dehydrate
- Timer Off (3 sec)
- Cook Time
- Delay Start
- Smart Control
- Oven Light
- Numbers
- Clock
- Lock
- OFF/CLEAR
- START/SET
Clock
- Press the Clock.
- Enter the current time using the number pad.
- Press START/SET to confirm the settings.
Sabbath option
- Press Bake.
- Enter a desired temperature using the number pad. The default temperature is 350°F.
- Press START/SET. The display temperature changes after the oven temperature reaches 175°F.
- Press Bake and Number 1 simultaneously for 3 seconds to display "SAb". Once "SAb" appears, the oven control no longer beeps or displays any further changes.

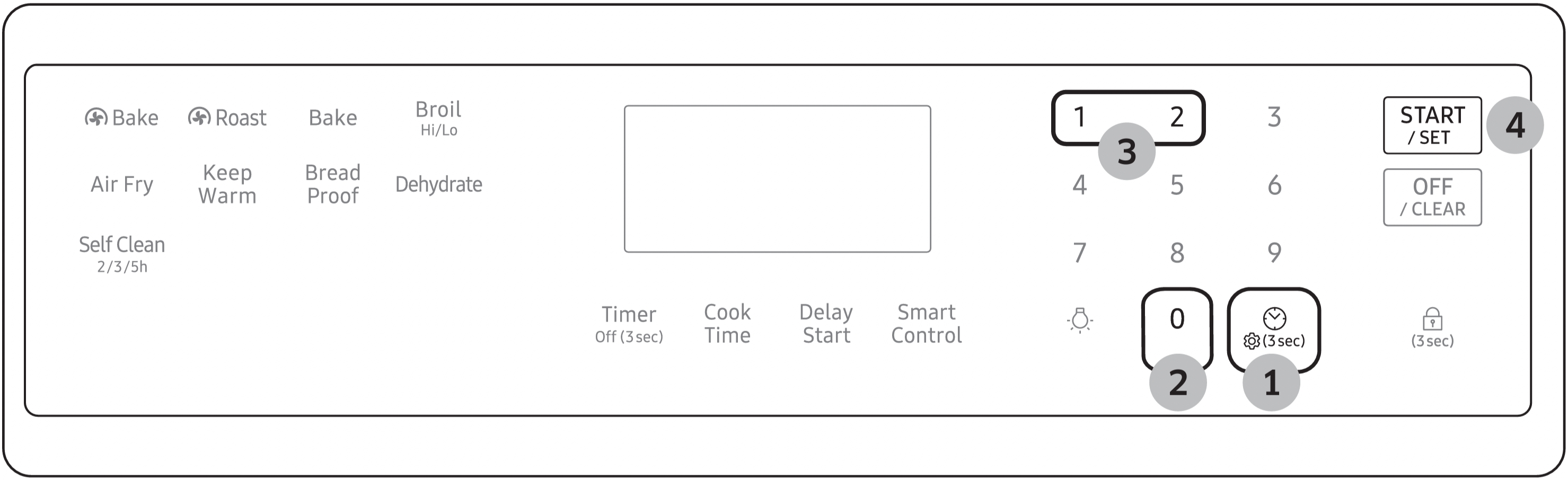

Demo mode
- Press and hold Clock for 3 seconds.
- Press 0 to enter Demo mode.
- Press 1 or 2 to turn Demo mode on or off. (1 to on, 2 to off)
- Press START/SET to save the change.

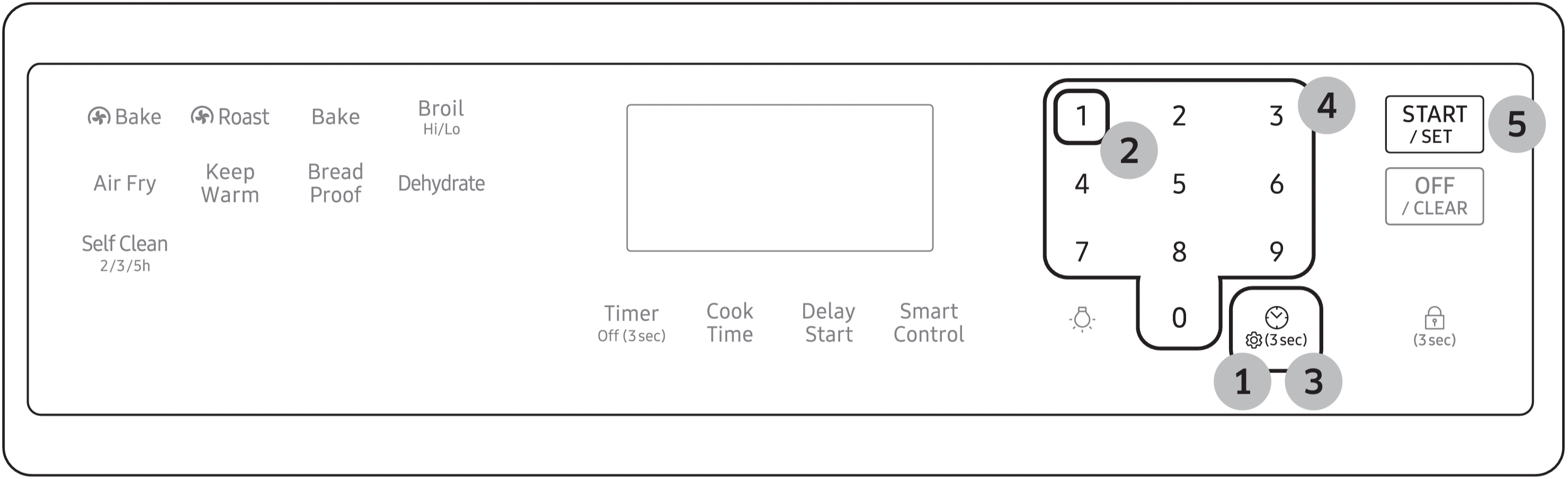

Temperature adjust
- Press and hold Clock for 3 seconds.
- Press 1 to enter Temperature adjust.
- Press Clock to select a higher(+) or lower(-) temperature.
- Enter an adjusting temperature value (0-35) using the number pad.
- Press START/SET to save the change.
