Control panel, Clock, The Sabbath Option, Demo mode, Temperature adjust, Sound, and WI-FI On/Off: NX60*61**S*

The range has control knobs for the cooktop above the oven door and a control panel for the oven at the back, above the cooktop.

Control panel, Clock, The Sabbath Option, Demo mode, Temperature adjust, Sound, and WI-FI On/Off: NX60*61**S*

Control panel

Zoom Icon
Control Panel
Zoom Icon
Control Panel
<
Illustration
>

  1. Oven modes
  2. Keep Warm
  3. Bread Proof
  4. Timer
  5. Cook Time
  6. Delay Start
  7. Smart Control
  8. Oven Light
  9. Up/Down
  10. Clock
  11. Panel Lock
  12. OFF/CLEAR
  13. START/SET

Clock

Zoom Icon
Clock
<
Illustration
>

  1. Press the Clock/Setting button.
  2. Set the hours using Up and Down. Then, press START/SET to confirm the hours.
  3. Set the minutes using Up and Down.
  4. Press START/SET to confirm the settings.

The Sabbath Option

Zoom Icon
The Sabbath Option
<
Illustration
>

  1. Press Bake.
  2. Enter a desired temperature using the Up or Down pad. The default temperature is 350 °F.
  3. Press START/SET. The display temperature changes after the oven temperature reaches 175 °F.
  4. Press Bake and Up simultaneously for 3 seconds to display "SAb". Once "SAb" appears, the oven control no longer beeps or displays any further changes.

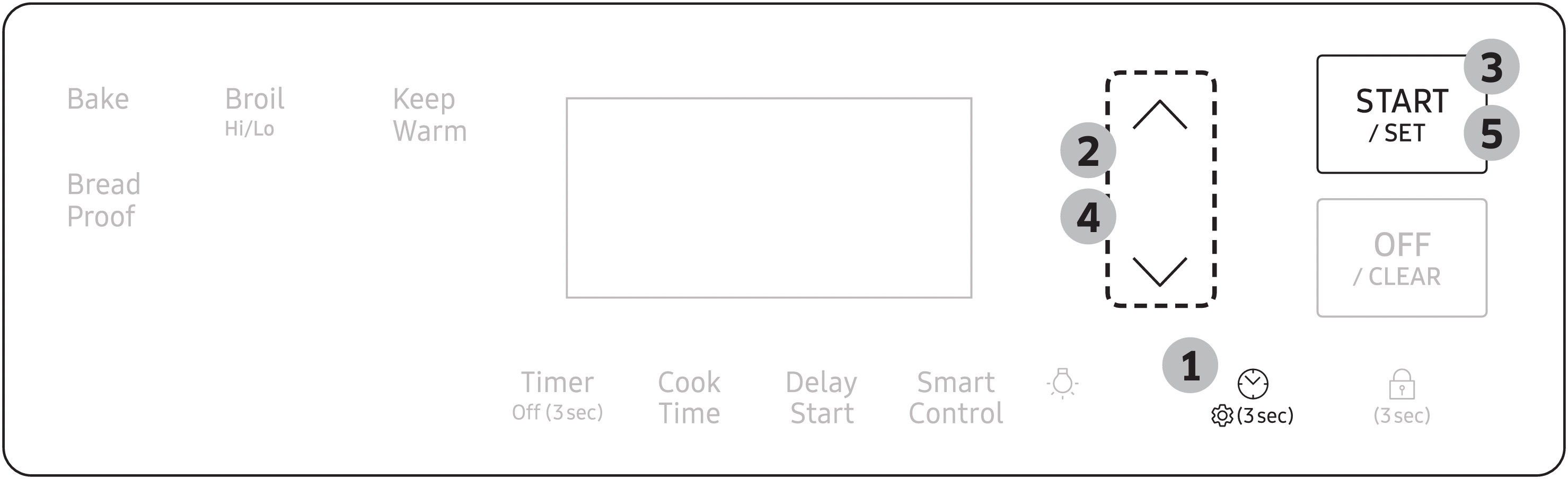

Demo mode

Zoom Icon
Demo mode
<
Illustration
>

  1. Press and hold the Clock/Setting button for 3 seconds.
  2. Press Up or Down to set the number to 0.
  3. Press START/SET to enter to Demo mode.
  4. Press Up or Down to select Off or On.
  5. Press START/SET to save the change.

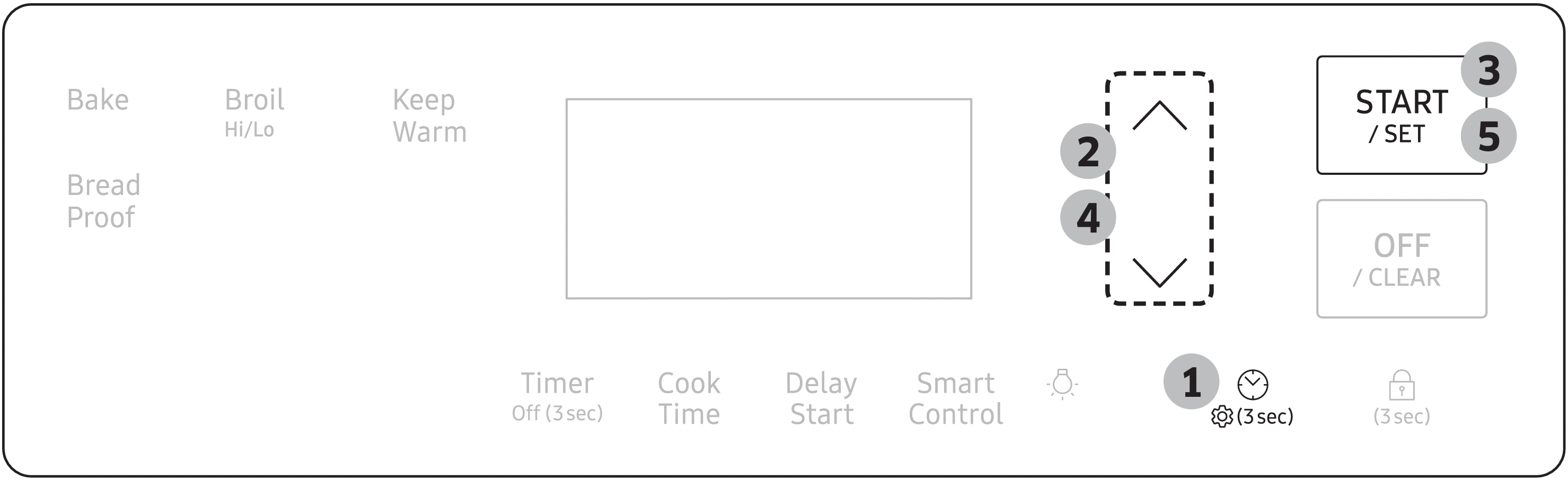

Temperature adjust

Zoom Icon
Temperature adjust
<
Illustration
>

  1. Press and hold the Clock/Setting button for 3 seconds.
  2. Press Up or Down to set the number to 1.
  3. Press START/SET to enter to Temperature adjust.
  4. Press Up or Down to enter an adjusting temperature value (-35~35).
  5. Press START/SET to save the changes.

Sound

Zoom Icon
Sound
<
Illustration
>

  1. Press and hold the Clock/Setting button for 3 seconds.
  2. Press Up or Down to set the number to 4.
  3. Press START/SET to enter to Sound.
  4. Press Up or Down to select On or Off.
  5. Press START/SET to save the change.

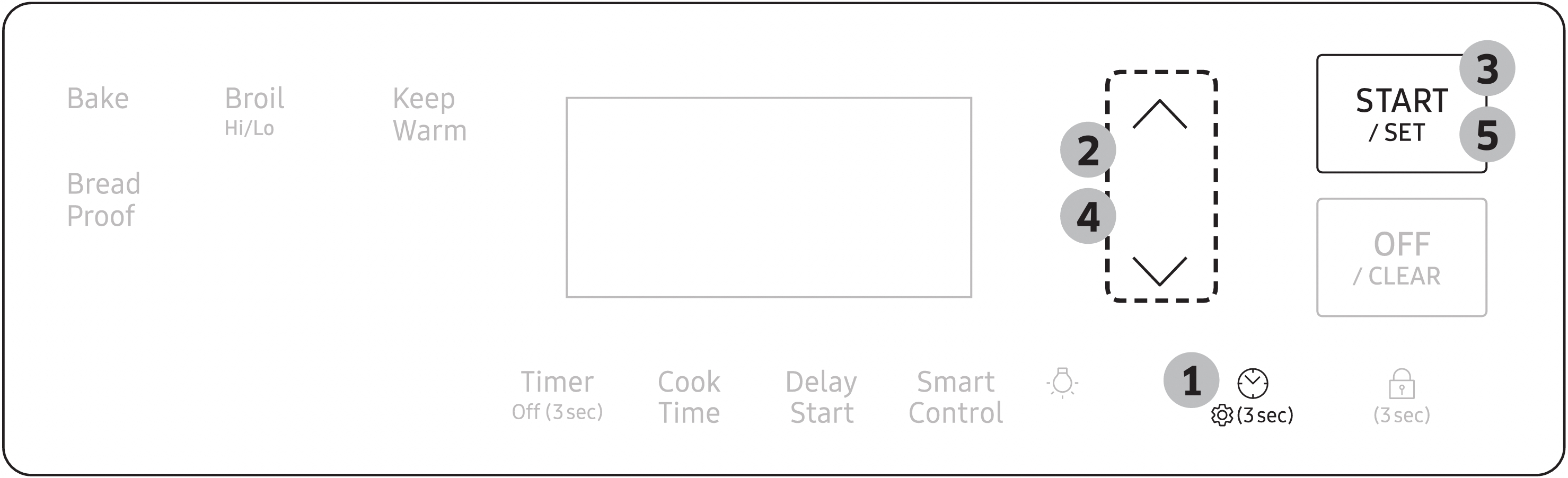

Wi-Fi On/Off

Zoom Icon
Wi-Fi On/Off
<
Illustration
>

  1. Press and hold the Clock/Setting button for 3 seconds.
  2. Press Up or Down to set the number to 5.
  3. Press START/SET to enter to Wi-Fi.
  4. Press Up or Down to select On or Off.
  5. Press START/SET to save the change.
