Control panel and Cycle chart: DW80CG545*, DW80CG542*, DW80CG502*, DW80CB545*

The controls for the dishwasher can be found on top of the door. You may have to open the door slightly to see them.

Control panel and Cycle chart: DW80CG545*, DW80CG542*, DW80CG502*, DW80CB545*

Control Panel

Zoom Icon
CG545*, CG542*, CB545*
Zoom Icon
CG502*
Zoom Icon
CG545*, CG542*, CB545*
Zoom Icon
CG502*
<

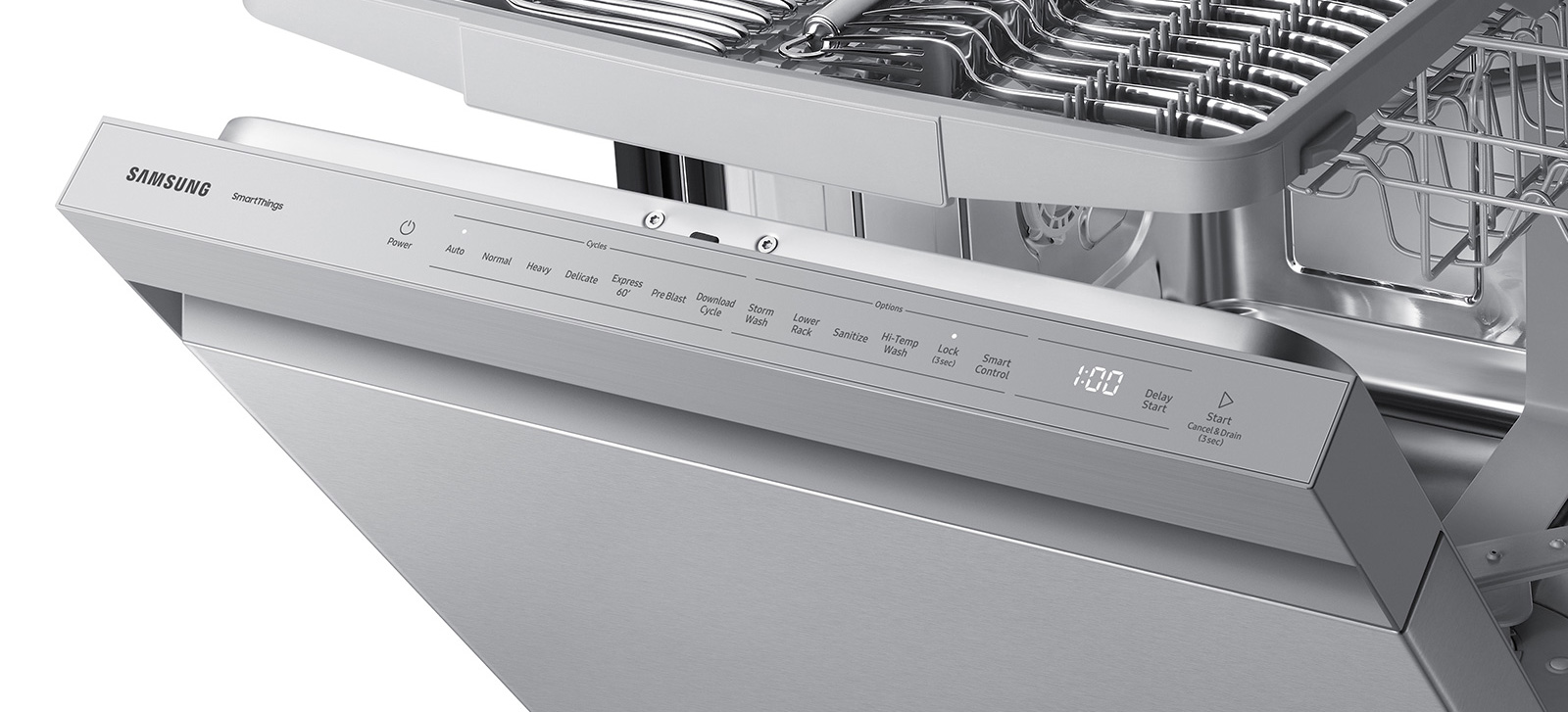

Picture (CG545*, CG542*, CB545*)

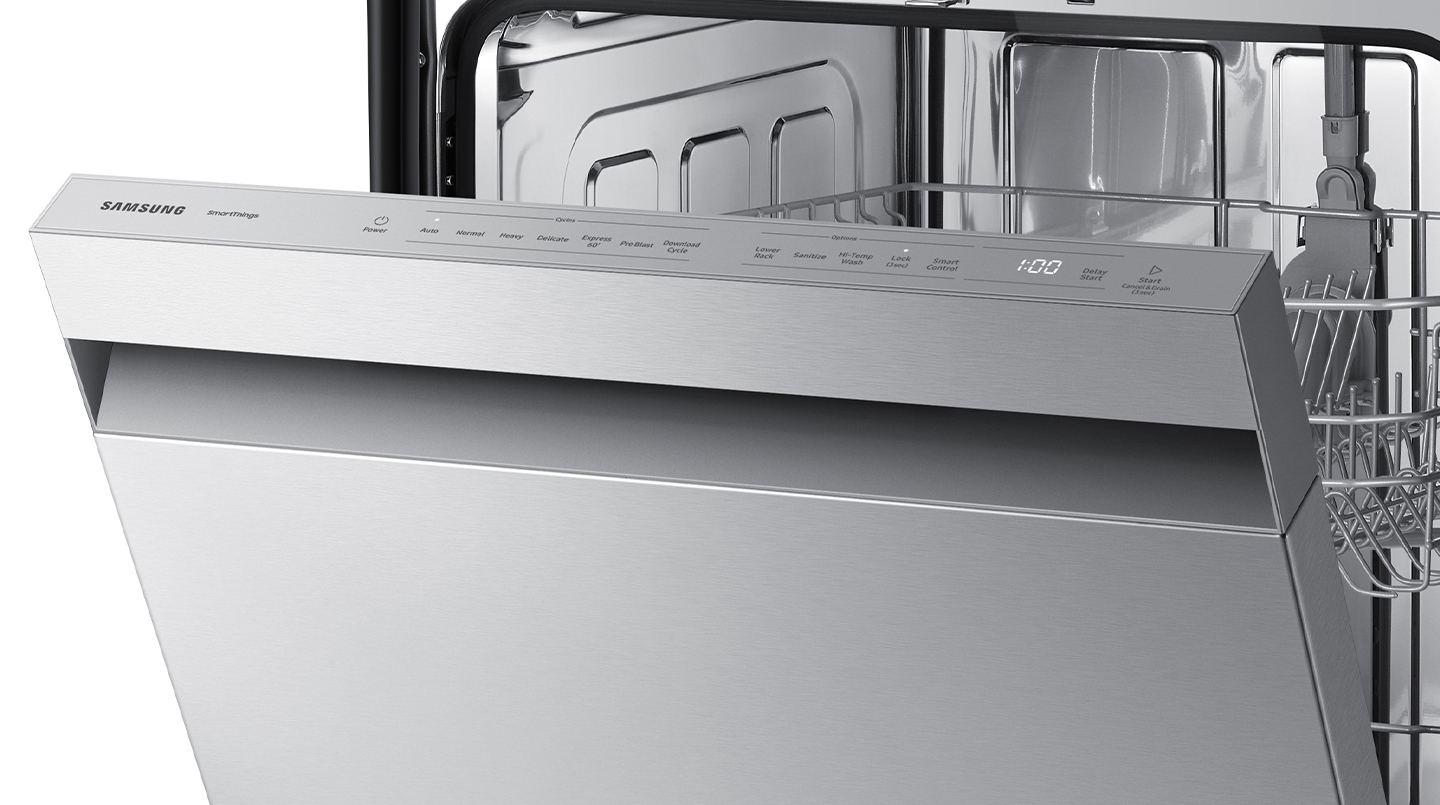

Picture (CG502*)

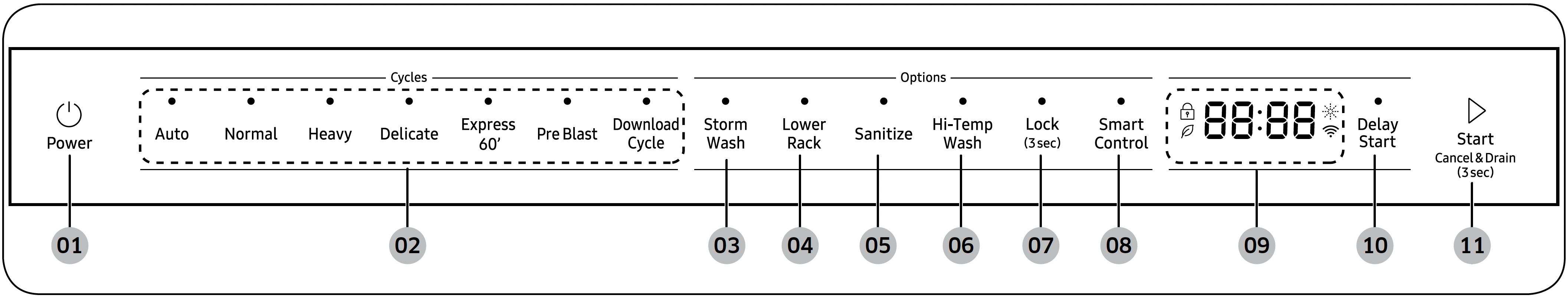

Illustration (CG545*, CG542*, CB545*)

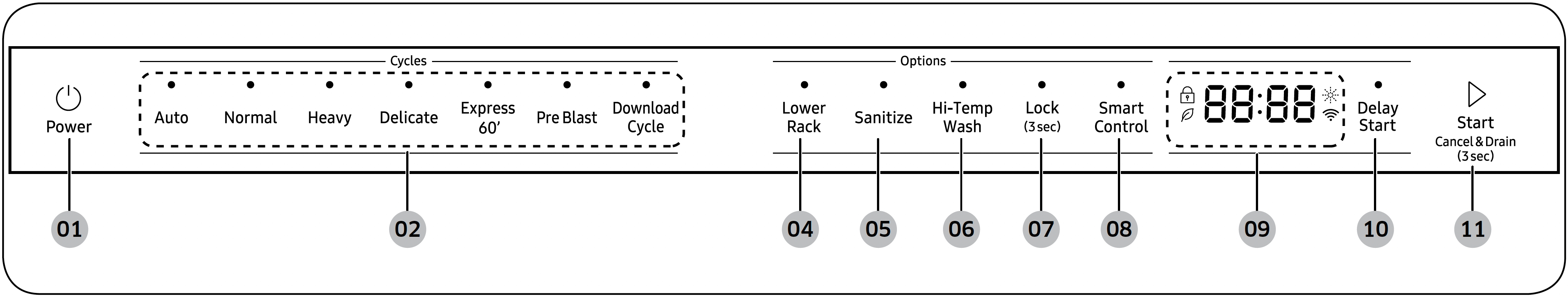

Illustration (CG502*)
>

  1. Power
  2. Cycle Selector
  3. Storm Wash+ (DW80CG545*, DW80CG542*, DW80CB545*)
  4. Lower Rack
  5. Sanitize
  6. Hi-Temp Wash
  7. Lock (3 sec)
  8. Smart Control
  9. Display
  10. Delay Start
  11. Start

Cycle chart

Zoom Icon
Cycle Chart (Auto, Normal, Heavy)
Zoom Icon
Cycle Chart (Delicate, Express 60', Pre Blast)
Zoom Icon
Cycle Chart (Plastic, Pots Pans)
Zoom Icon
Cycle Chart (Baby Care, Night, Drinkware)
<

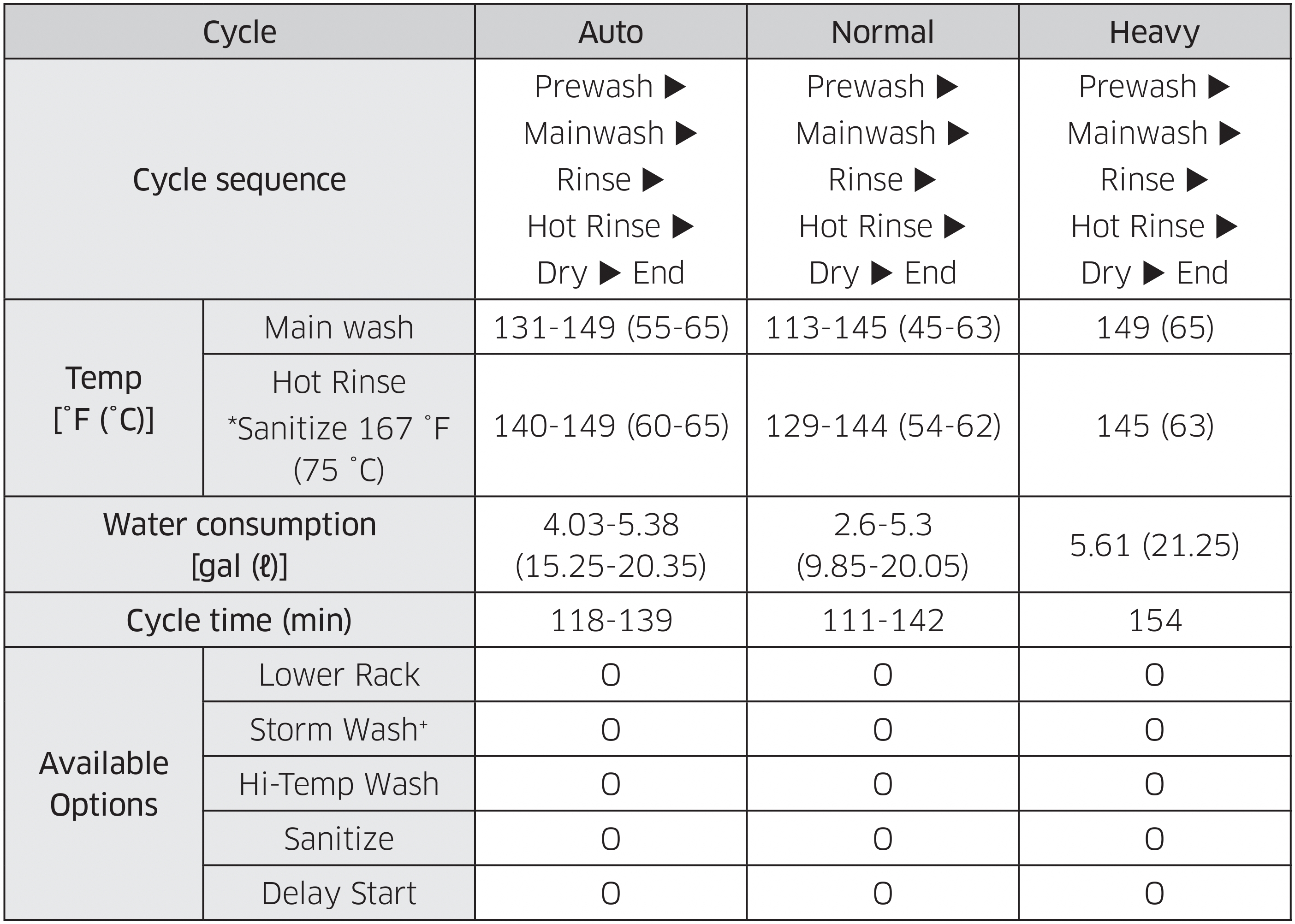

Cycle Chart (Auto, Normal, Heavy)

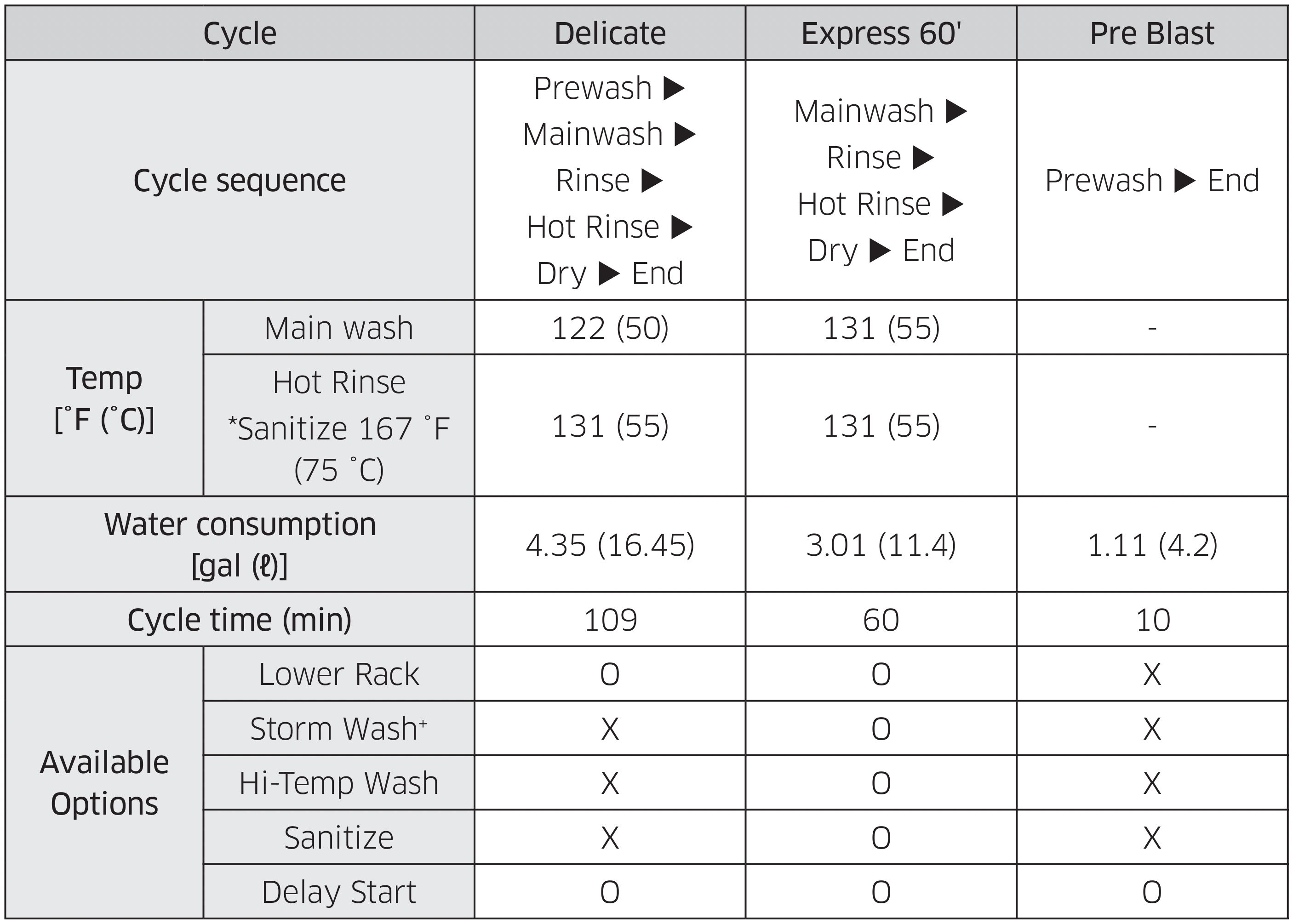

Cycle Chart (Delicate, Express 60', Pre Blast)

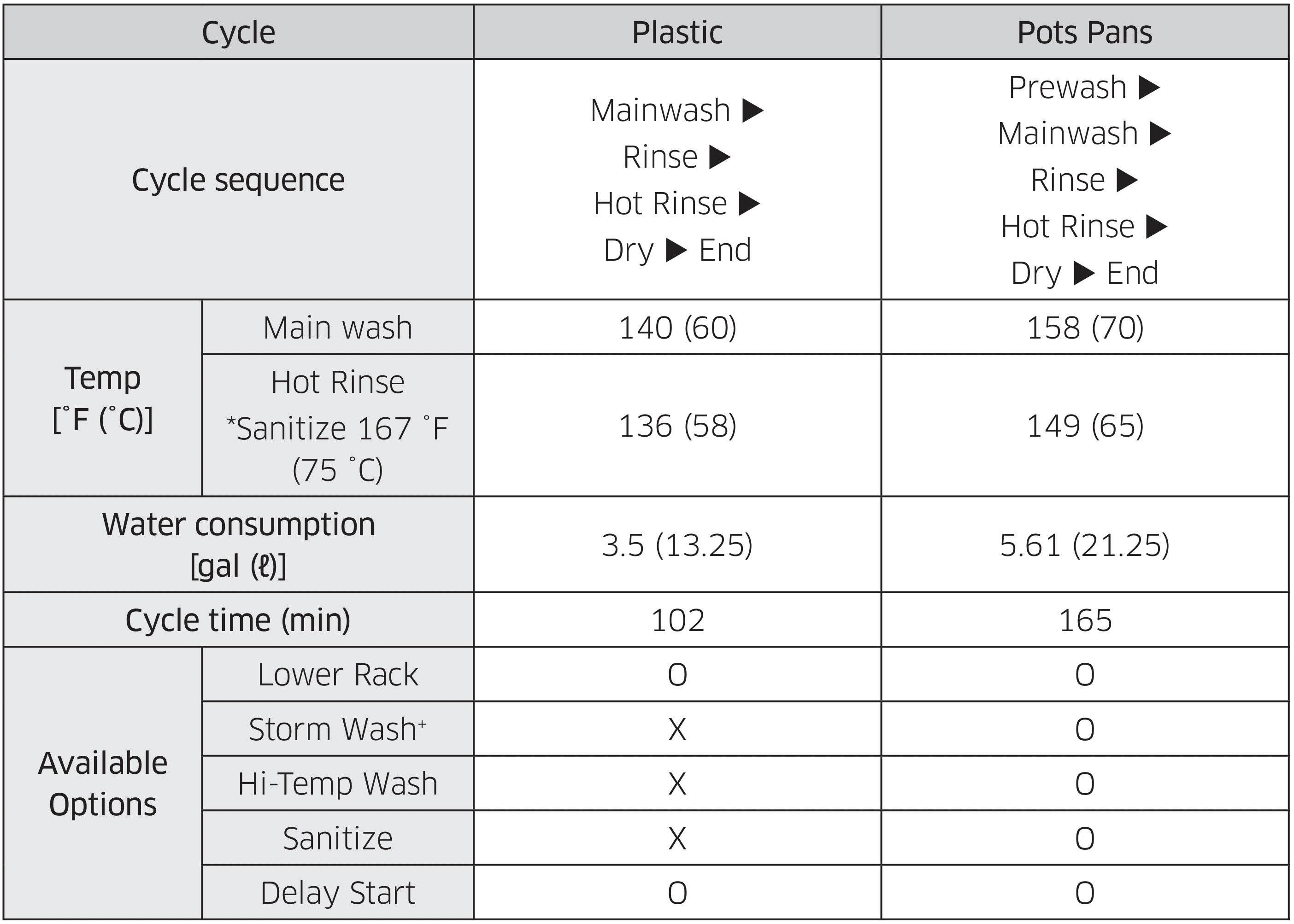

Cycle Chart (Plastic, Pots Pans)

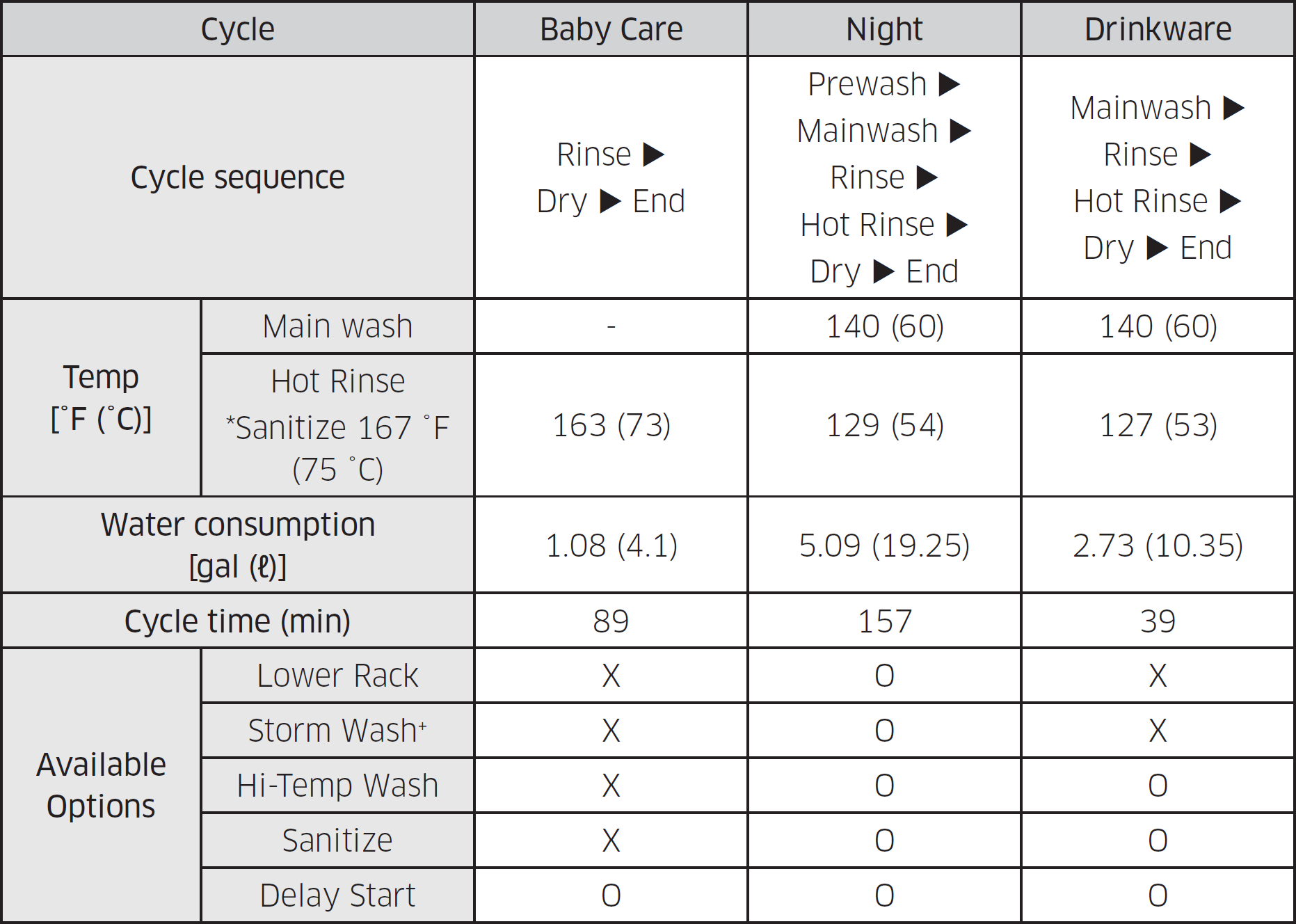

Cycle Chart (Baby Care, Night, Drinkware)
>
