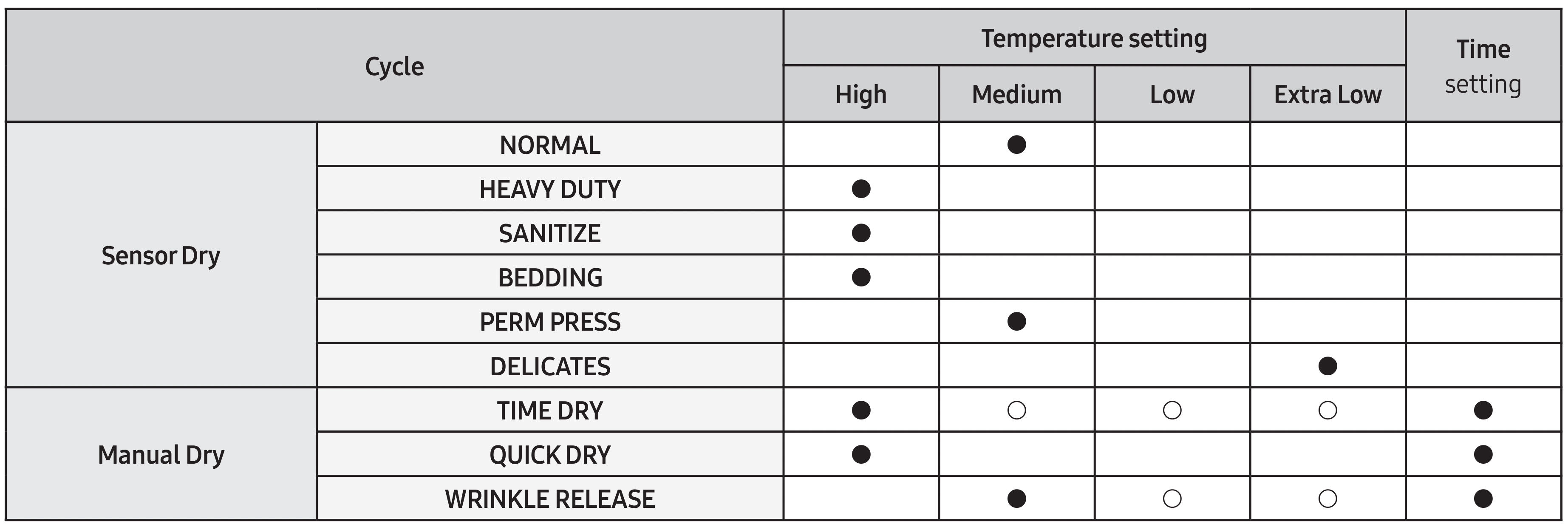

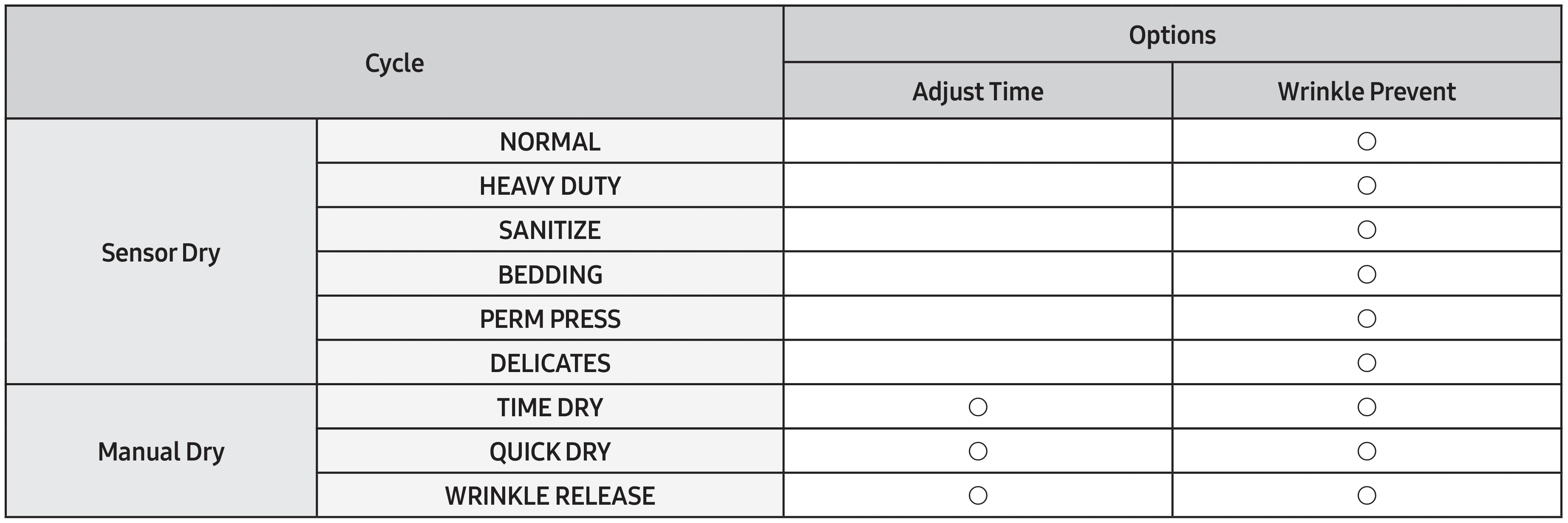

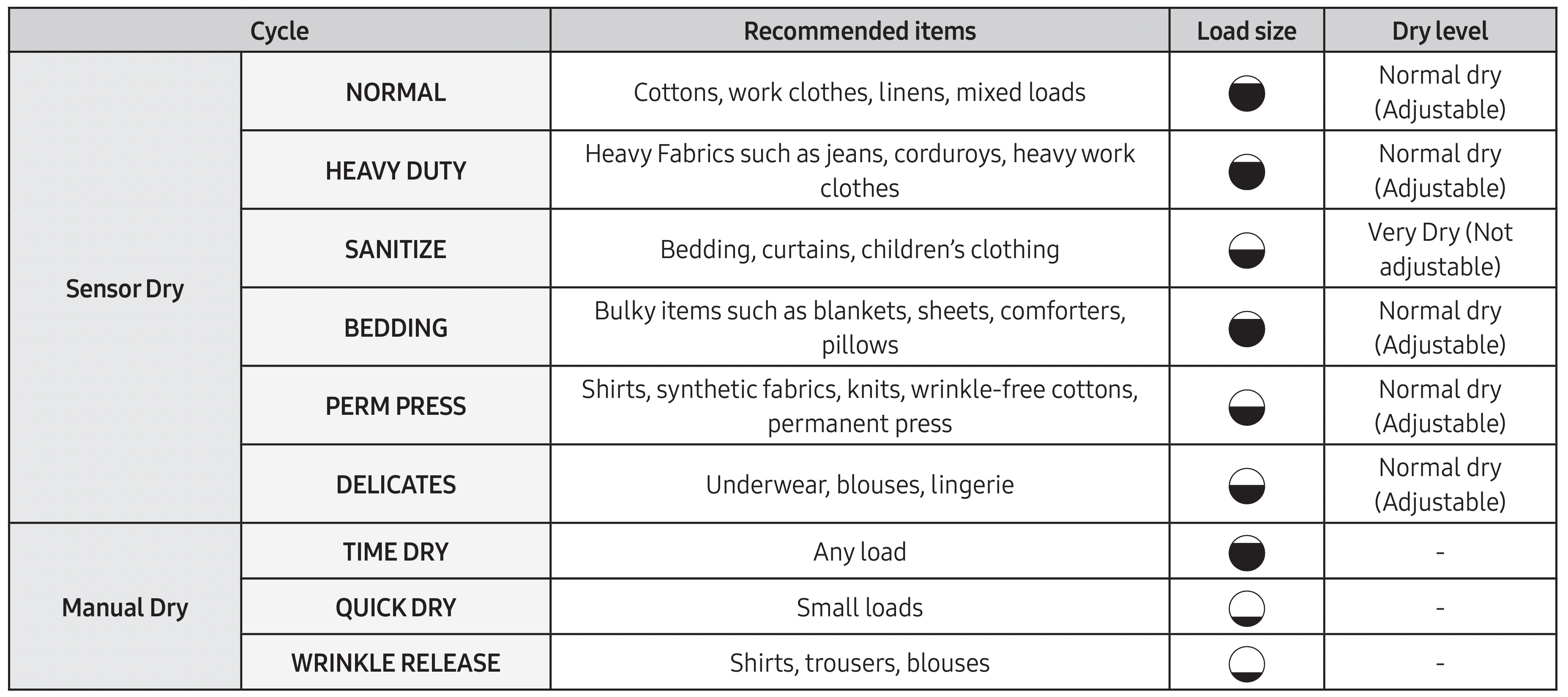

Control panel, Vent blockage test, and Cycle chart: DVE(G)47CG3500*

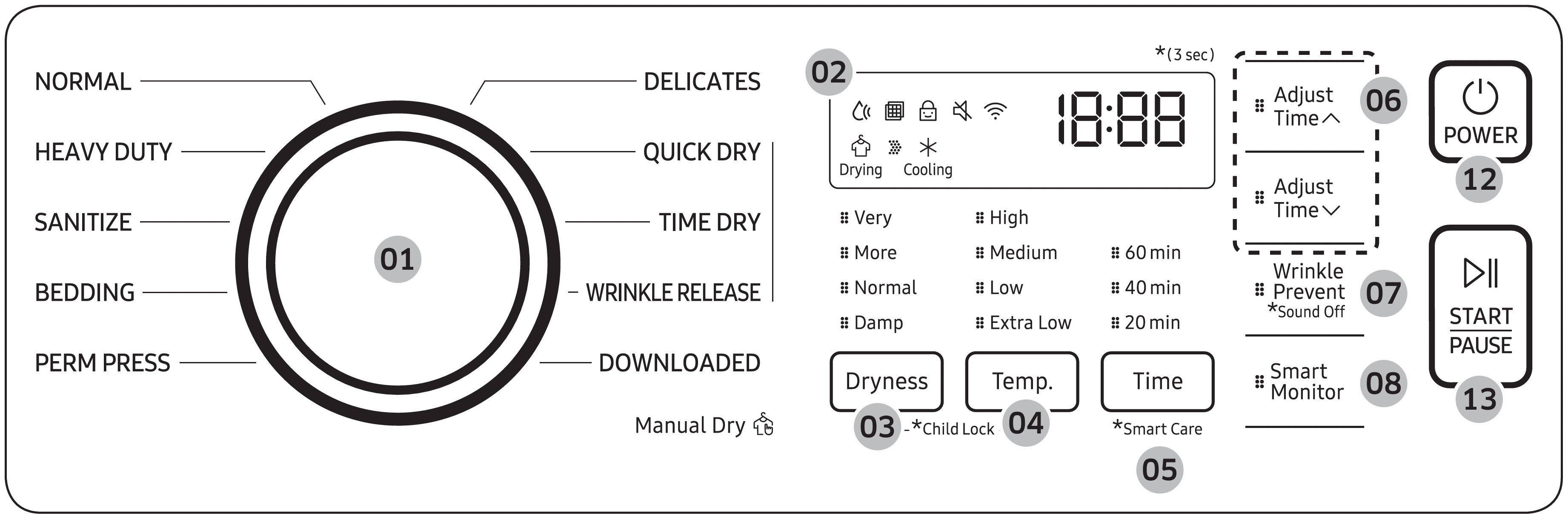

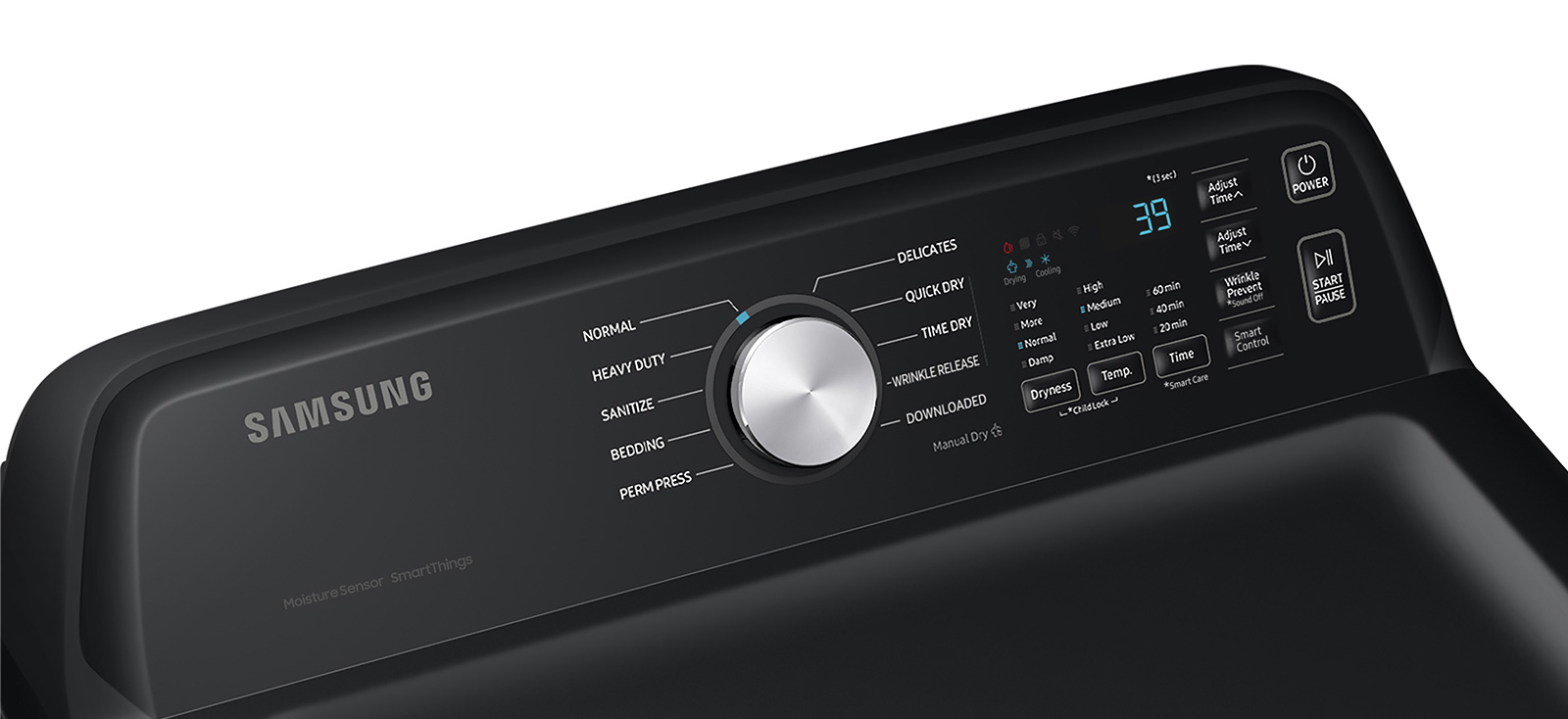

1. Cycle Selector
2. Digital Graphic Display
3. Dryness
4. Temp.
5. Time
6. Adjust Time
7. Wrinkle Prevent
8. Smart Control (Electric models only) / Smart Monitor (Gas models only)
9. POWER
10. START/PAUSE

Note: After the dryer is installed, start the Vent Blockage Test to check if the duct system is properly installed. The Vent Blockage Test automatically detects the status of the ducts and reports any blockage or problems. Proper ducting can reduce drying time and save energy.

1. Make sure the drum is empty, and then close the door. (If there are any clothes or other items in the drum, the test will not give accurate results.)
2. Press the POWER button to turn the dryer on, then simultaneously press and hold the Adjust Time (Up arrow) and Dryness buttons for 3 seconds. “InS or In” appears in the dryer’s display. (If you have started other procedures before the Vent Blockage Test, the dryer will not enter the Vent Blockage Test mode.)
3. Press the START/PAUSE button. The Vent Blockage Test starts immediately. During the test, the number indicator makes a circle in 6 clockwise steps. The test takes about 2 minutes. Do not open the door during the test.
4. After 2 minutes, when the test is complete, the results are displayed and the dryer sounds a tone. If status of the duct system is normal, “0” appears and the dryer sounds a completion tone. If the duct system cannot exhaust properly, the check code appears, and the dryer sounds an alarm tone.


   • To stop or cancel the Vent Blockage Test, press the POWER button to turn off your dryer.
   • The results remain on the display for about 5 minutes and then automatically turn off. You can turn the results off immediately by pressing the POWER button.
