LCD panel, Run Calibration, and Cycle chart: WD53DBA9**H*

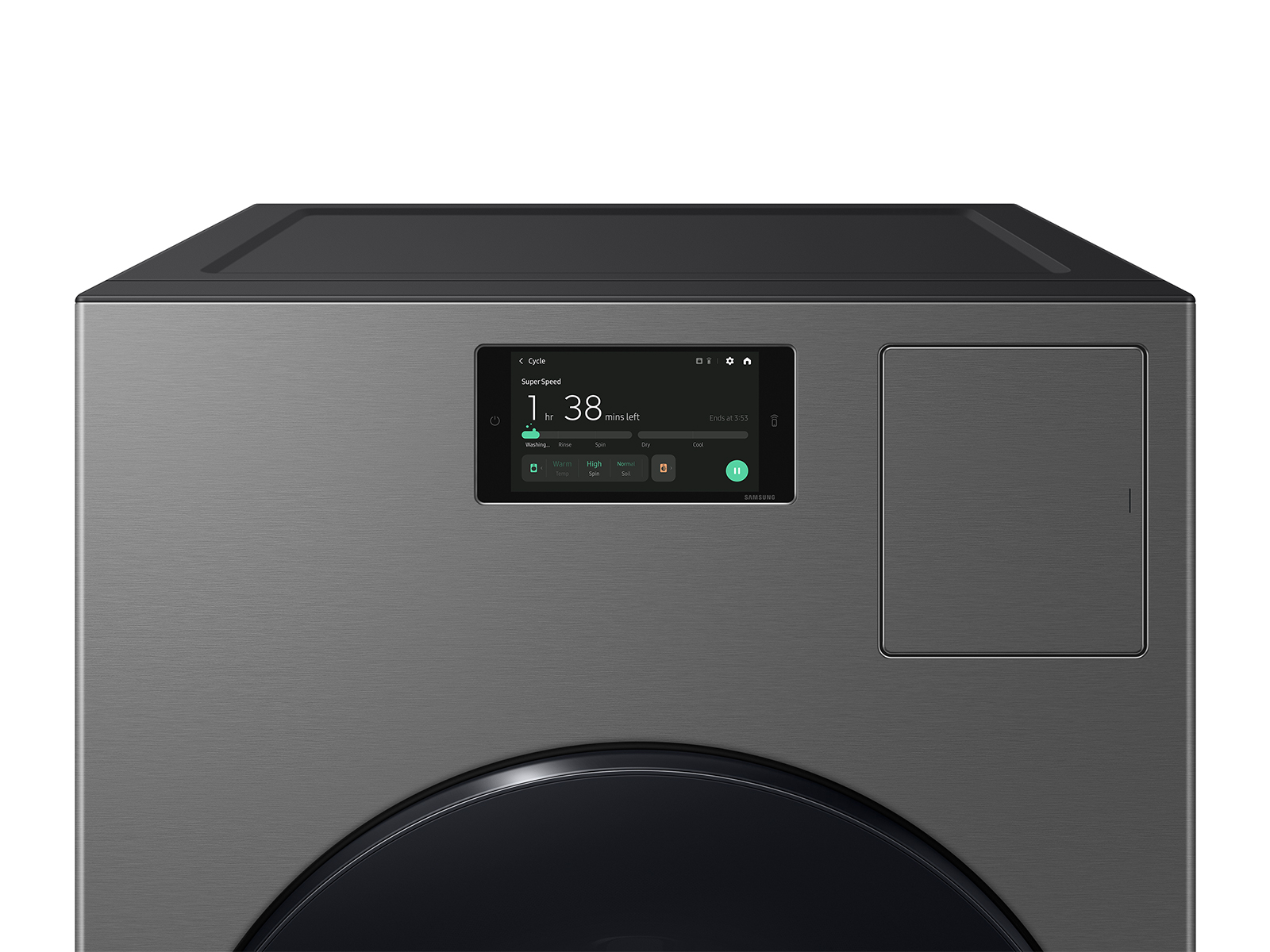

The control panel for the Laundry Combo is found on the front, at the top.
LCD panel, Run Calibration, and Cycle chart: WD53DBA9**H*

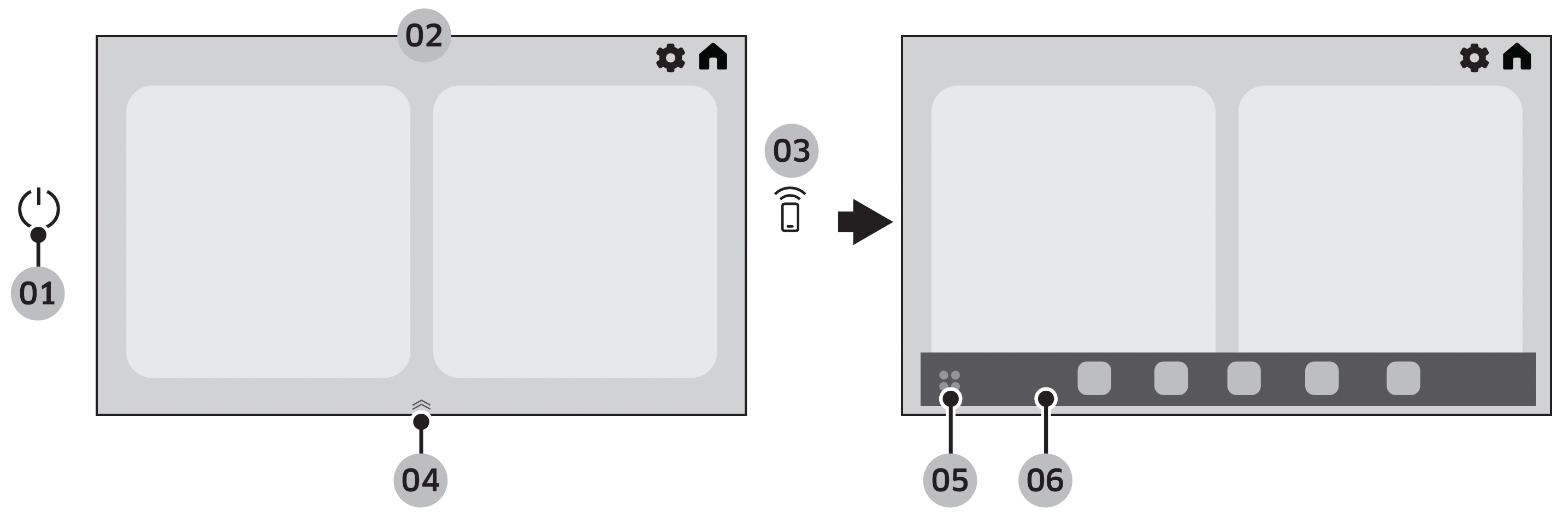

LCD panel
- Power
- Display
- Smart Control
- App dock handler
- App tray button
- App dock
Run Calibration
Calibration ensures accurate weight detection by the Laundry Combo. Make sure the drum is empty before running calibration.
- Tap Power to turn the power on.
- Tap Settings > Washer > Calibration.
- Tap Start Calibration to start the calibration.

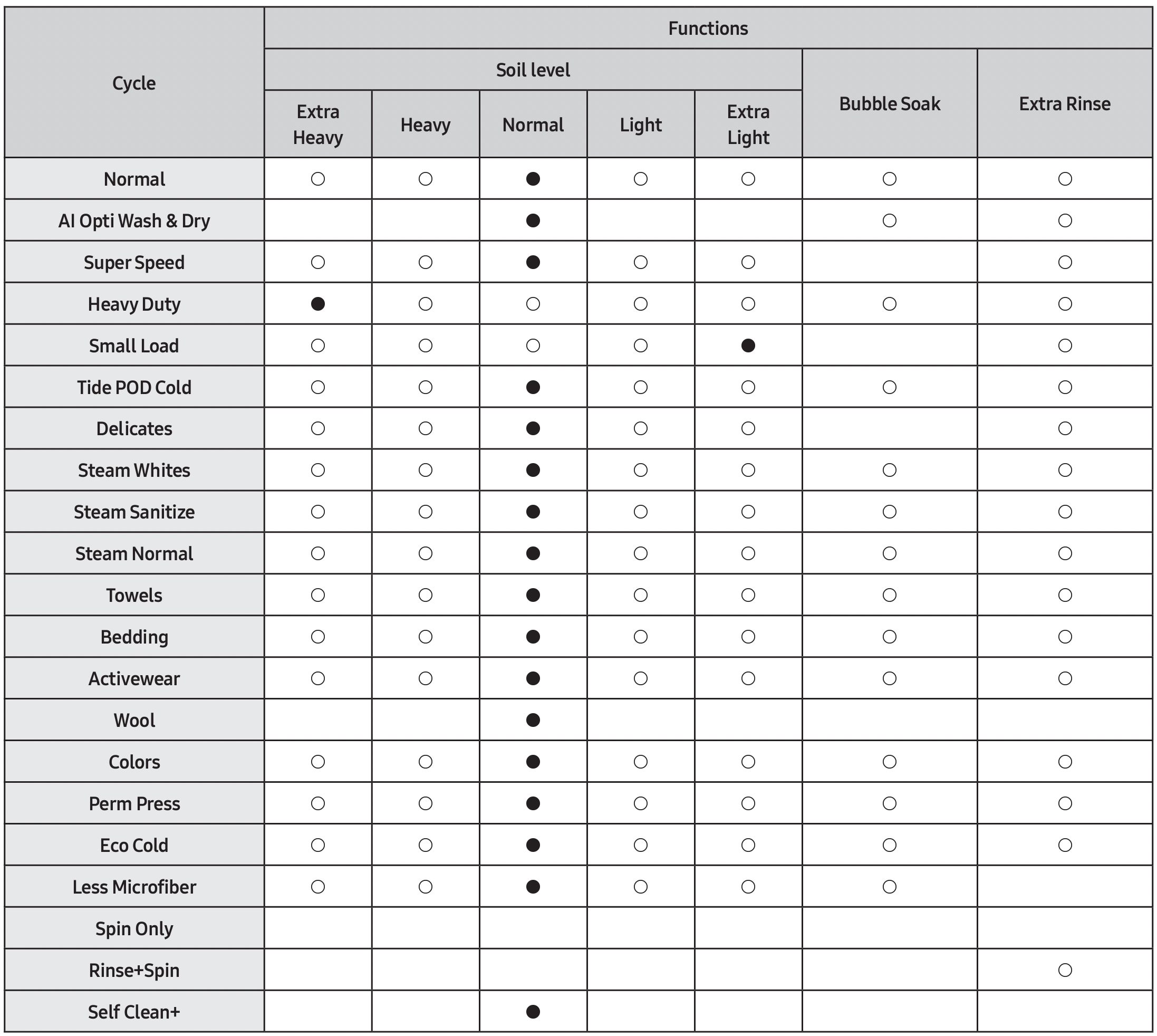

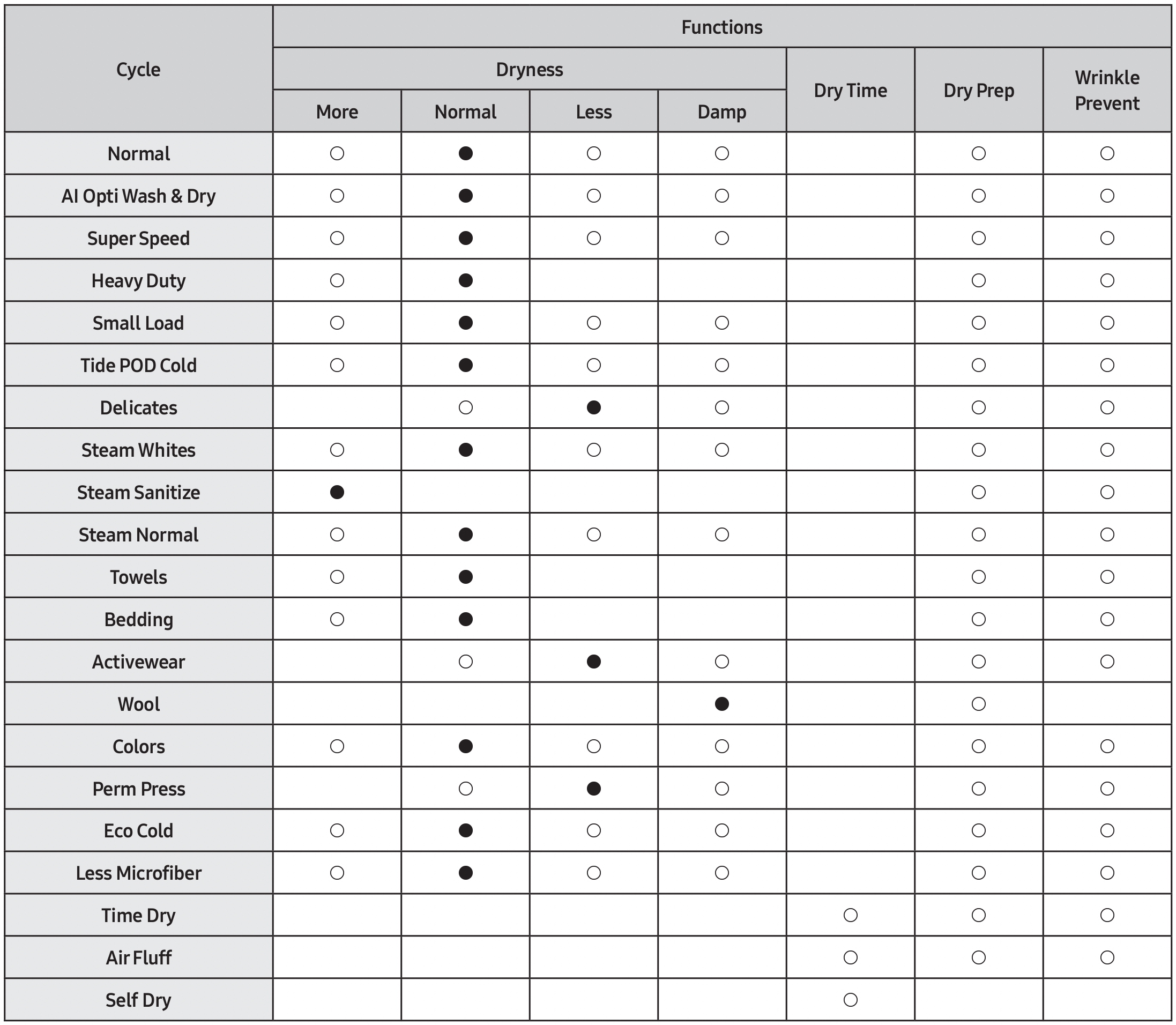

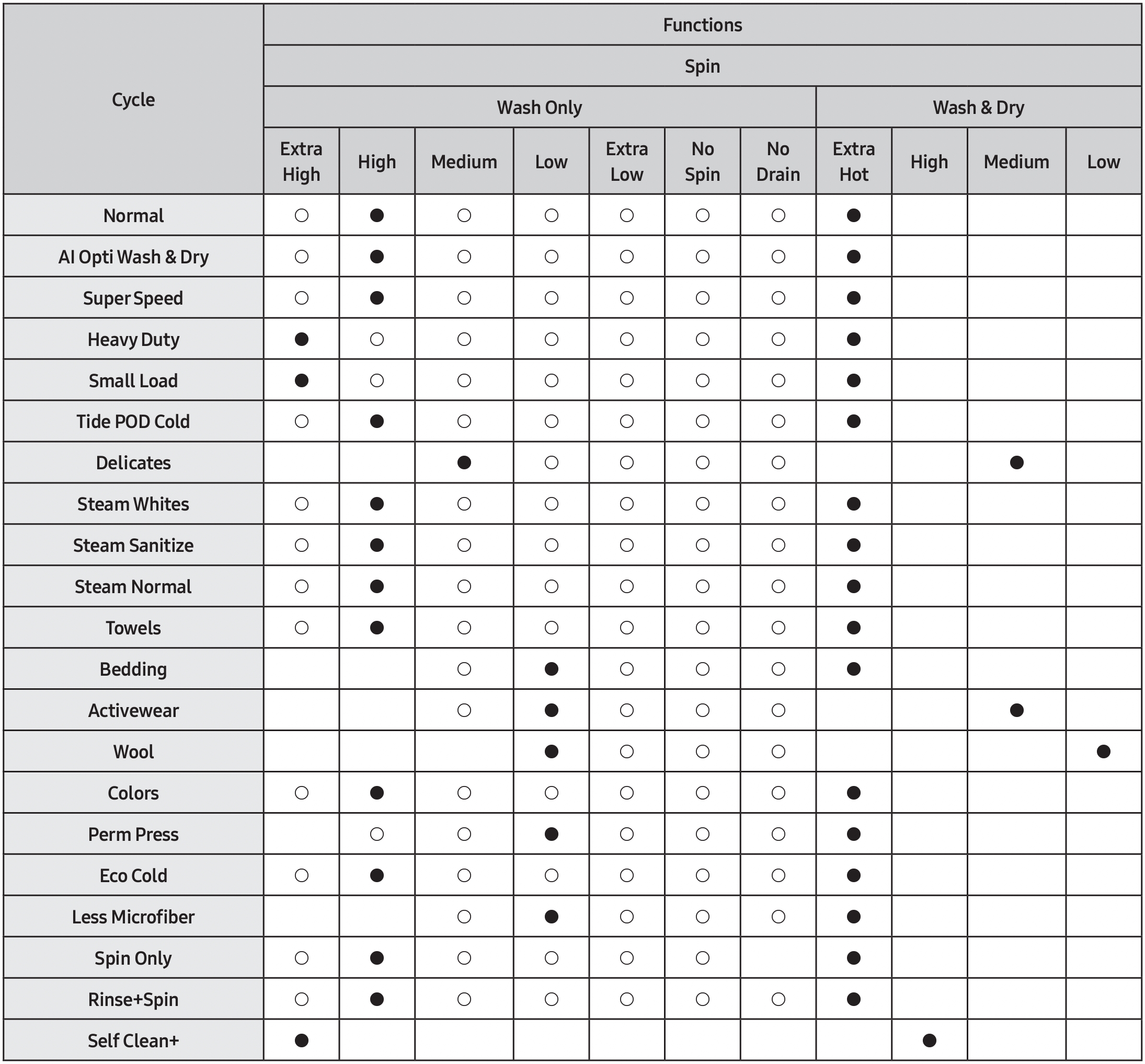

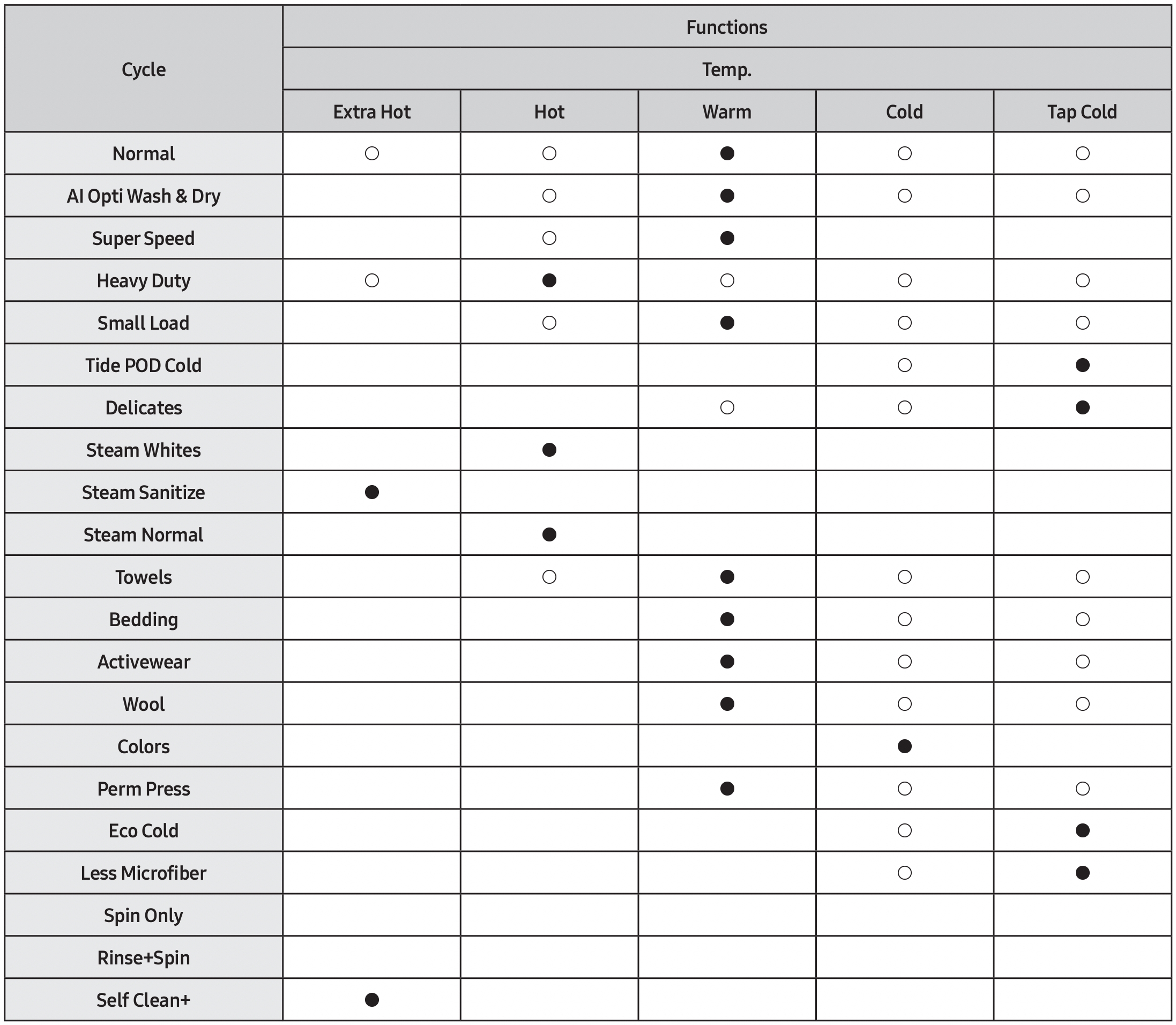

Cycle Chart
