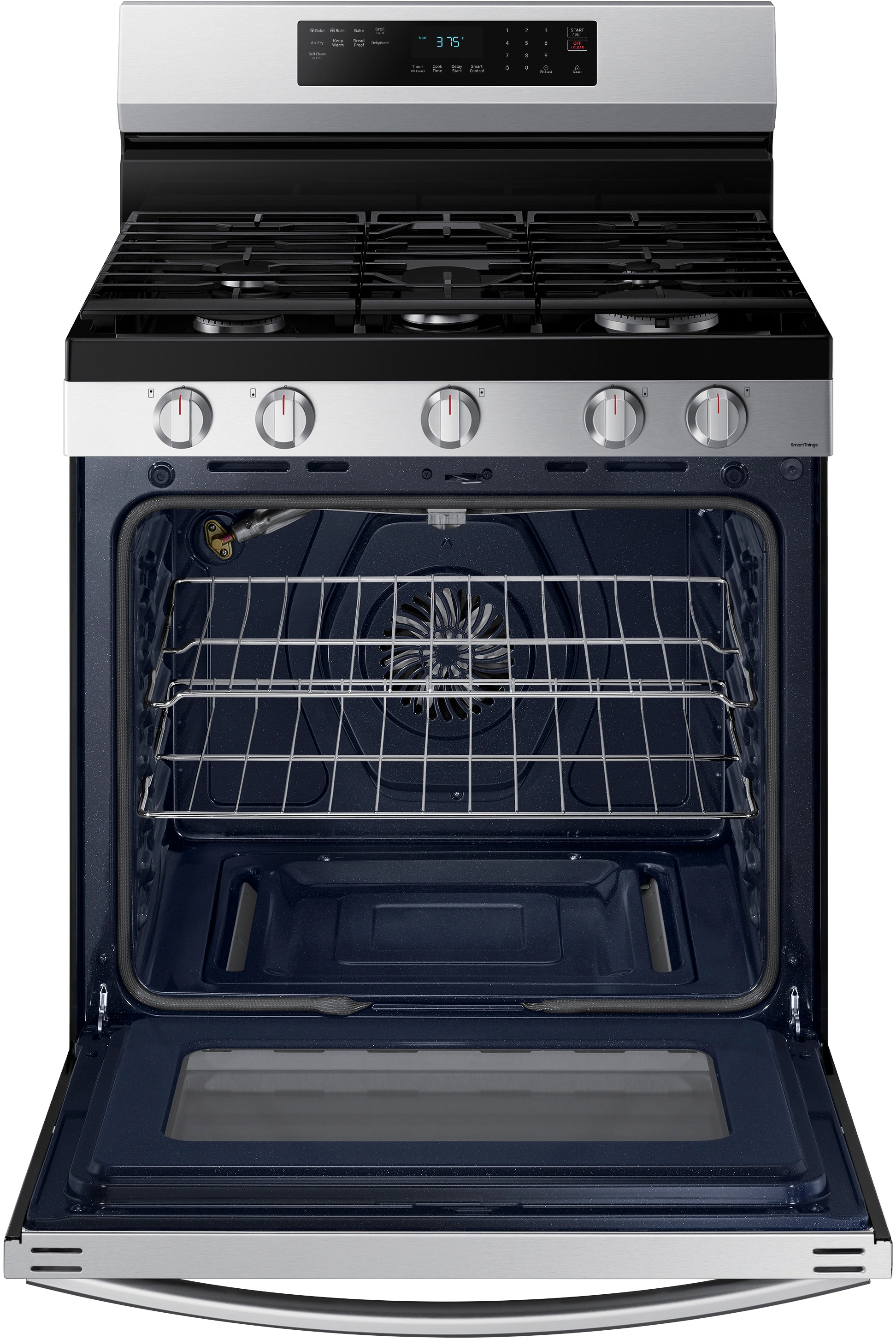

Layout and what's included: NX60*65**S*
Here's a list of everything that comes with the range.
Layout and what's included: NX60*65**S*
Important
Although this model has an Air Fry mode, the Air Fry Tray to use this mode must be purchased separately if desired.

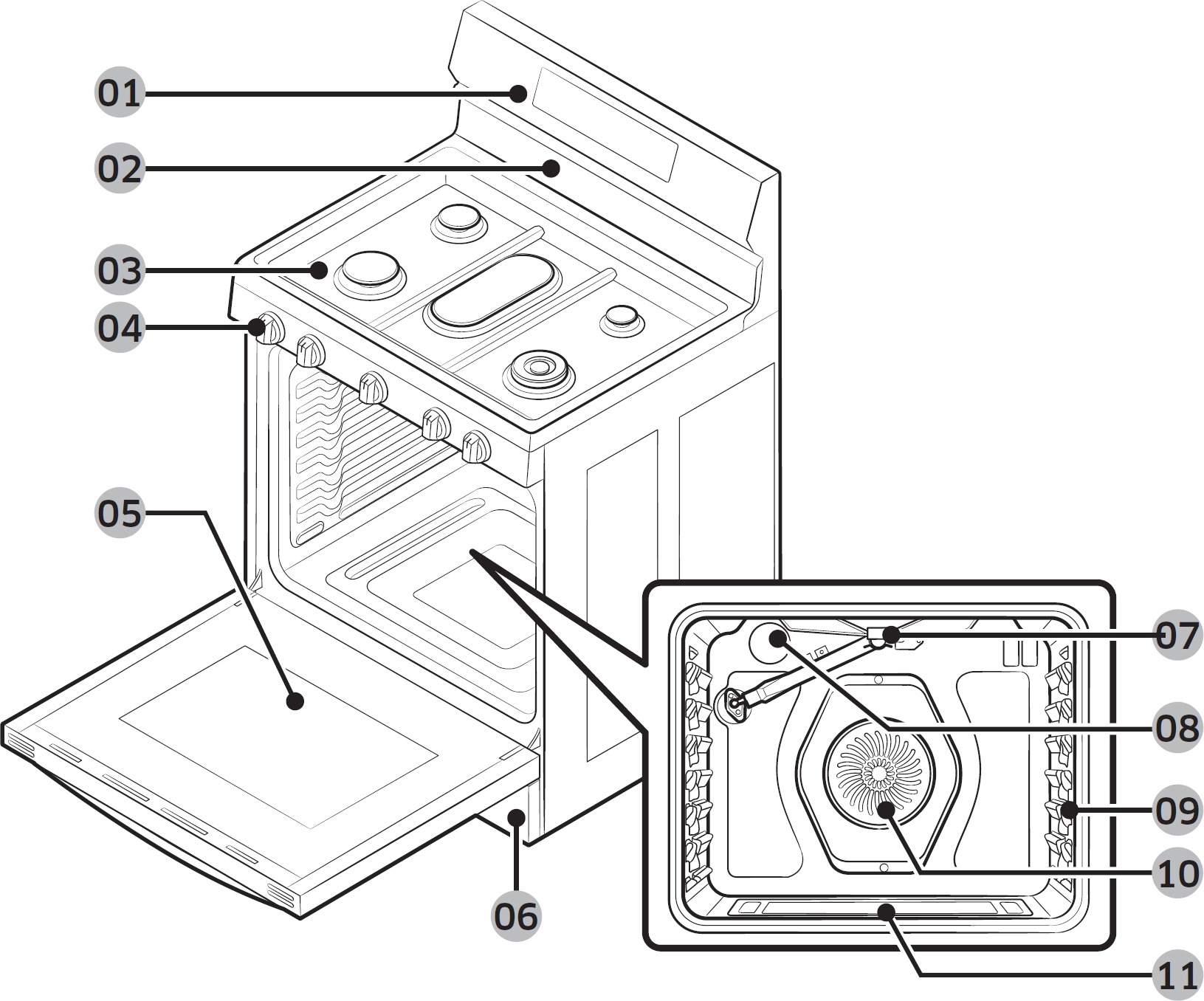

Layout
- Display
- Oven vents
- Surface burners
- Surface burner knobs (5 pcs)
- Removable oven door
- Storage drawer
- Broil oven burner
- Oven light
- Oven rack system
- Convection fan
- Bake oven burner

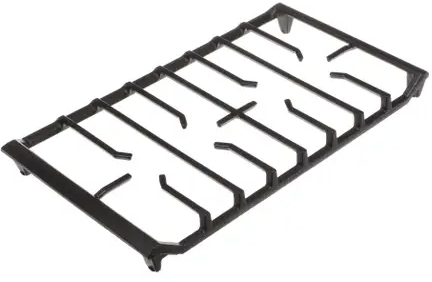

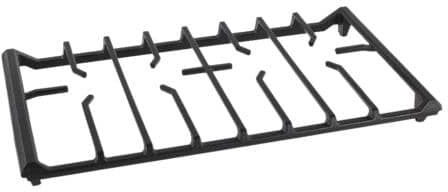

Surface burner grates (3)
Burner caps (x5)
Burner heads (x5)

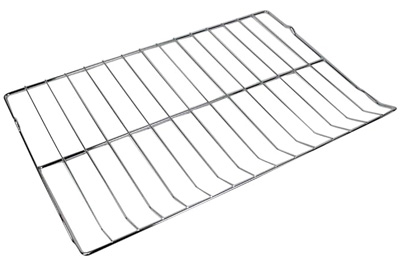

Flat rack (x2)

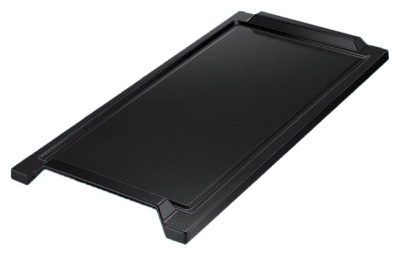

Griddle

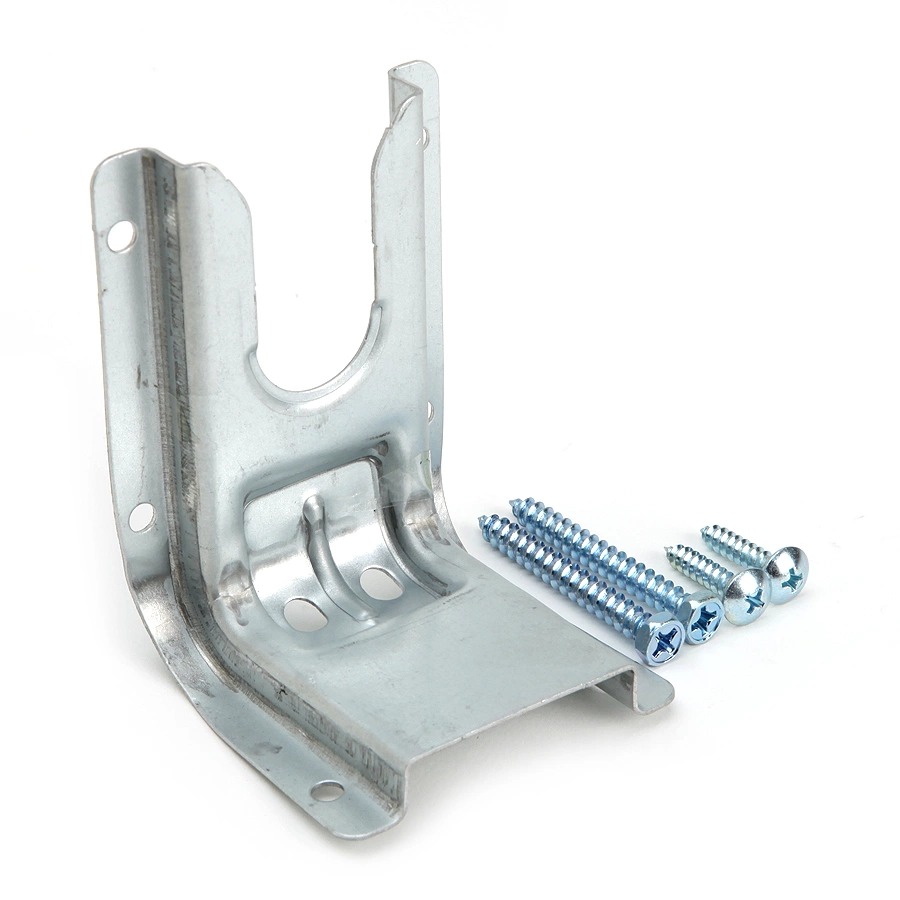

Anti Tip Bracket (1) / Screws (4)
LP conversion kit
Read more
Note
All new gas ranges and cooktops are shipped from the factory set up to use natural gas, but they include an LP conversion kit in a small bag. This kit contains the model-specific size and amount of orifices necessary to convert the model to use LP gas.
Although the conversion kit contains instructions, the process should only be performed by a qualified LP gas installer.
All replaced orifices should be kept for potential future use.
Read less
