Layout and What's included: NX60*675*S*
Here's a list of everything that comes with the range.
Layout and What's included: NX60*675*S*

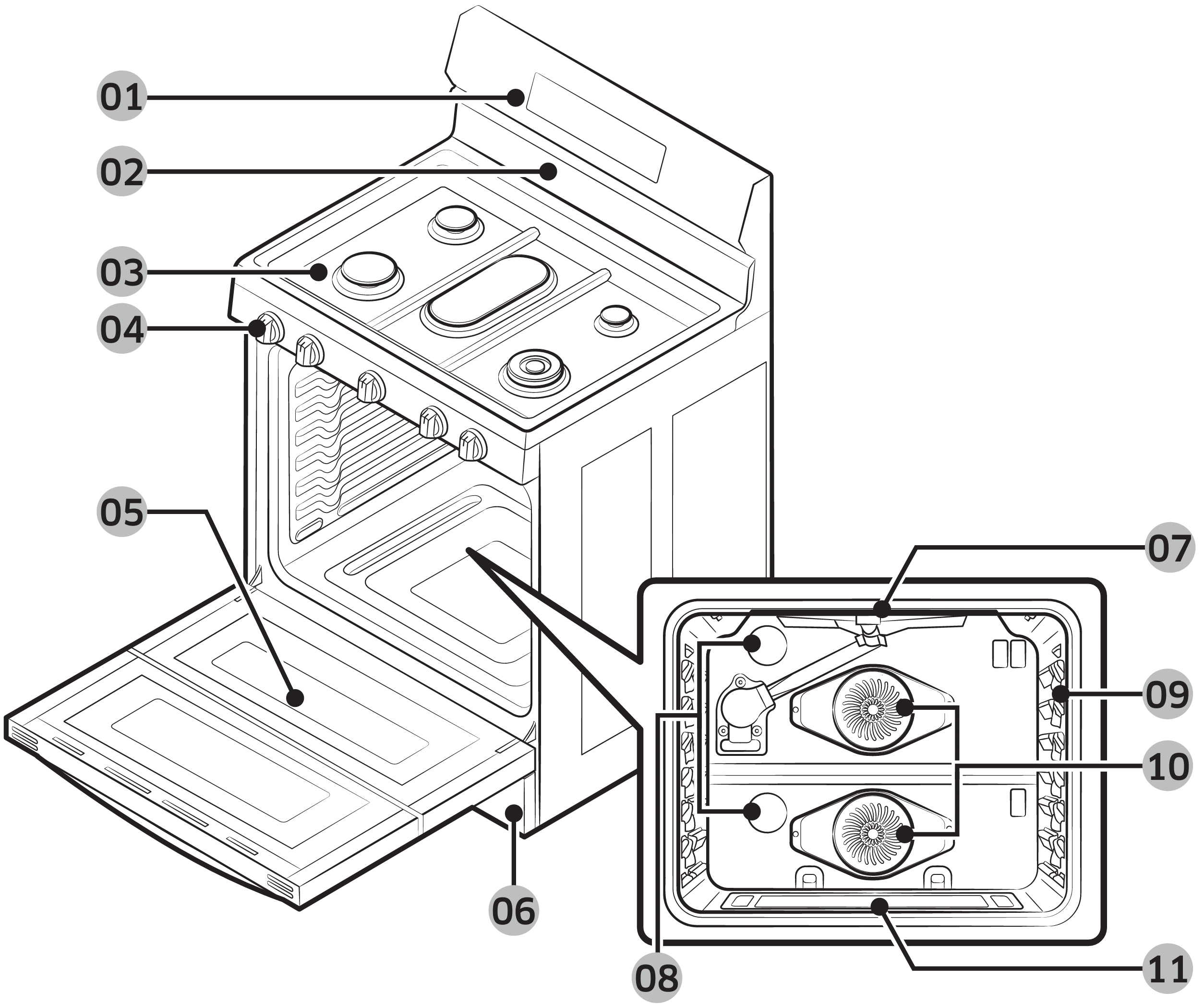

Layout
- Display
- Oven vents
- Surface burners
- Surface burner knobs (5 pcs)
- Removable dual oven door
- Storage drawer
- Broil oven burner
- Oven light (2 locations)
- Oven rack system
- Convection fan / Upper convection heater
- Bake oven burner

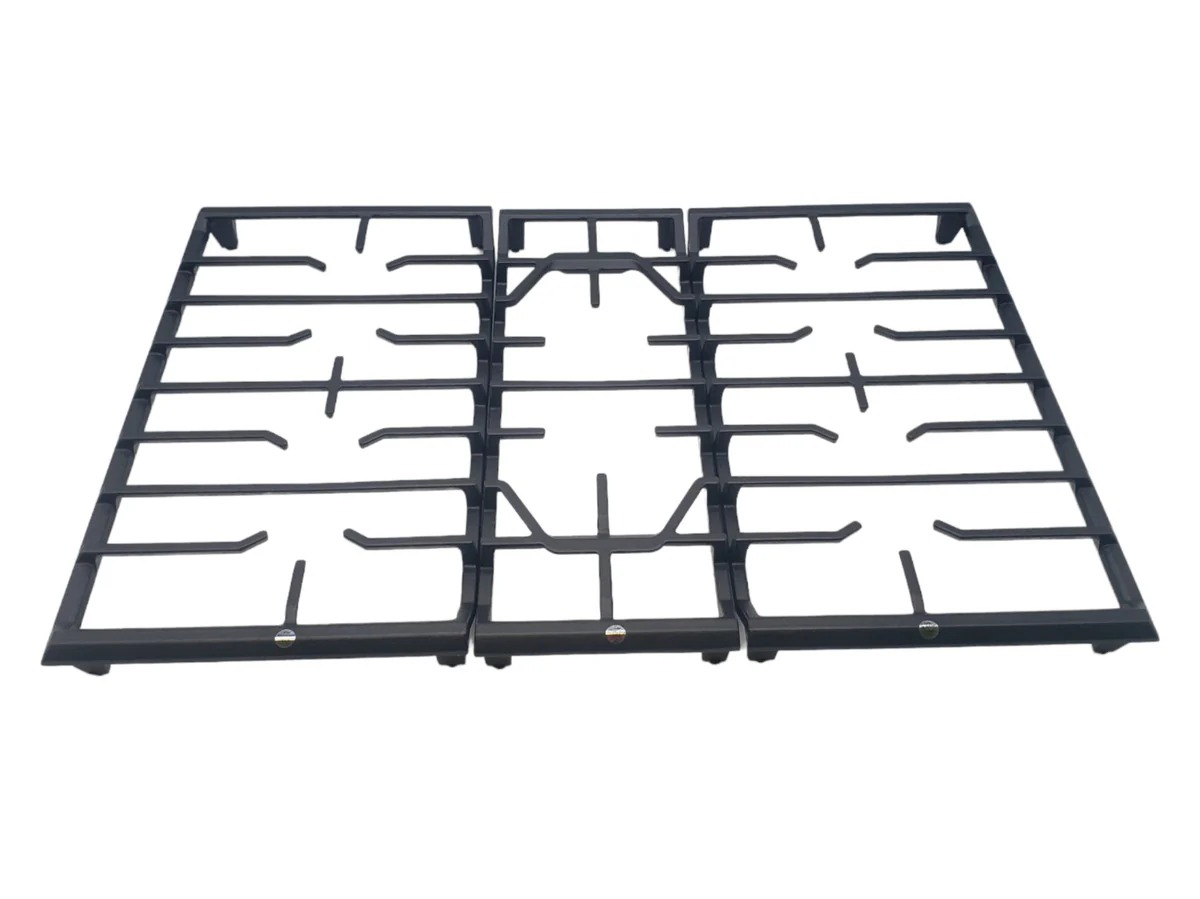

Surface burner grates (3)
Burner heads (x5)
Burner caps (x5)
Flat rack (2)
Griddle

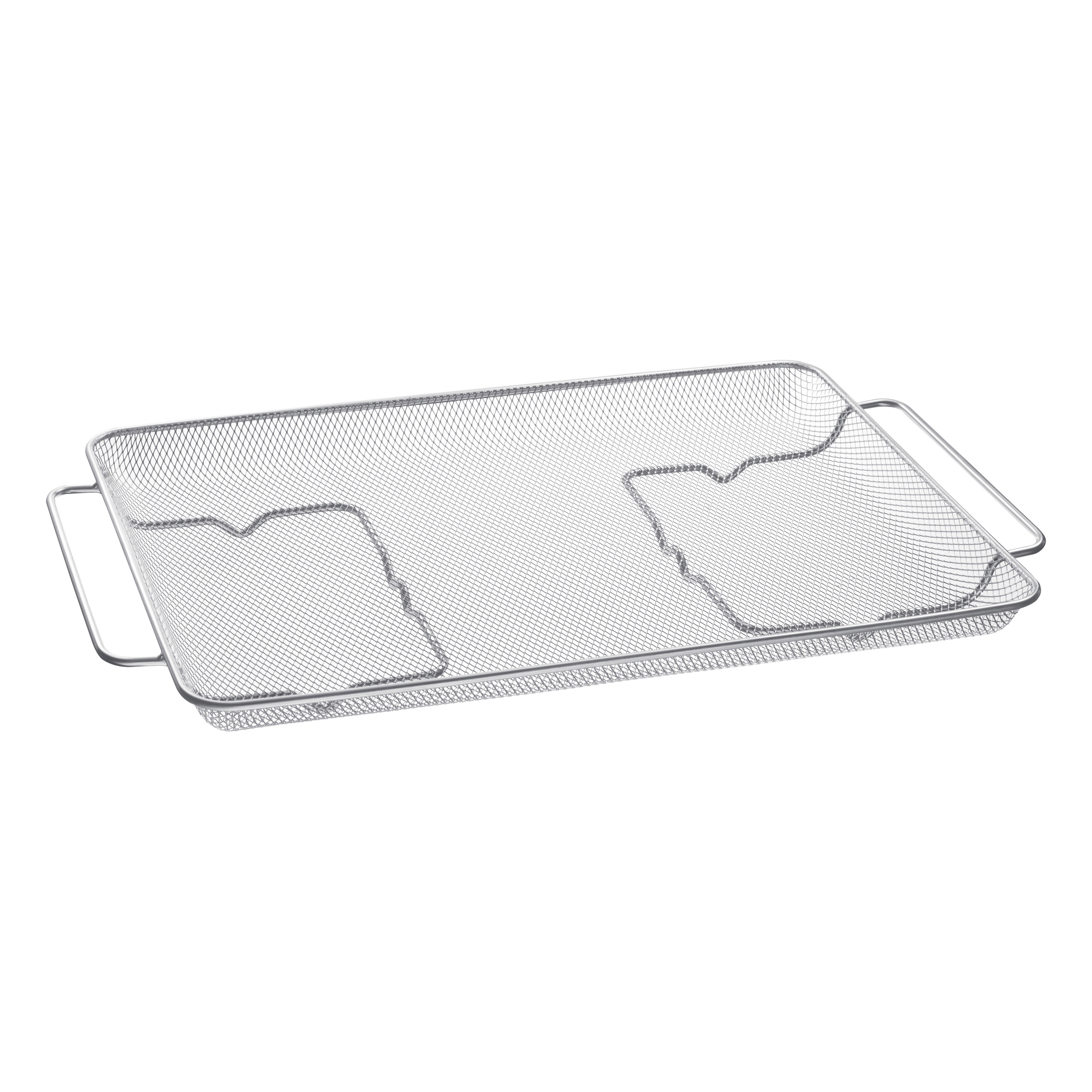

Air fry tray
Smart divider
DG94-01643D
Read more
Read less

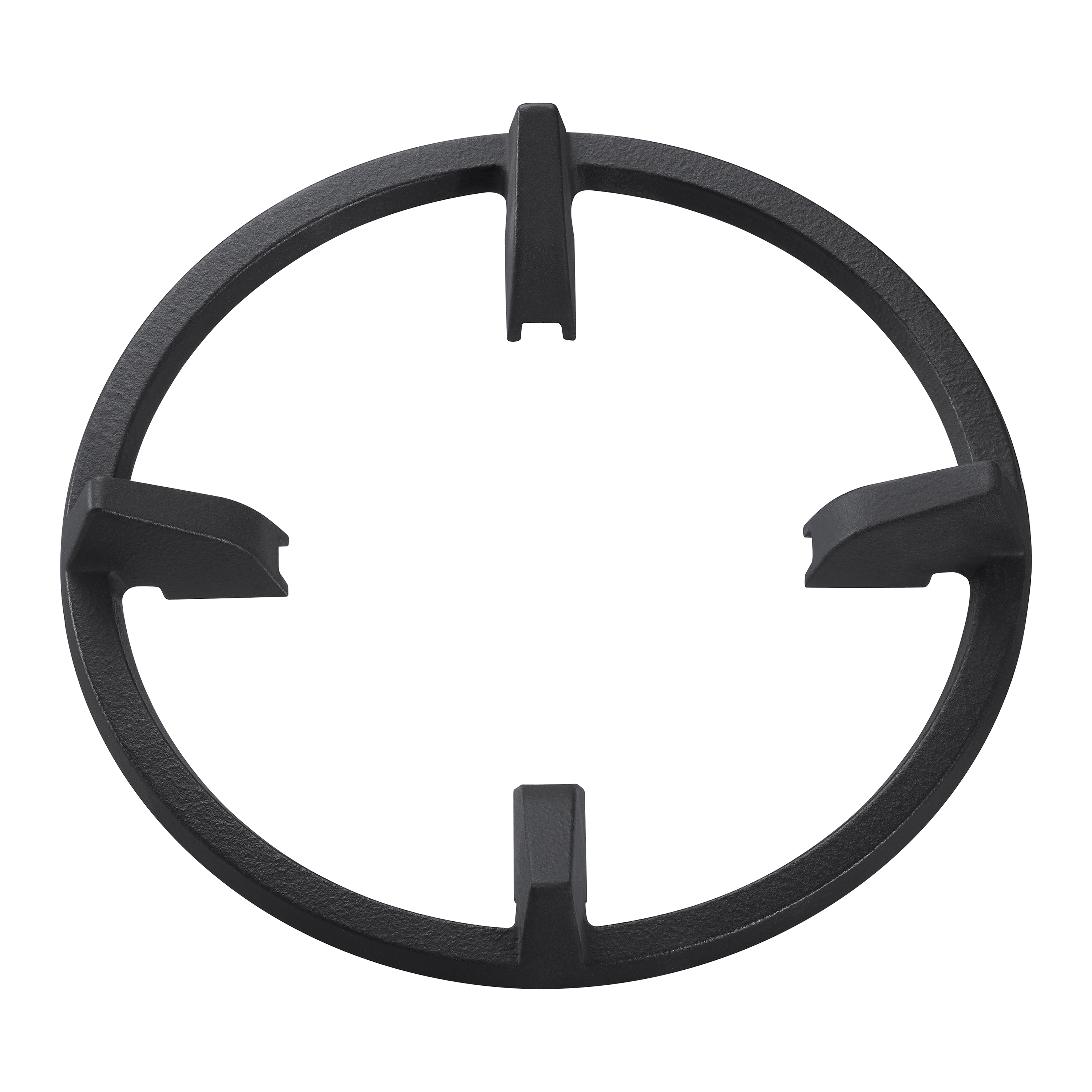

Wok grate
Anti Tip Bracket (1) / Screws (4)
LP conversion kit
Read more
Note
All new gas ranges and cooktops are shipped from the factory set up to use natural gas, but they include an LP conversion kit in a small bag. This kit contains the model-specific size and amount of orifices necessary to convert the model to use LP gas.
Although the conversion kit contains instructions, the process should only be performed by a qualified LP gas installer.
All replaced orifices should be kept for potential future use.
Read less
