Port panel detail and VESA screw hole specs: J6300

The ports are located on the back, on the left side.
Samsung monitor
Samsung monitor

Port panel detail and VESA screw hole specs: J6300

Port panel detail

Note
For more information about each port and its recommended usage, see our TV Port Glossary.
Zoom Icon

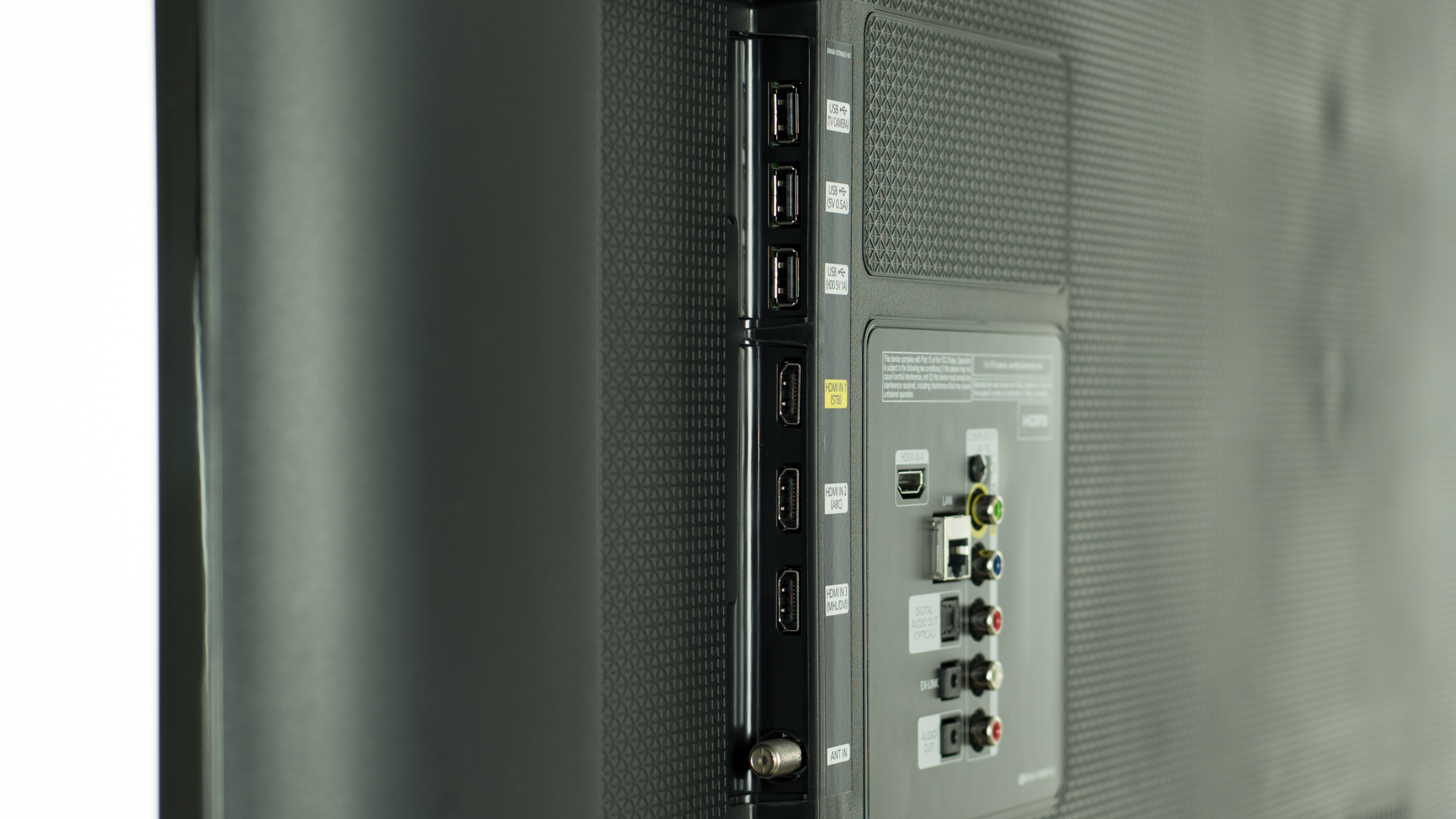

Side Panel
Zoom Icon

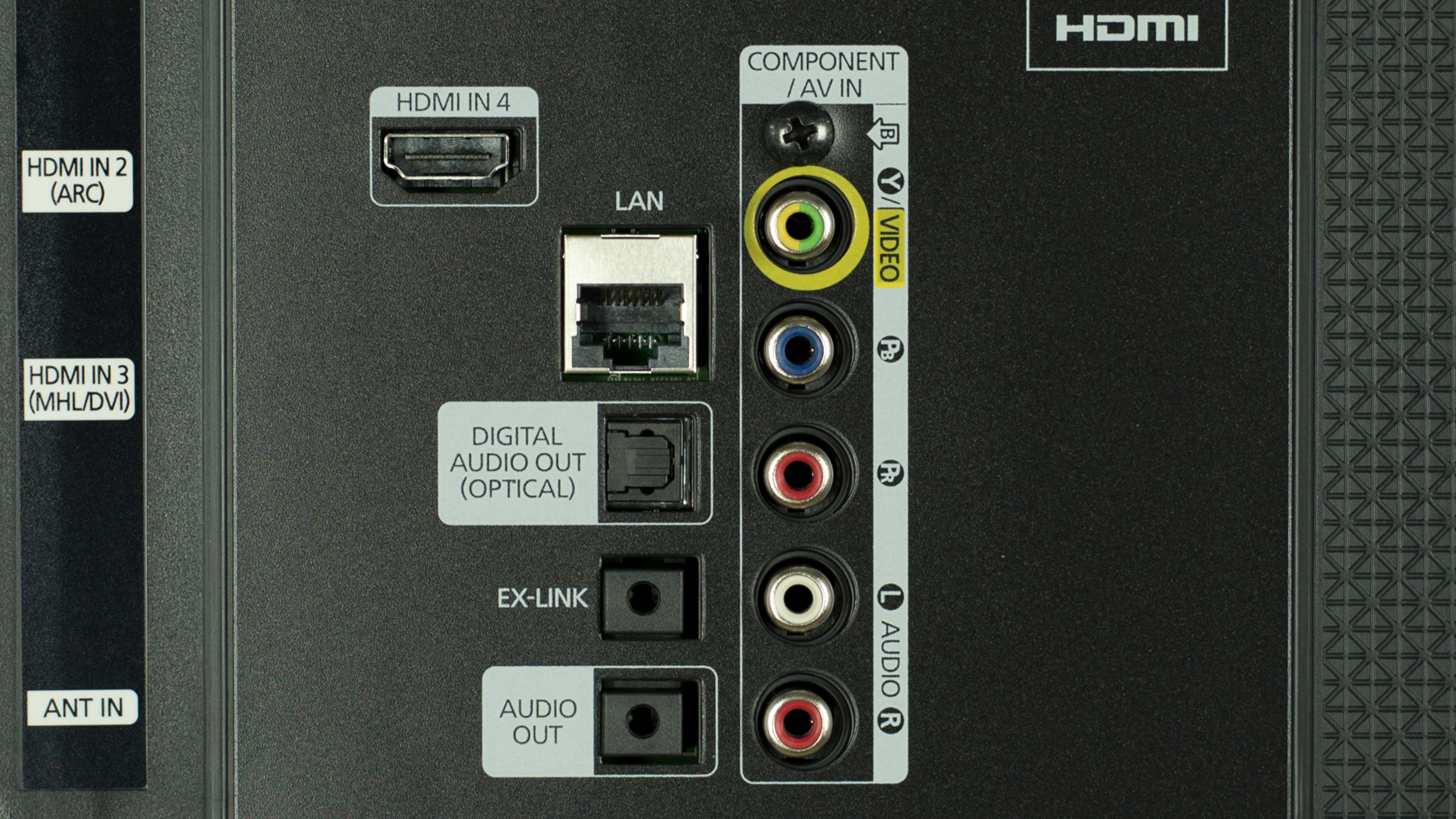

Back Panel
<
Side Panel
Back Panel
>

VESA and screw hole specs

Zoom Icon

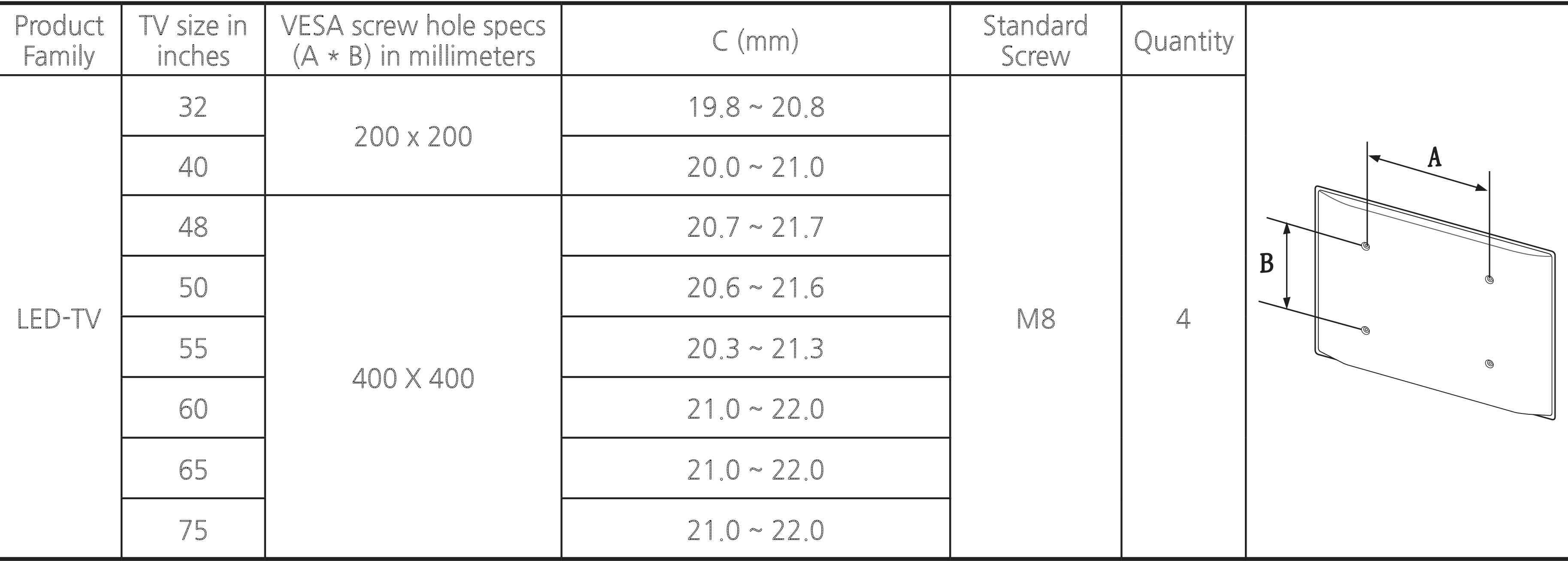

VESA Specifications
Zoom Icon

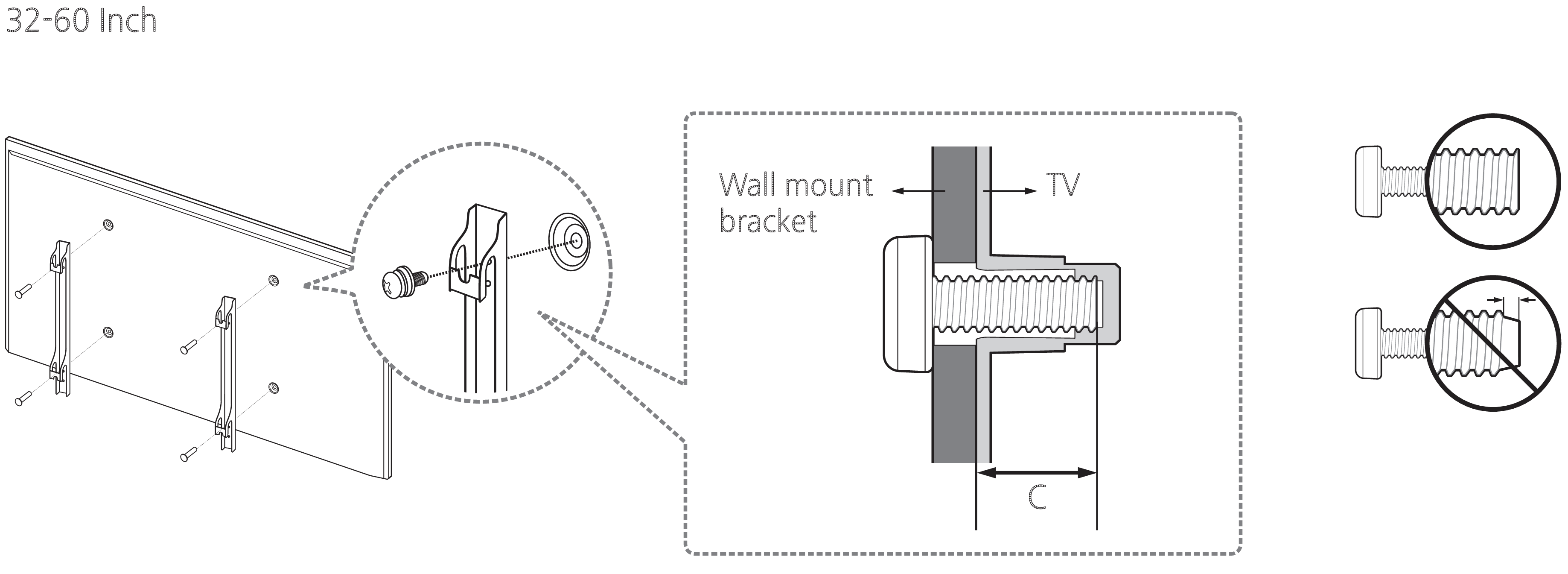

Wall Mount Kit (32" - 60")
Zoom Icon

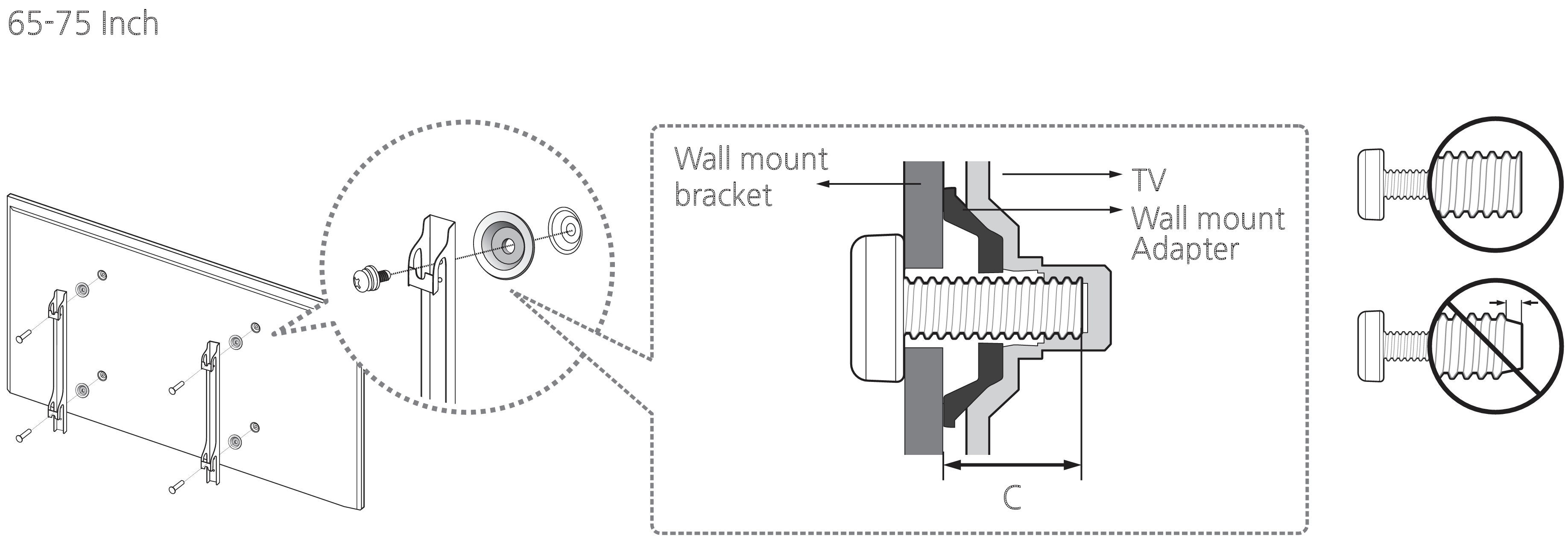

Wall Mount Kit (65" - 75")
<
VESA Specifications
Wall Mount Kit (32" - 60")
Wall Mount Kit (65" - 75")
>
