Installing Samsung Semi Automatic Washing Machine.

Last Update date : Oct 05. 2020

Environment :

1 Leave some space. Space at last 15cm between the washing machine and the wall.
Installing Samsung Semi Automatic Washing Machine.
2 Place the washing machine on a sturdy flat surface. If the washing machine is placed on an uneven or weak surface, noise or vibration may be occurred. (Allowable is 2°)
3 Never install the washing machine near water. If the washing machine is placed on an uneven or weak surface, noise or vibration may be occurred. (Allowable is 2°)
4 Avoid direct sunlight or heating devices. As plastic and electrical components are affected by direct heat, never place the washing machine near heaters, boilers, etc. Do not place under direct sunlight.

Connecting the drain hose :



General type

1 Press and hold down the joint ring, and insert it into the drain hose.
Installing Samsung Semi Automatic Washing Machine.
2 Insert the drain hose into the drain outlet. Make sure to connect them firmly using the joint ring.
Installing Samsung Semi Automatic Washing Machine.

● Push it with force further to the bottom of the drain outlet
● Check the drain hose for not getting apart from the outlet by drawing it.

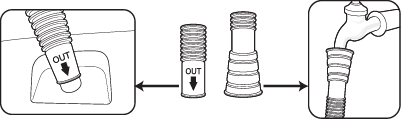

Connecting the inlet hose :

Installing Samsung Semi Automatic Washing Machine.

(Inset the inlet hose into washing machine)    (Insert the inlet hose into faucet)



The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
