Galaxy S25 Charging Port and Microphone Disassembly

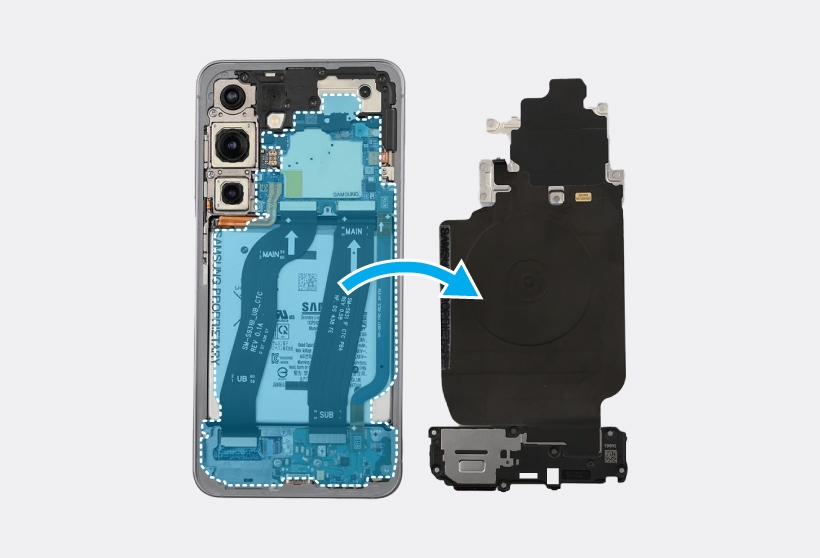

Check for the disassembly steps of the Bottom Speaker and completely separate the wireless charging module and speaker module.

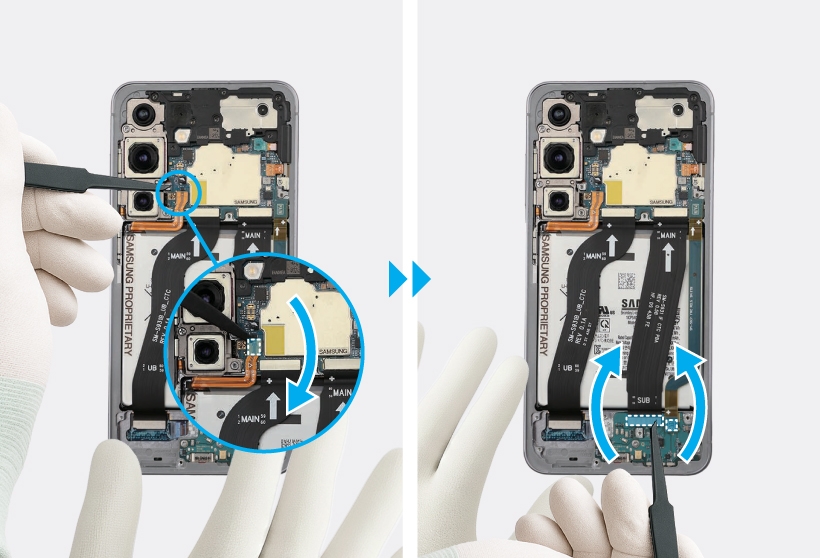

Using the tweezers, disconnect the battery connector first from the main board. Then, disconnect the 2 flex cable connectors from the charging port using the tweezers.
- Make sure to first disconnect the battery connector for your own safety.
- Be careful not to damage the battery.
Check the 2 screws on the charging port and remove them using a cross-head screwdriver.

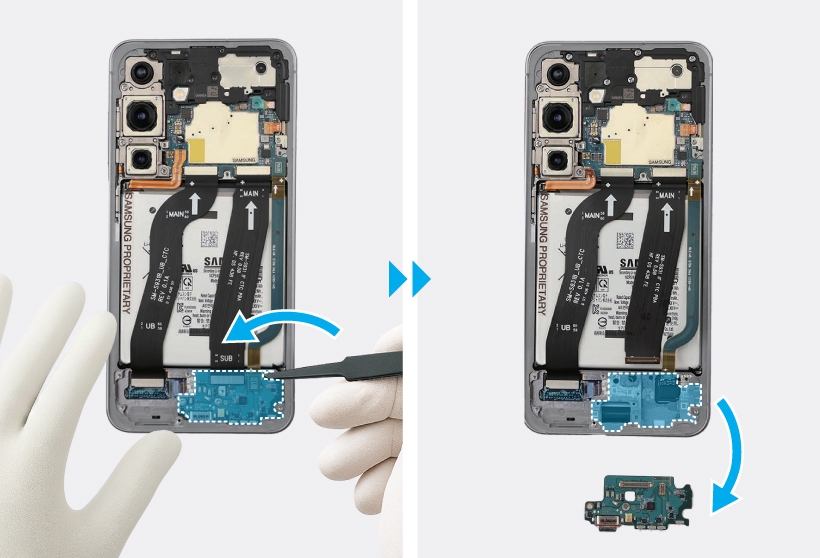

After lifting the FPCB cables up carefully, lift up on the separator groove of the charging port module using the tweezers and remove it carefully.
Galaxy S25 Charging Port and Microphone Reassembly

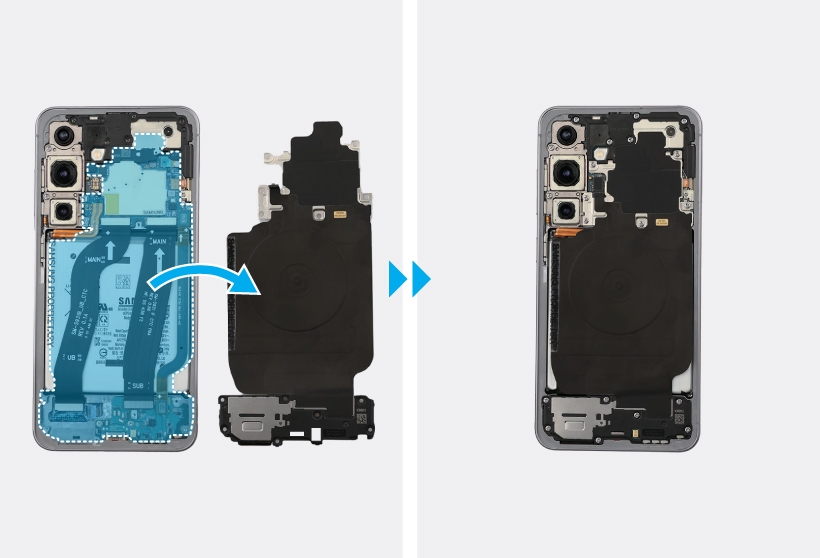

Using the tweezers, insert the charging port module to the bottom metal frame of the device, and press down on it in its position smoothly.

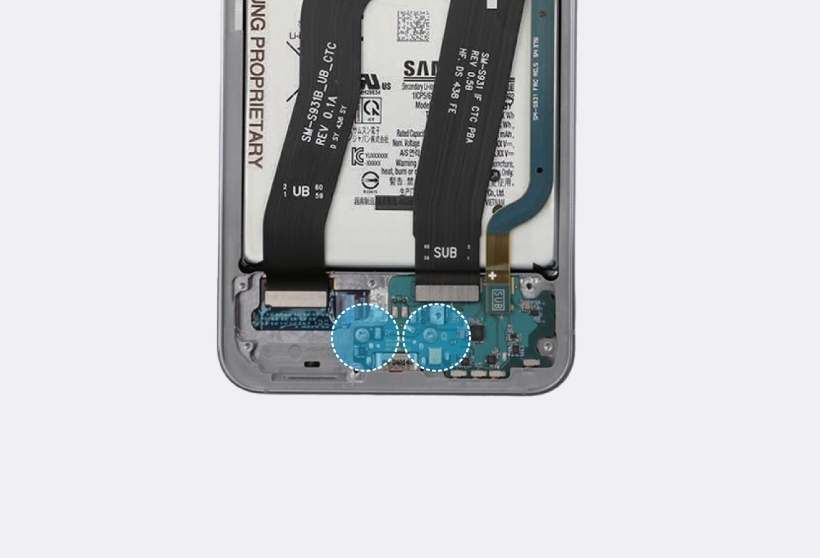

Check the screw 3554 (2 ea) at the 2 different points on the charging port and fasten the 2 screws using a cross-head screwdriver.

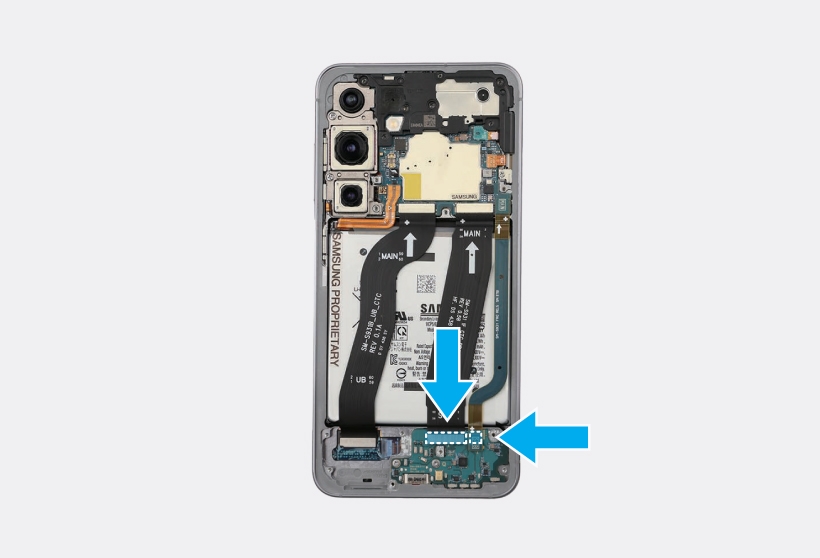

Using your fingers, connect the 2 flex cable connectors to the charging port.
- Be careful not to damage the cables.
- Be careful not to damage the charging port or nearby components.

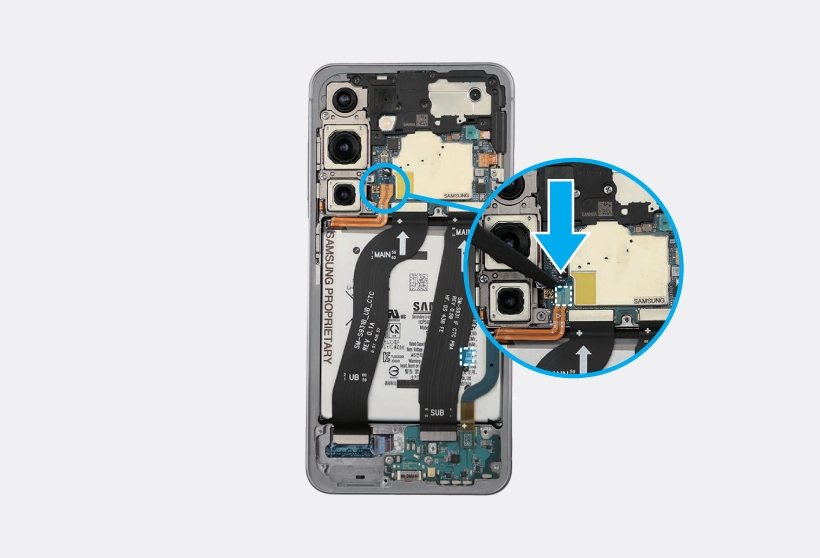

Connect the battery connector to the main board.

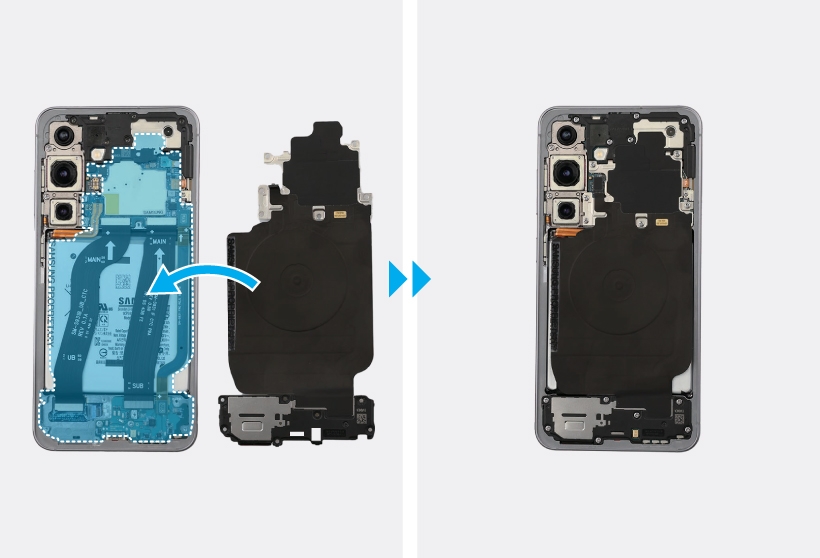

Check for the reassembly steps of the Bottom Speaker and completely reassemble the wireless charging module and speaker module.

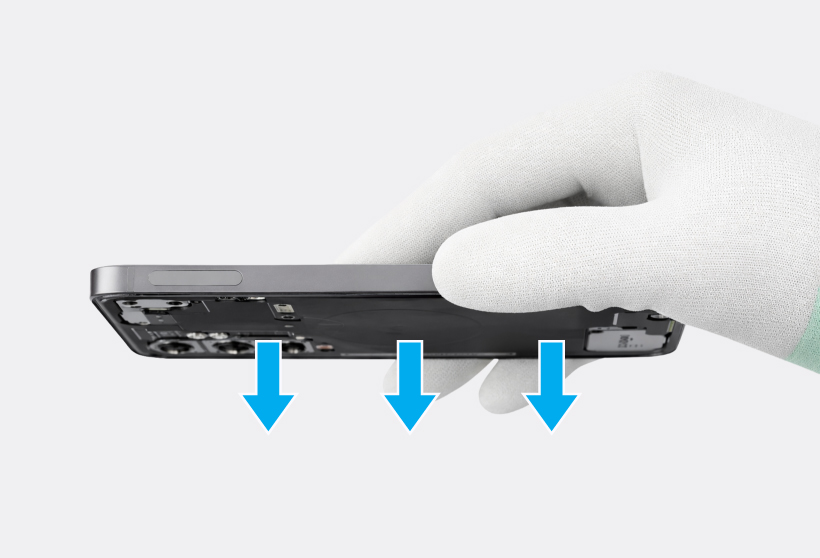

Check carefully with your fingers to see if there are any screws or other foreign substances inside the device (battery, PBA, cable, etc.). Shake the device lightly with the back of the device facing down to remove any remaining screws.
