Galaxy S25+ Charging Port and Microphone

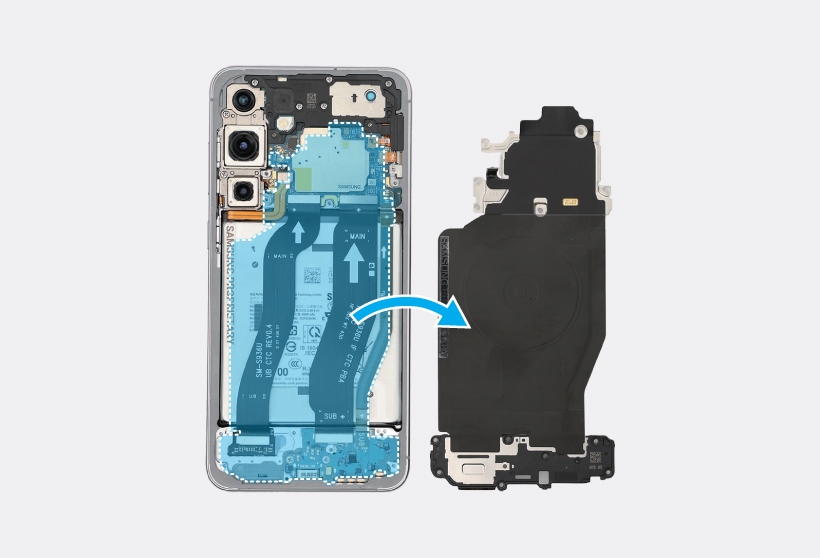

Check for the disassembly steps of the Bottom Speaker and completely separate the wireless charging module and speaker module.

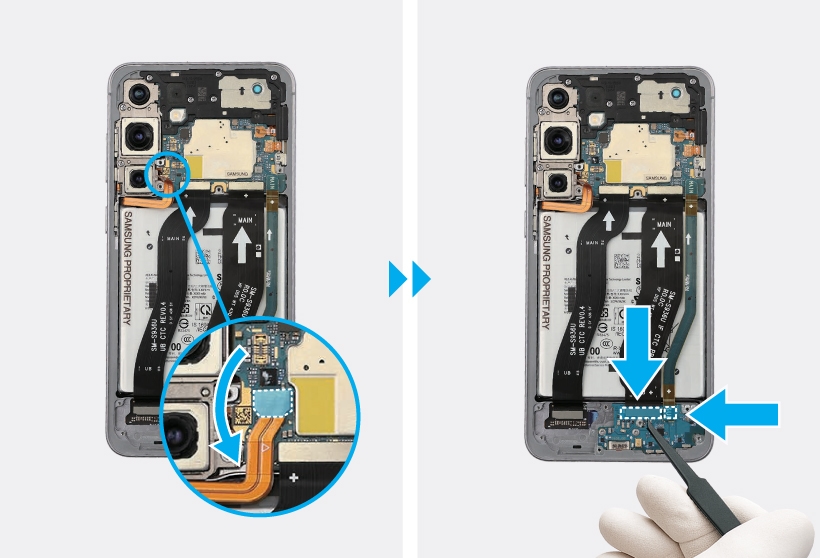

Using the tweezers, disconnect the battery connector first from the main board. Then, disconnect the 2 flex cable connectors from the charging port using the tweezers.

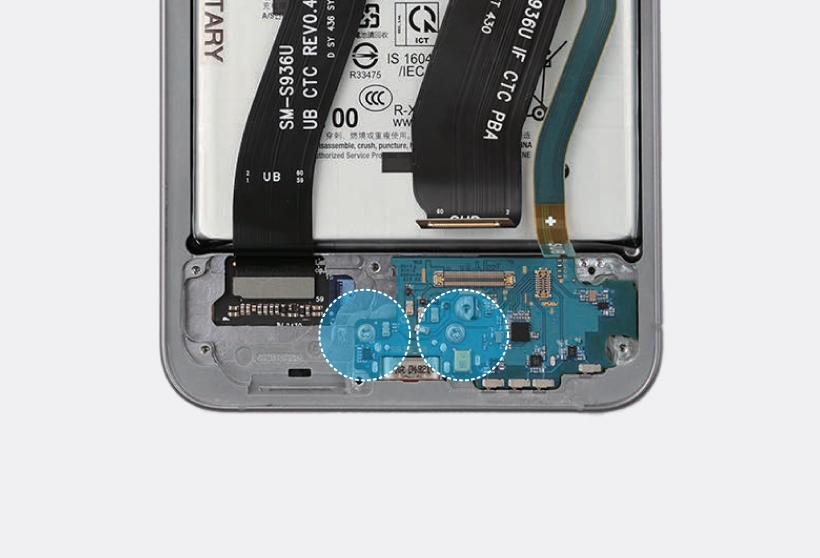

Check the 2 screws on the charging port and remove them using a cross-head screwdriver.

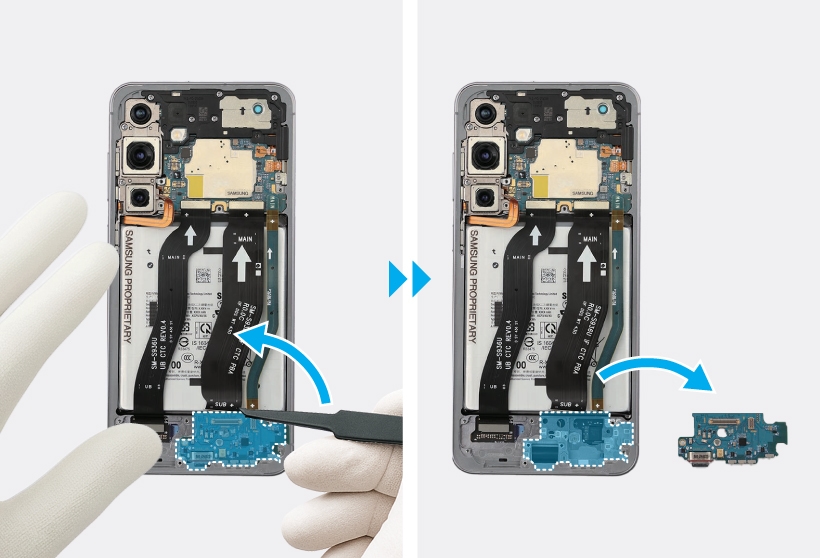

After lifting the FPCB cables up carefully, lift up on the separator groove of the charging port module using the tweezers and remove it carefully.

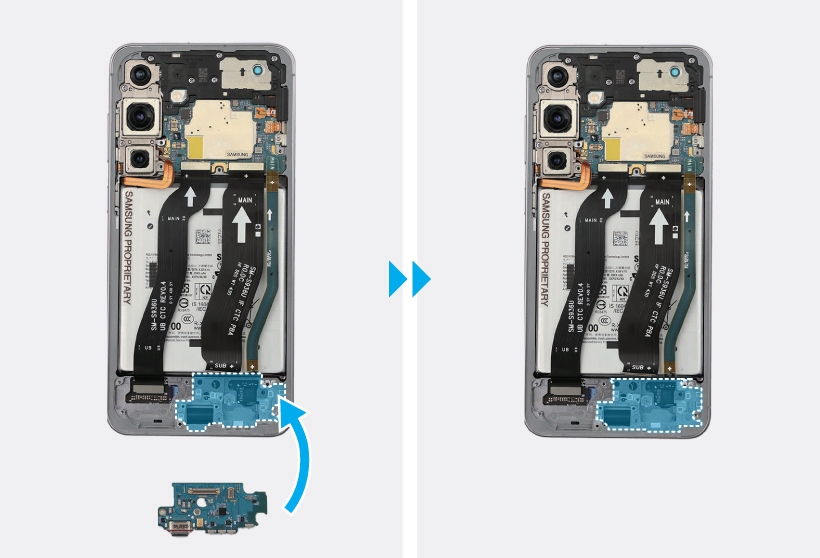

Using the tweezers, insert the charging port module to the bottom metal frame of the device, and press down on it in its position smoothly.

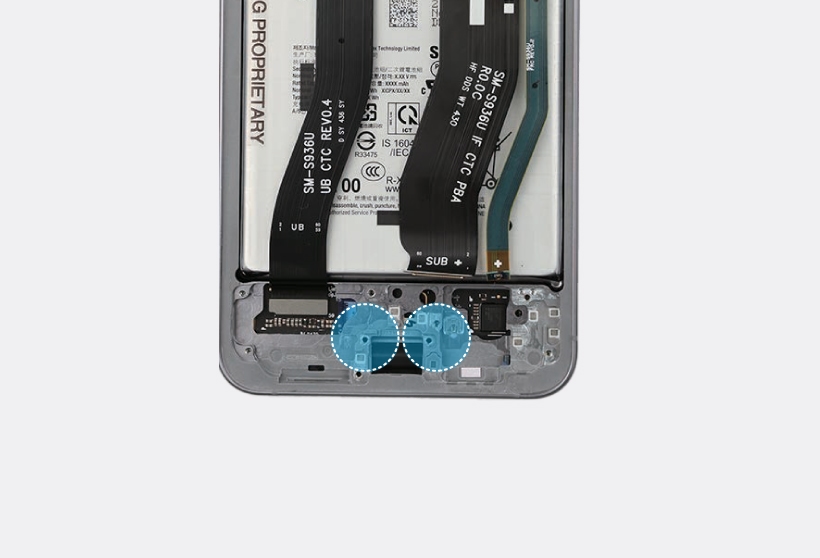

Check the screw 3554 (2 ea) at the 2 different points on the charging port and fasten the 2 screws using a cross-head screwdriver.

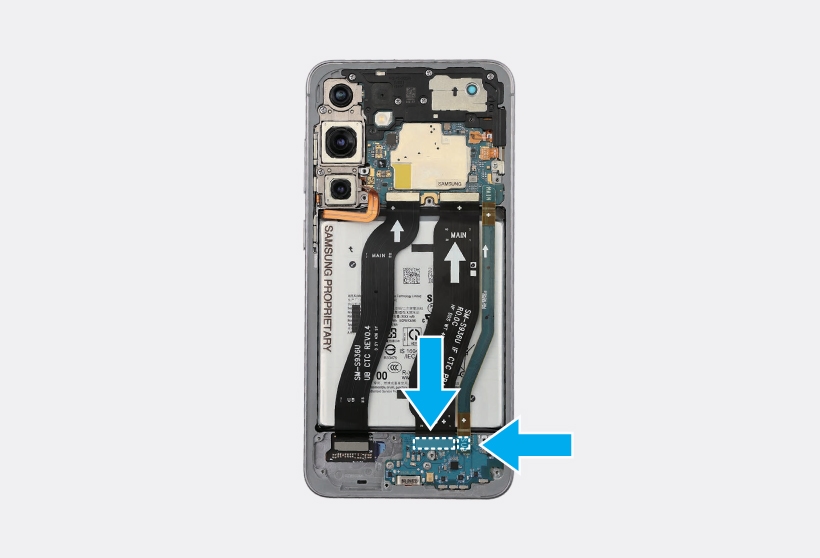

Using your fingers, connect the 2 flex cable connectors to the charging port.

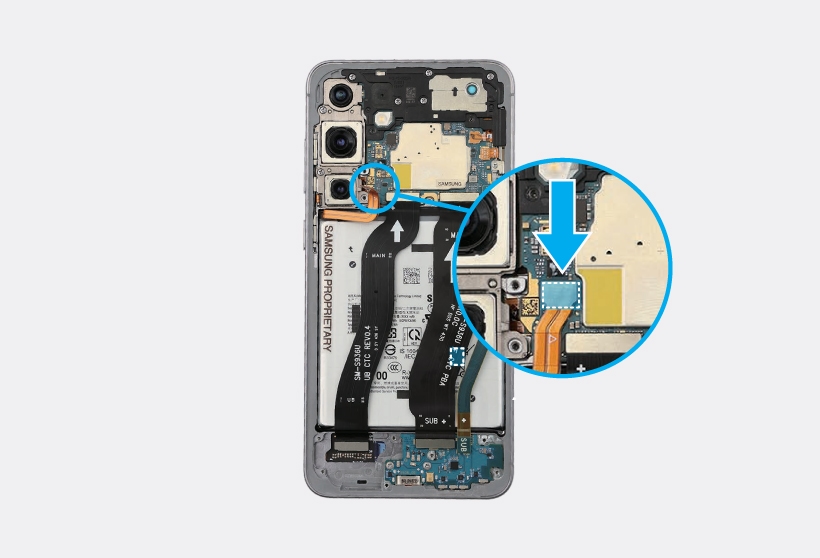

Connect the battery connector to the main board.

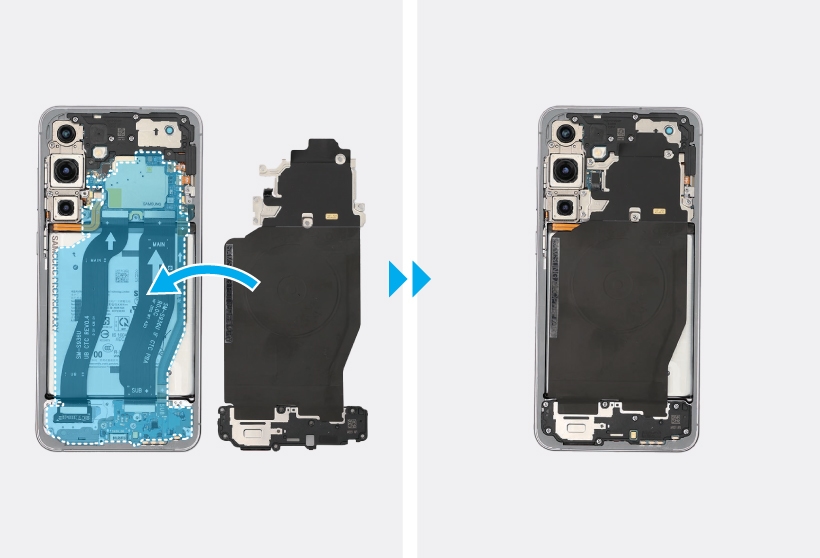

Check for the reassembly steps of the Bottom Speaker and completely reassemble the wireless charging module and speaker module.
