Galaxy Z Fold6 Front Camera Replacement
Replacing the front camera on the Galaxy Z Fold6 requires precision, proper tools, and careful handling of internal components. This step-by-step guide walks you through the complete disassembly and reassembly process, from safely removing the back cover and main board to preparing the new camera module with fresh adhesive. Whether you are restoring camera functionality or performing a professional repair, follow each instruction closely to ensure a safe and successful front camera replacement.
Galaxy Z Fold6 Front Camera Replacement
Galaxy Z Fold6 Front Camera Removal
Galaxy Z Fold6 Front Camera Installation
1

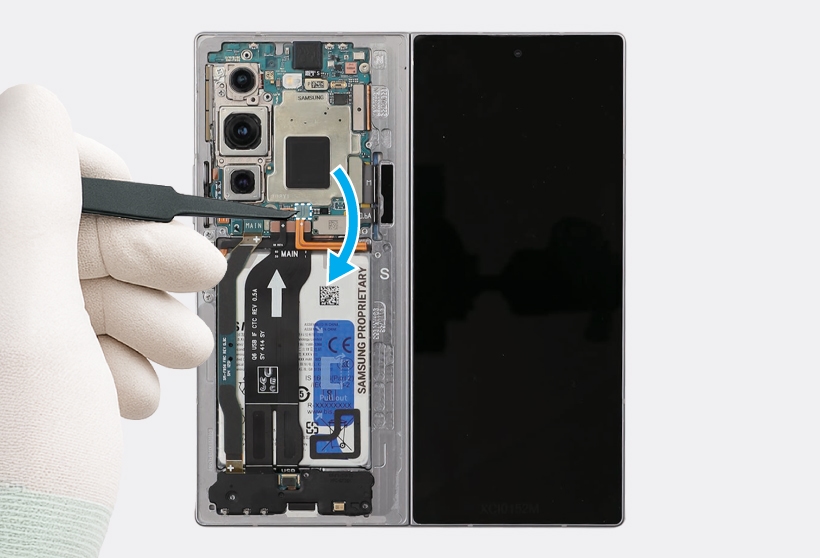

Check for the disassembly steps of the Main Board and separate the battery connector from the main board.
Warning
Make sure to first disconnect the battery connector for your own safety.
2

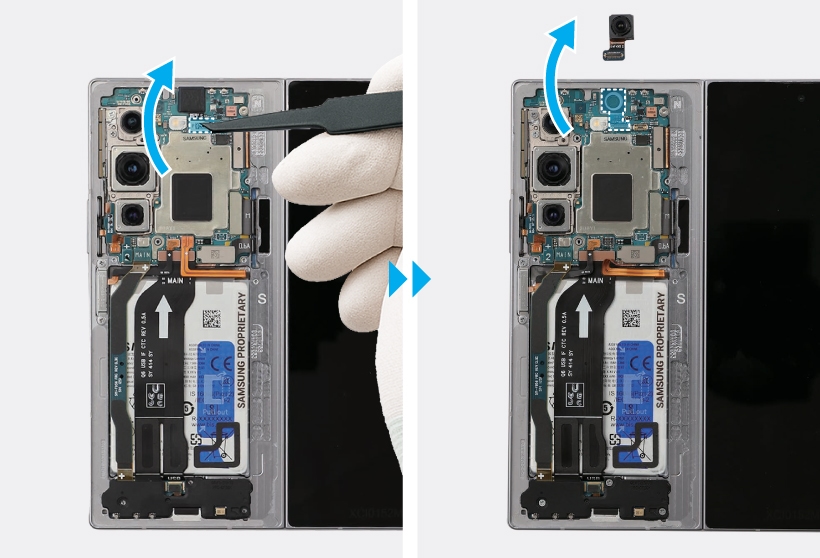

Using the tweezers, separate the front camera connector from the main board and remove the front camera carefully from the device. Leave the camera lens facing up.
Caution
- Be careful not to touch the camera lens while removing the camera.
- Be careful not to damage the camera and near components.
Warning
Leaving screws inside the device may damage internal components, such as the battery. When assembling, be extra careful not to leave any unassembled screws inside the device.
1

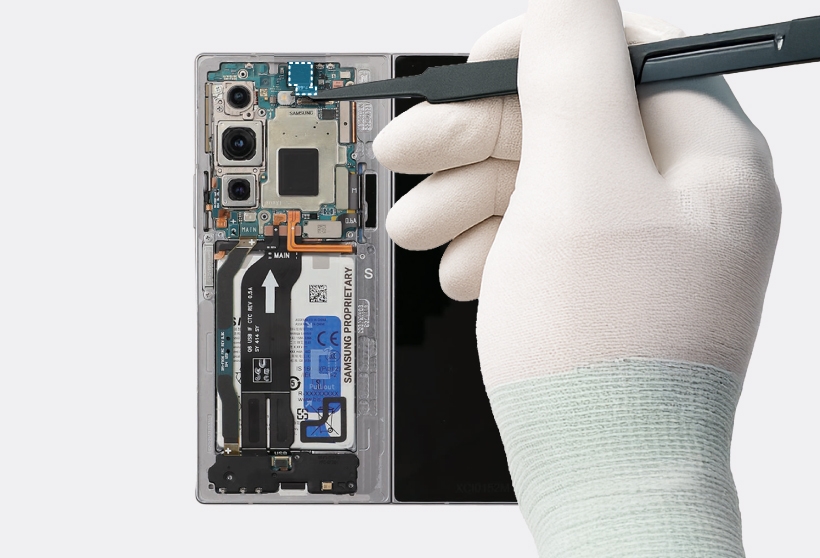

Using the tweezers or your fingers, place the front camera in the camera hole so that the lens faces forward, and gently insert the front camera.
Caution
- Be careful not to damage the camera lens and near components.
- Be careful not to damage the main board.
- Be careful not to damage and scratch the camera module.
2

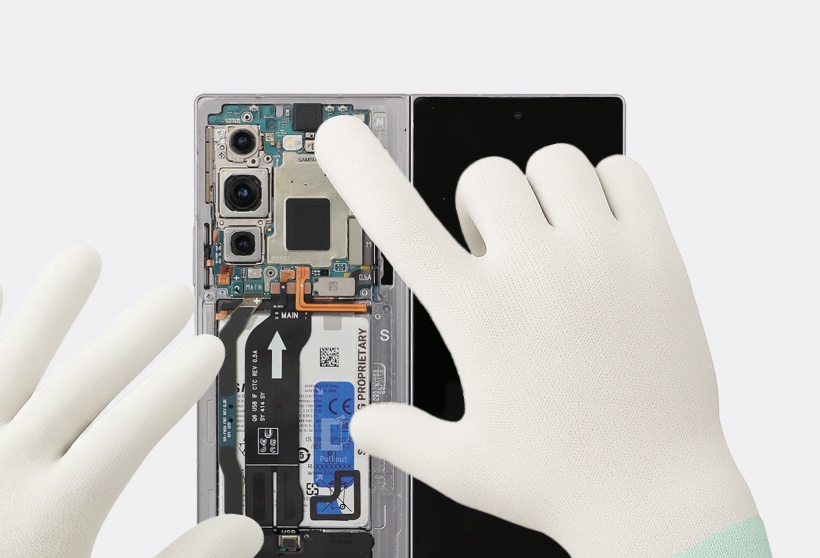

Using your fingers, connect the camera connector carefully on the main board.
3

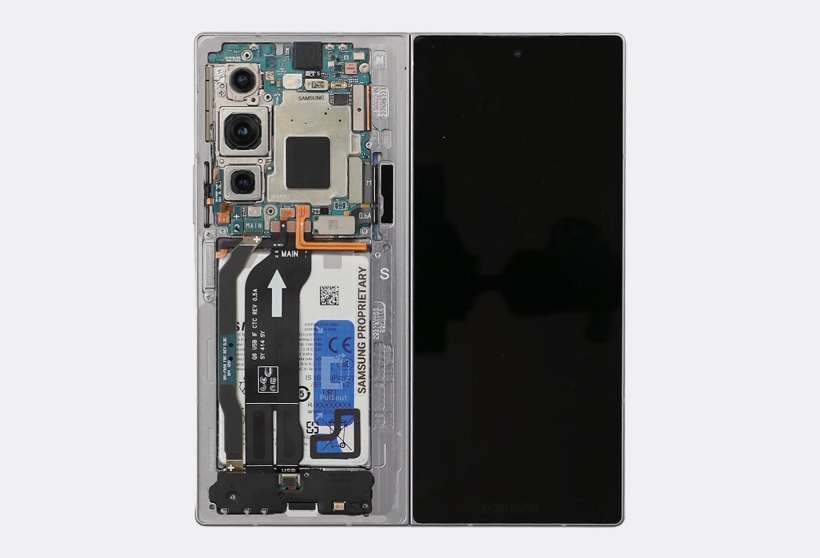

Check for the reassembly steps of the Main Board and completely reassemble the main board module and the front camera module to the device.
