SSD 860 EVO M.2 SATA 2TB
860 EVO SATA M.2 SSD 2TB


- Images must be in BMP, PNG, GIF or JPEG format.
- File size must be 5 MB or less.
- Image must be at least 100 pixels tall.
- Image must be at least 100 pixels wide.
- It contains copyrighted media (and you don't hold the copyright)
- It contains media not related to the product
We may not publish your review if:
- It contains copyrighted media (an you don't hold the copyright)
- It contains media not related to the product
Innovative V-NAND Technology with Enhanced Read/Write Performance.
Superior Endurance backed by a 5-Year Limited Manufacturer's Warranty.
$46.67/mo
No Interest if Paid in Full
Within 6 months†
Interest is charged from the purchase date
if the purchase amount is not paid in full within
6
months. Standard APR 29.99%. Advertised payment
is greater than required minimum payment.

Earn 1% back in rewards
Free shipping on all orders
Ships by Jan. 25
Form Factor
V-NAND
550MB/s Seq. Read
520MB/s Seq. Write
The SSD you trust
The newest edition to the world's best-selling* SATA SSD series, the Samsung 860 EVO is specially designed to enhance performance of mainstream PCs and laptops. With the latest V-NAND technology, this fast and reliable SSD comes in a wide range of compatible form factors and capacities.

Enhanced performance
Speeds are consistent, even under heavy workloads and multi-tasking allowing for faster file transfer. The 860 EVO performs at sequential read speeds up to 550 MB/s* with Intelligent TurboWrite technology, and sequential write speeds up to 520 MB/s. The TurboWrite buffer size* is upgraded from 12 GB to 78 GB.
*Test system configuration: Intel Core i5-3550 CPU @ 3.3 GHz, 4 GB, OS - Windows 7 Ultimate x64, Chipset: ASUS P8H77-V.
*The TurboWrite buffer size varies based on the capacity of the SSD; 12 GB model, 22 GB for 500 GB model, 42 GB for 1 TB model and 2/4 TB for 78 GB. For more information on the TurboWrite, please visit www.samsungssd.com.

Boosted endurance
Up to 8x higher TBW (Terabytes Written)* than the 850 EVO. Feel secure storing and rendering large sized 4K videos and 3D data used by the latest applications. The Samsung 860 EVO with V-NAND technology is backed by a 5-year limited warranty.*
* 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.

Smart compatibility
Benefit from faster, more fluid communication with your host system. The refined ECC* algorithm and a new MJX controller generate higher speeds, and the improved queued trim enhances Linux compatibility.

Multiple form factors
Whatever size your computer needs, there is an 860 EVO for you. Choose among the 2.5-inch size for desktop PCs and laptops, and the SATA-based M.2 (2280) or the mSATA for ultra-slim computing devices.

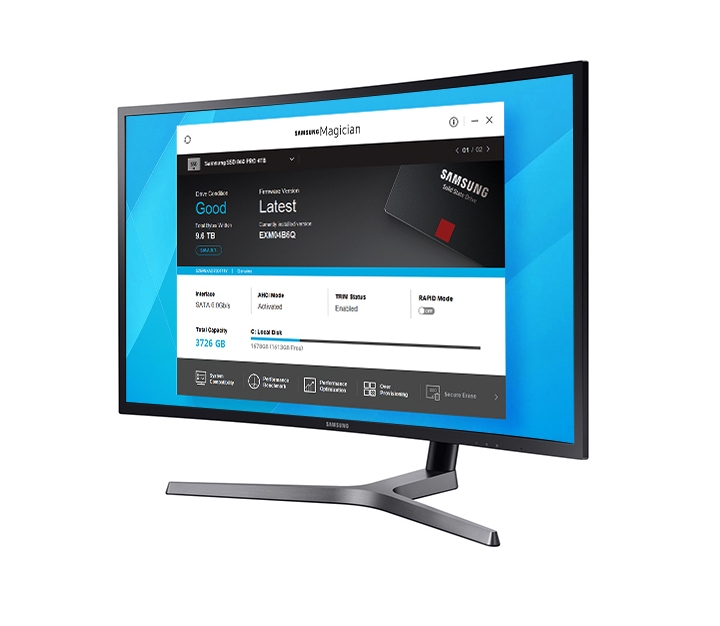

Samsung Magician
-
Management software
Samsung Magician software is designed to help you manage your SSD with a simple and intuitive user interface.
-
Firmware update
Get notifications when new firmware is released, and easily install updates for enhanced performance, stability, and compatibility.
-
Performance benchmark
Check your SSD's sequential and random read/write speeds, so you can maintain superb performance.
-
Data security
Protect data by selecting security options. The 860 EVO supports AES 256-bit hardware-based encryption and is compliant with TCG Opal and IEEE 1667.
-
Type Product Type
SATA SSD
Storage Type
Internal
Interface
SATA 6 Gb/s Interface
Read/Write Speeds
550/520 MB/s
Usage Application
Client PCs
Series
SSD 860 EVO
-
Storage Capacity
2TB
-
Key Features Sequential Read Speed
Up to 550 MB/s Sequential Read
* Performance may vary based on system hardware & configurationSequential Write Speed
Up to 520 MB/s Sequential Write
* Performance may vary based on system hardware & configurationRandom Read Speed
Random Read (4KB, QD32): Up to 97,000 IOPS Random Read
Random Read (4KB, QD1): Up to 10,000 IOPS Random Read
* Performance may vary based on system hardware & configurationRandom Write Speed
Random Write (4KB, QD32): Up to 88,000 IOPS Random Write
Random Write (4KB, QD1): Up to 42,000 IOPS Random Write
* Performance may vary based on system hardware & configurationCompatibility
Compatible with SATA 3 Gb/s and SATA 1.5 Gb/s interface
Controller
Samsung MJX Controller
NAND Type
Samsung V-NAND 3bit MLC
Cache Memory
Samsung 2 GB Low Power DDR4 SDRAM
Trim Support
Yes
AES Encryption
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
Security
AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
S.M.A.R.T. Support
Yes
GC (Garbage Collection)
Auto Garbage Collection Algorithm
WWN Support
World Wide Name supported
Device Sleep Mode Support
Yes
Internal Storage
Yes
-
General Power Consumption (W)
*Average: 3.0 W
*Maximum: 4.5 W (Burst mode)
*Actual power consumption may vary depending on system hardware & configurationReliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Environmental Specs Operating Temperature
0 - 70 ℃ Operating Temperature
Shock
1,500G & 0.5ms (Half sine)
-
Form Factor Product
M.2 SATA
-
Dimensions (W x H x D) Product
3.15" X 0.87 " X 0.09"
-
Weight Product
0.18 lbs.
-
Software Management SW
Magician Software for SSD management
-
Warranty Product
5 Years Limited Warranty or 1,200 TBW Limited Warranty
