Z Fold6 Cover Screen Replacement

Do not heat the device in a microwave. Doing so could cause an explosion.It is possible for the device or battery to be damaged by heat.

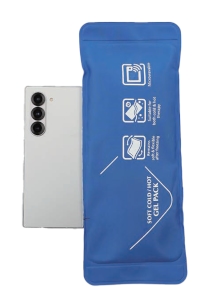

• Follow the heating bag’s instructions. The recommended time for heating the bag is 50 seconds in a 1000 W microwave and 70 seconds in a 700 W microwave. (Correct temperature for use: 55-65 ℃.)
• If your device’s glass breaks, the debris can cause injury to your hands or other body parts. For your safety, attach an acrylic protective cover before disassembling the device.
• Be careful not to damage the device through excessive heat. (It is recommended to disassemble the device in an area with a temperature gauge.)

• As the cover screen can be damaged by excessive force, be careful not to damage the cover screen.

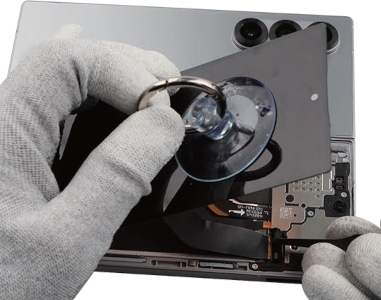

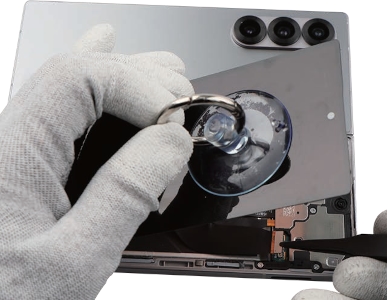

• Be careful that the suction cup does not adhere to the area where the tape or sticker is attached.

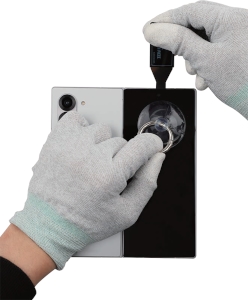

• When removing the cover screen, you need to use the metal opening tool because of its strong adhesion.
• As the internal circuitry can be damaged, do not insert the metal opening tool more than 1–2 mm.

• As the internal circuitry can be damaged, do not insert the opening pick more than 1-2 mm.

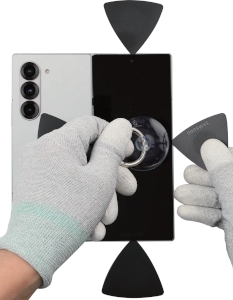

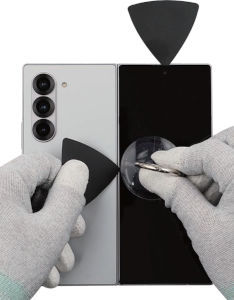

• Make sure to leave the opening pick inserted in the edges to prevent the adhesive from resealing.

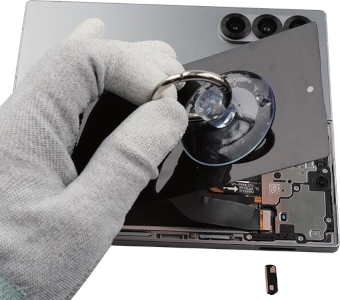

• The FPCB cable connector cover should be used again when reassembling, so be careful not to lose it.

• The FPCB cable connector cover should be used again when reassembling, so be careful not to lose it.

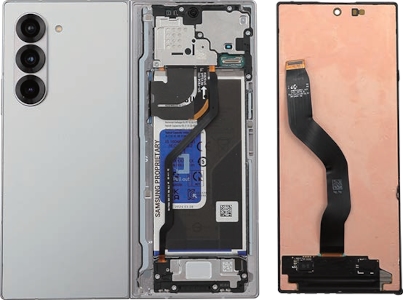

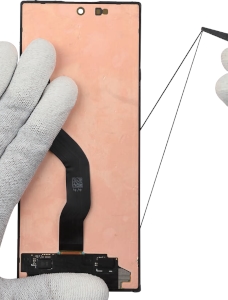

• Make sure to remove any residual tapes attached to the inside of the cover screen before reassembling the device.
• Be careful not to damage the exposed components.

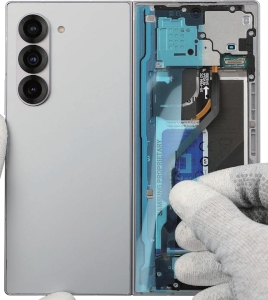

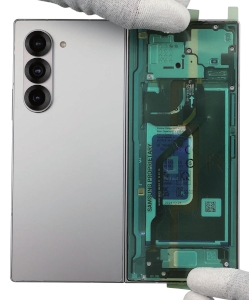

Align the tape precisely on the screw location and attach it. Then, using the tweezers and your fingers, gently press around the left edge several times to ensure a secure fit.

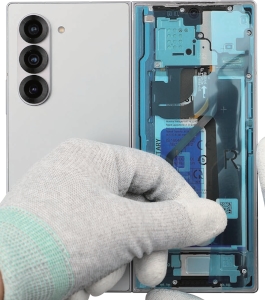

Align the tape precisely on the screw location and attach it. Then, using the tweezers and your fingers, gently press around the right edge several times to ensure a secure fit.

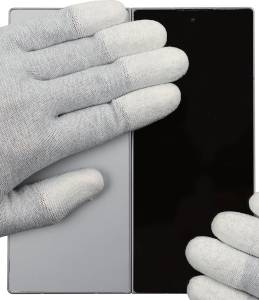

On the device where the inner left and right tapes are attached, align the new cover screen adhesive tape precisely on the screw location and attach it. Using the tweezers and your fingers, gently press around the all the edges carefully several times to ensure a secure fit.

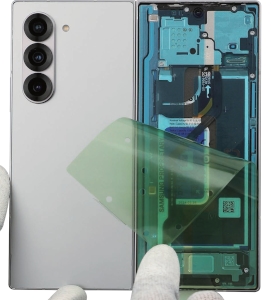

Using the tweezers or your fingers, remove all the release films one by one.

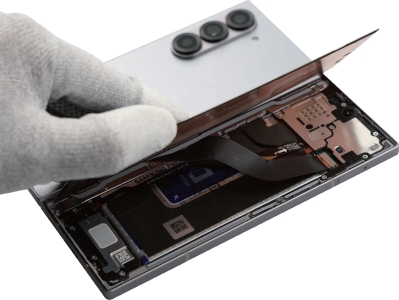

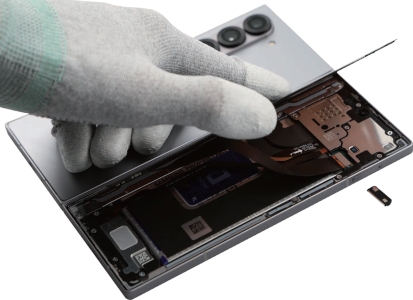

Assemble the cover screen’s FPCB cable connector first and press down with your fingers.

• When assembling the cover screen’s FPCB cable connector, be careful not to damage the FPCB cable.

Assemble the cover screen’s FPCB cable connector cover with your fingers or the tweezers and press down the cover softly.

• If you feel the gap, remove the cover screen and attach it again. Some foreign materials can be inside the device.
