Full motion wall mount accommodates VESA sizes from 100x100 to 700x400.
Compatible with most TVs from 39" to 80" and supports up to 125 lb.
Get Stock Alerts
May we send you an alert when this product is available?
Let's keep in touch! Tick the box to receive promotional email and texts (which may be autodailed) from Samsung Electronics America to the number provided above.The Samsung Privacy Policy explains how we use your information. You do not have to consent to receive text messages to receive any product or services from us. Messaging and data rates may apply.
Log in now to earn up to 2%
back in Samsung Rewards Points
Global Download Center
SAMSUNG assumes no responsibility, and shall not be liable, in connection with whether any such products or services will be appropriate, functional or supported for the SAMSUNG products or services available in your location.
Related Products
With 24″ of extension, get unparalleled viewing angle options
Full Motion Dual Stud TV Mount
Offering up to 24" of extension, the PDX680 ensures your TV is positioned exactly where you want it. Swivel it up to 85° in either direction to accommodate angled seating arrangements, and tilt it to improve line-of-sight and reduce glare. Easy to install, this full motion TV mount comes with all the hardware necessary for wood stud and concrete walls, as well as a drill template to ensure an accurate installation.

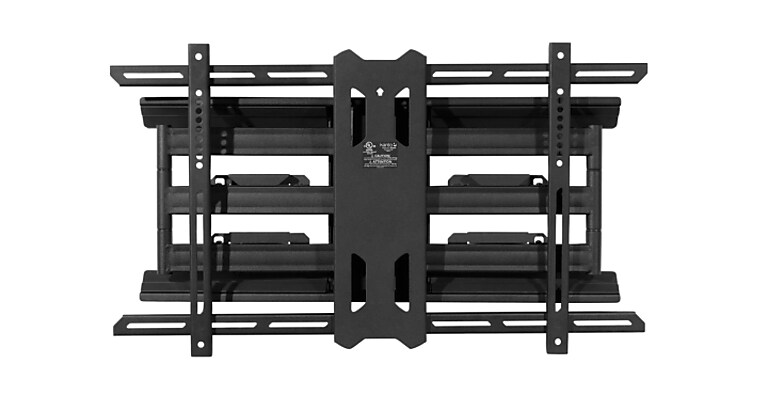

VESA compliant mounting brackets
Wide Range of Support and Compatibility
The PDX680 is designed for 39" to 80" TVs weighing up to 125 lb., and accommodates VESA sizes from 100×100 to 700×400.

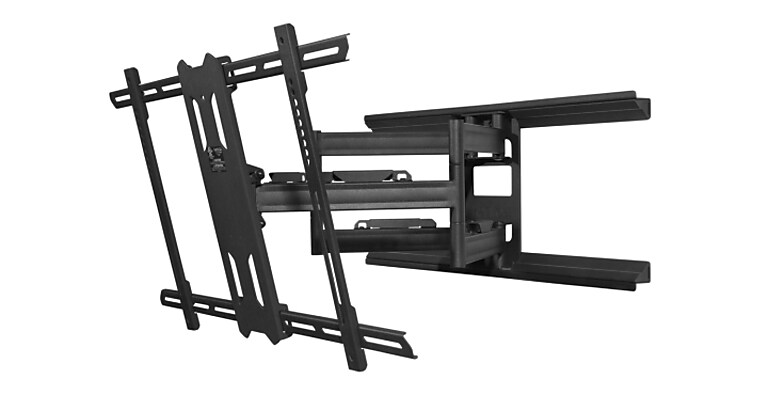

Extend, tilt and swivel your TV into the ideal position
Improved TV Viewing
Dual articulating arms allow you to extend your TV up to 24" from the wall, tilt 15° forwards and 3° backwards, and swivel up to 85° in either direction, depending on screen size.

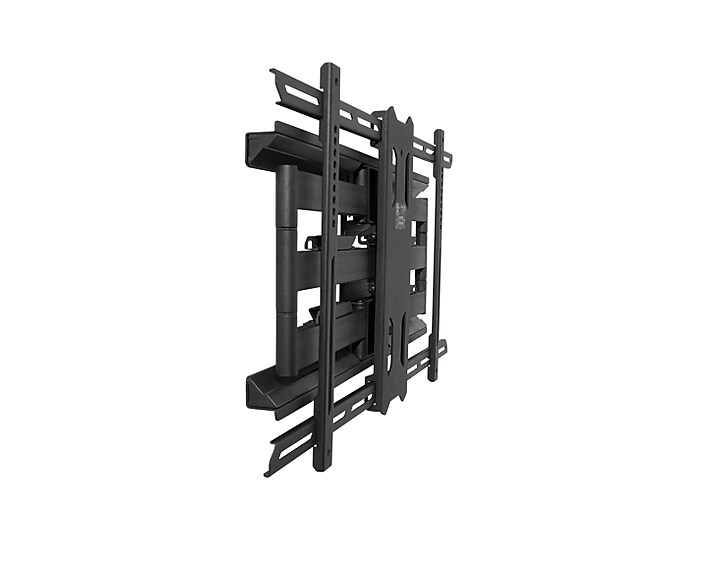

Mount your TV close to the wall
Low Profile Design
The unique design of the PDX680 allows your TV to sit 2" from the wall when fully pushed back.
Tidy up your living space
Clean Appearance
Four cable management raceways allow you to easily route your cables, while magnetic bolt covers hide any sign of installation.
Includes a labeled bolt pack and drill template Easy Installation
Easy Installation
Along with a labeled hardware box with all the bolts, washers and spacers you’ll need, the PDX680 comes with a paper drill template and dust tray to ensure your installation is accurate and mess-free.
-
Type Accessory Type
Wall Mounts
-
Optional Wall Mount Kit Distance from Wall (in)
2" - 24"
Swivel
85 Degrees in either direction
Tilt
+15/-3 Degrees
Safe Working Load
Up to 125 pounds
VESA Compatible
Yes (Supports 100x100 - 700x400)
-
Dimensions & Weight Accessory Size (W x H x D)
29.8 x 17.2 x 24 inches
Shipping Dimensions
29.6 x 4.3 x 12.8 inches
-
Weight Product Weight
22.3 pounds
Shipping Weight
27.6 pounds
-
Compatibility Compatible Models
QN75Q80RAFXZA, QN65Q80RAFXZA, QN55Q80RAFXZA, QN75Q70RAFXZA, QN65Q70RAFXZA, QN55Q70RAFXZA, QN49Q70RAFXZA, QN75Q60RAFXZA, QN65Q60RAFXZA, QN55Q60RAFXZA, QN49Q60RAFXZA, QN43Q60RAFXZA, UN75RU8000FXZA, UN65RU8000FXZA, UN55RU8000FXZA, UN49RU8000FXZA, UN65RU7300FXZA, UN55RU7300FXZA, UN75RU7200FXZA, UN65RU7200FXZA, UN58RU7200FXZA, UN55RU7200FXZA, UN50RU7200FXZA, UN43RU7200FXZA, UN75RU7100FXZA, UN65RU7100FXZA, UN58RU7100FXZA, UN55RU7100FXZA, UN50RU7100FXZA, UN43RU7100FXZA, UN40NU6070FXZA, QN65LS03RAFXZA, QN55LS03RAFXZA, QN49LS03RAFXZA, QN43LS03RAFXZA
-
Key Features Wall Mounts
Yes
