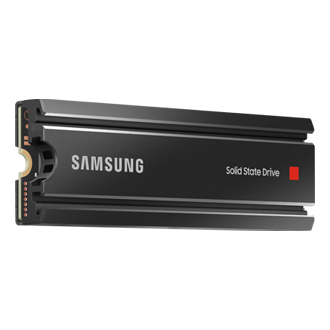

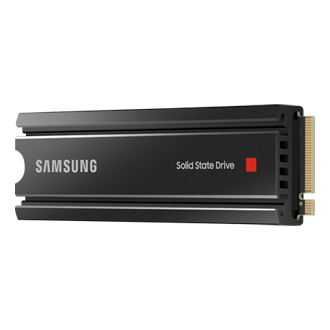

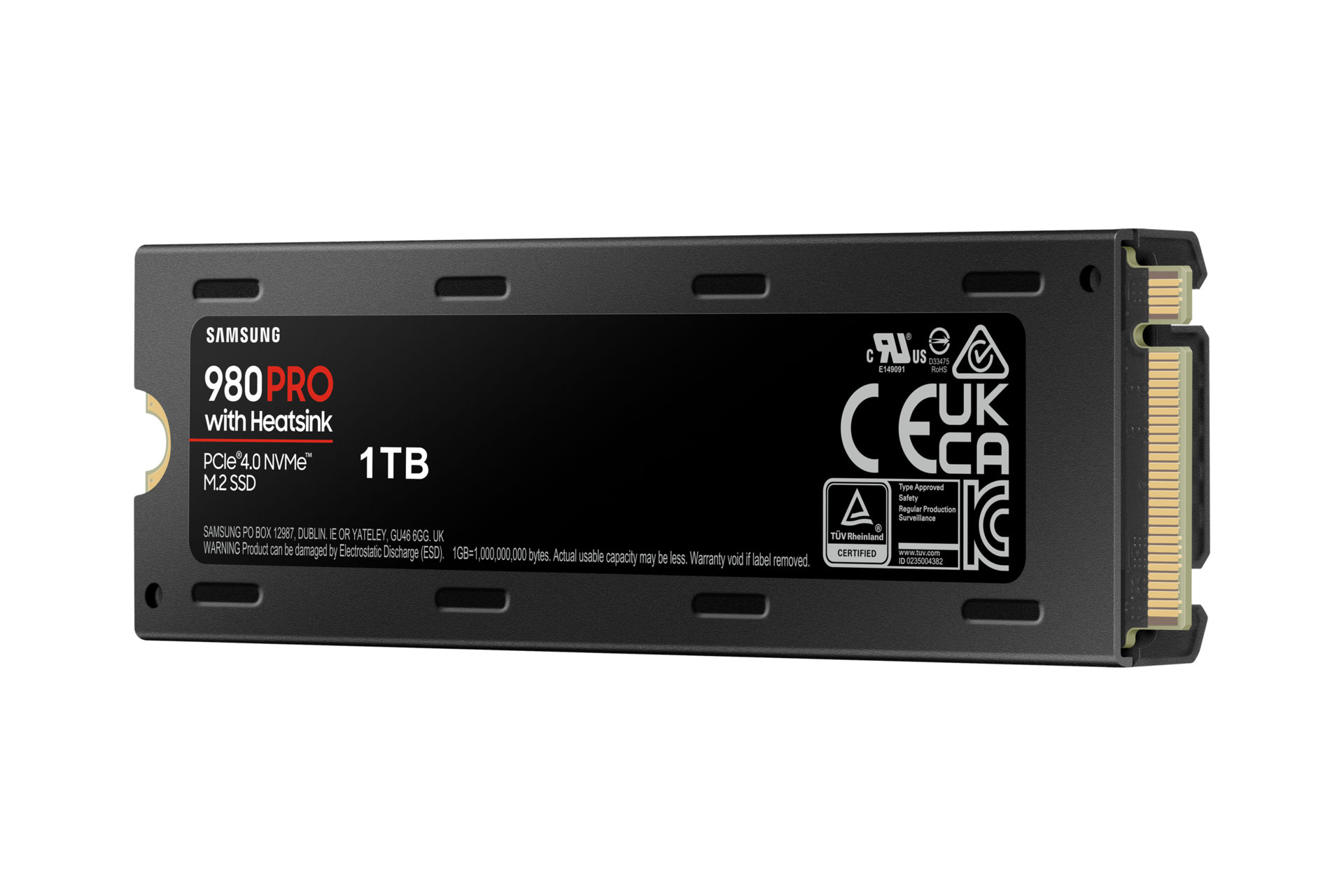

980 PRO with Heatsink PCIe 4.0 M.2

MZ-V8P1T0CW

4.9 ( 206 )

Choose your Colour

Colour :

Choose your Memory

980 PRO with Heatsink PCIe 4.0 M.2
Black 1 TB

{{item.name}}

{{item.summaryPrice}}

{{price.priceWrapper.info.totalPrice}} {{price.priceWrapper.info.vatText}}

{{price.priceWrapper.info.orignalPriceAddText}}

{{price.priceWrapper.info.lowestWasPricetext}}

{{price.priceWrapper.info.walkoutQtyText}}

{{price.priceWrapper.info.homeDeliveryQtyText}}

{{price.priceWrapper.info.salesPitch}}

{{price.priceWrapper.info.text}}

{{price.priceWrapper.info.text2}}

{{price.priceWrapper.info.text3}}

{{price.priceWrapper.info.shippingOrBack}}

{{price.priceWrapper.info.savingInformation}}

not for sale
{{price.bespokeAttr.text}} {{price.containedAttr.text}} {{price.reserveInStoreAttr.text}} {{price.outlinedAttr.text}} {{price.wtbAttr.text}}

Sorry! This product is no longer available

{{calculator.emiAttr.text}}

{{upgrade.title}}

{{upgrade.learnMoreCta.text}}

{{upgrade.description}}

{{upgradeResult.displayModelName}}

{{upgradeResult.discountText1}}

{{upgradeResult.description1}}

{{upgradeResult.description2}}

{{offerFinance.title}}

{{offerFinance.learnMoreCta.text}}

{{offerFinance.description}}

{{galaxyForever.title}}

{{galaxyForever.learnMoreCta.text}}

{{galaxyForever.description}}

{{galaxyForeverResult.displayModelName}}

{{galaxyForeverResult.discountText1}}

{{galaxyForeverResult.description1}}

{{galaxyForeverResult.description2}}

Choose your colour

Customizable bezels sold separately

Choose your skin colour

Customizable skin sold separately

  • {{item.name}}

    Out Of Stock

Modern style

  • {{item.name}}

    Out Of Stock

Beveled style

  • {{item.name}}

    Out Of Stock

Skin colour

  • {{item.name}}

    Out Of Stock

{{shippingOrBack.shippingOrBack}}
{{deliveryMessage.deliveryMessage}}

{{tradeIn.title}}

{{tradeIn.learnMoreCta.text}}

{{tradeIn.description}}

You have maximum number of Trade-in in cart already. If you wish to add in Trade-in, please remove from cart.

{{tradeInResult.displayModelName}}

{{tradeInResult.discountText1}}

{{tradeInResult.discountText2}}

{{tradeInResult.discountText3}}

{{tradeInResult.discountText4}}

{{tradeInResult.discountText5}}

{{tradeInResult.discountText6}}

{{tradeInResult.specialDiscountText}}

{{tradeInResult.description}}

{{tradeInResult.contentText}}

Dealer stock quantity

You can check the stock quantity for each region

Please select city

Only {0} left in stock.

Sorry, this product is not currently available in selected city.

{{assuredBuyBack.title}}

{{newAssuredBuyBack.title}}

{{newAssuredBuyBack.learnMoreCta.text}}

{{newAssuredBuyBack.description}}

Please select Samsung Assured Buyback or no coverage

{{care.title}}

{{care.learnMoreCta.text}}

{{care.description}}

  • {{item.specialText}}

{{warranty.title}}

{{warranty.learnMoreCta.text}}

{{warranty.description}}

{{warrantyResult.displayModelName}}

{{warrantyResult.discountText1}}

{{warrantyResult.description1}}

{{warrantyVd.title}}

{{warrantyVd.learnMoreCta.learnMoreText}}

{{warrantyVd.description}}

{{warrantyVdResult.title}}

{{warrantyVdResult.priceDisplay}}

{{delivery.headline}}

{{delivery.errorMessage}}

Apply

{{deliveryResult.priorityText}}

{{deliveryResult.mainText}}

{{deliveryResult.subText}}
Standard installation charges may apply.Click here for more details.

{{deliveryResult.decText}}

{{item.disclaimer}}

{{tariffOption.headline}}

Learn more

{{tariffOption.description}}

{{tariffOptionResult.displayModelName}}

{{tariffOptionResult.discountText1}}

{{tariffOptionResult.description1}}

{{tariffOptionResult.description2}}

{{tariffOptionResult.description}}

{{tariffOptionResult.price}}

{{tariffOptionResult.disclaimer}}

{{embedAddon.title}}

{{embedAddon.description}}

  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.modelCode}}

    {{item.description}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.description}}

    • {{item.dotList1}}
    • {{item.dotList2}}
    • {{item.dotList3}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
{{offerItem.title}}

{{offerItem.offerText}}

{{offerItem.linkText}}
{{bundle.imgAttr.alt}} {{bundle.imgAttr.alt}}
{{bundle.title}}
{{bundle.price.original}} {{bundle.price.save}} {{bundle.price.now}}
{{bogo.item.headline}}

{{decmain.text}}

{{bogo.item.description.sub}}

{{bogo.item.description.date}}

{{bogo.item.price.original}} {{bogo.item.price.save}} {{bogo.item.price.now}}
{{gift.item.headline}}

{{decmain.text}}

{{gift.item.description.date}}

{{gift.item.learnMoreCta.text}}
{{combo.item.headline}}

{{decmain.text}}

{{combo.item.description.date}}

{{combo.item.learnMoreCta.text}}
{{delightDelivery.item.imgAttr.alt}} {{delightDelivery.item.imgAttr.alt}}
{{delightDelivery.item.headline}}

{{decmain.text}}

Learn more
{{finance.item.iconAttr.alt}} {{finance.item.iconAttr.alt}}
{{finance.item.description.text}}
{{finance.item.emiText}}
{{message.item.iconAttr.alt}} {{message.item.iconAttr.alt}}

{{decmain.text}}

{{offer.headline}}

Features

Awards & Recognitions

Winner of Twice VIP Award 2022

Winner of Twice VIP Award 2022

Laptop Ultimate Home Office Awards 2022

Laptop Ultimate Home Office Awards 2022

"Perfect for on-the-move content creators, photographers of the great outdoors….”

Windows Central Recommended

Windows Central Recommended

“The T7 Shield's improved durability and fast transfer speeds make it perfect for adventurous professionals.”

Next-level SSD performance

Unleash the power of the PCIe® 4.0 NVMe™ SSD 980 PRO for next-level computing. The PCIe® 4.0 delivers 2x the data transfer rate of PCIe® 3.0 while staying backward compatible for total versatility. The added heatsink elevates speed, power efficiency, and thermal control to maximize gameplay.

* The NVMe ExpressTM design mark is a registered trademark of NVM ExpressTM, Inc.

Maximum speed

With Samsung’s in-house controller for PCIe® 4.0 SSD, the 980 PRO Series is optimized for speed. It delivers read speeds up to 7,000 MB/s, 2x faster than PCIe® 3.0 SSDs and 12.7x faster than SATA SSDs. The 980 PRO series achieves max speeds on PCIe® 4.0 and may vary in other settings.

* Sequential and random write performance was measured with Intelligent TurboWrite technology being activated. Intelligent TurboWrite operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service center
** Test system configuration: AMD Ryzen 9 3900X 12-Core Processor CPU@3.79GHz, DDR4 2666MHz 16GBx2, OS-Windows 10 Pro 64bit, Chipset-ASUS-X570-ROG CROSSHAIR VIII FORMULA
*** Results are based on a comparison with Samsung PCIe 3.0 NVMe SSDs and SATA SSDs.
**** To maximize the performance of the 980 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website.

Smart Thermal Control

Samsung’s nickel-coated controller reliably manages NAND chip heat levels. The 980 PRO's heat spreader label allows thermal control access. The 980 PRO Heatsink uses proven data center SSD technology to dissipate heat, for continuous high-performance gaming on most consoles and PC systems.

A winning combination

Gamers, techies, and designers benefit from thermal control, high-performance bandwidth, and sustained performance for heavy-duty applications. Games load fast for more play, less wait. Smart heat management reduces distracting noise and cooling fan work for uninterrupted, fully immersive gaming.

Efficient M.2 SSD

The 980 PRO with Heatsink minimizes space limits with a thin 8.6mm body, compatible with PlayStation®5 plus desktops & laptops meeting PCI-SIG® D8 specs. The 980 PRO's compact, easy to plug-in M.2 form factor maximizes board design flexibility for building efficient, high-performance systems.

* PCI-SIG® D8 standard spec: 8.8mm

Samsung Magician software

Unlock the full power of the 980 with Samsung Magician's intuitive yet advanced optimization tools. Monitor drive health, optimize performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.

World’s No.1 Flash Memory

Experience superior performance and reliability that you can only get from the world’s number one brand for flash memory since 2003. All firmware and components, including Samsung’s world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

* Source: 2003-1H.2022 OMDIA data: NAND suppliers' revenue market share.

* Source: 2003-1H.2022 OMDIA data: NAND suppliers' revenue market share.

Specifications

  • Application

    Client PCs, Game Consoles

  • Interface

    PCIe Gen 4.0 x4, NVMe 1.3c

  • Dimension (WxHxD)

    80 x 24 x 8.6 mm (with heatsink)

  • Weight

    Max 30.5g

  • Application

    Client PCs, Game Consoles

  • Capacity

    1,000GB (1GB=1 Billion byte by IDEMA)
    * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

  • Form Factor

    M.2 (2280)

  • Interface

    PCIe Gen 4.0 x4, NVMe 1.3c

  • Dimension (WxHxD)

    80 x 24 x 8.6 mm (with heatsink)

  • Weight

    Max 30.5g

  • Storage Memory

    Samsung V-NAND 3-bit MLC

  • Controller

    Samsung in-house Controller

  • Cache Memory

    Samsung 1GB Low Power DDR4 SDRAM

  • TRIM Support

    Supported

  • S.M.A.R.T Support

    Supported

  • GC (Garbage Collection)

    Auto Garbage Collection Algorithm

  • Encryption Support

    AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)

  • WWN Support

    Not supported

  • Device Sleep Mode Support

    Yes

  • Sequential Read

    Up to 7,000 MB/s
    * Performance may vary based on system hardware & configuration

  • Sequential Write

    Up to 5,000 MB/s
    * Performance may vary based on system hardware & configuration

  • Random Read (4KB, QD32)

    Up to 1,000,000 IOPS
    * Performance may vary based on system hardware & configuration

  • Random Write (4KB, QD32)

    Up to 1,000,000 IOPS
    * Performance may vary based on system hardware & configuration

  • Average Power Consumption (system level)

    * Average: 6.2 W
    *Maximum: 8.9 W (Burst mode)
    * Actual power consumption may vary depending on system hardware & configuration

  • Power consumption (Idle)

    Max. 35 mW
    * Actual power consumption may vary depending on system hardware & configuration

  • Allowable Voltage

    3.3 V ± 5 % Allowable voltage

  • Reliability (MTBF)

    1.5 Million Hours Reliability (MTBF)

  • Operating Temperature

    0 - 70 ℃ Operating Temperature

  • Shock

    1,500 G & 0.5 ms (Half sine)

  • Management SW

    Magician Software for SSD management

  • Not Available

  • 5-Year Limited Warranty or 600 TBW Limited Warranty
