SIM and MicroSD Cards in Galaxy J3 and J7 2018

Although J3 and J7 (2018) have similar names and features, their main difference is their card trays. On both phones, this card slot holds your SIM and microSD cards, but they are set up a little differently. The J7 has a new slide-out tray on the side of the phone, whereas the J3's tray is behind the phone's back cover. Knowing how to properly insert and remove these trays is super important because they are essential to your phone. SIM cards give you access to your wireless service provider's mobile data network and MicroSD cards allow you to expand the storage on your phone. In other words, you definitely don't want to mess them up.

SIM cards are provided by your carrier or retailer where you purchased the phone.

MicroSD cards are optional and must be purchased separately.

Insert the SIM and MicroSD Cards for J3 2018

Since the SIM and MicroSD card are behind the phone's cover on the J3, you'll need to be extra delicate and intricate when inserting them. But don't worry, it's really easy to do.

First, power off your phone and look for the opening in the upper right of your phone's back. Then, use your finger to carefully pry off the cover from the back of the phone. Then, remove the battery.

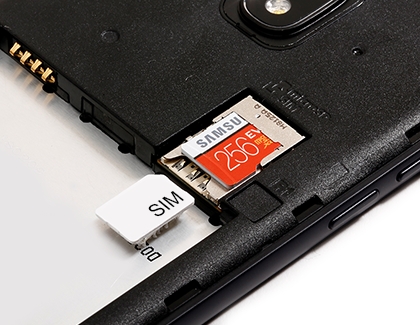

Next, carefully slide the SIM card into the SIM card slot, underneath the microSD slot. Make sure that the SIM card’s gold contacts are face down and that the card's indent is on the left side, facing toward the phone.

Finally, slide the microSD into the slot above the SIM card. Also, make sure the gold contacts are facing down. Replace the battery, close the cover and snap all its sides back into place until they are flush against the phone. Congrats, you did it!

Remove the SIM and MicroSD Cards for J3 2018

You need to let your phone know before you take out the microSD card. Otherwise, your files could get jumbled. After you do that, removing the SIM card and the mircoSD is easy. It's similar to inserting them - you just need to do the opposite.

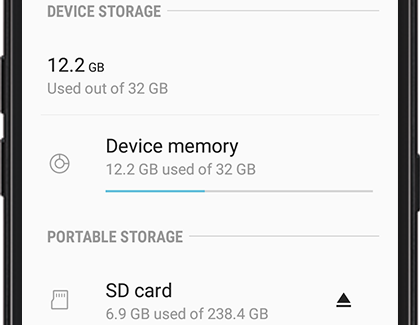

You'll need to unmount your mircoSD card first. From Settings, search for and select Storage. Touch More Options > Storage settings. To unmount the SD card, touch Eject.

Next, power off your phone, so you can remove the SIM and microSD cards. From the back of your phone, look for the opening in the upper right. Use your finger to carefully pry off the cover from the back of the phone. Then, remove the battery.

With the SIM and microSD tray exposed, you can remove both cards. Carefully slide the microSD and the SIM cards out of their slots.

Insert the SIM and MicroSD Cards for J7 2018

Be careful not to insert the ejector tool into the microphone hole, which is also located at the bottom of your phone.

Since the J7 has a new, easy-to-use card slot, inserting your SIM and microSD cards is really no sweat.

First, power off your phone, and look for the SIM and microSD tray. From the front of your phone, the SIM and microSD tray is located on the lower left side. Insert the ejector tool that came with your phone into the hole on the SIM and microSD tray. You will want to push inward until the tray pops out.

Next, carefully place your SIM card into the smaller cutout in the tray and then place the microSD card in the larger cutout next to it. Verify that the cards are flush with the tray and that the gold contacts are facing down. Insert the SIM and microSD tray back into the slot on your phone. Now, power on your phone, and you’re good to go!

Remove the SIM and MicroSD Cards for J7 2018

Before you can take out your microSD card, you need'll need to unmount it from your phone. This helps to make sure none of your files get lost. Once you do that, you can remove the SIM card and the mircoSD card. Just make sure to store them in a safe place!

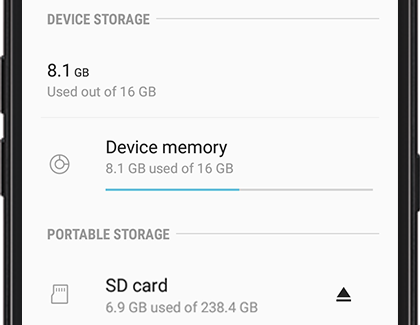

First, unmount your mircoSD by going to Settings. Then, search for and select Storage. Touch More Options > Storage settings. To unmount the SD card, touch Eject.

Now you can power off your phone and remove the SIM and microSD cards. From the front of your phone, the SIM and microSD tray is located on the lower left side. Insert the ejector tool into the hole on the card tray, and then push until the tray pops out. Remove the SIM and microSD cards from the tray. Wasn't that easy?
