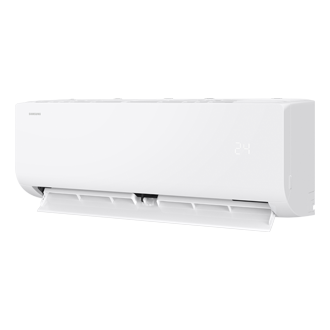

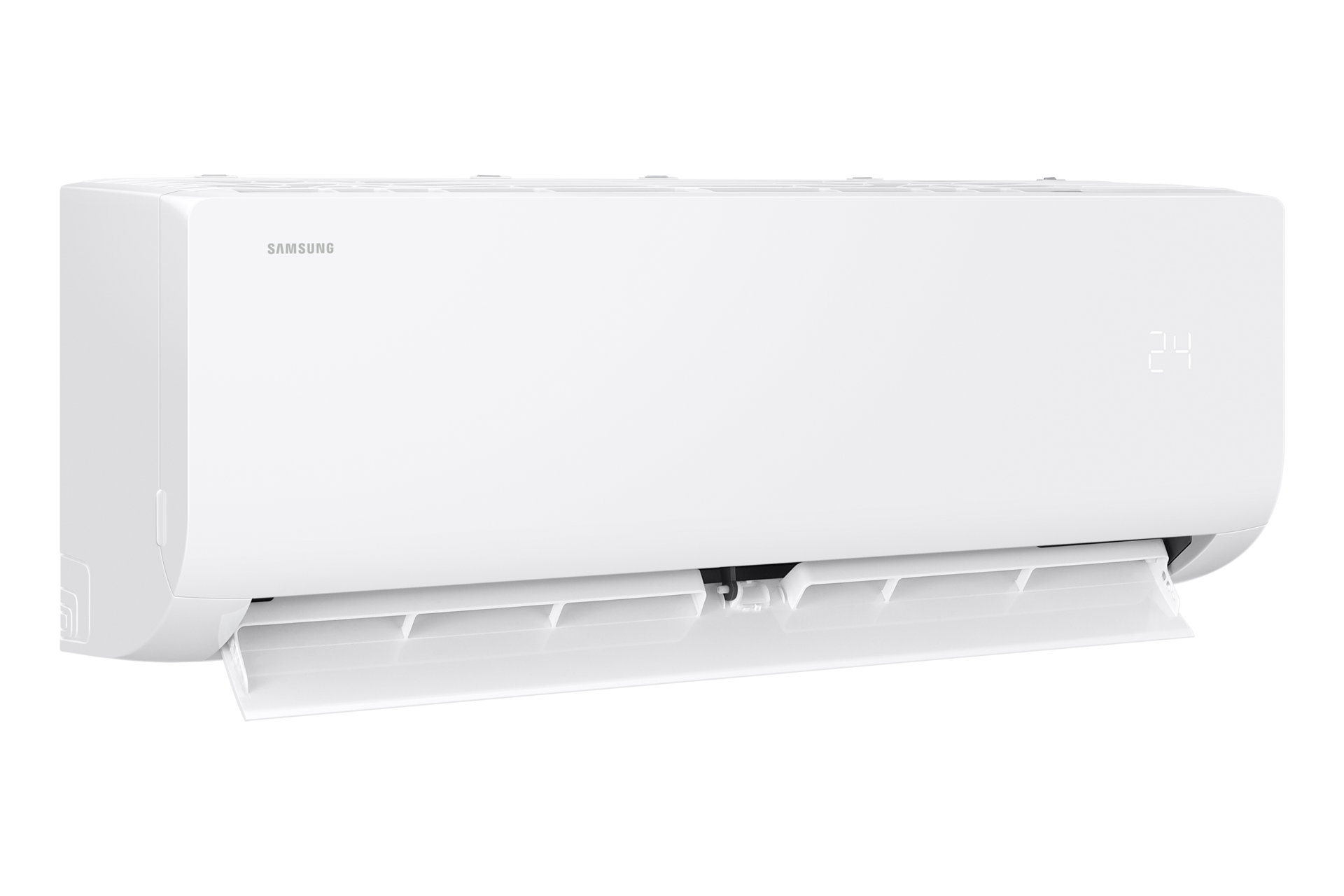

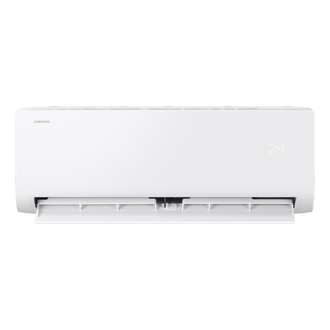

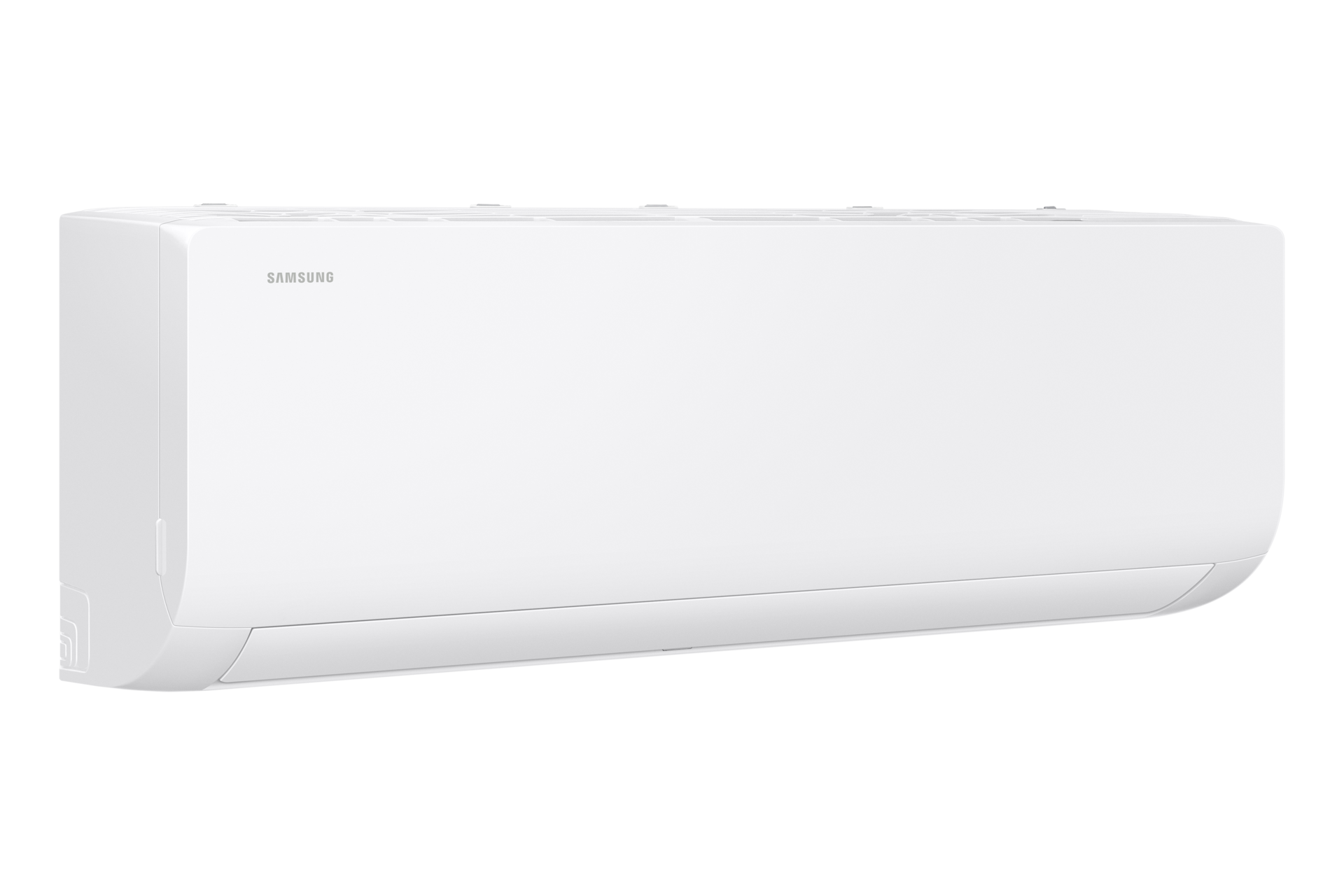

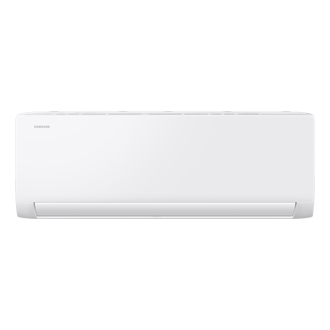

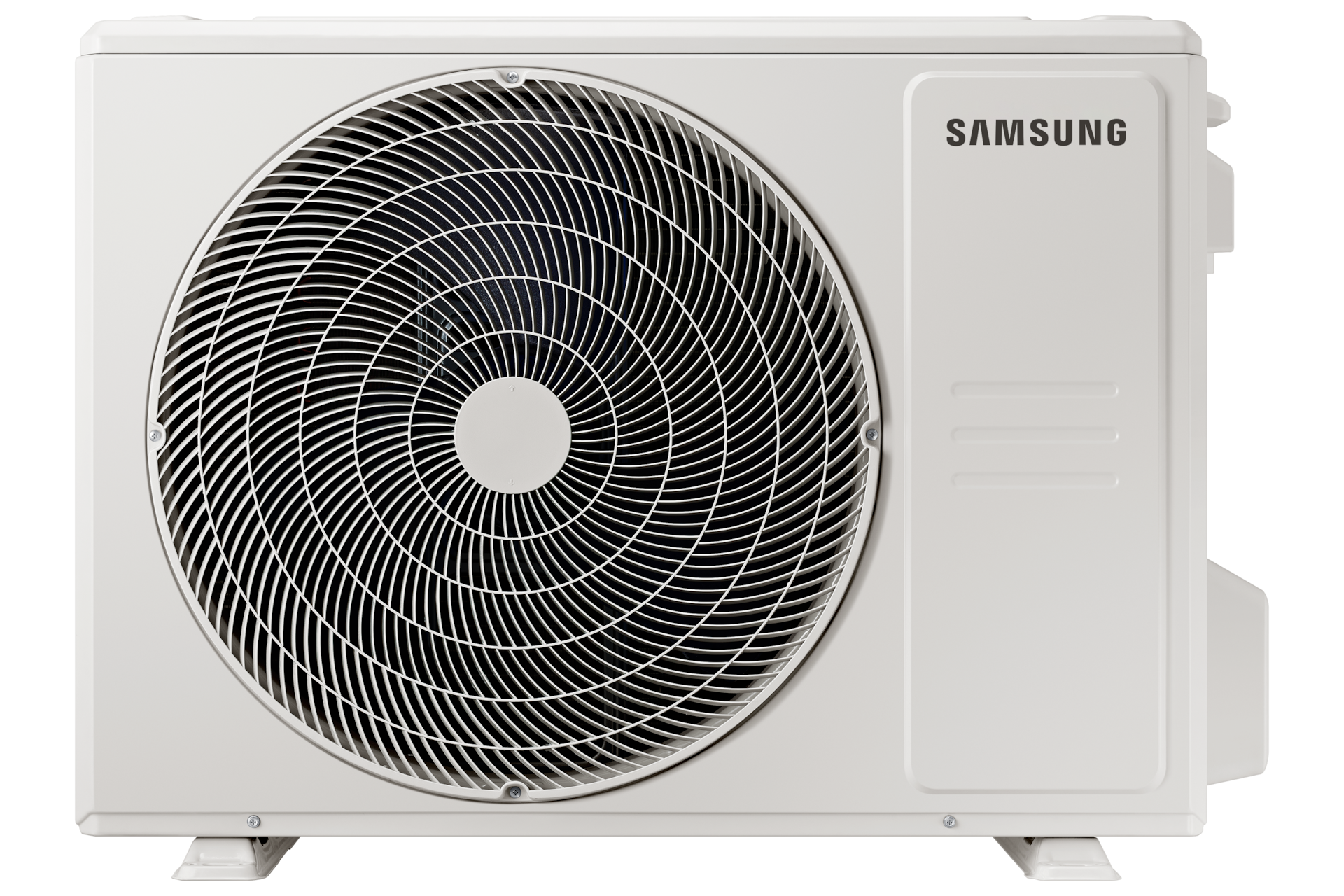

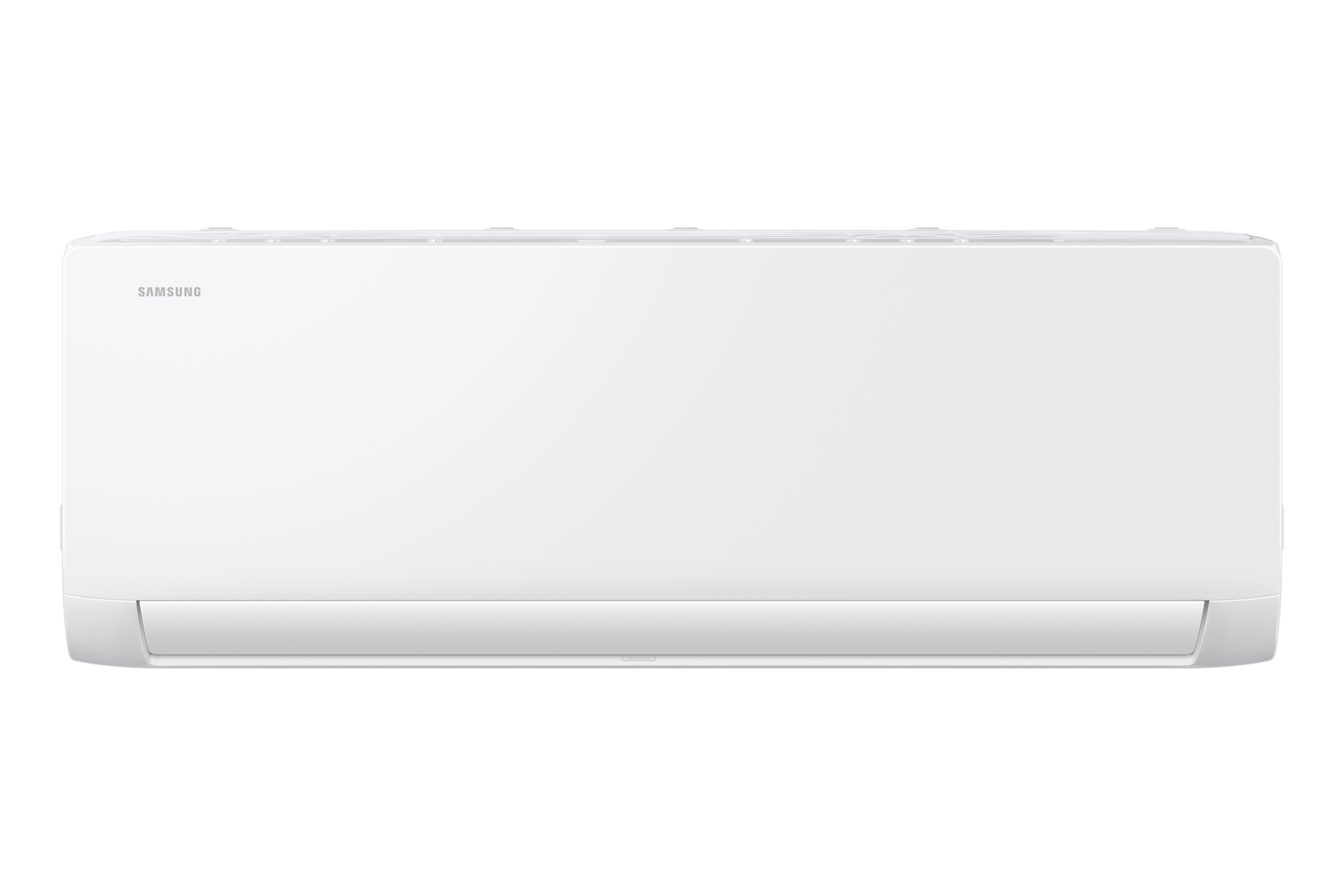

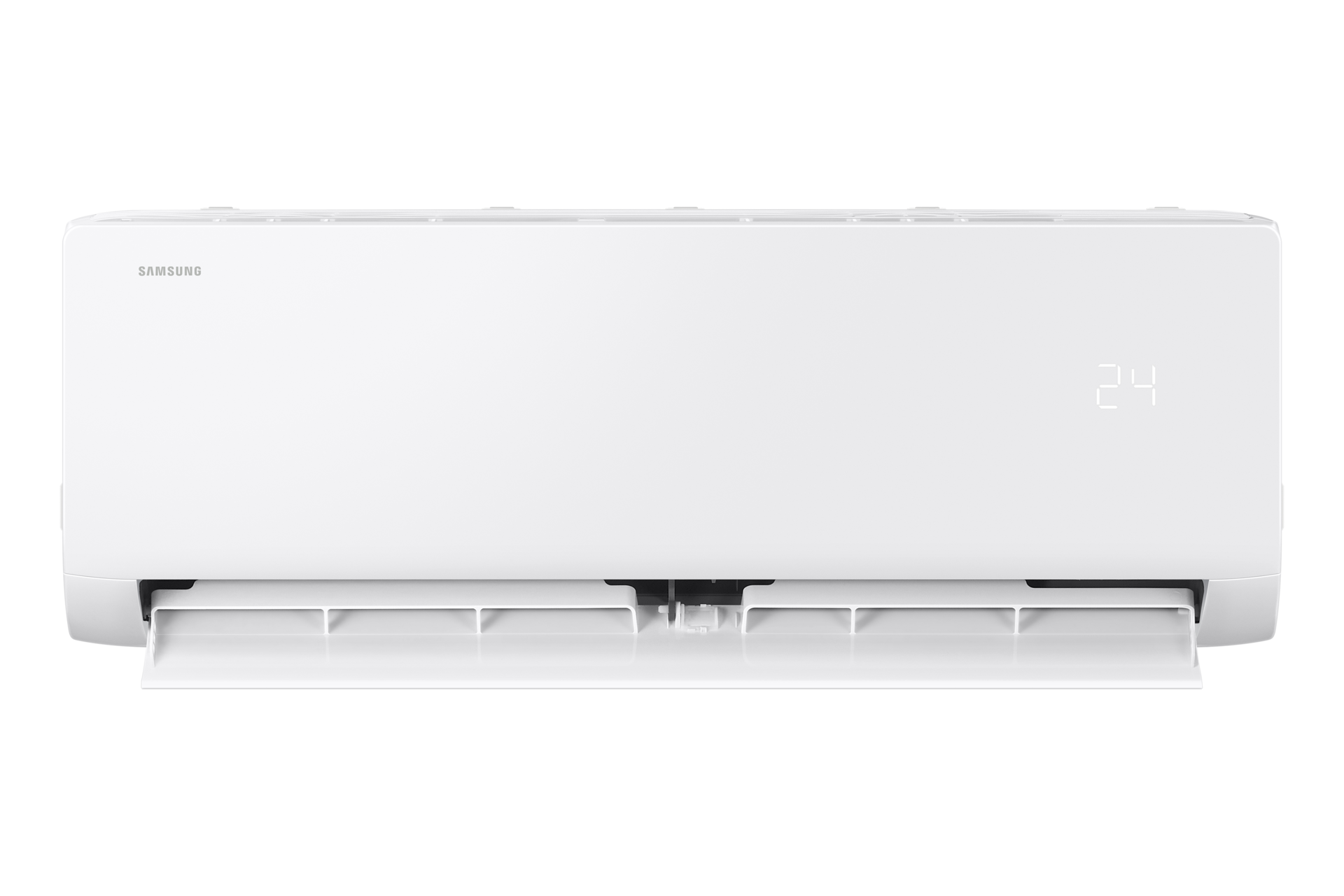

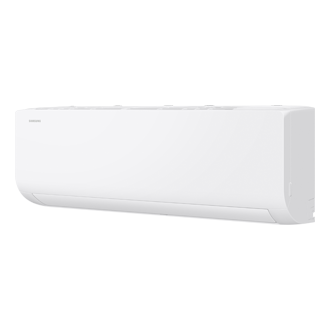

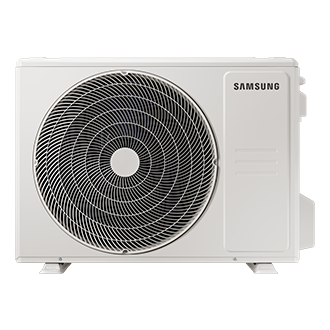

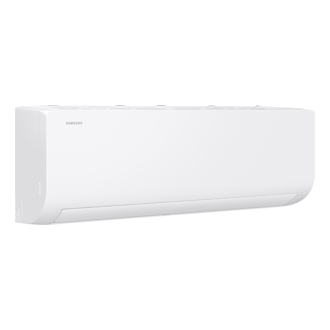

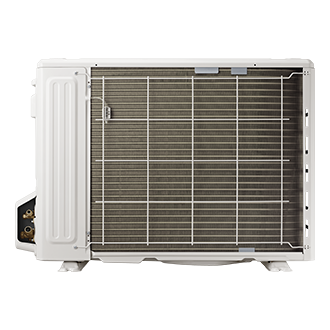

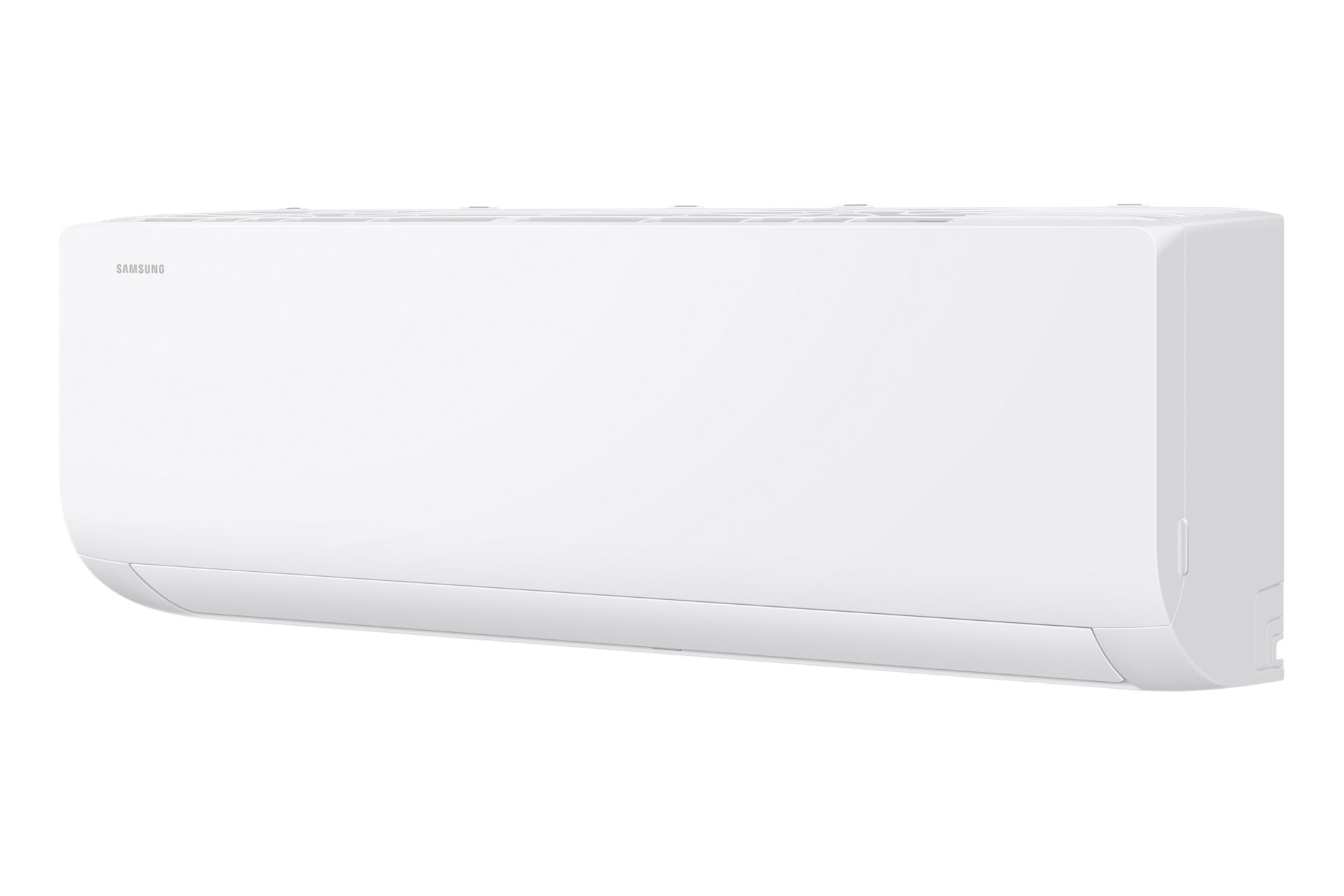

AR40H Digital Inverter Energy Saving 12000BTU
Gallery popup
Please scan the QR Code with your mobile device, and place the product image in the desired place.
Features
Instant chill all around
Fast Cooling
Hot outside? The refreshing chill is ready anytime. Thanks to Fast Cooling mode blasting with maximum fan speed*, sending refreshing air quickly and evenly across every corner of the room. No waiting, no sweating — just cool comfort that sweeps in right away.
* Based on internal testing.
Total air circulation

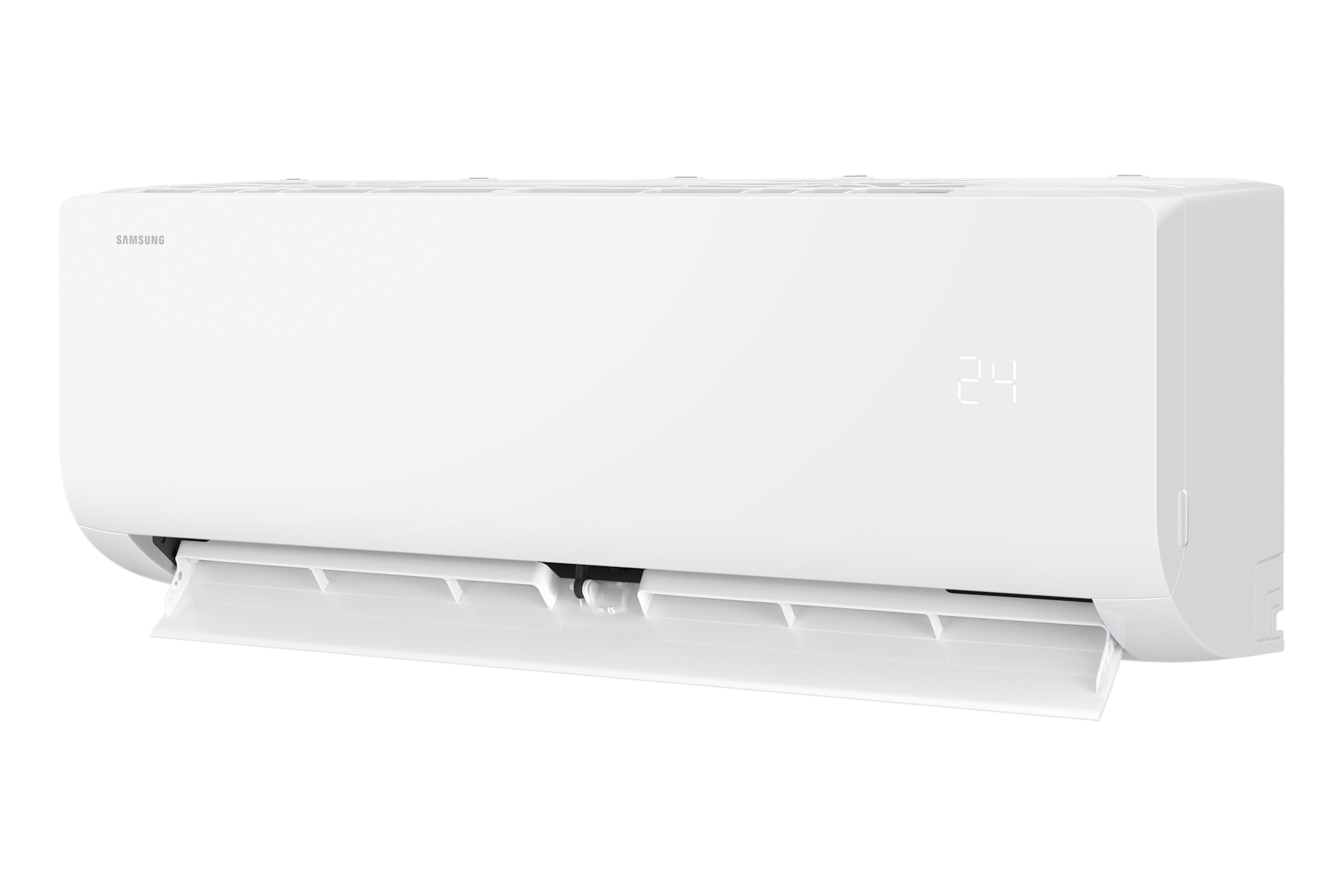

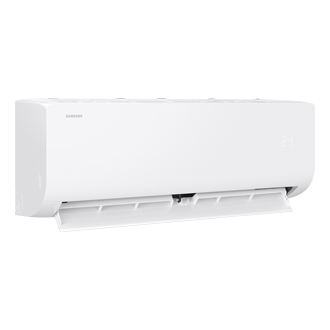

2-Way Auto Swing
With 2-Way Auto Swing, the air flows up and down automatically, keeping you comfortably refreshed.
Zero ODP & lower GWP*
R32 Refrigerant
R32 refrigerant helps conserve the ozone layer and has less impact on global warming. It has zero Ozone Depletion Potential (ODP) and a lower Global Warming Potential (GWP) compared to conventional R22 or R410A refrigerants* that are commonly used.
* GWP by refrigerant: R32 = 675, R22 = 1810, R410A = 2090.
* GWP by refrigerant: R32 = 675, R22 = 1810, R410A = 2090.
FAQ
Yes. The 2-Way Auto Swing function automatically adjusts the airflow up and down to help distribute cool air evenly throughout the room. This helps maintain a comfortable indoor environment.

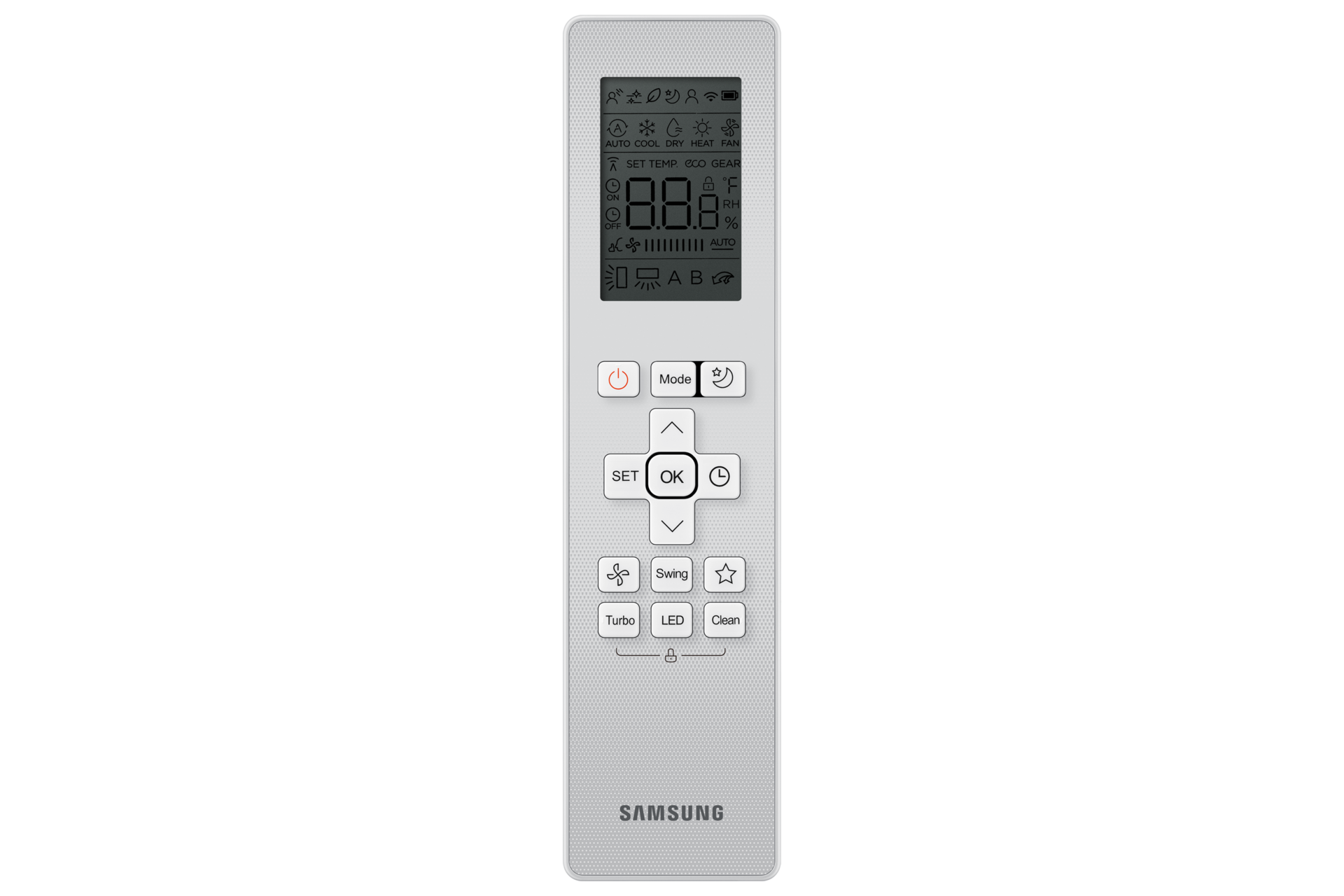

Yes, You can control the air conditioner remotely using the SmartThings app. It lets you turn the unit on or off, adjust the temperature, change modes, and adjust the fan speed from anywhere.
Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.
Yes. With SmartThings Routines, you can set the air conditioner to turn on automatically before you arrive home. Using your phone's location, it can switch on automatically when you are within a set distance (150 m to 3 km), so the room is cool when you arrive. You can also create additional routines to match your lifestyle.
Requires a Wi-Fi connection, a Samsung account, and the SmartThings app. Location services must be enabled on your smartphone. The available distance range (150m to 3km) can be set within the app.
Yes, You can control the air conditioner using voice commands with Samsung Bixby, Amazon Alexa, or Google Assistant.
Bixby is Samsung’s brand of Internet of Things (IoT) voice assistant. Bixby service availability may vary depending on country. Bixby recognizes selected languages and certain accents/dialects. The user interface may change and differ by device. The availability of Bixby features and content providers may vary depending on the country/carrier/language/device model/OS version. A Samsung account log-in and data network connection (Wi-Fi or data network) are required.Amazon, Alexa and all related logos are trademarks of Amazon.Com, Inc. or its affiliates.Google is a trademark of Google LLC.
The Good Sleep mode automatically maintains an ideal temperature from the moment you fall asleep until the morning. This feature is designed to help you fall asleep faster and wake up refreshed without manual nighttime adjustments.

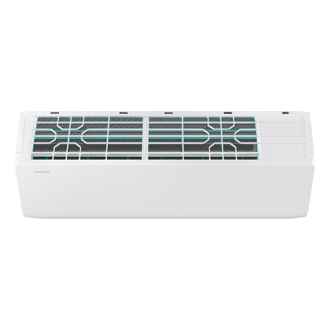

Yes. The High Density Filter is washable, making it easy to maintain without frequent replacement. It also helps capture dust and airborne particles to provide clean air.
It is a convenience and safety function that memorizes your air conditioner's settings. In the event of a sudden power outage, the unit will automatically resume operation with your previously saved temperature and mode as soon as the power is restored.
Specifications
-
Capacity (Cooling, Btu/hr)
11800 Btu/h
-
Capacity (Cooling, kW)
3.47 kW
-
EER (Cooling, W/W)
3.01 W/W
-
Net Dimension (Outdoor, WxHxD, mm)
720 x 495 x 270 mm
-
Capacity (Cooling, Btu/hr)
11800 Btu/h
-
Capacity (Heating, Btu/hr)
11500 Btu/h
-
Cooling Capacity (Min)(Btu/h)
3400 Btu/h
-
Cooling Capacity (Max)(Btu/h)
13100 Btu/h
-
Heating Capacity (Min)(Btu/h)
4000 Btu/h
-
Heating Capacity (Max)(Btu/h)
13500 Btu/h
-
Capacity (Cooling, kW)
3.47 kW
-
Capacity (Heating, kW)
3.37 kW
-
Cooling Capacity (Min)(kW)
0.99 kW
-
Cooling Capacity (Max)(kW)
3.84 kW
-
Heating Capacity (Min)(kW)
1.17 kW
-
Heating Capacity (Max)(kW)
3.95 kW
-
EER (Cooling, W/W)
3.01 W/W
-
COP (Heating, W/W)
3.46 W/W
-
EER (Cooling, Btu/hW)
10.27 Btu/hW
-
COP (Heating, Btu/hW)
11.81 Btu/hW
-
Noise Level (Indoor, High/Low, dBA)
40 / 31 dBA
-
Noise Level (Outdoor, High/Low, dBA)
52 dBA
-
Power Source(Φ/V/Hz)
1 / 220 ~ 240~ / 50
-
Power Consumption(Cooling, W)
1152 W
-
Power Consumption(Heating, W)
973 W
-
Operating Current(Cooling, A)
5.7 A
-
Operating Current(Heating, A)
4.8 A
-
Gross Dimension (Indoor, WxHxD, mm)
875 x 285 x375 mm
-
Gross Dimension (Outdoor, WxHxD, mm)
828 x 530 x 298 mm
-
Net Dimension (Indoor, WxHxD, mm)
802 x 295 x 200 mm
-
Net Dimension (Outdoor, WxHxD, mm)
720 x 495 x 270 mm
-
Gross Weight (Indoor, kg)
10.9 kg
-
Gross Weight (Outdoor, kg)
22.2 kg
-
Net Weight (Indoor, kg)
8.9 kg
-
Net Weight (Outdoor, kg)
20.3 kg
-
Loading Quantity (20/40/40Hft without Pipe)
130 / 255 / 300 EA
-
Piping Length (Max, m)
25 m
-
Piping Height (Max, m)
10 m
-
SVC Valve (Liquid (ODxL))
6.35
-
SVC Valve (Gas (ODxL))
12.7
-
Moisture Removal (l/hr)
1.4 l/hr
-
Air Circulation (Cooling, ㎥/min)
10.83 ㎥/min
-
Refrigerant (Type)
R32
-
Refrigerant (Charging)(kg)
0.54 kg
-
Low Ambient (Cooling, ℃)
0 ~ 50 ℃
-
Low Ambient (Heating, ℃)
-15 ~ 24 ℃
-

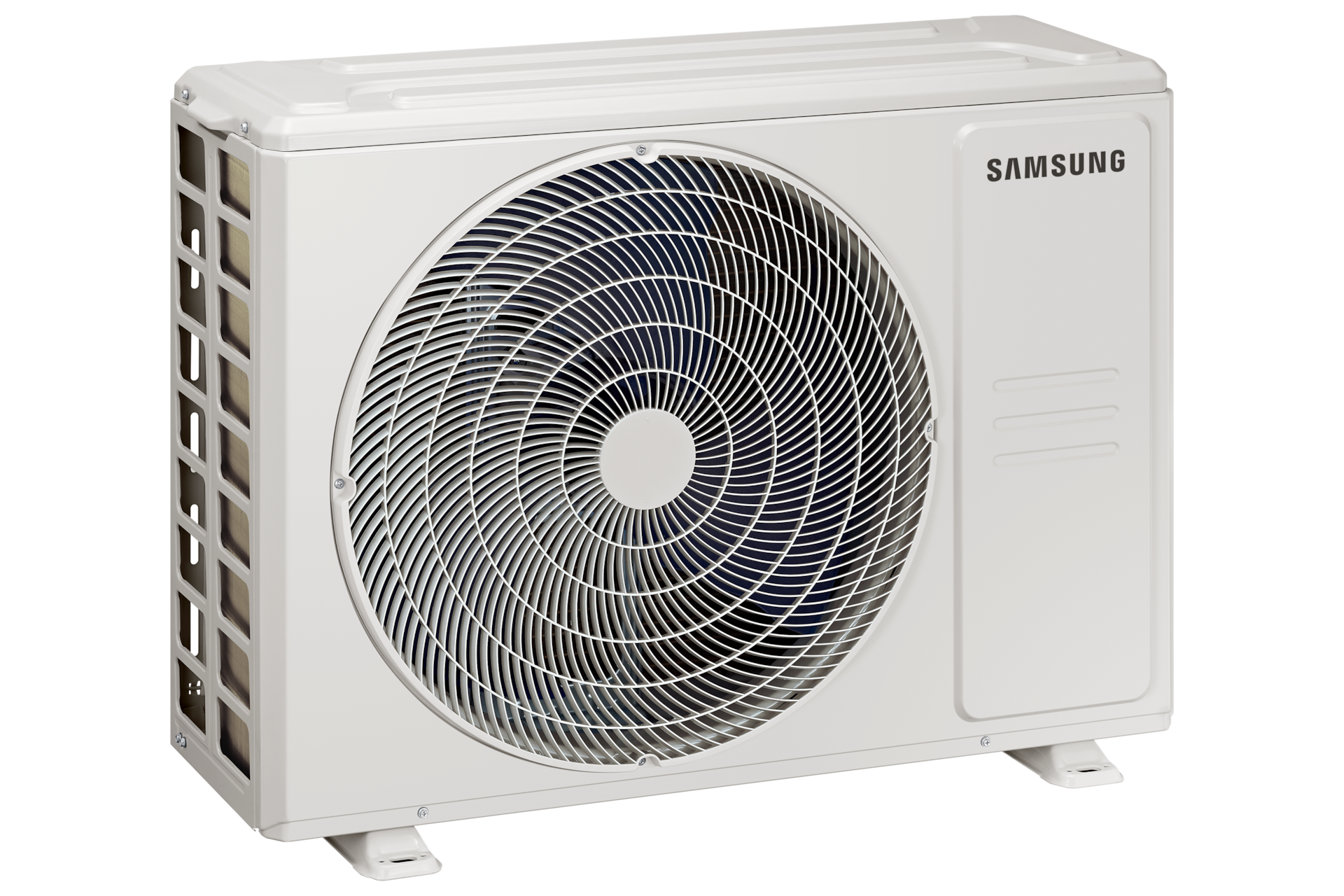

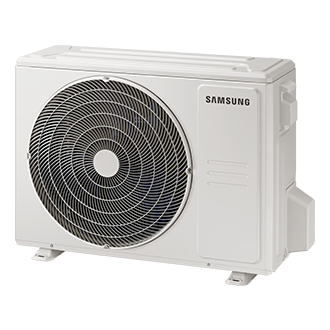

Outdoor Unit (Compressor Type)
Rotary
-

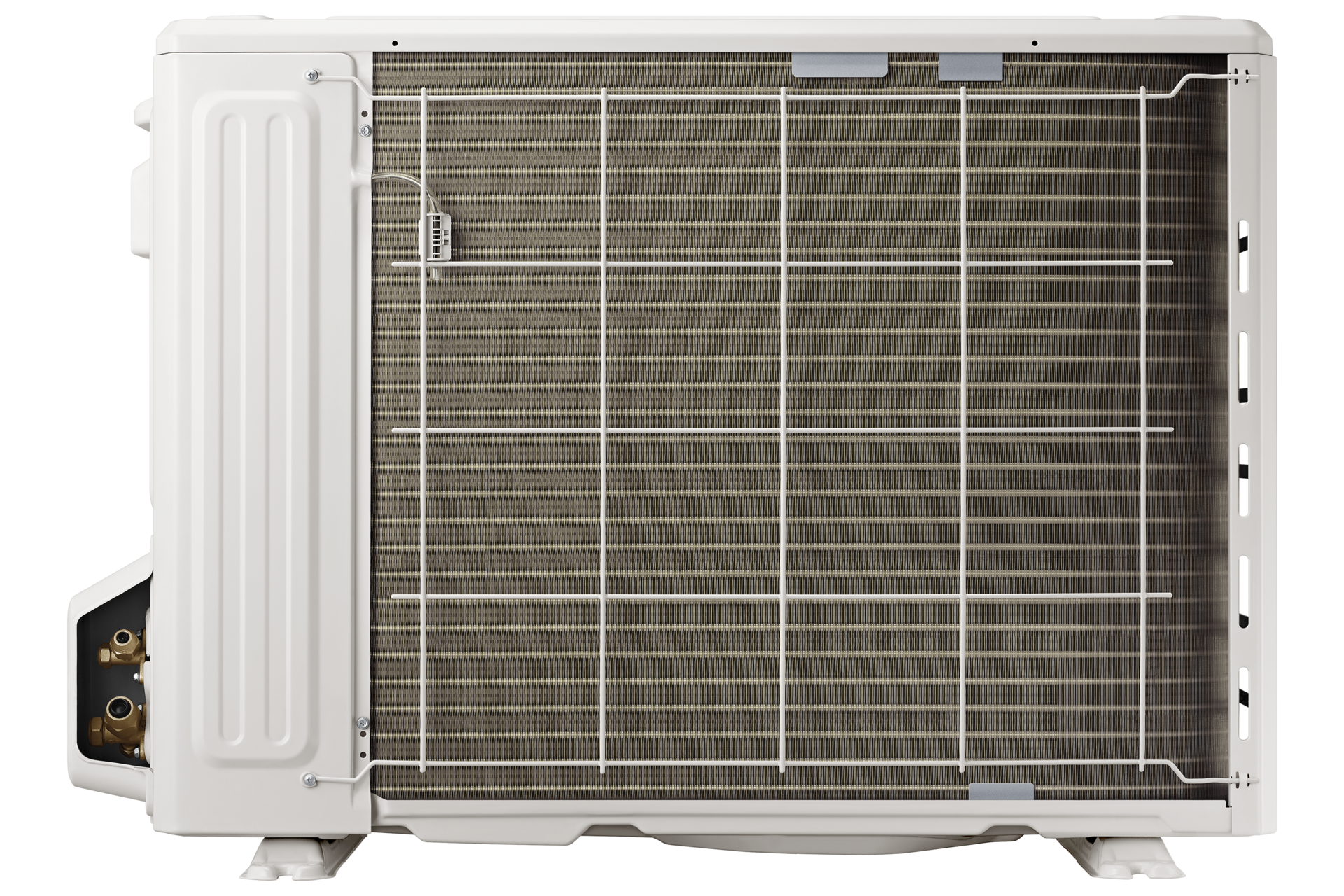

Outdoor Unit (Anti-Corrosion Fin)
Yes
-
WindFree Cooling
No
-
Air Direction Control (Up/Down)
Auto
-
Air Direction Control (Left/Right)
Manual
-
Air Flow Control Step (Cool/Fan)
6 step
-
PM 1.0 Filter
No
-
Tri Care Filter
No
-
4-in-1 Care Filter
No
-
Copper Anti-bacterial Filter
No
-
Auto Clean (Self Cleaning)
No
-
SmartThings
Yes
-
AI Auto Cooling
No
-
Motion Detect Sensor
No
-
Freeze Wash
No
-
Filter Cleaning Indicatior
No
-
Indoor Temp. Display
Yes
-
Display On/Off
Yes
-
Beep On/Off
No
-
24-Hour Timer
Yes
-
Auto Changeover
No
-
Auto Restart
Yes
-
Auto Mode
Standard Auto Mode
-
Fast Cool
Yes
-
Dry Comfort
No
-
Good Sleep
Yes
-
Eco Mode
No
-
Dehumidification
Yes
-
Fan Mode
Yes
-
Quiet
Yes
-
WiFi Embedded
Yes
-
SmartThings App Support
Yes
