Features
Revitalize Productive Collaboration
Samsung's QBH-TR / QBN-W e-boards offer a versatile, all-in-one arena for improved collaboration. Enhanced touch technology, the intuitive MagicIWB S5 solution and UHD picture quality come together to boost productivity and collaboration by facilitating engaging, efficient interaction.
*Screen image simulated for illustrative purposes.
Enhance Touch, Enhance Capacity
Leverage heightened touch functionality for a smooth and versatile digital writing experience. Up to four users can write simultaneously using the provided pen or virtually any other tool.
*Screen image simulated for illustrative purposes.
Elevate Collaboration Quality
The embedded MagicIWB S5 solution facilitates discussion management and organization with an intuitive interface for quick access to vital collaborative functionalities such as screen mirroring and real-time notation saving.
*Screen image simulated for illustrative purposes.
Switch Sources Seamlessly
Through the Working Screen function, users can quickly switch between multiple screens, such as the whiteboard, internet browser and connected input sources, with just a few touches.
*Screen image simulated for illustrative purposes.
Retrieve and Control Content Remotely
Pull and edit content on remote laptops directly through the central screen utilizing touch functionality. The powerful Knox system secures the Remote Workspace connection to protect against information leakage and meddling.
*Screen image simulated for illustrative purposes.
Connect with Convenience
Each e-board offers a wide range of connections including HDMI, DVI-D and USB ports, where users can load, share and revise content directly from their personal devices.
*Screen image simulated for illustrative purposes.
Amplify Visual Presentation
Bring collaborative ideas to life through advanced UHD picture quality. Through ultra-high resolution, ensure all notations and introduced content are clear and legible for every participant.
*Screen image simulated for illustrative purposes.
Maintain Organization with Style

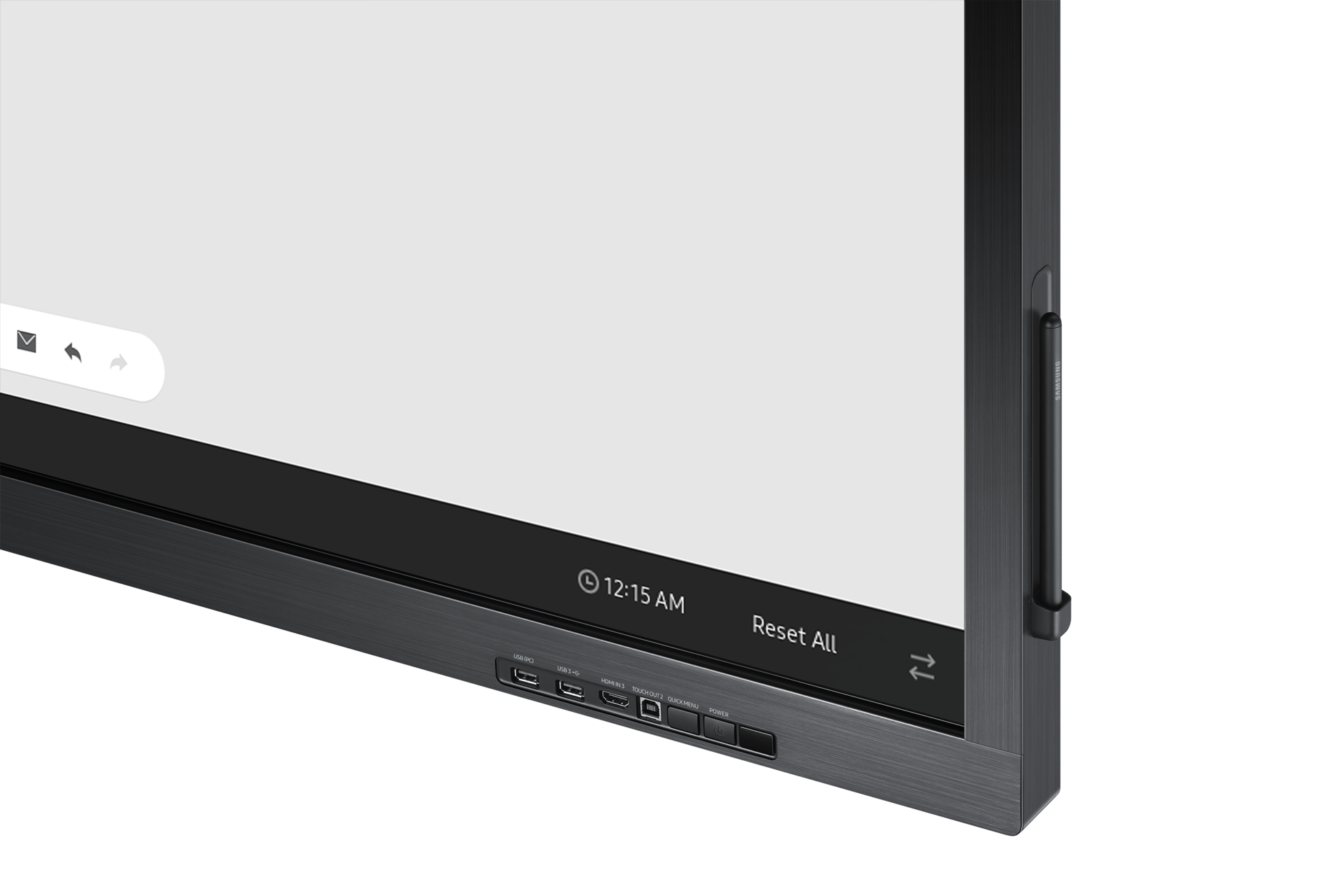

Drive more organized collaboration with a sleek, sophisticated design. The magnetic side pen holder and frontal connection ports keep needed functions within reach, without the mess.
*Screen image simulated for illustrative purposes.
Specifications
-
Brightness (Typical)
250
-
Viewing Angle (H/V)
178/178
-
Connectivity
3
-
Package Dimension (HxWxD)
1905 x 1175 x 307
-
Diagonal Size
75"
-
Panel Type
120Hz Direct LED
-
Resolution
3,840 x 2,160
-
Brightness (Typical)
300 (w/o Touch Glass) nit
-
Viewing Angle (H/V)
178/178
-
Response Time
8ms
-
Colour Gamut
72%
-
Glass Haze
Panel 0.02, Touch glass 0.15 %
-
H-Scanning Frequency
30~81kHz
-
Maximum Pixel Frequency
594Mhz
-
V-Scanning Frequency
48~75Hz
-
Contrast Ratio (Dynamic)
Mega
-
HDMI In
3
-
DVI In
1(DVI-D)
-
USB
3
-
IR In
Yes
-
HDBaseT In
No
-
Audio In
Yes
-
Audio Out
Stereo Mini Jack
-
RS232 In
Yes
-
RS232 Out
Yes
-
RJ45 In
Yes
-
RJ45 Out
No
-
WiFi
Yes
-
3G Dongle
No
-
Bluetooth
No
-
Power Supply
AC 100~240V 50/60Hz
-
Power Consumption (On Mode)
220
-
Power Consumption (Sleep Mode)
0.5 W
-
Set Dimension (WxHxD)
1741.5 x 1012.1 x 81.2 mm
-
Package Dimension (HxWxD)
1905 x 1175 x 307 mm
-
Net Weight
57.4 kg
-
Package Weight
69.5 kg
-
Temperature
0℃~ 40℃
-
Humidity
10 ~ 80%, non-condensing
-
VESA Mount
400 x 400 mm
-
Bezel Width
T(33.0), B(48.9),LR(33.0)
-
Frame Material
Non-Glossy
-
External Memory Slot
No
-
Mount
Yes (WMN6575SE)
-
Stand
No
-
EMC
FCC (USA) PART 15, SUBPART B CLASS ACE (EUROPE) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003VCCI (JAPAN) : VCCI V-3 /2010.04 CLASS AKCC/EK (KOREA) : TUNER : KN13 / KN20 TUNERLESS : KN22 / KN24BSMI (Taiwan) : CNS13438 (ITE EMI) CLASS A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (DIGITAL)C-TICK (AUSTRALIA) : AS/NZS CISPR22:2009CCC(CHINA) :GB9254-2008 GB17625.1-2012GOST(RUSSIA/CIS) : GOST R 51317 SERIES, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
-
Safety
CB (EUROPE) : IEC60950-1/EN60950-1CCC (CHINA) : GB4943.1-2011PSB (SINGAPORE ) : PSB+IEC60950-1NOM (MEXICO ) : NOM-001-SCFI-1993IRAM (ARGENTINA ) : IRAM+IEC60950-1SASO (SAUDI ARABIA ) : SASO+IEC60950-1BIS(INDIA) : IEC60950-1 / IS13252NOM(MEXICO) : TUNER : NOM-001-SCFI-1993 TUNERLESS : NOM-019-SCFI-1998KC(KOREA) : K 60950-1EAC(RUSSIA) : EAC+IEC60950-1INMETRO(BRAZIL) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(AUSTRALIA) : IEC60950-1/AS/NZS 60950-1UL(USA) : CUL60950-1 CSA (CANADA) : CULTUV (GERMANY) : CENEMKO (NORWAY) : CE
