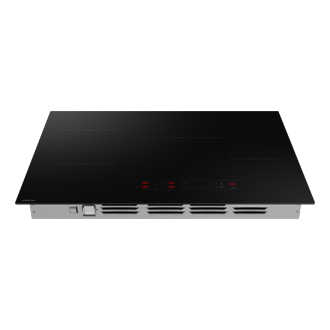

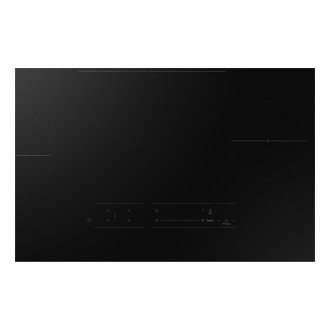

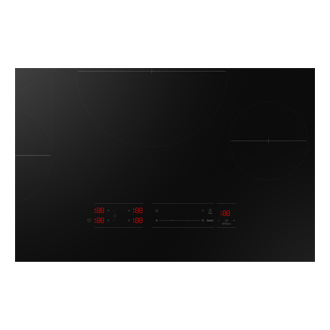

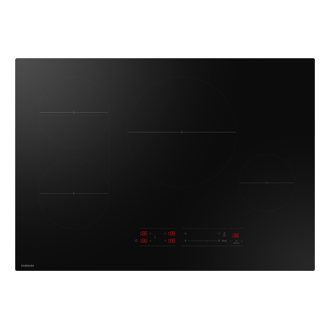

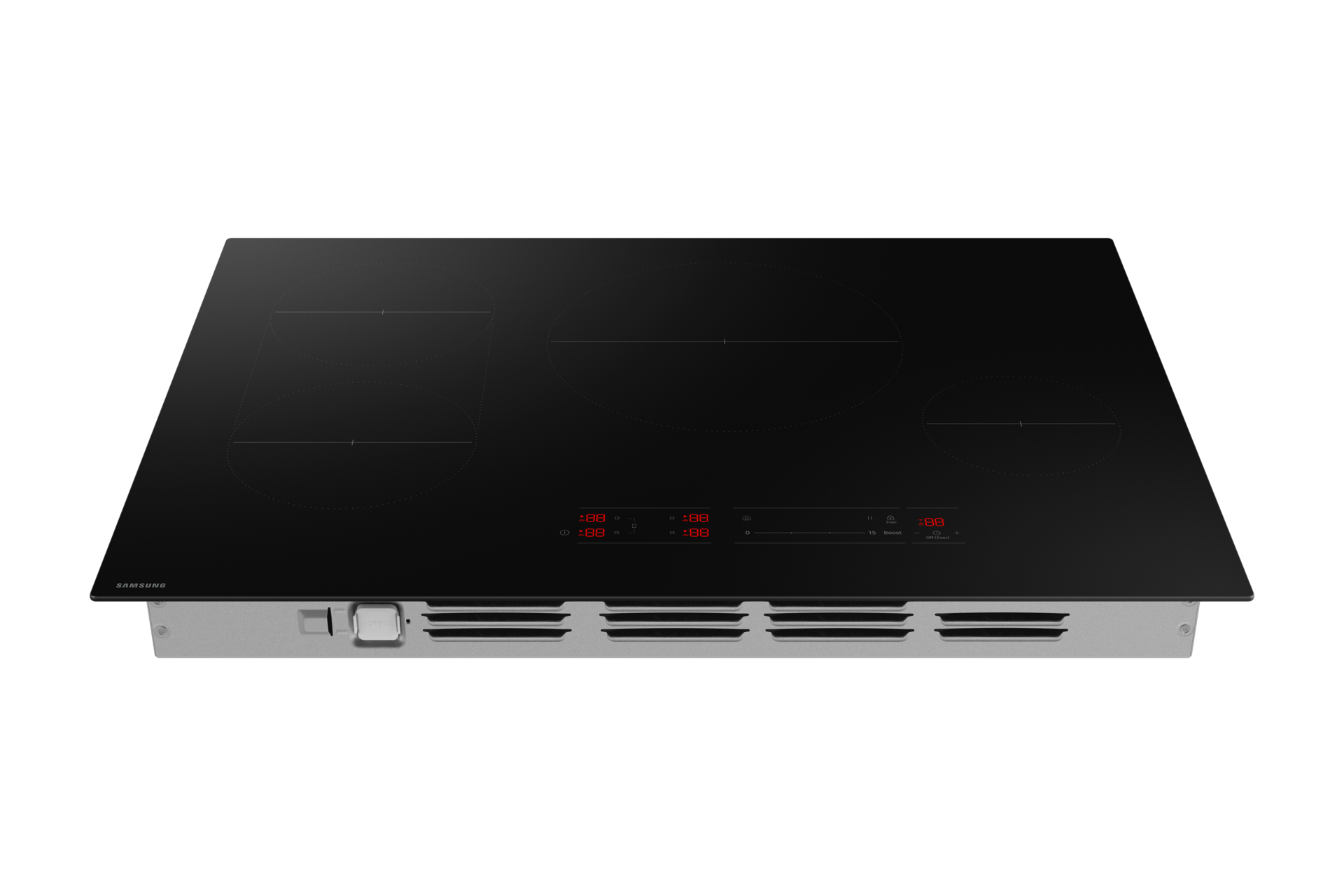

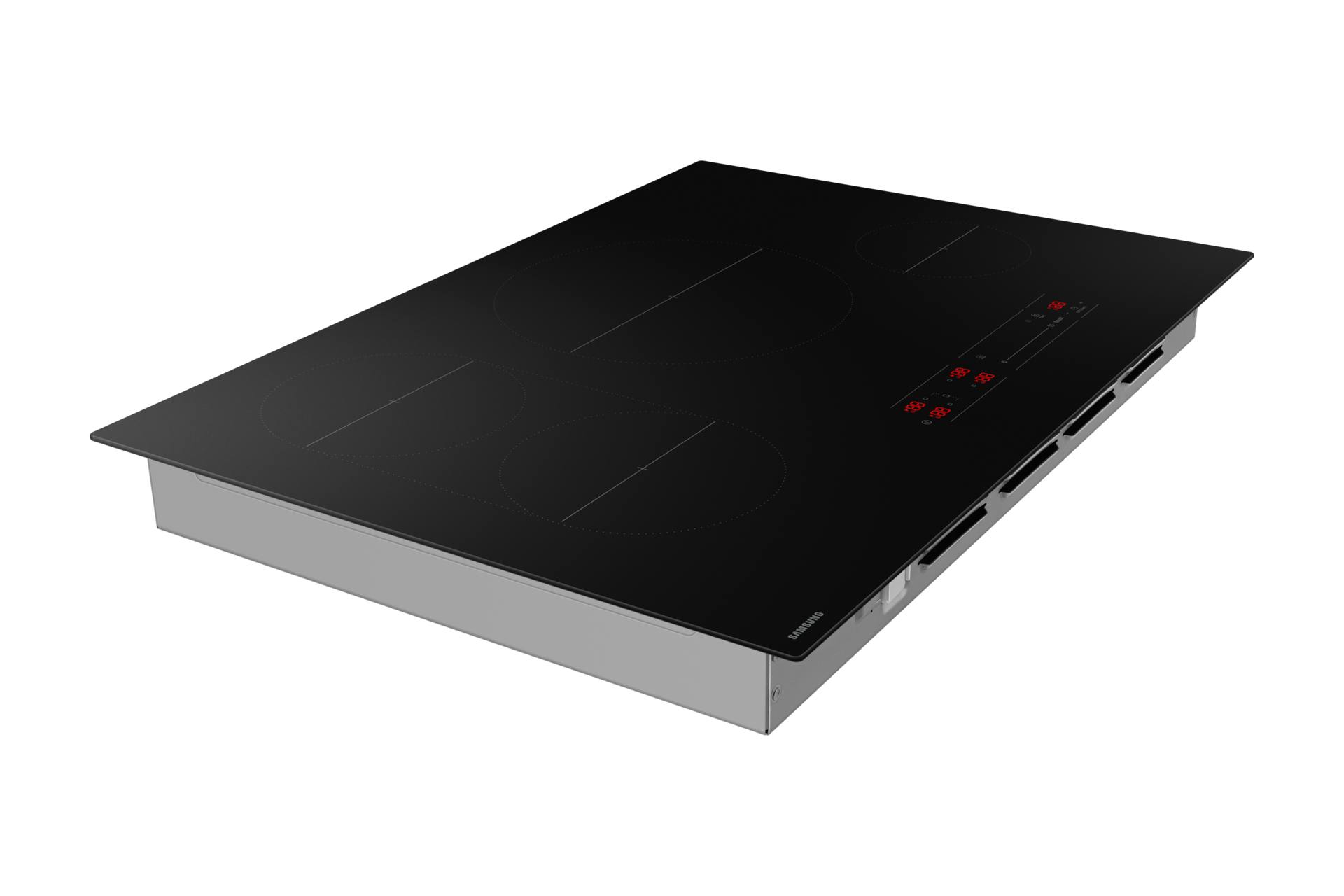

30 Inches 4-Element Anti-Scratch Induction Cooktop
CC70F30S2DAA
Please scan the QR Code with your mobile device and you can virtually see how the device will look in your home.
Highlights
Features
⠀
Certified efficiency
ENERGY STAR® Certified
The cooktop has been independently evaluated against strict power consumption specifications and ENERGY STAR® certified for energy efficiency.
* Visit www.energystar.gov for more information on ENERGY STAR® guidelines.
Scratch-resistant Glass
Anti-Scratch Glass
Its Anti-Scratch Glass has a high hardness rating and can withstand 1.5x more pressure without scratching compared to Samsung’s normal ceramic glass*. It is highly scratch resistant, so it is less likely to get marked and is easy to maintain.
* Based on testing by Samsung in accordance with ASTM G133-95, compared to the Samsung model NZ30A3060UK/AA with conventional glass. Results provided to and interpreted by Intertek. The test involves scratching on the cooktop with a stainless steel ball, with a 6mm diameter and made of SUS304 material, back and forth 10 times with increasing pressure (MPa), and then checking the surface with both the naked eye and a microscope to determine when a scratch is visible.
- * Requires a wireless network, a Samsung account and the Samsung SmartThings App. The Samsung SmartThings App supports Android OS 8.0 (Oreo) or later, which is optimized for Samsung smartphones. This App also supports iOS 13 or later for iPhone models. The SmartThings App is available in the App Store and Play Store.
** Available in certain languages, including English, French, German, Italian and Spanish.
Design & Convenience
High-power cooking
4.3kW Power Burner (Power Boost)
Cook food effortlessly*. The cooktop has a choice of induction burners**, including a powerful 4.3kW Power Burner, which provides intense heat and precise control. All of the burners also have a Power Boost function that gives a short extra boost of heat to speed up cooking.
* Based on internal testing in the Samsung Kitchen Lab. Test conditions: 3420g of water at 25°C brought to the boil at 90°C using 2.5kW output. Test results for the time elapsed: Induction cooktop (CC70F36S2DAA) = 8' 58" using 361.8W, Radiant cooktop (NZ30FG5332RKAA) = 9' 59" using 398.13W.
** Total output available is 7.1kW for the 30" model.
* Based on internal testing in the Samsung Kitchen Lab. Test conditions: 3420g of water at 25°C brought to the boil at 90°C using 2.5kW output. Test results for the time elapsed: Induction cooktop (CC70F36S2DAA) = 8' 58" using 361.8W, Radiant cooktop (NZ30FG5332RKAA) = 9' 59" using 398.13W.
** Total output available is 7.1kW for the 30" model.

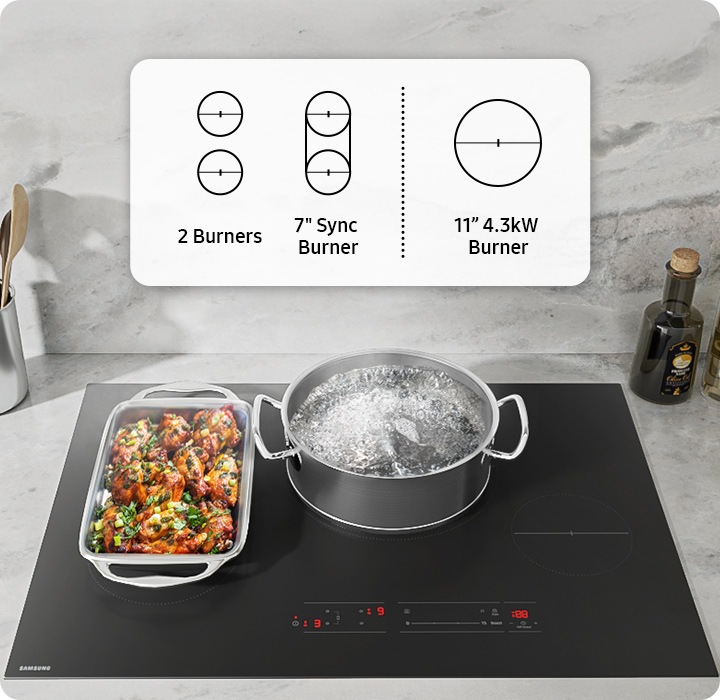

Powerful & flexible
Sync Burner

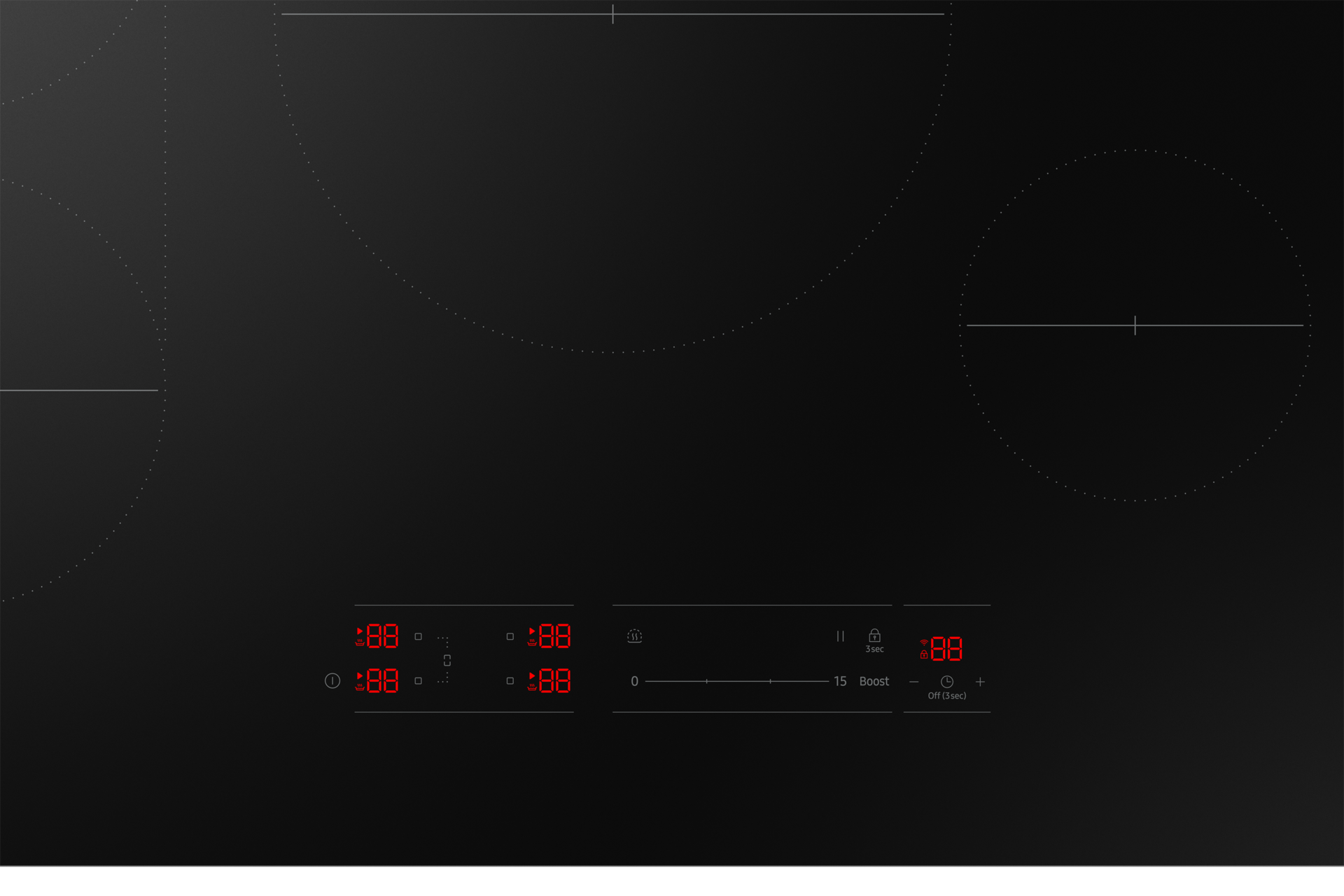

Enjoy added control and flexibility. A Sync Burner lets you control two burners with one control, so they can be kept at the same power level at the same time. By synchronizing the operation of both burners they act as one long cooking zone, so you can quickly cook dishes using large cookware.

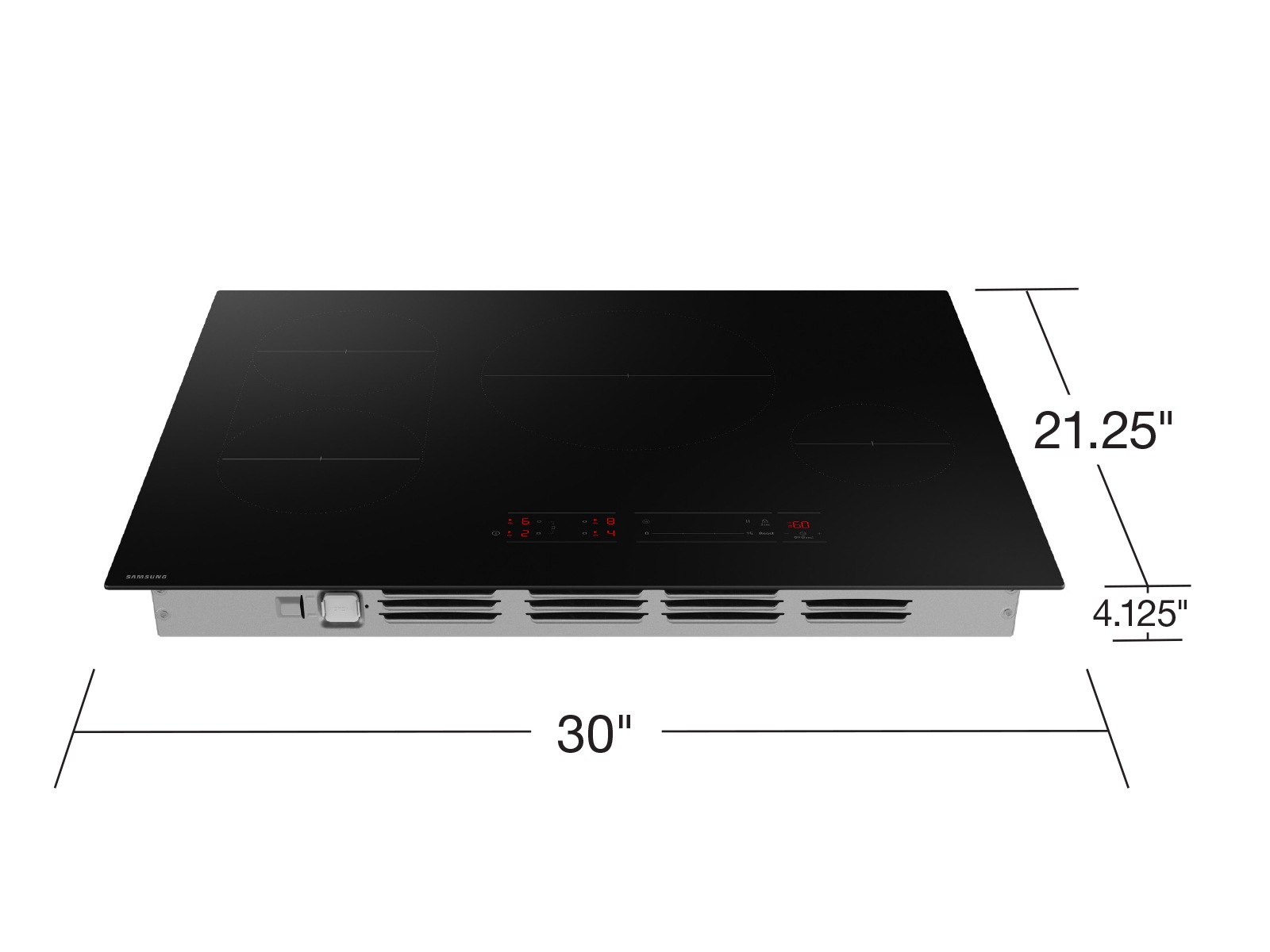

How to measure
Specifications
-
Control Method
Touch
-
Cooktop Frame
Cut Edge
-
Display Type
LED (Red)
-
Materials/Finishes
Built-in
-
Model Type Install
Built-in
-
Cooktop Frame
Cut Edge
-
Control Method
Touch
-
Display Type
LED (Red)
-
Total Power (kW)
7.1 kW
-

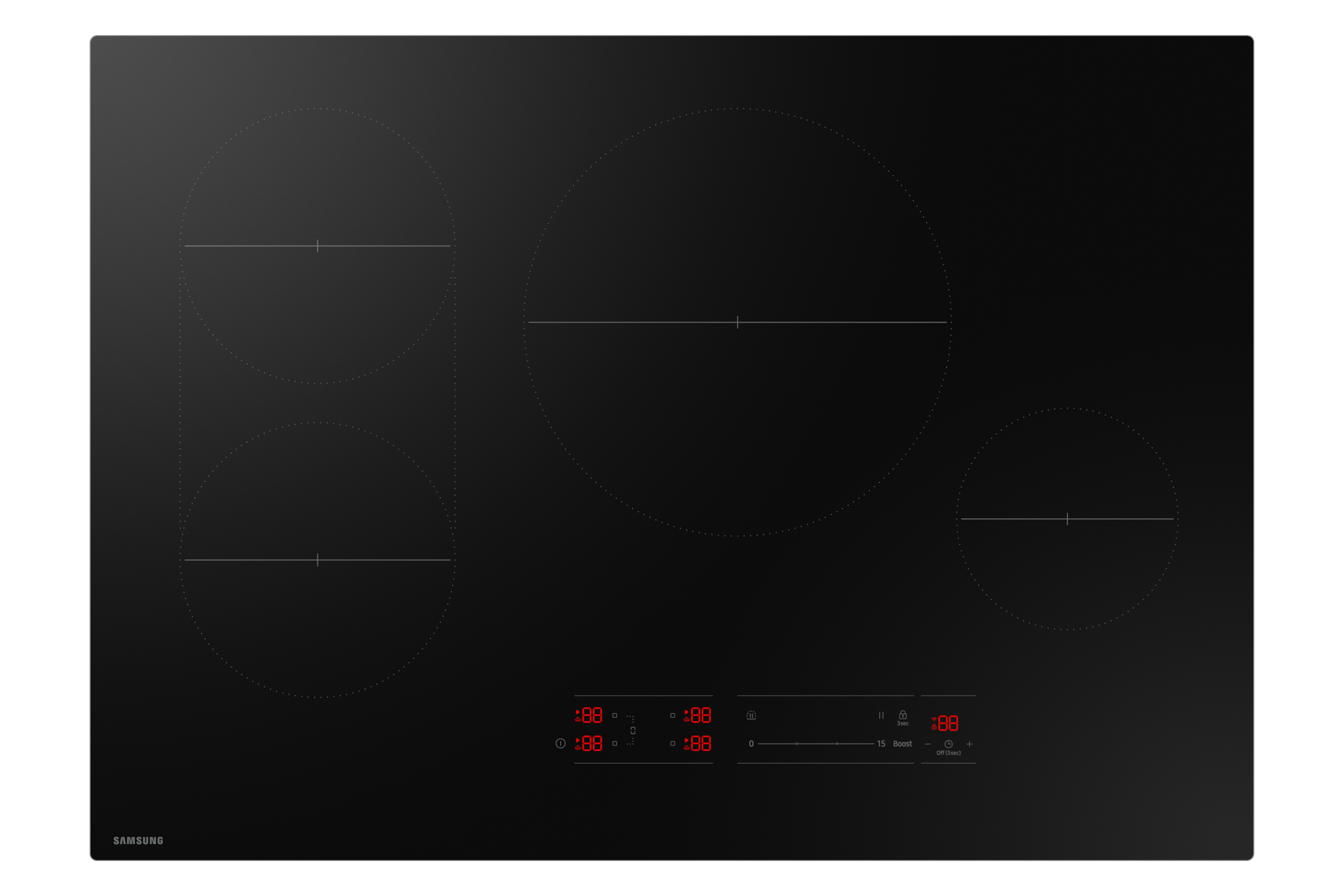

Element - Left Front
7", 1800 / Boost 2300 W
-
Element - Left Rear
7", 1800 / Boost 2300 W
-
Element - Right Front
6", 1200 / Boost 1500 W
-
Element - Center
11", 2300 / Boost 4300 W
-
Qty of Power Boost
4
-
Power Level
15 + Boost
-
Power Supply
240V , 60Hz
-
ENERGY STAR® Certification
Yes
-
Child Safety Lock
Yes
-
Surface
Black Glass
-
Sync Control
Yes
-
Simmer/Melt
Yes
-
Kitchen Timer
Yes
-
Pause
Yes
-
Residual Heat Indicator
Yes
-
Safety Shutoff
Yes
-
High Temp. Limit
Yes
-
Sound on/off
Yes
-
Virtual Flame On/Off
No
-
Power On/Off
Yes
-
Number of Burner
4 EA
-
Hot Surface Indicator
No
-
WiFi Embedded
Yes
-
Auto Connectivity (with Hood)
No
-
Package (WxHxD)
870 x 185 x 636 mm
-
Cutout (WxHxD)
W (724 ~ 728) x D (497 ~ 499)
-
Net Size (W x H x D) (mm)
762 x 108 x 540 mm
-
Shipping Weight
18.8 kg
-
Net Weight
16.8 kg
-
Loading Quantity (20/40ft)
264 / 540
