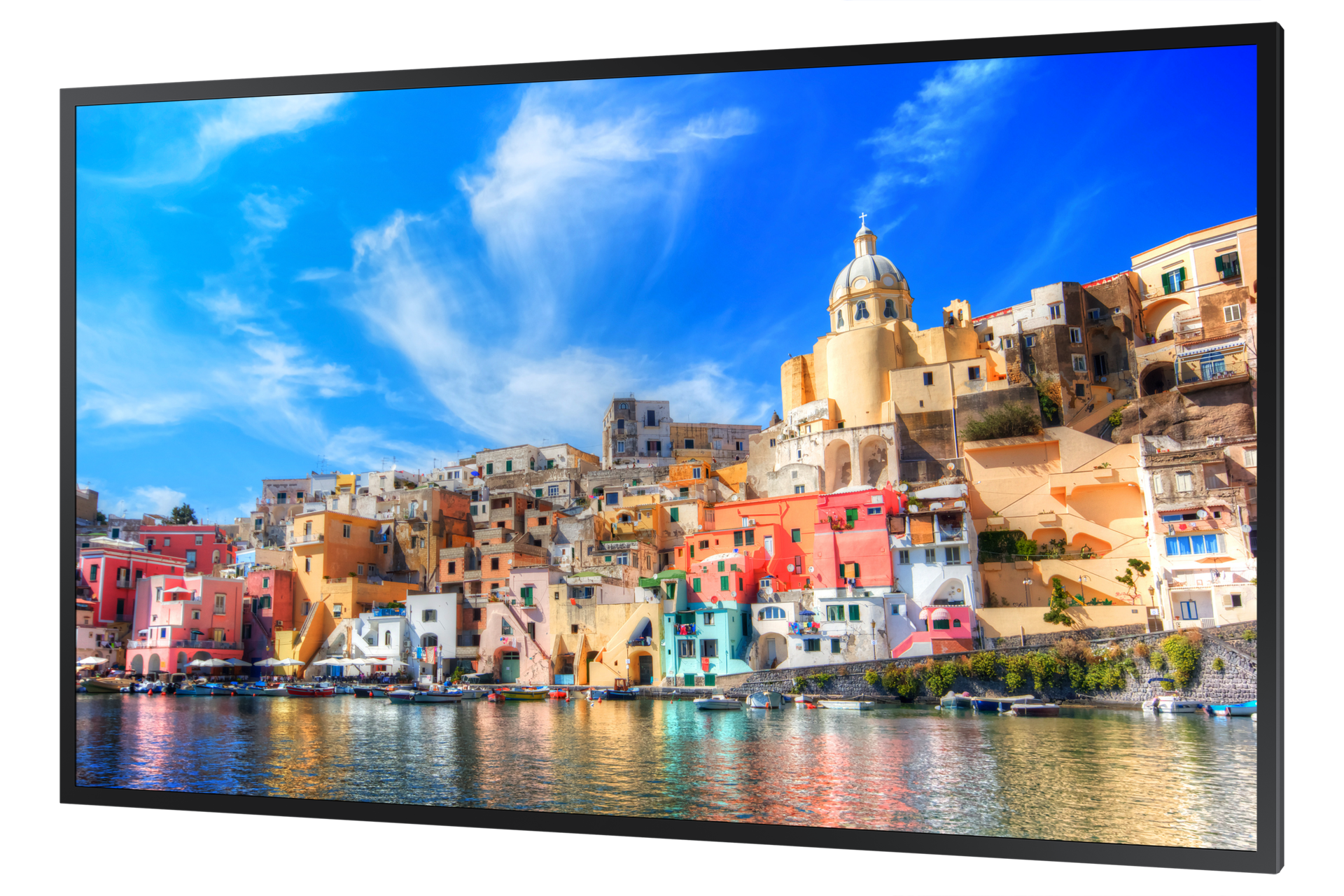

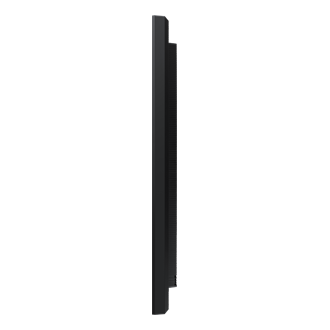

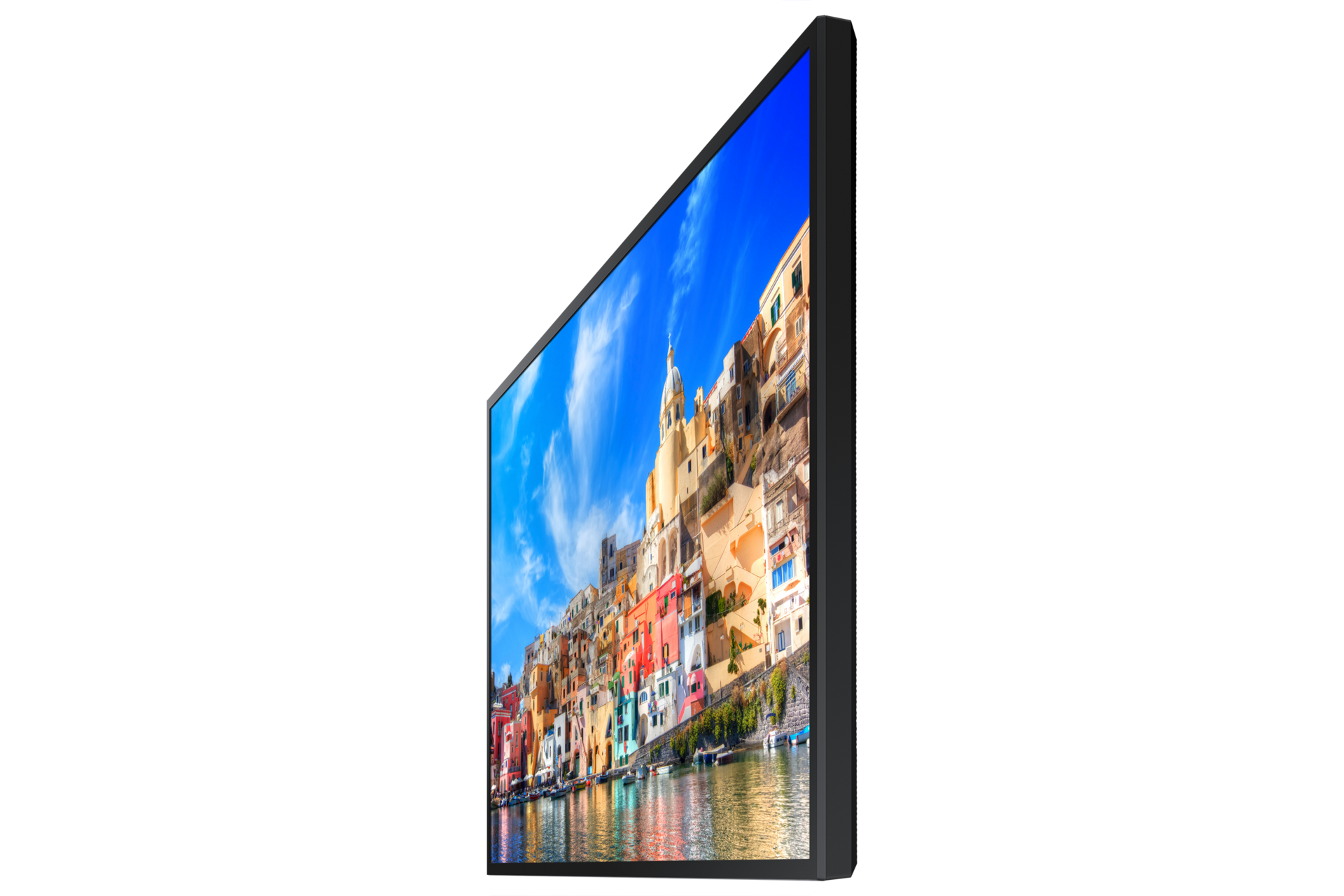

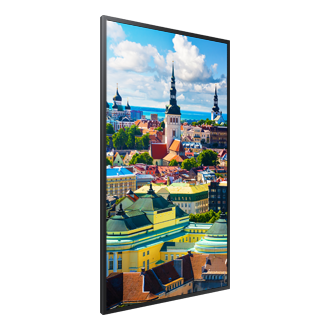

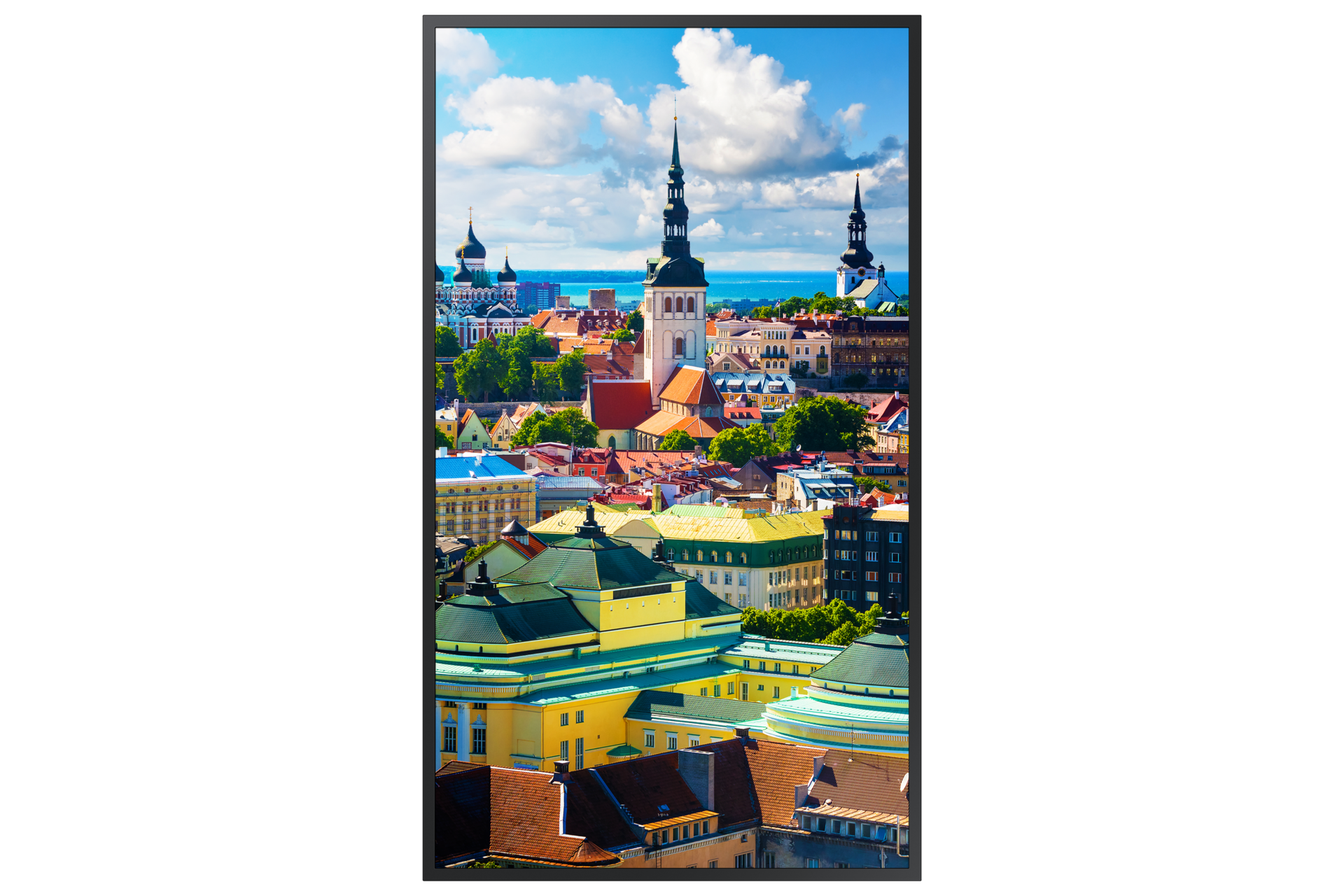

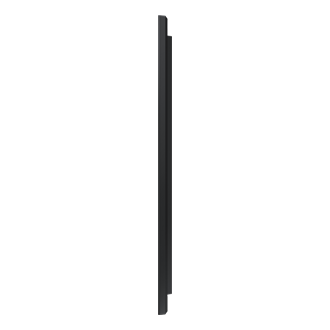

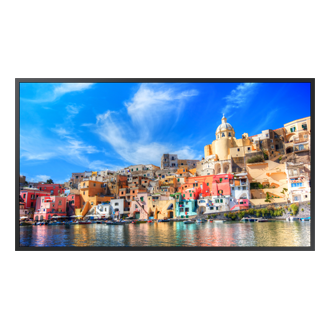

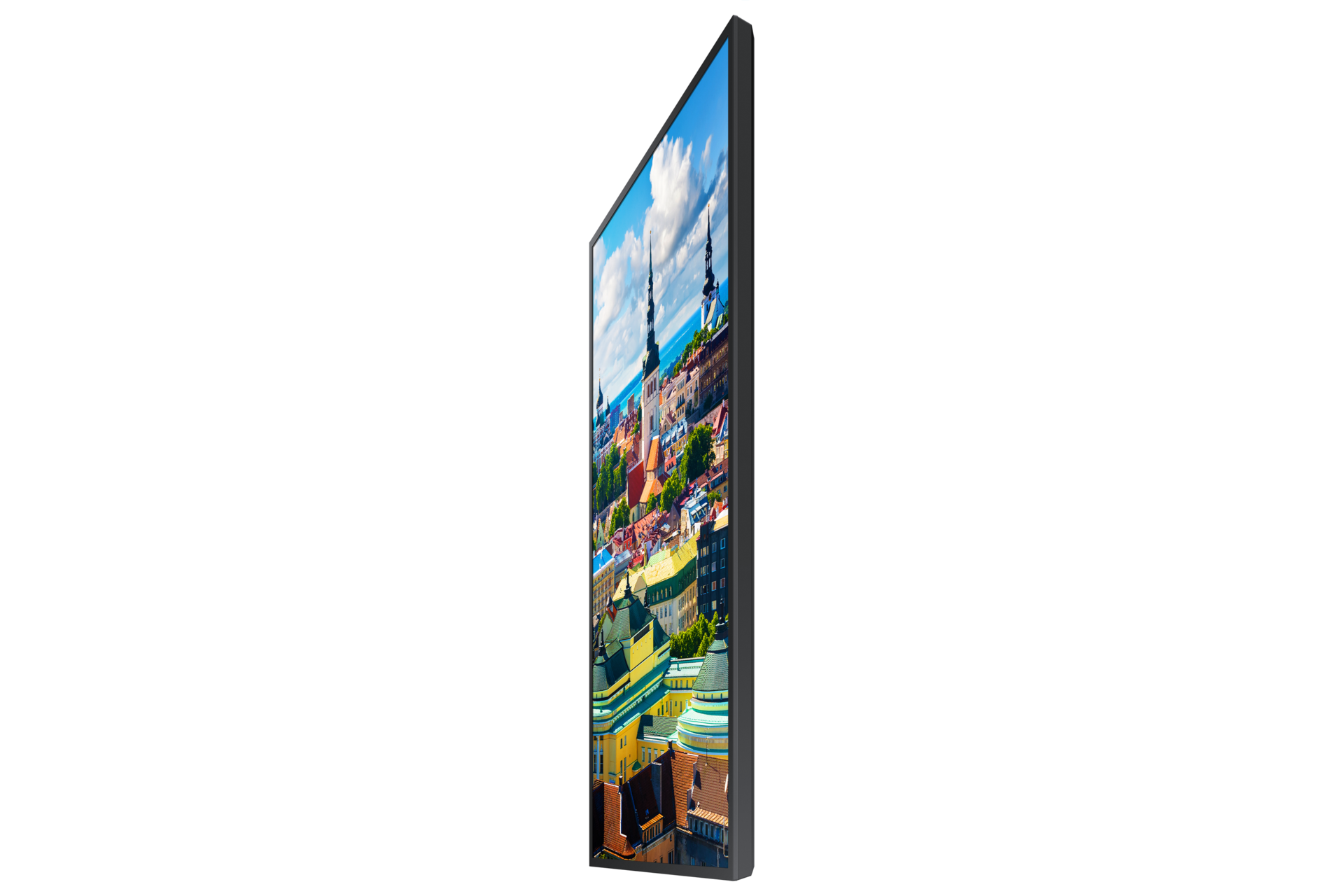

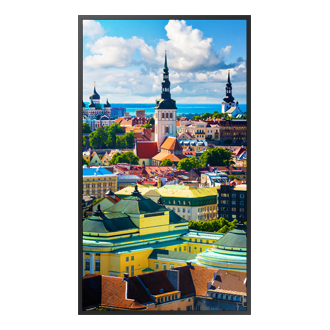

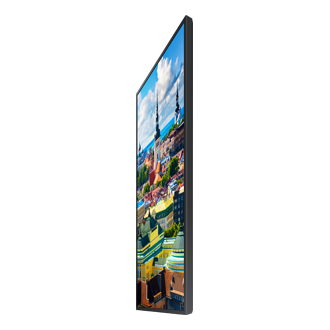

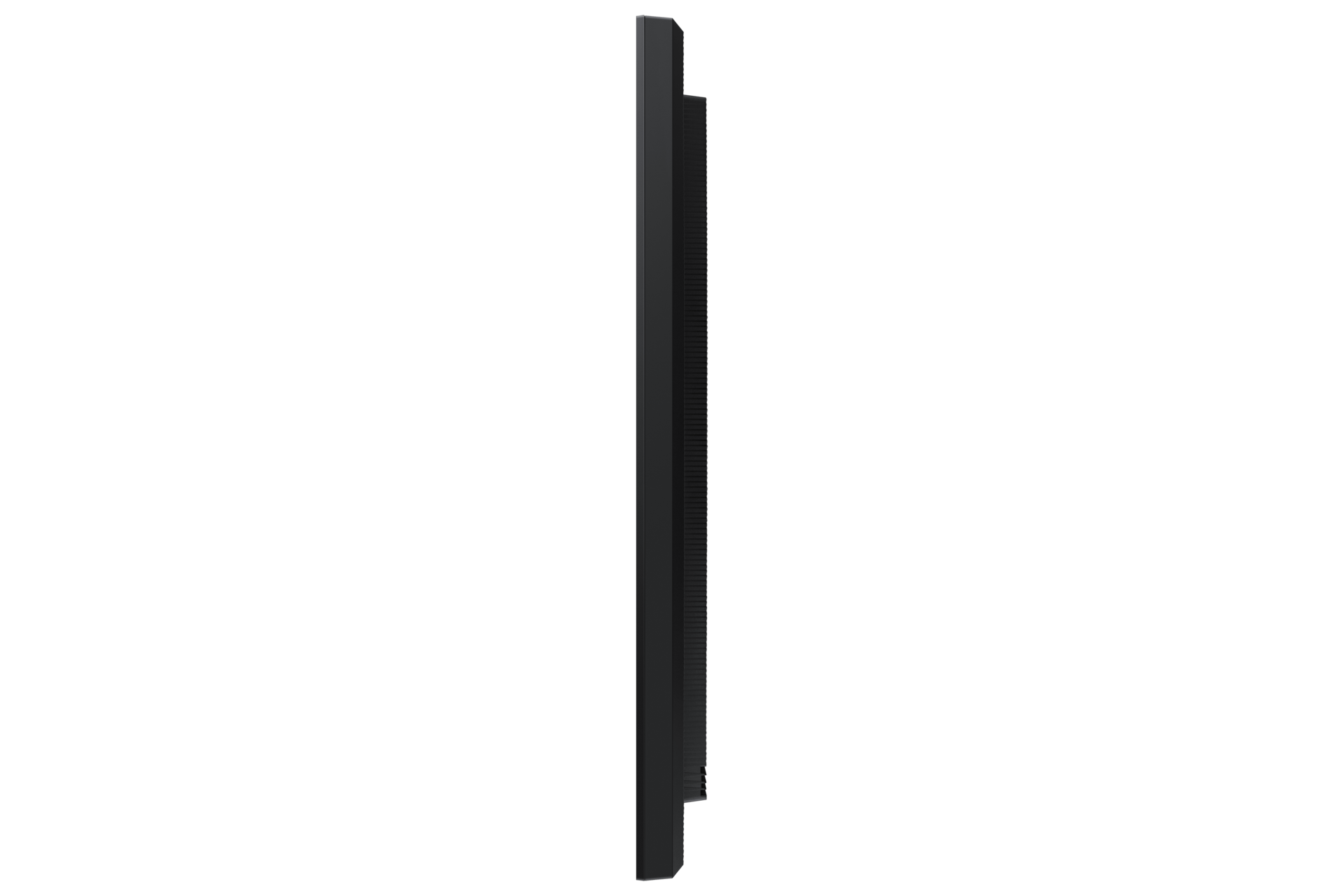

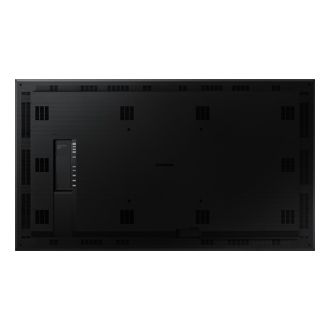

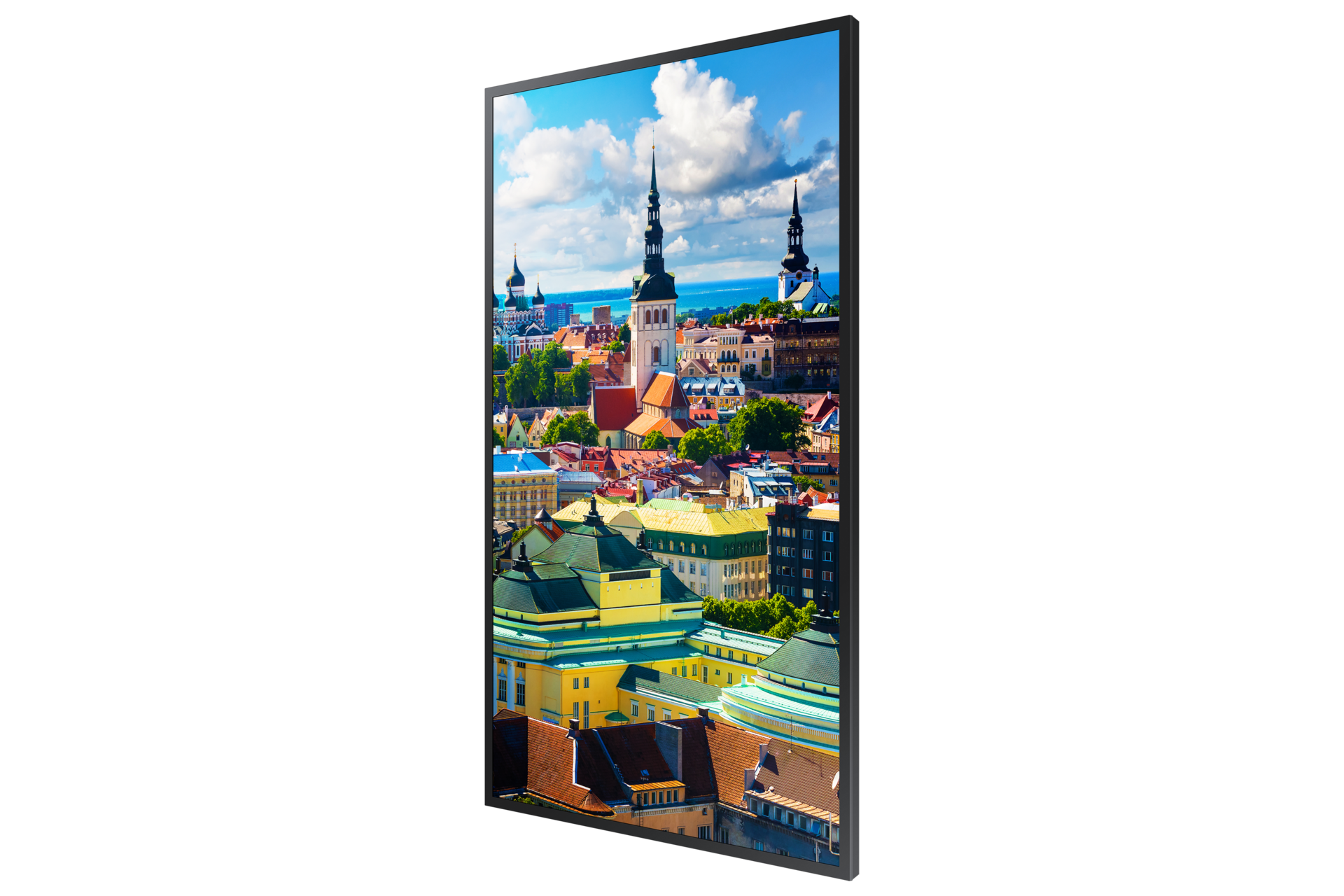

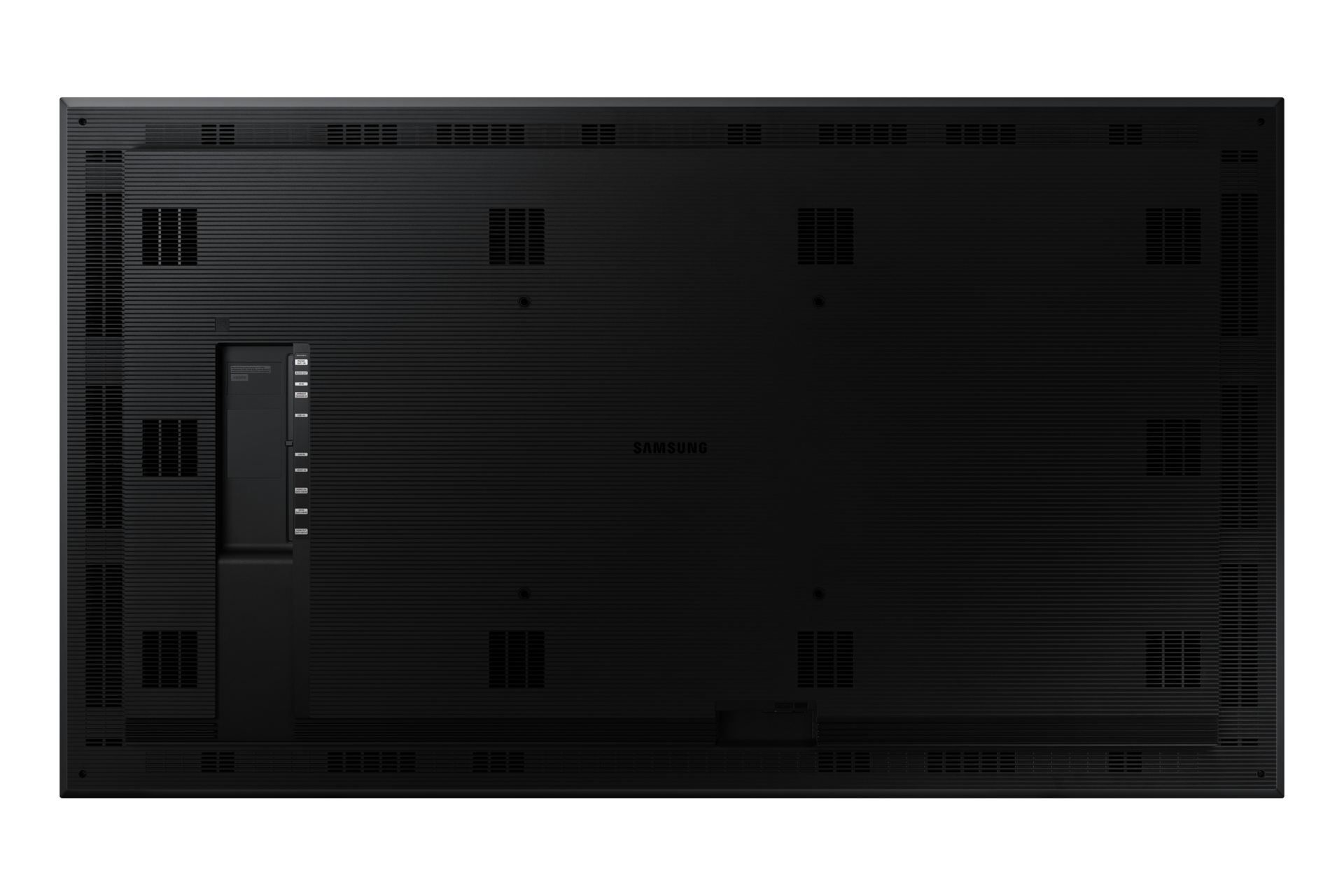

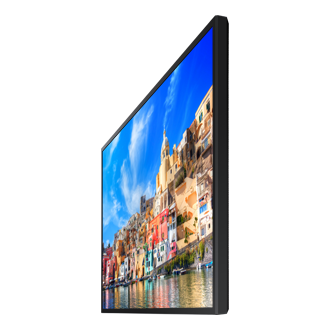

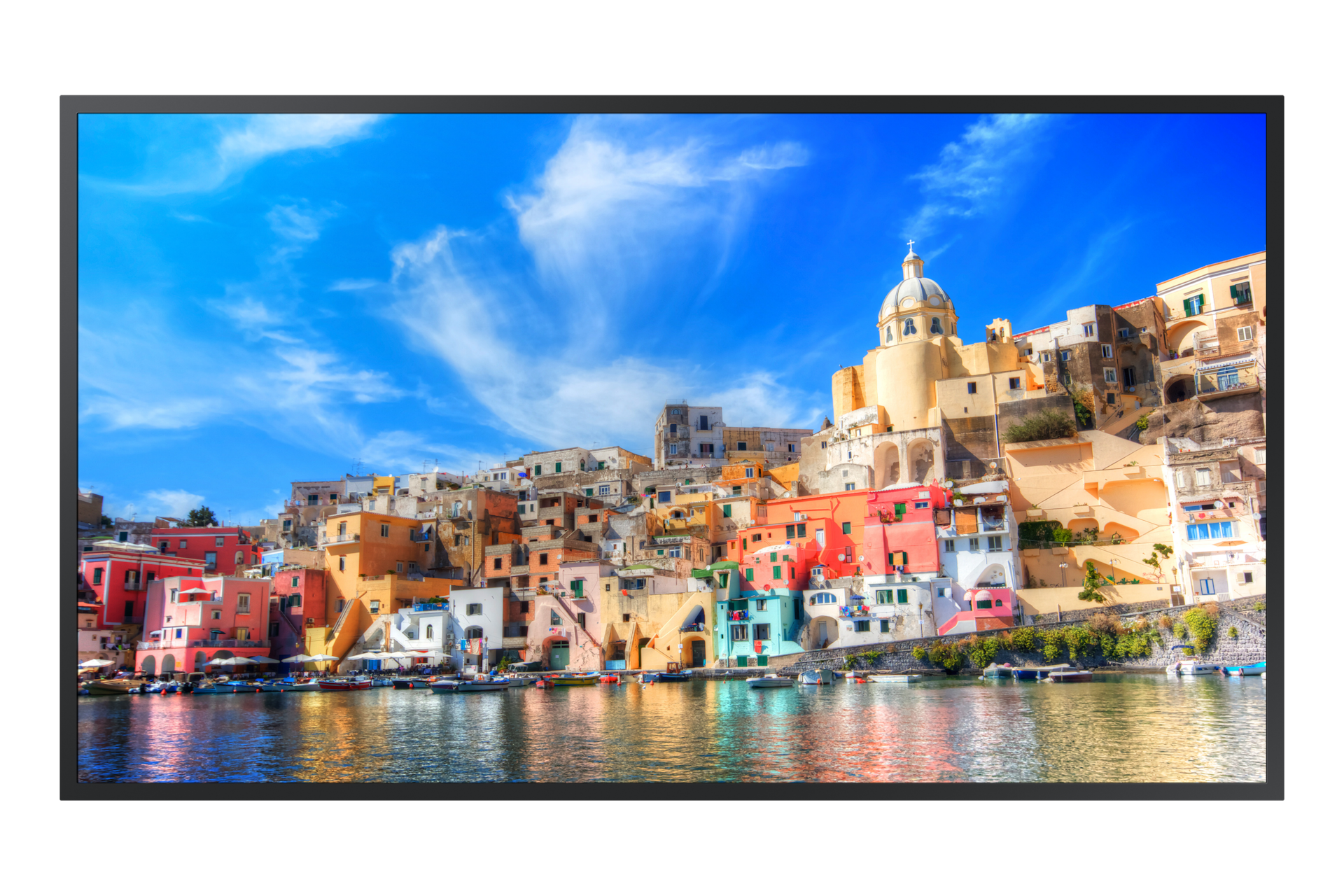

75" Window Display OM75R
LH75OMREBGBXXY
Please scan the QR Code with your mobile device, and place the product image in desired place.
Specifications
-
Display
75
-
Viewing Angle (H/V)
178/178
-
Connectivity
2
-
Package Dimension (HxWxD)
1890 x 1144 x 225
-
Diagonal Size
75"
-
Panel Type
120Hv D-LED BLU
-
Resolution
3,840 x 2,160
-
Pixel Pitch (HxV)
0.430(H) x 0.430(V)
-
Brightness (Typical)
4000nit
-
Contrast Ratio⁵
5,000:1
-
Viewing Angle (H/V)
178/178
-
Response Time
6ms
-
Colour Gamut
72%
-
Glass Haze
0 %
-
H-Scanning Frequency
15~81KHz (HDMI), 30~135KHz (DP)
-
Maximum Pixel Frequency
594MHz (HDMI), 533.25MHz(DP)
-
V-Scanning Frequency
24~75Hz (HDMI), 30~75Hz (DP)
-
Contrast Ratio (Dynamic)
Mega DCR
-

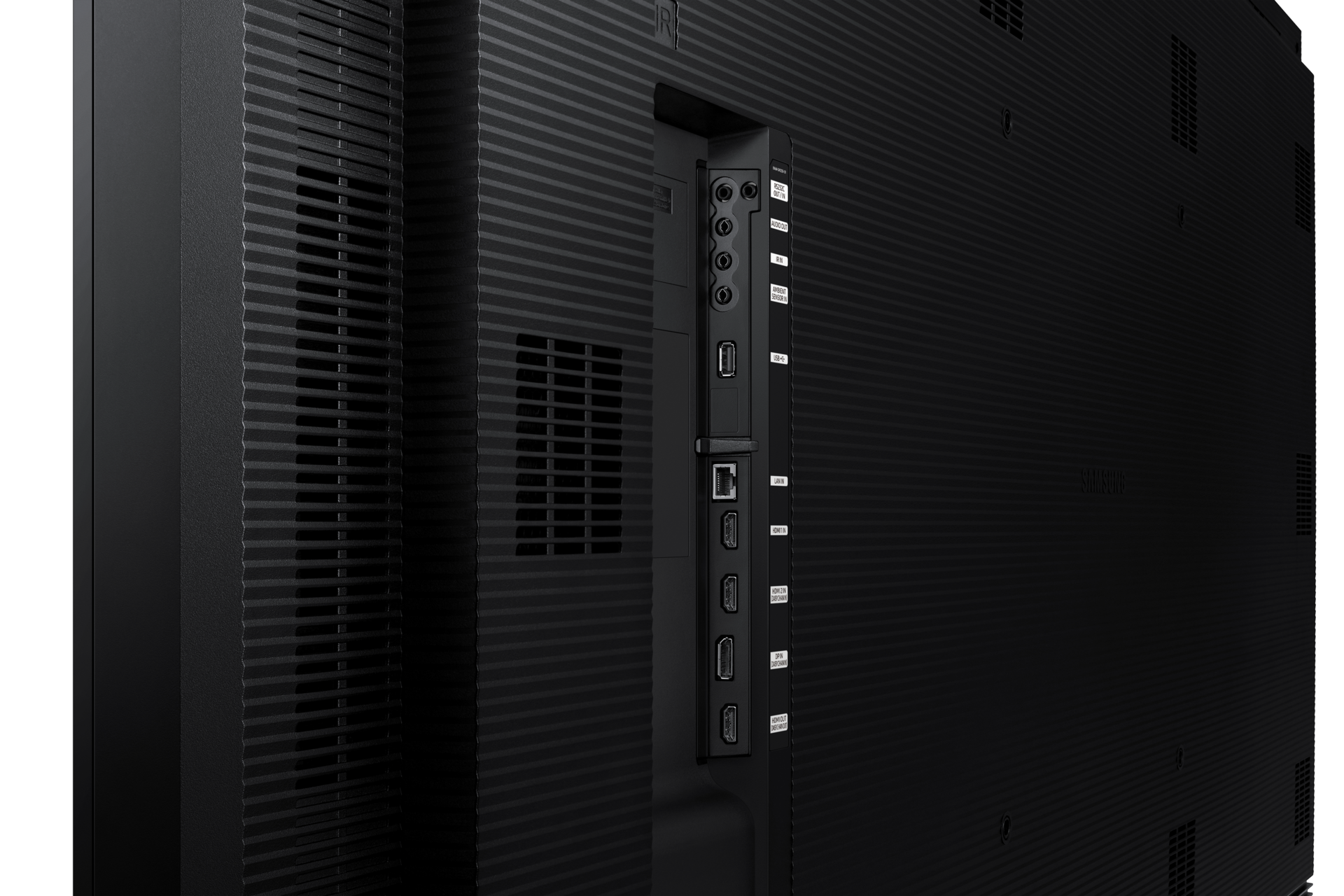

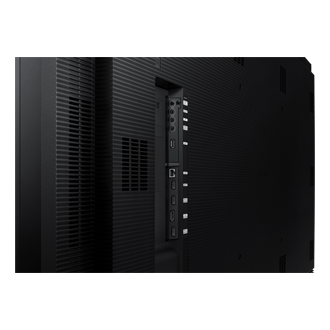

HDMI In
2
-
DP In
1
-
USB
1
-
IR In
Yes
-
HDBaseT In
No
-
HDBaseT Out
No
-
Audio In
No
-
Audio Out
Stereo Mini Jack
-
Video Out
Yes
-
Power Out
No
-
RS232 In
Yes
-
RS232 Out
Yes
-
RJ45 In
Yes
-
RJ45 Out
No
-
WiFi
Yes
-
Power Supply
AC 100 - 240 V (+/- 10 %), 50/60 Hz
-
Power Consumption (On Mode)
990W
-
Power Consumption (Sleep Mode)
0.5W
-
Set Dimension (WxHxD)
1703.1 x 981.2 x 82.6 mm
-
Package Dimension (HxWxD)
1890 x 1144 x 225 mm
-
Net Weight
38.0 kg
-
Package Weight
50.5 kg
-
Temperature
0~30℃
-
Humidity
10 ~ 80%, non-condensing
-
VESA Mount
400 x 400 mm
-
Bezel Width
23.9mm
-
External Memory Slot
No
-
Protection Glass
No
-
Mount
WMN6575SE
-
MagicInfo Daisychain Videowall Support
Yes
-
EMC
Class A
-
Safety
60950-1
