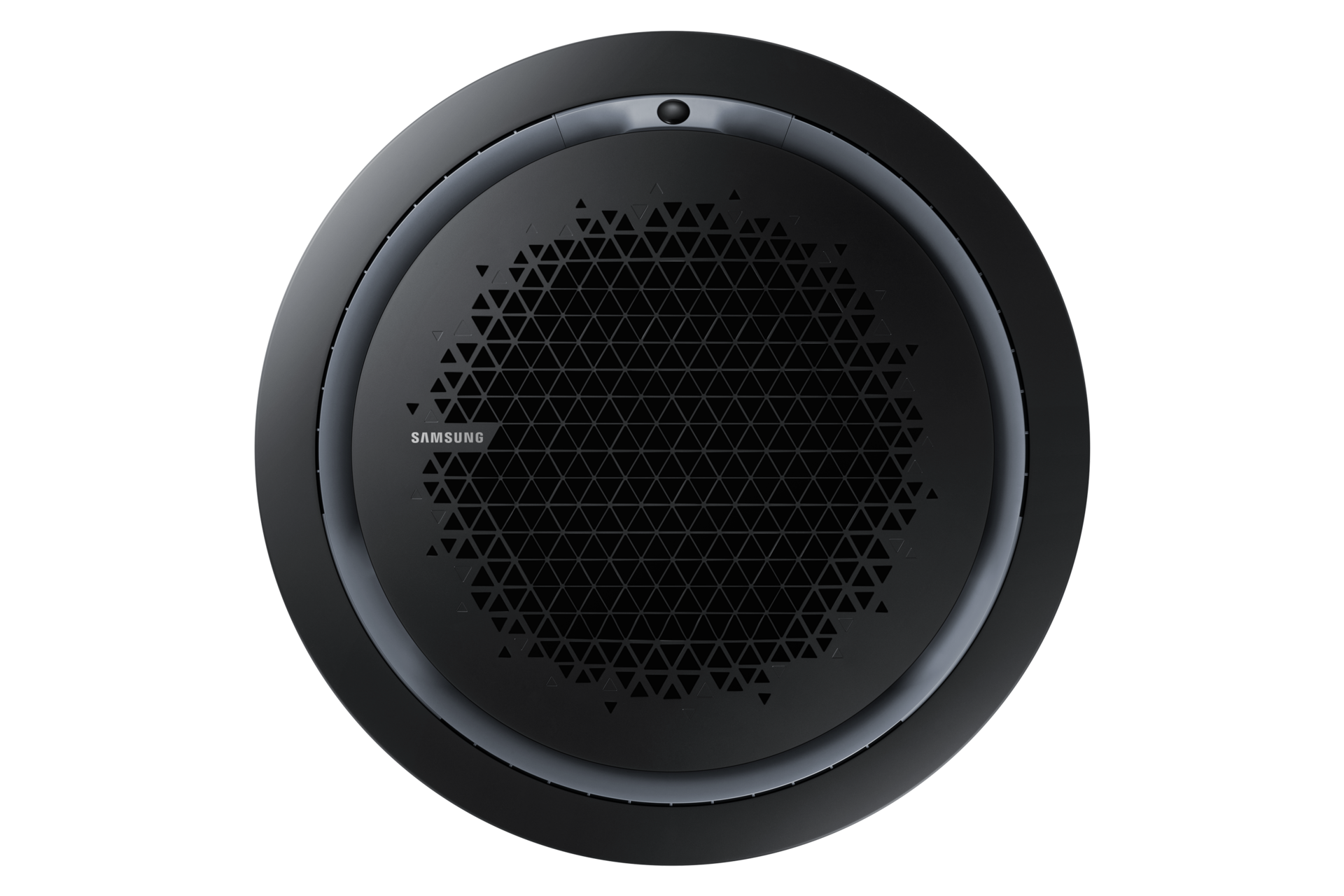

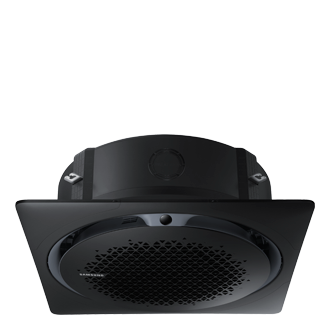

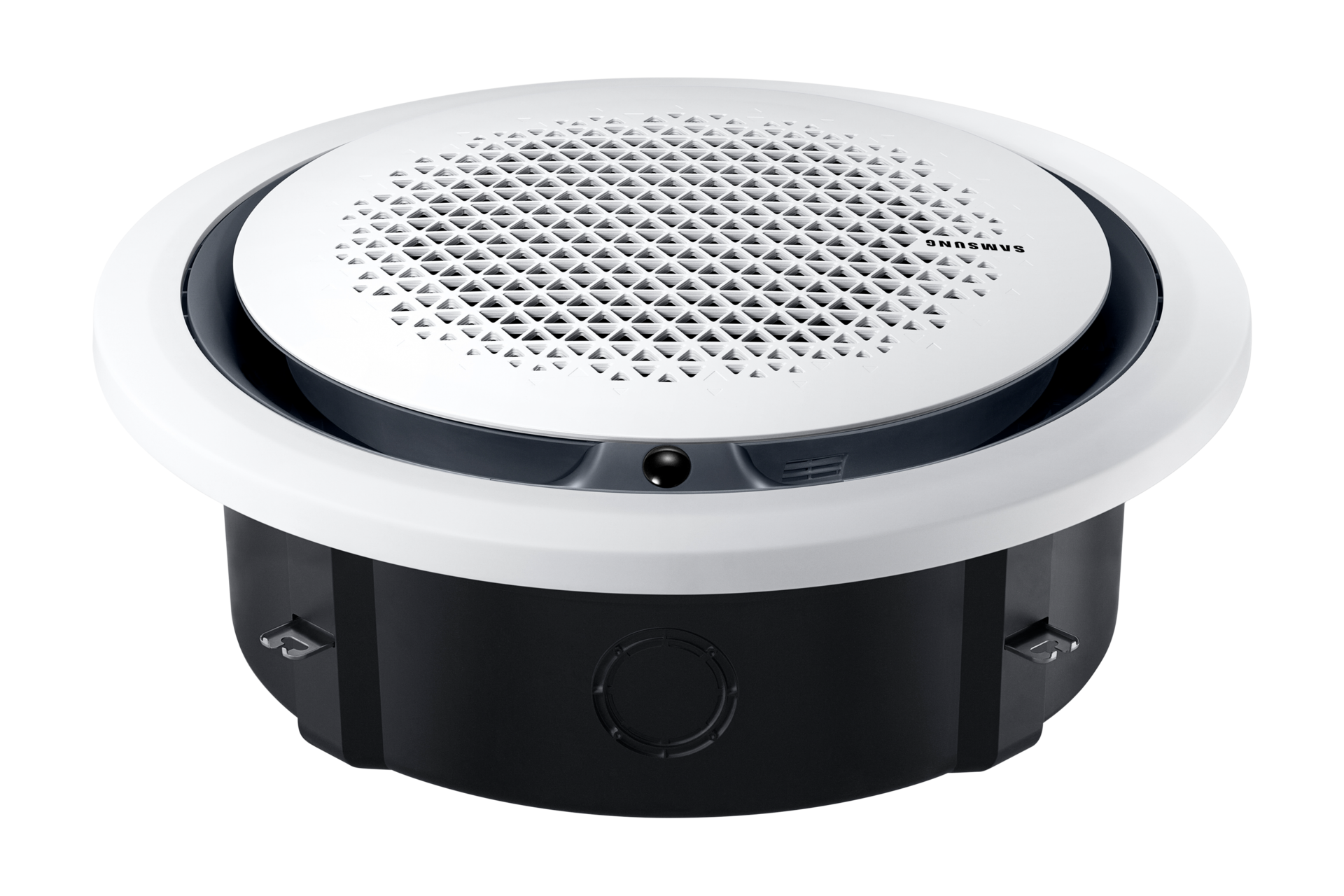

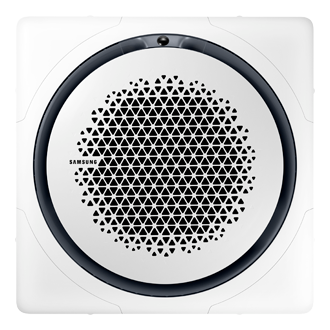

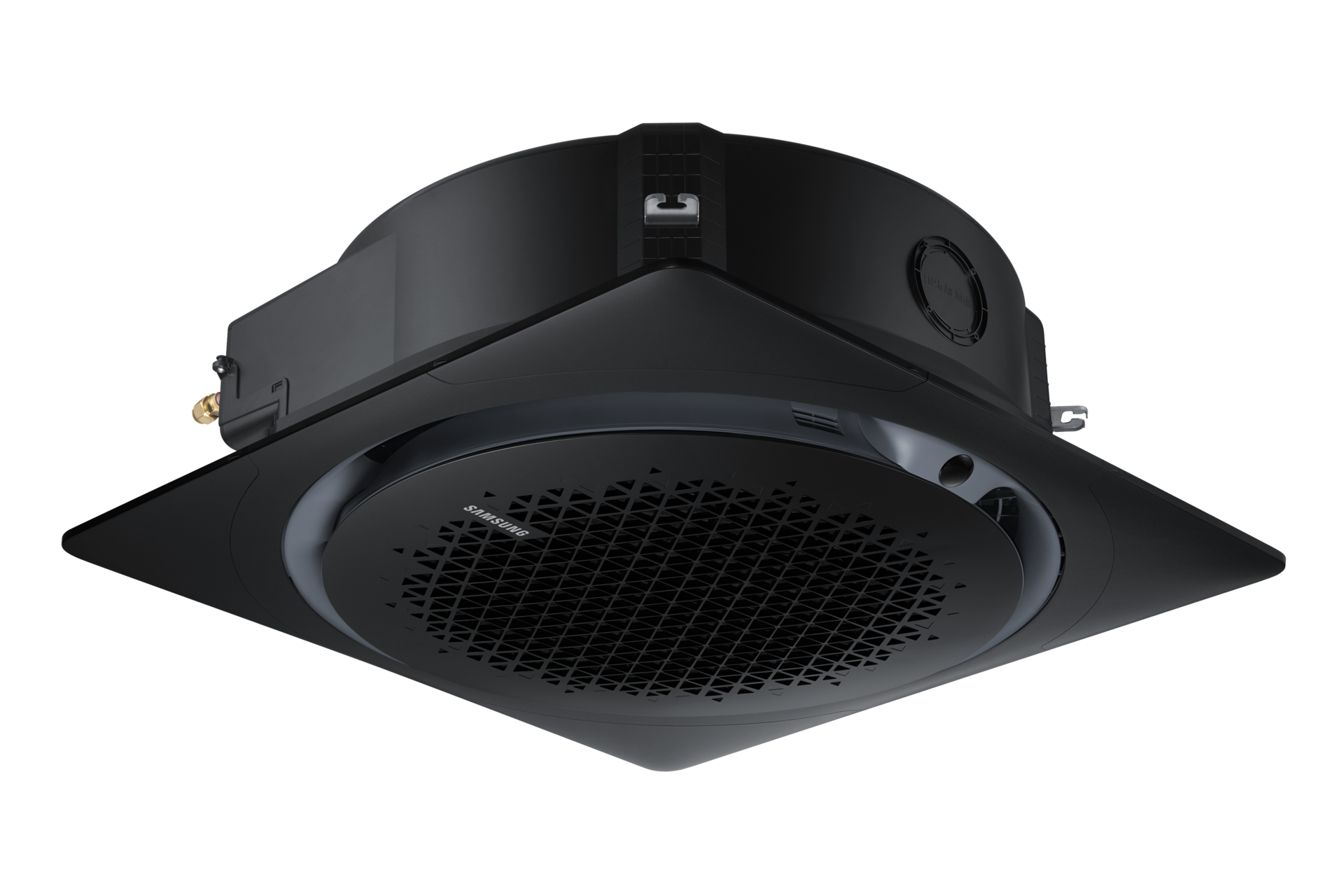

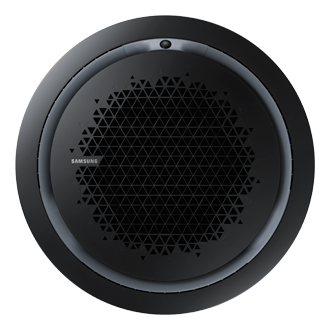

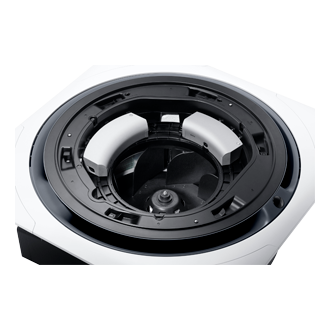

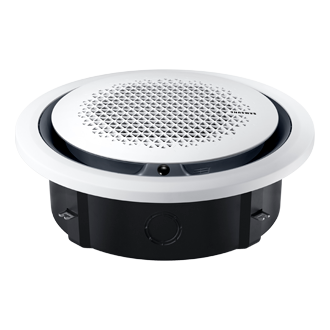

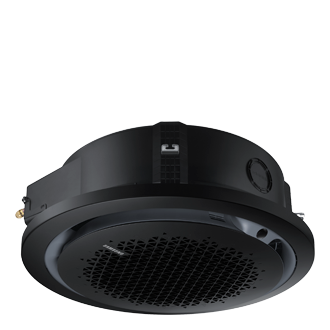

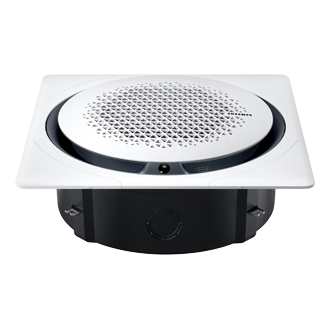

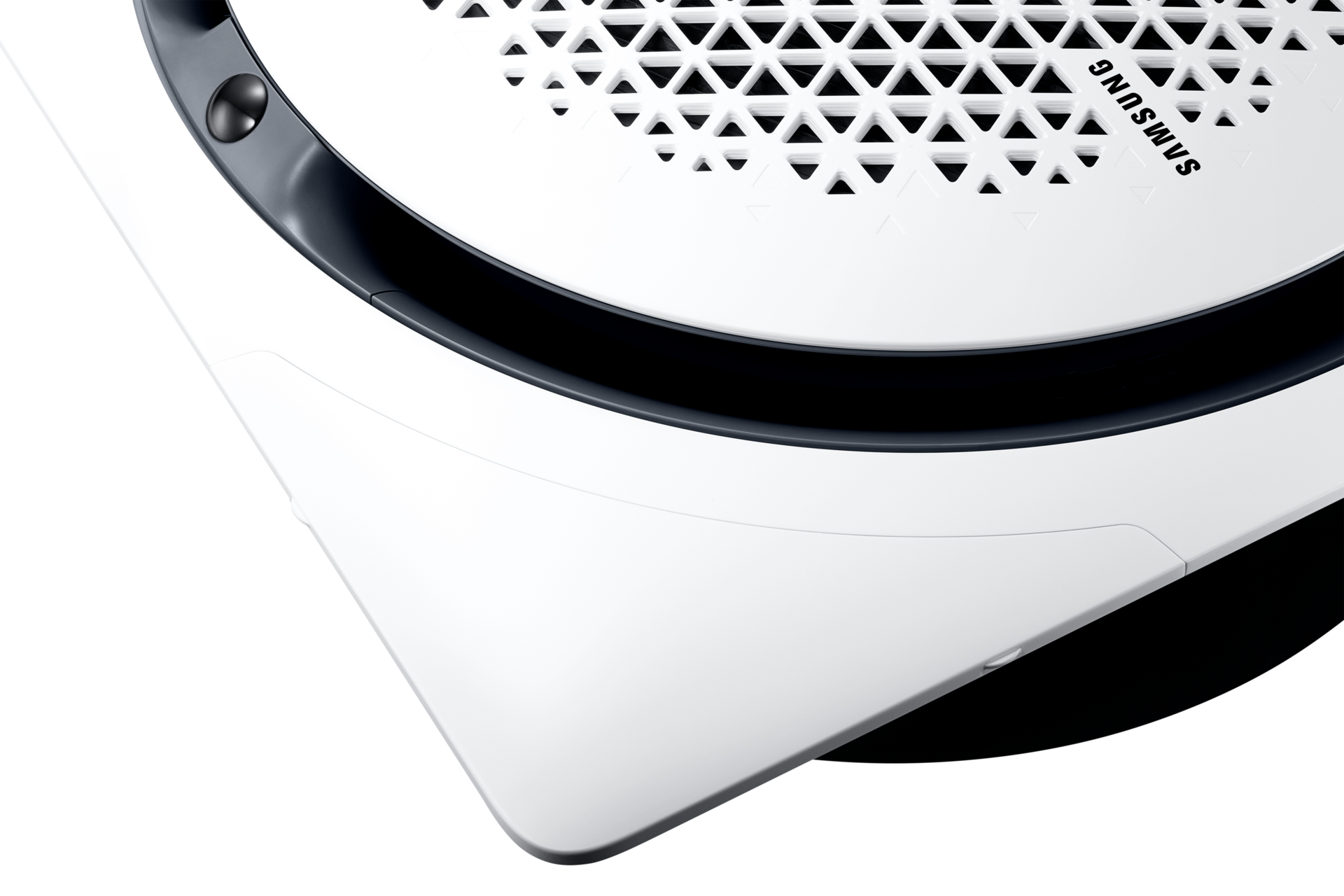

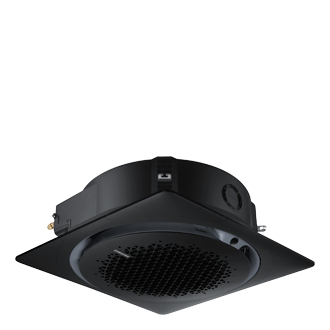

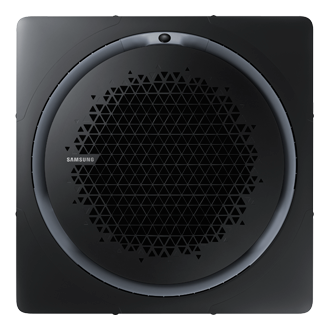

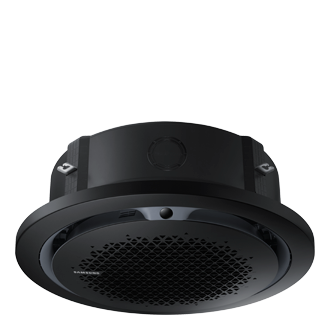

DVM S, 360 Cassette, 5.6kW
AM056KN4DEH/EU
Please scan the QR Code with your mobile device, and place the product image in desired place.
Specifications
-
Cooling [Btu/h]
19100 Btu/h
-
Cooling (Min / Std / Max)
5.6 kW
-
Type
360 Cassette
-
Indoor Unit
AM056KN4DEH/EU
-
1,2,220-240,50
-
Mode
HP/HR
-
Cooling (Min / Std / Max)
5.6 kW
-
Cooling [Btu/h]
19100 Btu/h
-
Heating (Min / Std / Max)
6.3 kW
-
Heating [Btu/h]
21500 Btu/h
-
Cooling (Min / Std / Max)
0.030 kW
-
Heating (Min / Std / Max)
0.030 kW
-
Cooling 1)
0.21 A
-
Heating 2)
0.21 A
-
Type
Turbo Fan
-
Motor (Output) [W]
65 x 1 W
-
Air Flow Rate (High / Mid / Low) [L/S]
266.67/241.67/225.00
-
Air Flow Rate (High / Mid / Low) [m3/h]
960/870/810 ㎥/h
-
Liquid Pipe (Φ, mm)
6.35 mm
-
Liquid Pipe (Φ, inch)
1/4
-
Gas Pipe (Φ, mm)
12.7 mm
-
Gas Pipe (Φ, inch)
1/2
-
Drain connection size
VP25(OD32/ID25)
-
Indoor (V)
1.5 ~ 2.5
-
Outdoor (V)
0.75 ~ 1.50
-
Type
R410A(Contains fluorinated greenhouse gas, GWP=2,088)
-
Control Method
EEV INCLUDED
-
Sound Pressure Level (Outdoor, High)
34/32/29 dBA
-
Sound Power
51.0 dBA
-
Net Weight (kg)
21.0 kg
-
Shipping Weight (kg)
25.9 kg
-
Unit Dimension (WxHxD)
947 x 281 x 947 mm
-
Shipping Dimension (WxHxD)
990 x 330 x 990 mm
-
Panel model
PC4NUDMAN
-
Panel Net Weight (kg)
3.6 kg
-
Shipping Weight (kg)
6.0 kg
-
Unit Dimension (WxHxD)
1000 x 66 x 1000 mm
-
Shipping Dimension (WxHxD)
1093 x 85 x 1083 mm
-
Drain Pump
Built In
-
Sound Pressure Level (Indoor, Low), dBA
750/24
