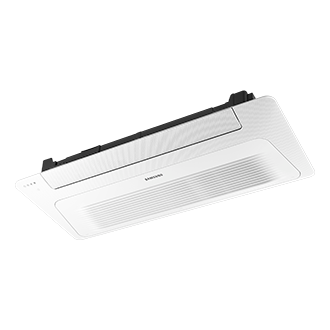

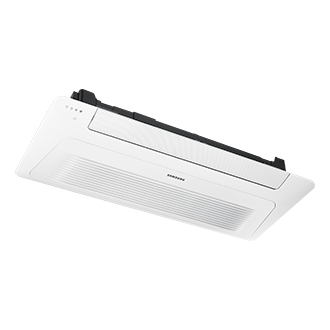

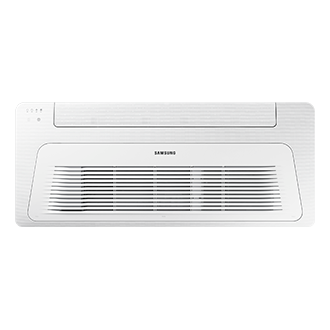

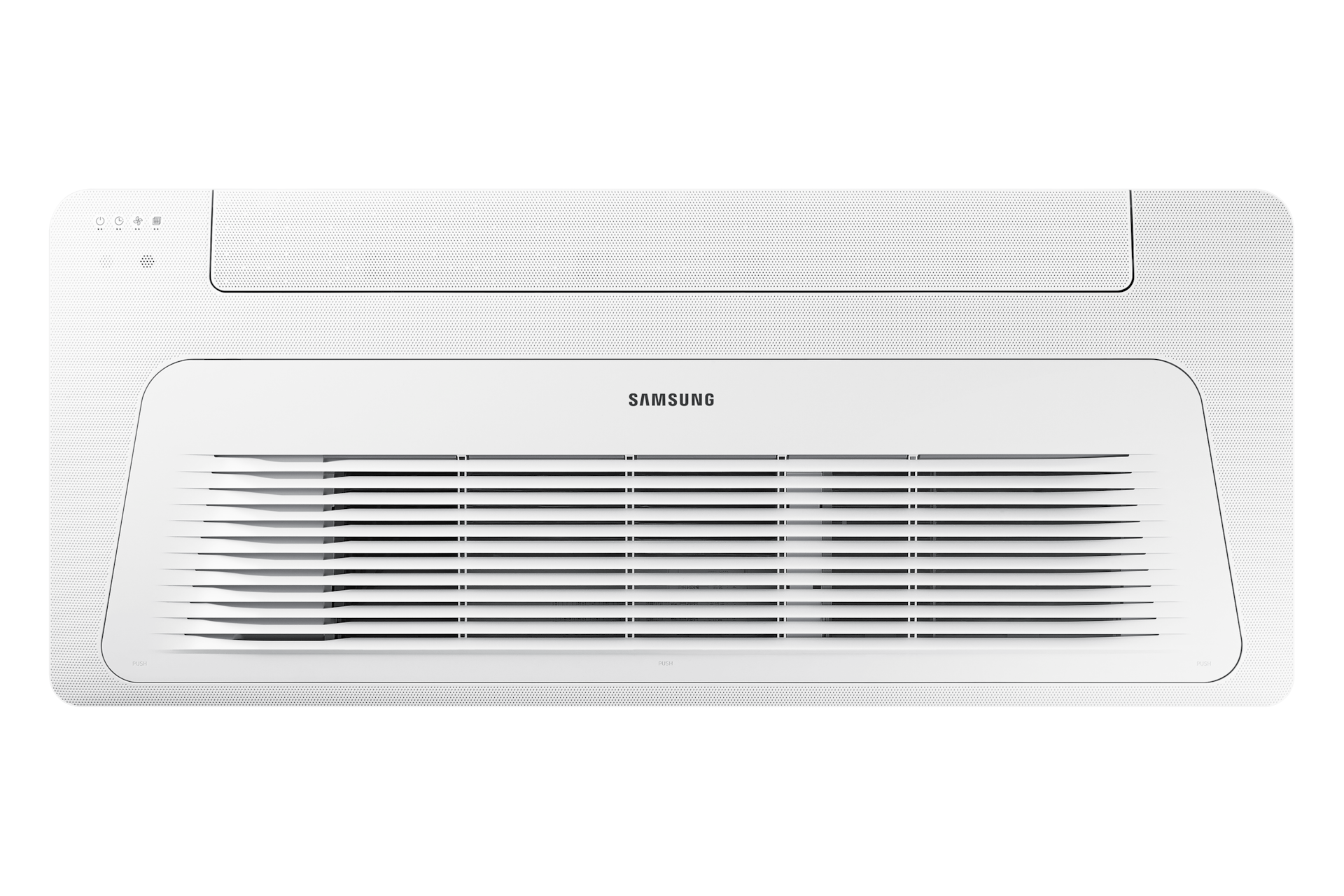

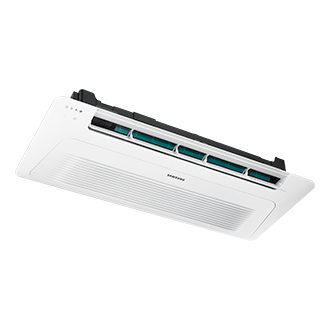

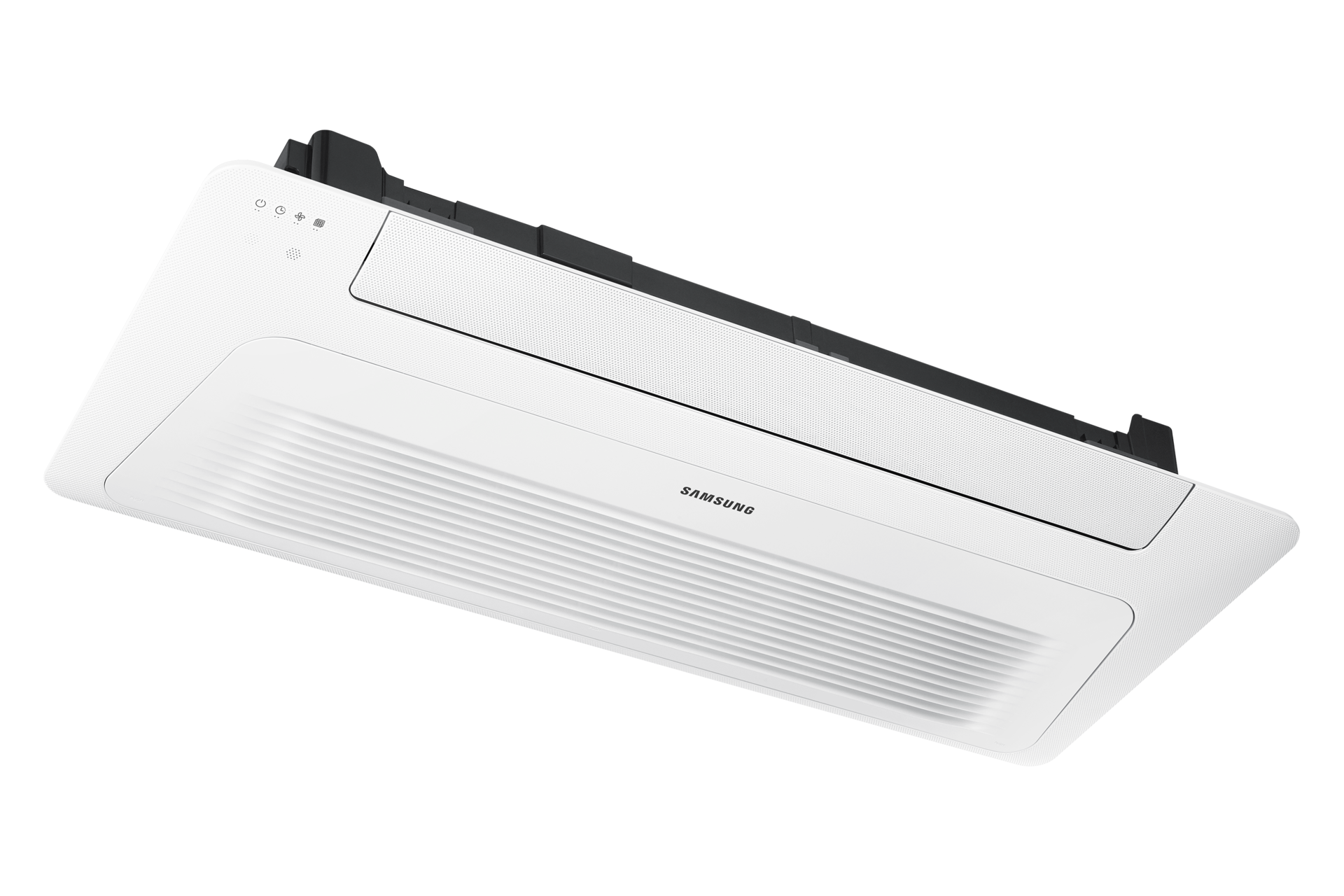

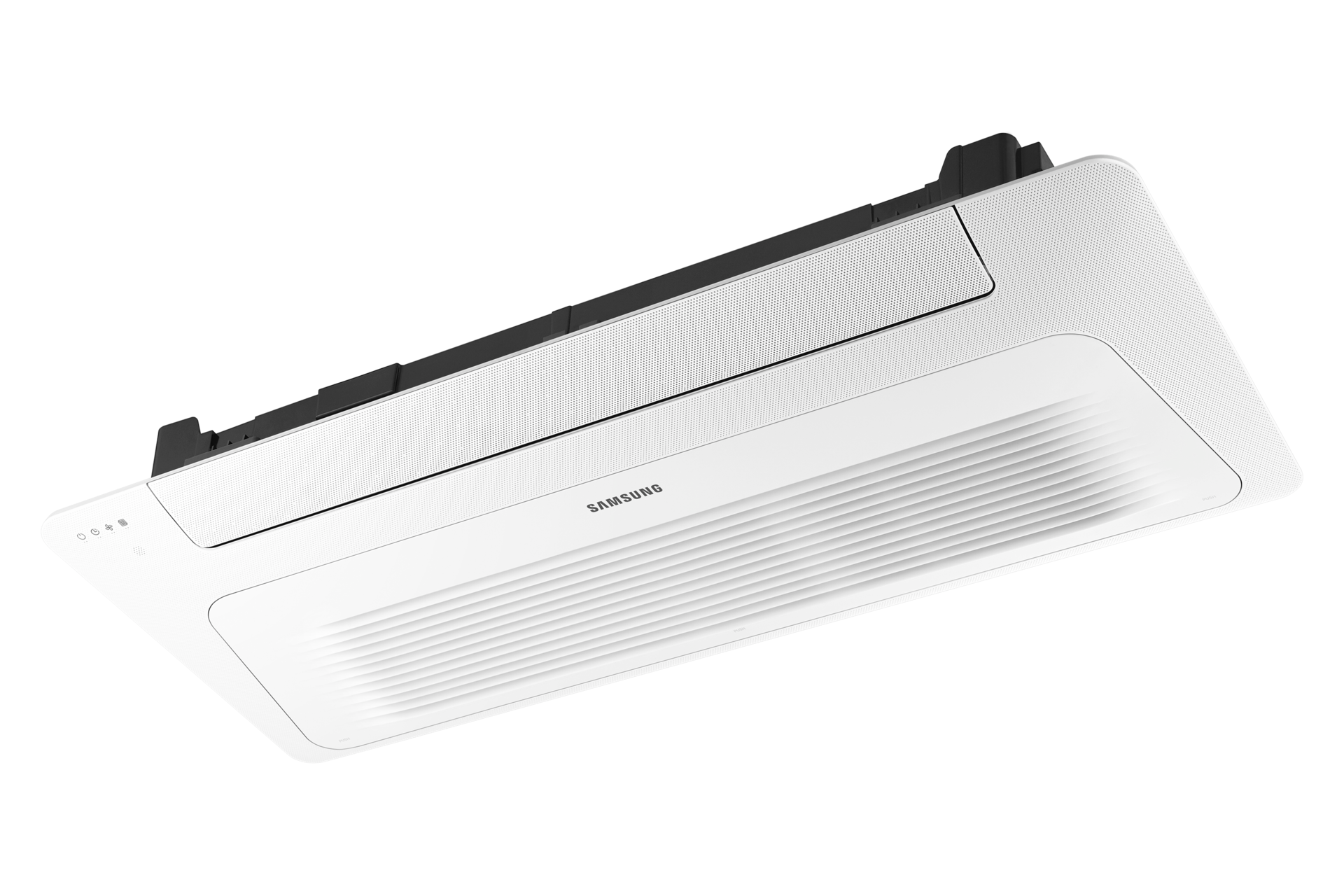

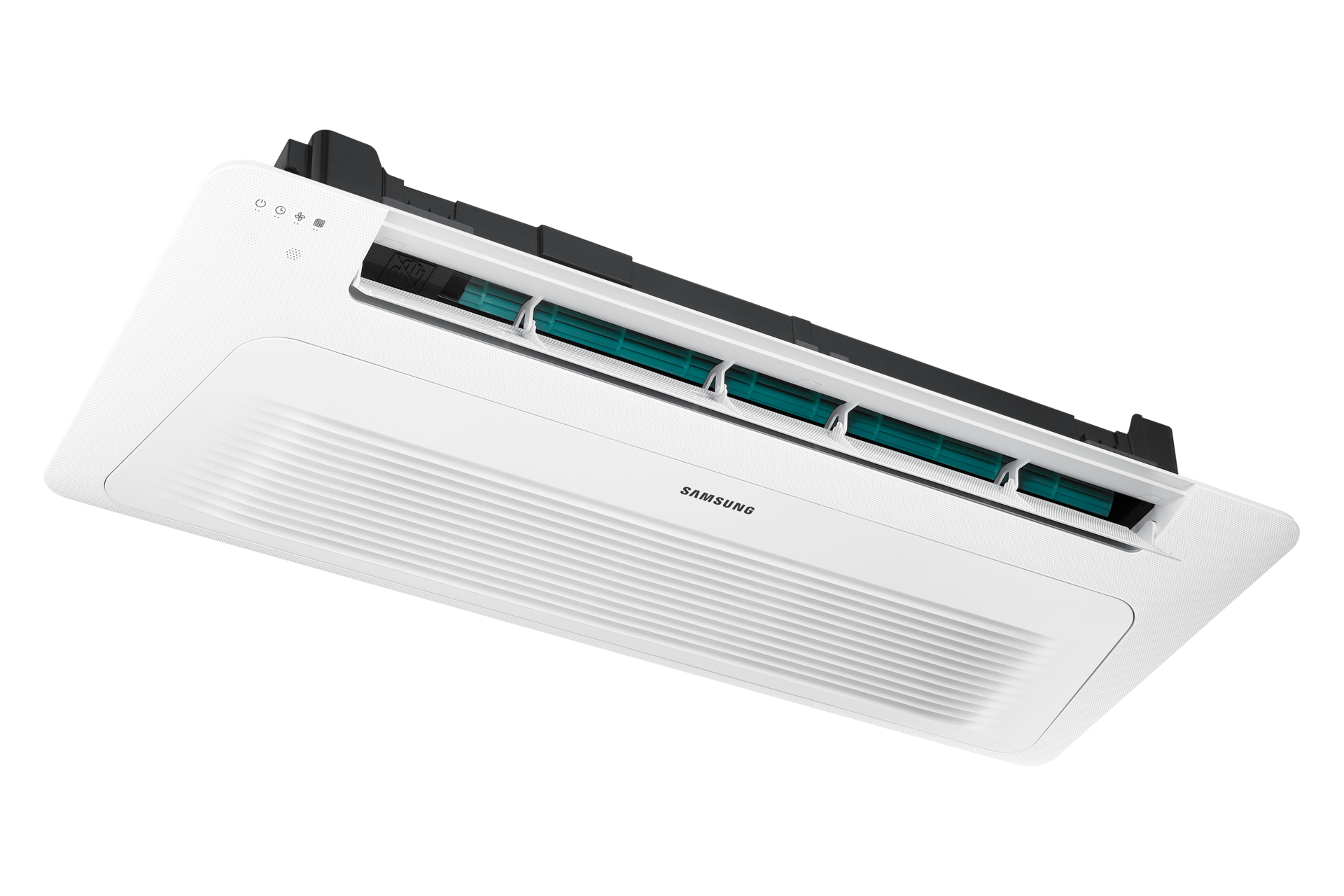

WindFree™ 1-Way Cassette (Indoor Unit)

2.8 kW
0 (0) AM028NN1DEH/EU

{{priceAnchor.priceWrapper.info.noLineOrignal}}

{{priceAnchor.priceWrapper.info.totalPrice}}
{{priceAnchor.priceWrapper.info.totalPriceMonthly}}

{{priceAnchor.priceWrapper.info.ceExchangePrice}}

{{priceAnchor.priceWrapper.info.orignalPriceAddText}}
{{priceAnchor.priceWrapper.info.lowestWasPricetext}}
{{priceAnchor.priceWrapper.info.orignalPrice}}
{{priceAnchor.priceWrapper.info.savePrice}}
{{priceAnchor.priceWrapper.info.disclaimer}}
Not for sale
{{price.anchorNaviAttr.text}}

Choose Capacity

WindFree™ 1-Way Cassette (Indoor Unit)
2.8 kW

{{item.name}}

{{item.summaryPrice}}

{{price.priceWrapper.info.totalPrice}} {{price.priceWrapper.info.vatText}}

{{price.priceWrapper.info.orignalPriceAddText}}

{{price.priceWrapper.info.lowestWasPricetext}}

{{price.priceWrapper.info.orignalPrice}} {{price.priceWrapper.info.savePrice}}

Earn 5% back in rewards

{{price.priceWrapper.info.walkoutQtyText}}

{{price.priceWrapper.info.homeDeliveryQtyText}}

{{price.priceWrapper.info.salesPitch}}

{{price.priceWrapper.info.text}}

{{price.priceWrapper.info.text2}}

{{price.priceWrapper.info.text3}}

{{price.priceWrapper.info.shippingOrBack}}

{{price.priceWrapper.info.taxPriceDisplay}}

Not for sale
{{price.bespokeAttr.text}} {{price.containedAttr.text}} {{price.reserveInStoreAttr.text}} {{price.outlinedAttr.text}} {{price.wtbAttr.text}}
{{calculator.emiAttr.text}}

{{upgrade.title}}

{{upgrade.learnMoreCta.text}}

{{upgrade.description}}

{{upgradeResult.displayModelName}}

{{upgradeResult.discountText1}}

{{upgradeResult.description1}}

{{upgradeResult.description2}}

{{offerFinance.title}}

{{offerFinance.learnMoreCta.text}}

{{offerFinance.description}}

{{galaxyForever.title}}

{{galaxyForever.learnMoreCta.text}}

{{galaxyForever.description}}

{{galaxyForeverResult.displayModelName}}

{{galaxyForeverResult.discountText1}}

{{galaxyForeverResult.description1}}

{{galaxyForeverResult.description2}}

Choose your colour

Customisable frames sold separately

Choose your skin colour

Customisable skin sold separately

  • {{item.name}}

    Out Of Stock

Modern type

  • {{item.name}}

    Out Of Stock

Bevelled type

  • {{item.name}}

    Out Of Stock

Skin colour

  • {{item.name}}

    Out Of Stock

{{shippingOrBack.shippingOrBack}}
{{deliveryMessage.deliveryMessage}}

{{tradeIn.title}}

{{tradeIn.learnMoreCta.text}}

{{tradeIn.description}}

You have maximum number of Trade-in in cart already. If you wish to add in Trade-in, please remove from cart.

{{tradeInResult.displayModelName}}

{{tradeInResult.discountText1}}

{{tradeInResult.discountText2}}

{{tradeInResult.discountText3}}

{{tradeInResult.discountText4}}

{{tradeInResult.discountText5}}

{{tradeInResult.discountText6}}

{{tradeInResult.specialDiscountText}}

{{tradeInResult.description}}

{{tradeInResult.contentText}}

Dealer stock quantity

You can check the stock quantity for each region

Please select city

Only {0} left in stock.

Sorry, this product is not currently available in selected city.

{{assuredBuyBack.title}}

{{newAssuredBuyBack.title}}

{{newAssuredBuyBack.learnMoreCta.text}}

{{newAssuredBuyBack.description}}

Please select Samsung Assured Buyback or no coverage

{{care.title}}

{{care.learnMoreCta.text}}

{{care.description}}

Please select Samsung Care+ or No to continue

  • {{item.specialText}}

{{warranty.title}}

{{warranty.learnMoreCta.text}}

{{warranty.description}}

{{warrantyResult.displayModelName}}

{{warrantyResult.discountText1}}

{{warrantyResult.description1}}

{{warrantyVd.title}}

{{warrantyVd.learnMoreCta.learnMoreText}}

{{warrantyVd.description}}

{{warrantyVdResult.title}}

{{warrantyVdResult.priceDisplay}}

{{delivery.headline}}

{{delivery.errorMessage}}

Apply

{{deliveryResult.priorityText}}

{{deliveryResult.mainText}}

{{deliveryResult.subText}}
Standard installation charges may apply.Click here for more details.

{{deliveryResult.decText}}

{{item.disclaimer}}

{{tariffOption.headline}}

Learn more

{{tariffOption.description}}

{{tariffOptionResult.displayModelName}}

{{tariffOptionResult.discountText1}}

{{tariffOptionResult.description}}

{{tariffOptionResult.price}}

{{tariffOptionResult.disclaimer}}

{{embedAddon.title}}

{{embedAddon.description}}

  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.modelCode}}

    {{item.description}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.description}}

    • {{item.dotList1}}
    • {{item.dotList2}}
    • {{item.dotList3}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
{{message.item.offerTitle}} {{message.item.offerTooltip}} {{message.item.linkText}}

{{message.item.tcCTAText}}

{{message.item.periodText}}

{{finance.item.emiText}} {{finance.item.emiText}} {{finance.item.offerTooltip}} {{finance.item.cta.label}}

Features

Stay Cool without direct wind

WindFree™

WindFree™ Cooling helps maintain a comfortable level of coolness without the feeling of direct cold wind draft. Cool air is gently dispersed through micro holes, helping maintain the temperature of the space.

WindFree™ operation is only available in Cooling mode.

Energy saving with Wind Free

Energy Saving

WindFree™ Cooling allows efficient energy saving

*Tested on Outdoor unit AM050FXMDEH, Indoor unit AM056NN1DEH, AM036NN1DEH, AM022NN1DEH when running simultaneously, individual result may vary depending on consumer usage.

Fast cooling in wide area

Good coverage

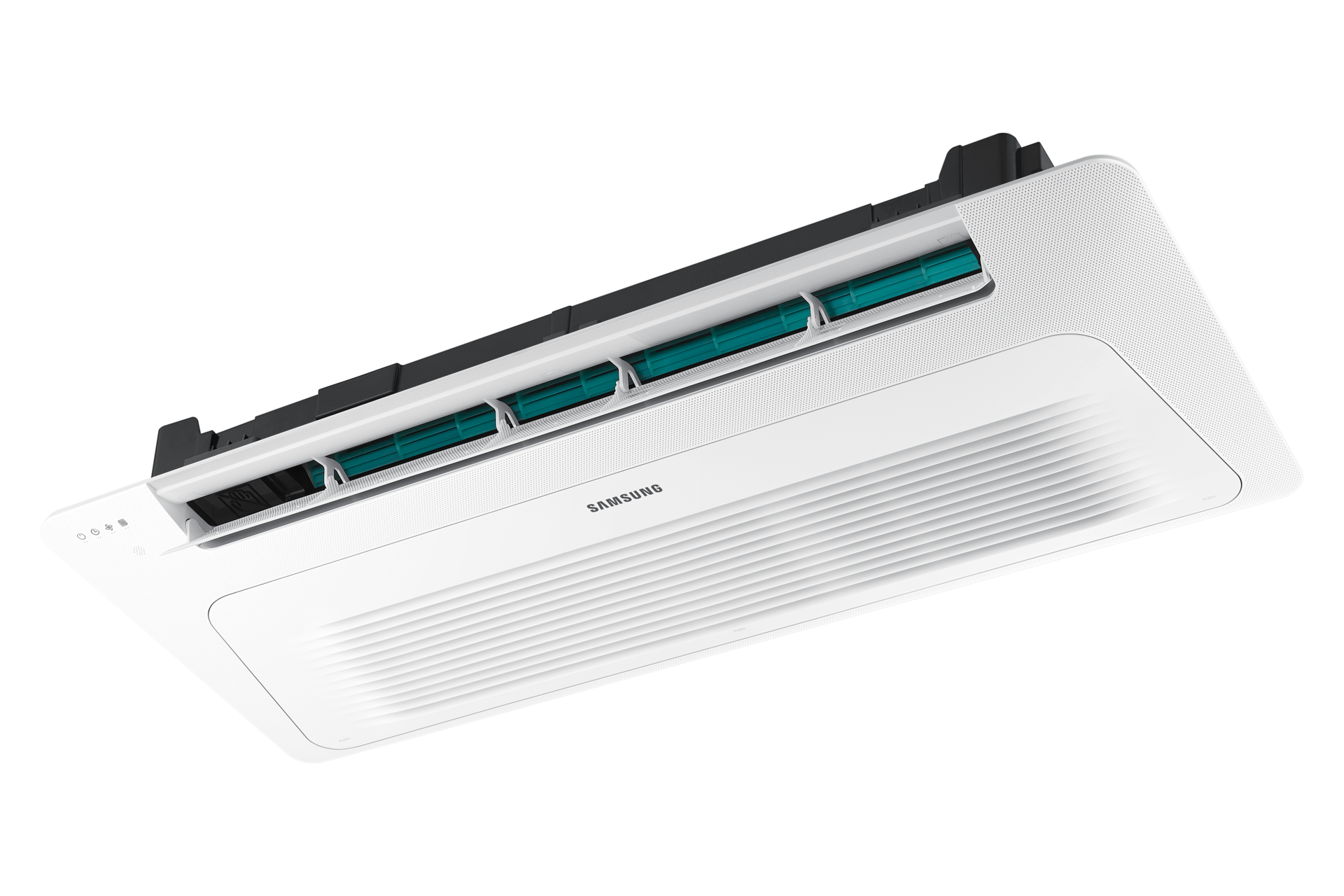

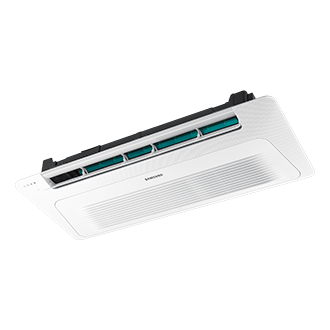

Samsung 1-Way cassette with its large louver blade is designed to maximise coverage and cool the room to its set temperature quickly. Once the set temperature has been reached and with WindFree™ mode enabled, the Samsung 1-way cassette will operate in WindFree™ to maintain the set temperature. The system will automatically alternate between normal cooling mode and WindFree™ Cooling mode to maintain room temperature to setpoint.

Specifications

  • Cooling (Min / Std / Max)

    2.8 kW

  • Cooling [Btu/h]

    9,600 Btu/h

  • Type

    1Way CASSETTE

  • Indoor Unit

    AM028NN1DEH/EU

  • 1,2,220-240,50

  • Mode

    HP/HR

  • Cooling (Min / Std / Max)

    2.8 kW

  • Cooling [Btu/h]

    9,600 Btu/h

  • Heating (Min / Std / Max)

    3.2 kW

  • Heating [Btu/h]

    10,900 Btu/h

  • Cooling (Min / Std / Max)

    0.045 kW

  • Heating (Min / Std / Max)

    0.045 kW

  • Cooling

    0.23 A

  • Heating

    0.23 A

  • Type

    Crossflow Fan

  • Motor (Output) [W]

    17 x 1 W

  • Air Flow Rate (High / Mid / Low) [L/S]

    116.67/100.00/83.33

  • Air Flow Rate (High / Mid / Low) [m3/h]

    420/360/300 ㎥/h

  • Liquid Pipe (Φ, mm)

    6.35 mm

  • Liquid Pipe (Φ, inch)

    1/4"

  • Gas Pipe (Φ, mm)

    12.70 mm

  • Gas Pipe (Φ, inch)

    1/2"

  • Drain connection size

    VP20 (OD 25,ID 20)

  • Indoor (V)

    1.5 ~ 2.5

  • Outdoor (V)

    0.75 ~ 1.50

  • Type

    R410A(Contains fluorinated greenhouse gas, GWP=2,088)

  • Control Method

    EEV INCLUDED

  • Sound Pressure Level (Outdoor, High)

    32 / 28 / 24 dBA

  • Sound Power

    50.0 dBA

  • Panel Net Weight (kg)

    10 kg

  • Shipping Weight (kg)

    12.8 kg

  • Unit Dimension (WxHxD)

    970 x 135 x 410 mm

  • Shipping Dimension (WxHxD)

    1173 x 231 x 487 mm

  • Model Name

    PC1NWFMAN

  • Panel Net Weight (kg)

    4.3 kg

  • Shipping Weight (kg)

    6.3 kg

  • Unit Dimension (WxHxD)

    1198 x 35 x 500 mm

  • Shipping Dimension (WxHxD)

    1262 x 124 x 568 mm
