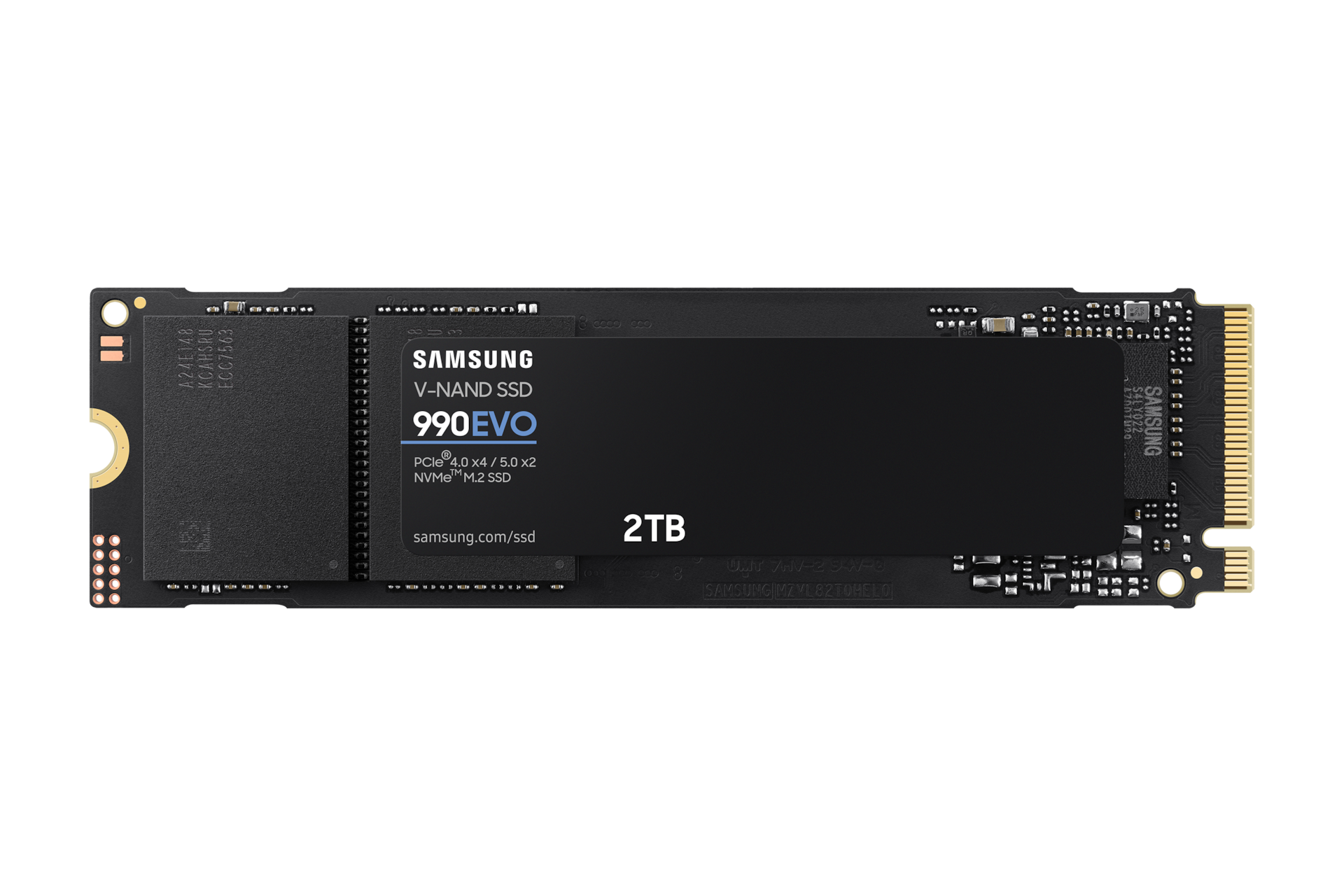

990 EVO PCIe 4.0 x4 / 5.0 x2 NVMe M.2 SSD
Gallery popup
Please scan the QR Code with your mobile device and you can virtually see how the device will look in your home.
Features
Upgrade everyday performance
Top 3 features
Evolved power efficiency
Turn right on and stay on. With a remarkable 71% improvement in power efficiency over the previous model. Plus, it supports Modern Standby, letting you stay connected to the internet and still receive notifications even in the low-power state.
* 970 EVO Plus sequential read/write - 636/550 MB/Watt, 990 EVO sequential read/write – 1,020/933 MB/Watt based on internal test result of 1TB capacity model.** For detailed information about Modern Standby, please visit Microsoft website https://learn.microsoft.com/en-us/windows-hardware/design/device-experiences/part-selection#ssd-storage
Smart thermal solution
The 991 EVO's heat spreader label helps thermal control of the NAND chip. Samsung's thermal control algorithm, paired with Dynamic Thermal Guard, helps prevent performance drops from overheating. Keep your performance red-hot, not your drive.
Samsung Magician software
Samsung Magician software's optimizes your SSD performance. It's the easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.
* For detailed information, please visit Samsung Magician software website https://semiconductor.samsung.com/consumer-storage/magician/
* For detailed information, please visit Samsung Magician software website https://semiconductor.samsung.com/consumer-storage/magician/
Bringing innovations to life
For decades, Samsung’s NAND flash memory has powered innovative technologies that have changed the way users compute and game.
Specifications
-
Interface
PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0
-
Sequential Read
Up to 5,000 MB/s * Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 4,200 MB/s * Performance may vary based on system hardware & configuration
-
Warranty
5-year Limited Warrantyor 1200 TBW Limited Warranty
-
Application
Client PCs
-
Weight
Max 9.0g Weight
-
Dimension (WxHxD)
80 x 22 x 2.38 mm
-
Application
Client PCs
-
Capacity
2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Form Factor
M.2 (2280)
-
Interface
PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0
-
Dimension (WxHxD)
80 x 22 x 2.38 mm
-
Weight
Max 9.0g Weight
-
Storage Memory
Samsung V-NAND TLC
-
Controller
Samsung in-house Controller
-
Cache Memory
HMB(Host Memory Buffer)
-
TRIM Support
Supported
-
S.M.A.R.T Support
Supported
-
GC (Garbage Collection)
Auto Garbage Collection Algorithm
-
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
-
WWN Support
Not supported
-
Device Sleep Mode Support
Yes
-
Sequential Read
Up to 5,000 MB/s * Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 4,200 MB/s * Performance may vary based on system hardware & configuration
-
Random Read (4KB, QD32)
Up to 700,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD32)
Up to 800,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Read (4KB, QD1)
Up to 20,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD1)
Up to 90,000 IOPS * Performance may vary based on system hardware & configuration
-
Average Power Consumption (system level)
*Average: Read 5.5 W / Write 4.7 W* Actual power consumption may vary depending on system hardware & configuration
-
Power consumption (Idle)
Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration
-
Power Consumption (Device Sleep)
Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration
-
Allowable Voltage
3.3 V ± 5 % Allowable voltage
-
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Operating Temperature
0 - 70 ℃ Operating Temperature
-
Shock
1,500 G & 0.5 ms (Half sine)
-
Installation Kit
Not Available
-
Management SW
Magician Software for SSD management
-
5-year Limited Warrantyor 1200 TBW Limited Warranty
Reviews
990 EVO PCIe 4.0 x4 / 5.0 x2 NVMe M.2 SSD
- Customers praise lightning-fast read and write speeds around 5000MB/s with nearly instant boot times and seamless file transfers.
- Reviewers report exceptional long-term reliability with zero issues and no performance degradation even after years of heavy use.
- Most find installation straightforward and appreciate the included monitoring software for drive health and firmware updates.
- Gamers consistently highlight its suitability for gaming rigs and PS5 consoles, eliminating load screens effectively.
- A few note installation was slightly challenging, though this feedback is vastly outweighed by positive experiences overall.
