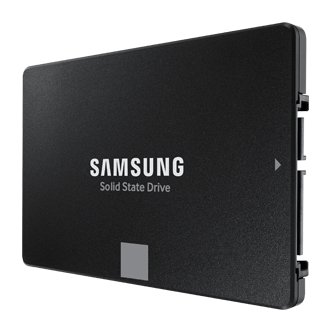

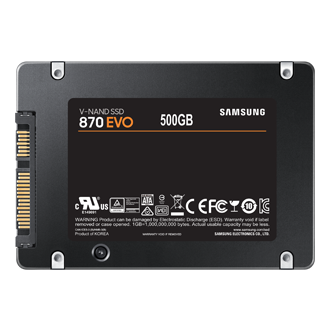

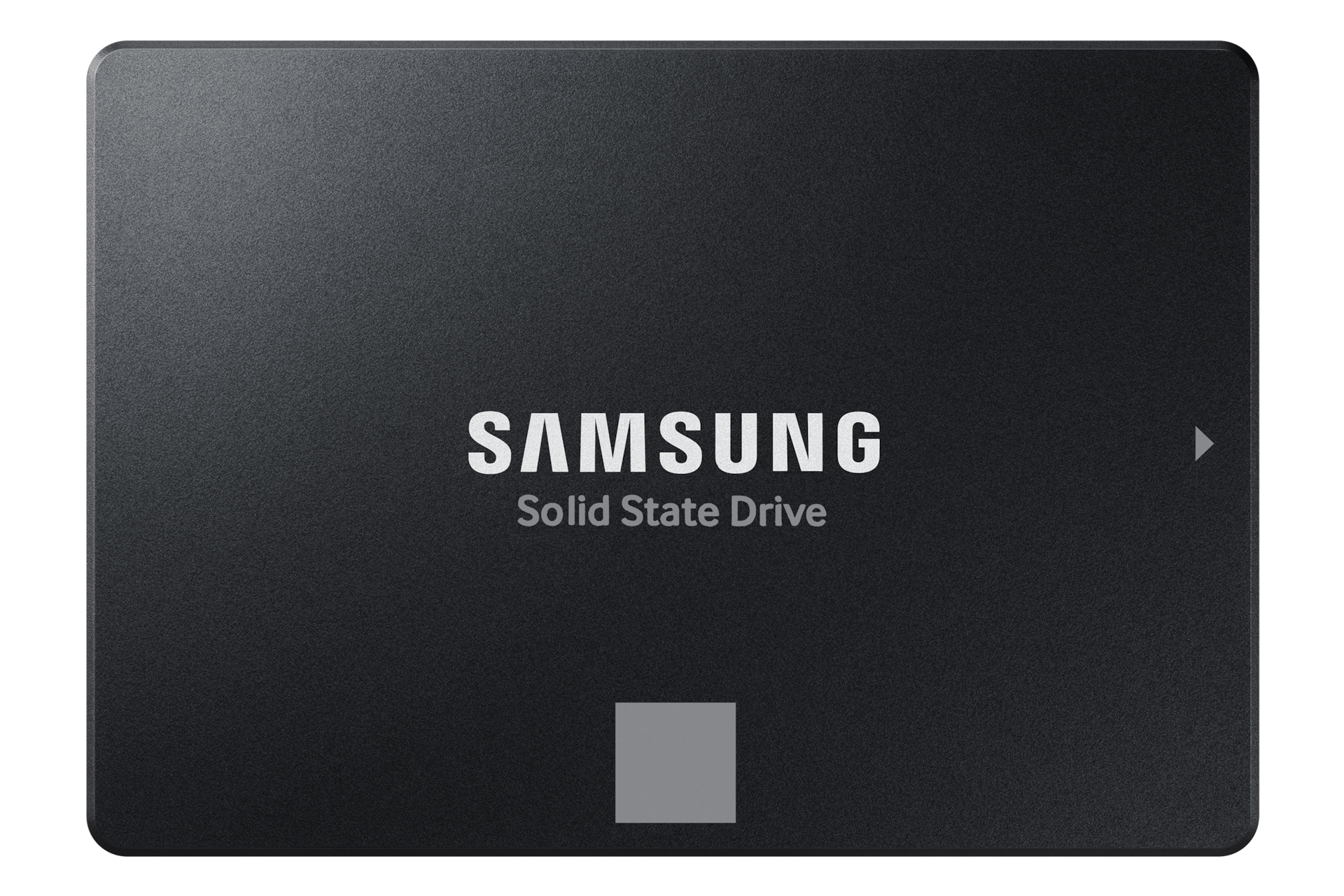

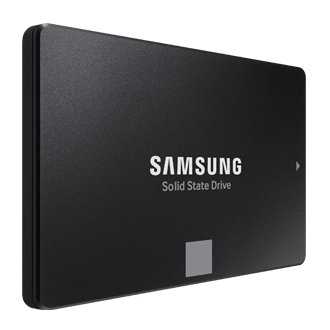

SSD 870 EVO SATA III 2.5 inch
Gallery popup
Please scan the QR Code with your mobile device and you can virtually see how the device will look in your home.
Features
The world’s favorite SSD
The latest model of Samsung's SSD series has finally arrived. The 870 EVO builds upon Samsung’s pioneering SSD technology, boasting upgraded performance, reliability, and compatibility to suit the needs of anyone from content creators, IT professionals, to everyday users.
Excellence in performance
The 870 EVO achieves the maximum SATA interface limit of 560/530 MB/s sequential speeds. Everyday users can now enjoy professional-level SSD performance.Intelligent TurboWrite accelerates write speeds and maintains long-term high performance with a larger variable buffer.
* Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential write performance measurements are based on Intelligent TurboWrite technology.
** Test system configuration: Intel® Core i7-470K CPU@4.00 GHz, DDR3 1600MHz 8GB, OS-Windows 10 Pro 64bit, Chipset-ASUS Z97 PRO
Leading reliability
Providing up to 2,400 TBW under a 5year limited warranty, the 870 EVO meets leading standards of reliability
* Warrantied TBW for 870 EVO: 150 TBW for 250 GB model, 300 TBW for 500 GB model, 600 TBW for 1 TB model, 1,200 TBW for 2 TB model and 2,400 TBW for 4 TB model.
** 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.
Samsung Magician software
Make your drive work like magic. The new and improved Samsung Magician 6 software will keep your SSD in check. You can easily manage your drive with a wide range of useful tools to keep up with the latest updates, monitor the drive's health and status, or even enhance its performance.
Specifications
-
Interface
SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
-
Application
Client PCs
-
Weight
Apporx. 45.0g Weight
-
Dimension (WxHxD)
100 X 69.85 X 6.8 (mm)
-
Application
Client PCs
-
Capacity
500 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Form Factor
2.5 inch
-
Interface
SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
-
Dimension (WxHxD)
100 X 69.85 X 6.8 (mm)
-
Weight
Apporx. 45.0g Weight
-
Storage Memory
Samsung V-NAND 3bit MLC
-
Controller
Samsung MKX Controller
-
Cache Memory
Samsung 512 MB Low Power DDR4 SDRAM
-
TRIM Support
TRIM Supported
-
S.M.A.R.T Support
S.M.A.R.T Supported
-
GC (Garbage Collection)
Auto Garbage Collection Algorithm
-
Encryption Support
AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)
-
WWN Support
World Wide Name supported
-
Device Sleep Mode Support
Yes
-
Sequential Read
Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
-
Random Read (4KB, QD32)
Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
-
Random Write (4KB, QD32)
Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
-
Random Read (4KB, QD1)
Up to 13,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
-
Random Write (4KB, QD1)
Up to 36,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
-
Average Power Consumption (system level)
Average: 2.2 W *Maximum: 3.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
-
Power consumption (Idle)
Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
-
Allowable Voltage
5V ± 5% Allowable voltage
-
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Operating Temperature
0 - 70 ℃ Operating Temperature
-
Shock
1,500 G & 0.5 ms (Half sine)
-
Installation Kit
Not Available
-
Management SW
Magician Software for SSD management, Data Migration Software for SSD upgrade
-
5 Years Limited Warranty or 300 TBW Limited Warranty
Reviews
SSD 870 EVO SATA III 2.5 inch
- Customers praise blazing-fast speeds reaching 560 MB/s read and 530 MB/s write consistently
- Reviewers report multi-year flawless operation, with many citing five-plus years without issues
- Many find installation simple and management software intuitive for cloning and monitoring
- Several highlight high capacities as ideal for gaming and professional applications
- A few report rare durability concerns, vastly outweighed by overwhelming positive experiences
