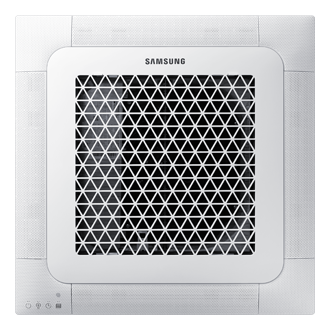

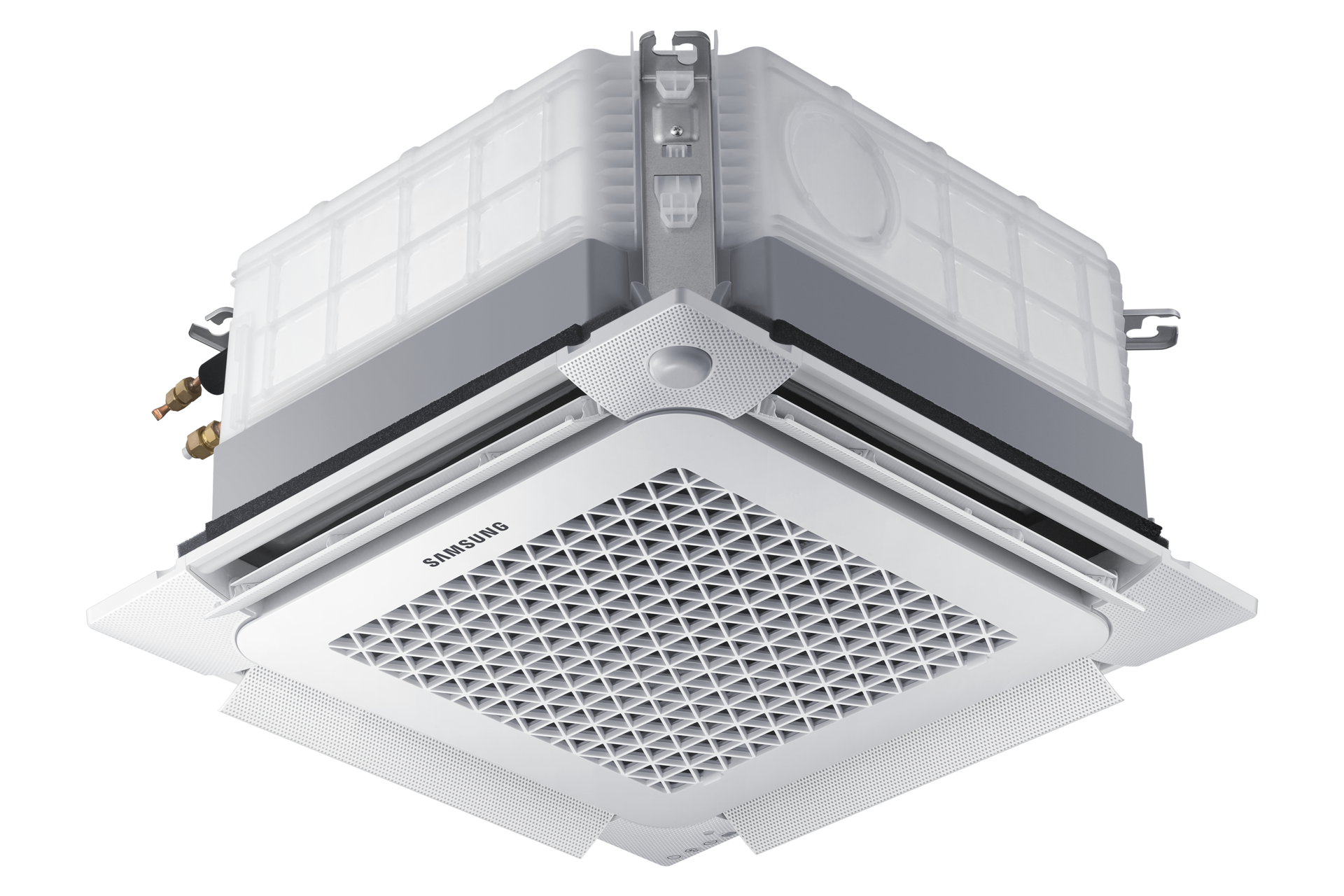

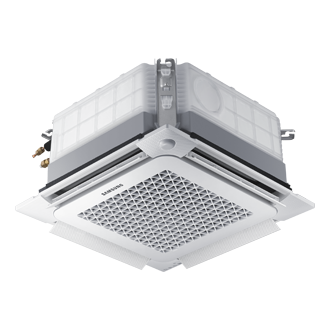

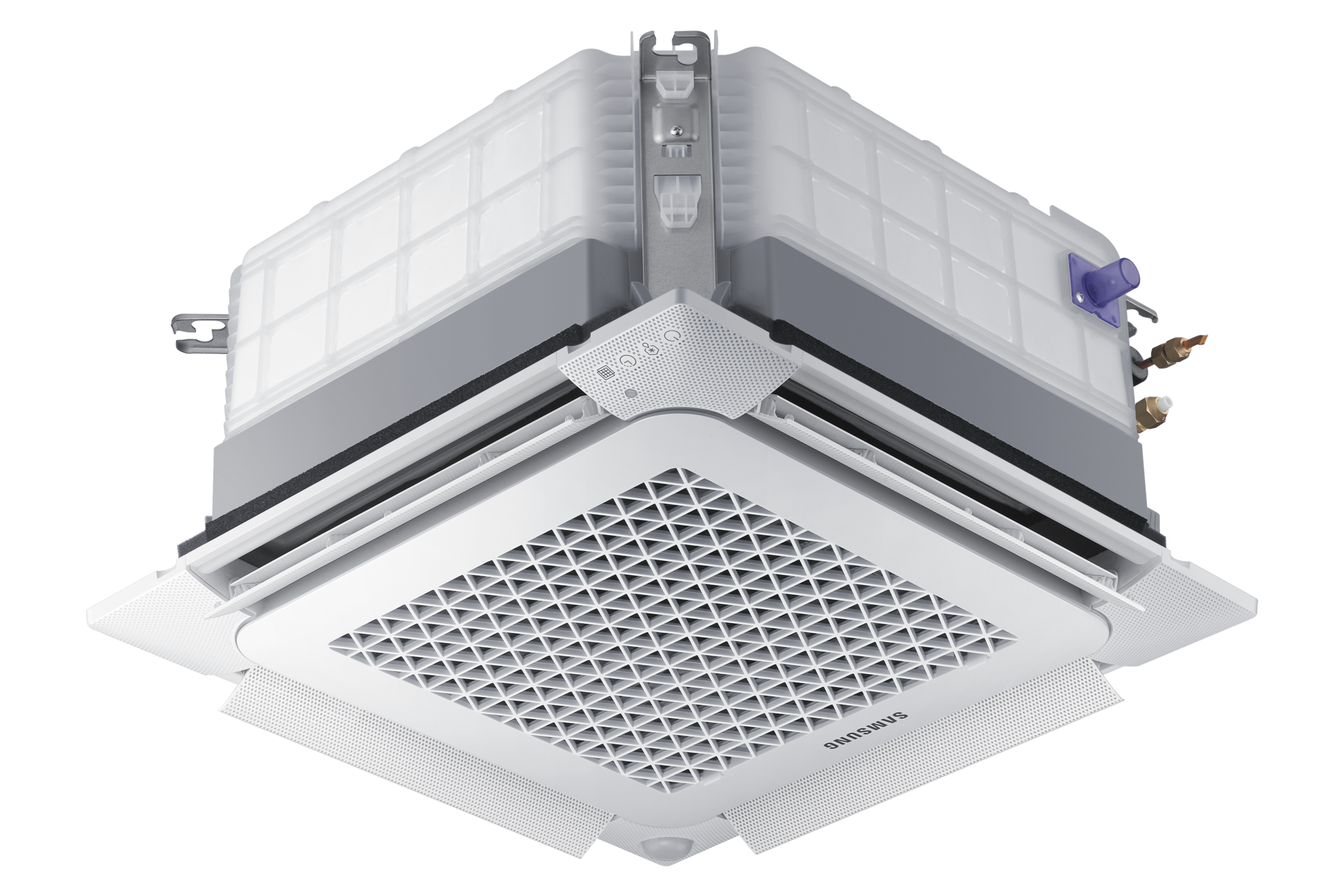

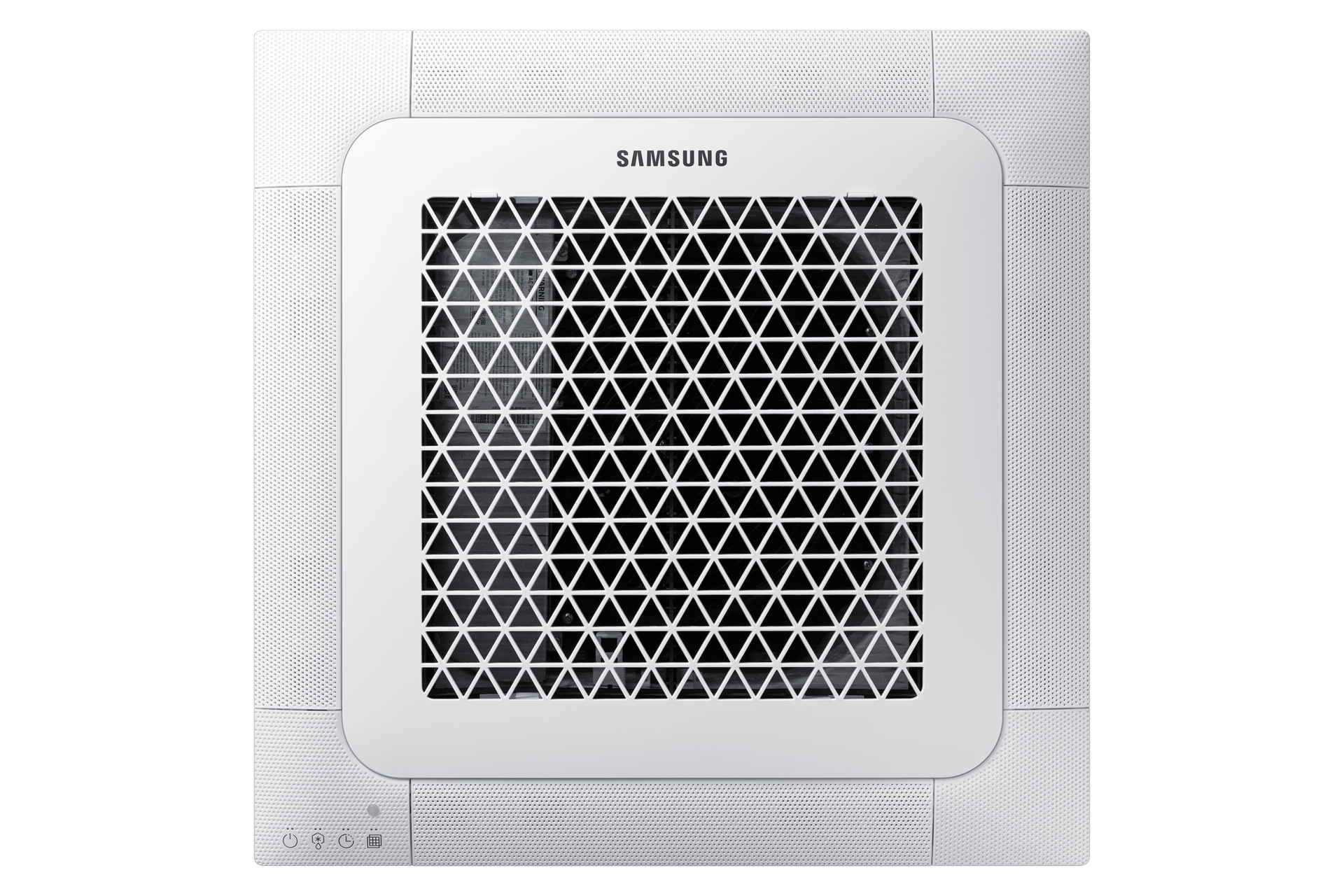

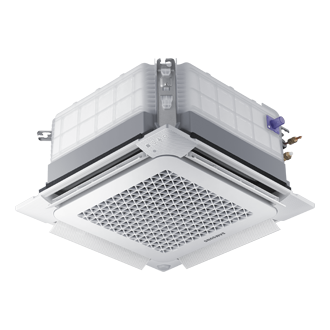

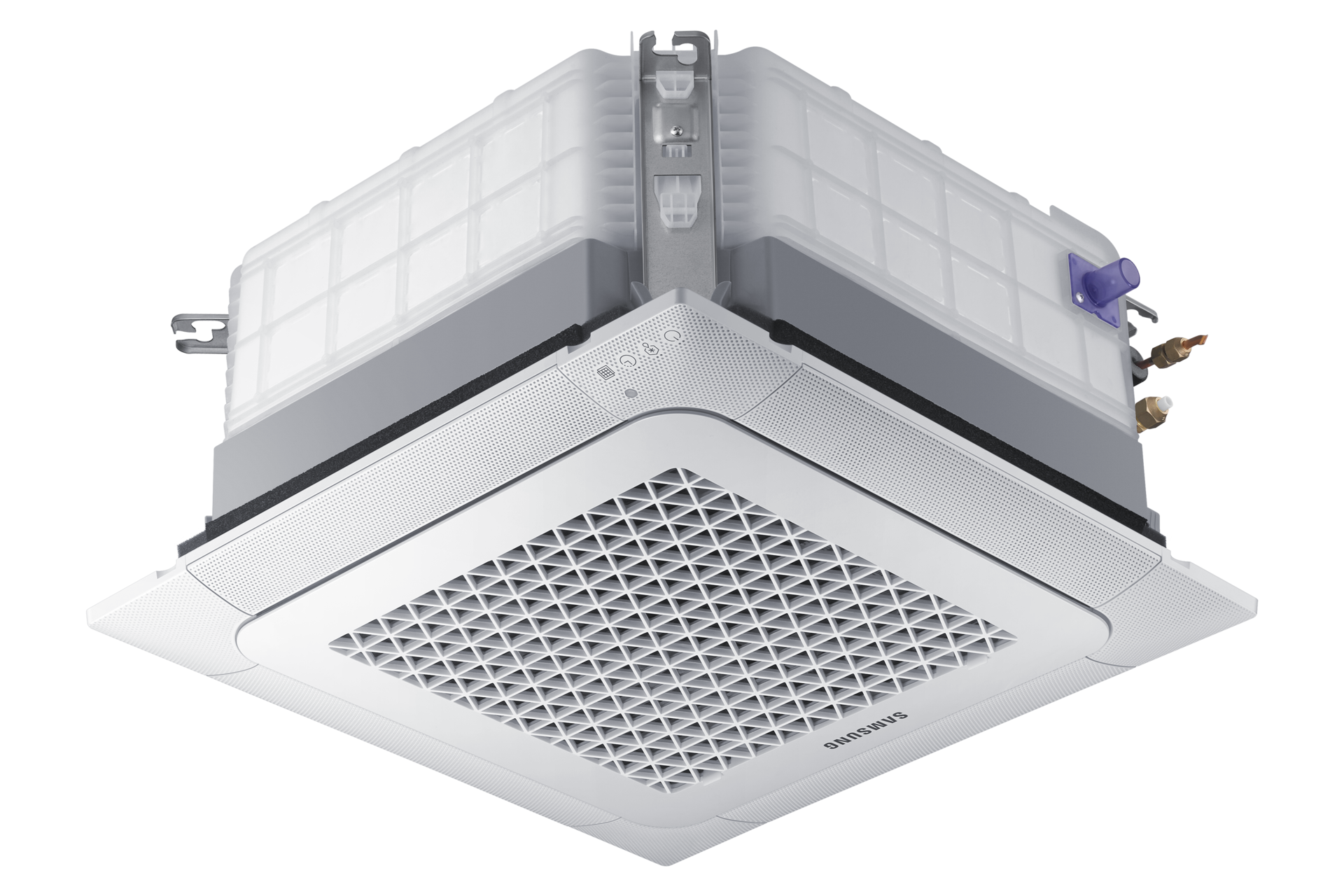

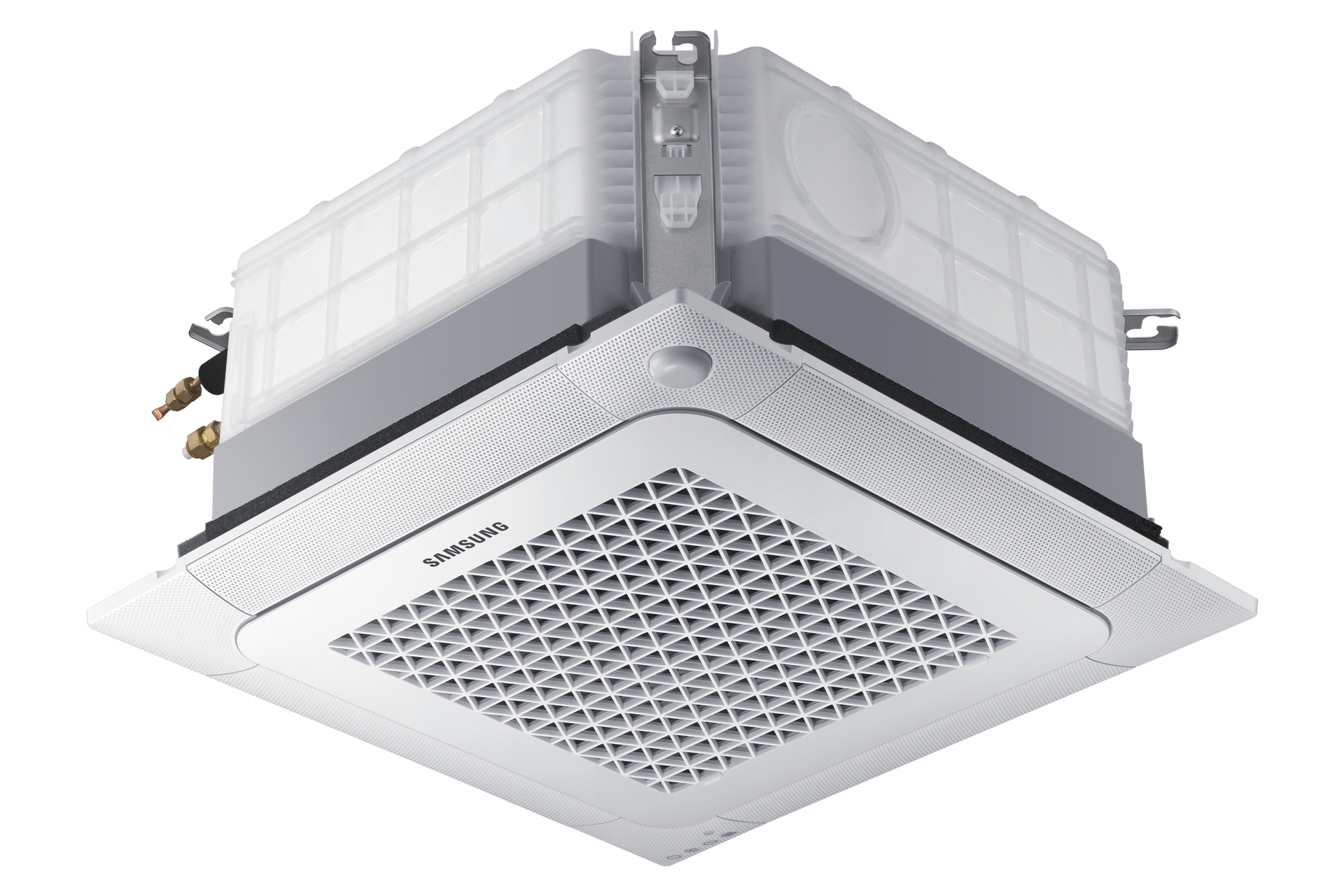

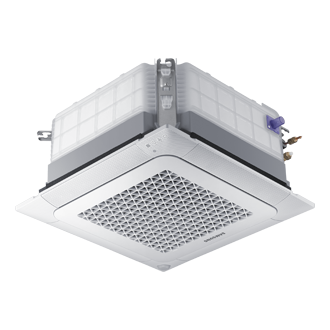

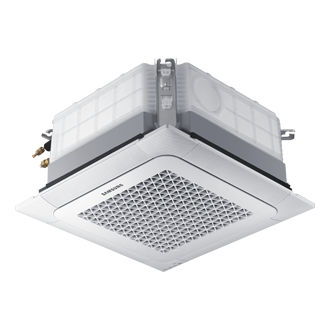

AC9000 Wind-Free™ 4Way 5.20 kW
AJ052NBNDEH/SA
Please scan the QR Code with your mobile device, and place the product image in desired place.
Highlights
Specifications
-
Refrigerant
R410A
-
Technical Information
4Way CASSETTE (600x600)
-
Type
4Way CASSETTE (600x600)
-
Indoor Unit
AJ052NBNDEH/SA
-
1,2,220-240,50
-
Mode
HP
-
Cooling (Min / Std / Max)
5.20 kW
-
Cooling [Btu/h]
17,700 Btu/h
-
Heating (Min / Std / Max)
5.60 kW
-
Heating [Btu/h]
19,100 Btu/h
-
Cooling 1) [W]
28.00 W
-
Heating 2) [W]
28.00 W
-
Cooling
0.53 A
-
Heating
0.53 A
-
Type
Turbo Fan
-
Motor (Output) [W]
65 x 1 W
-
Air Flow Rate (High / Mid / Low) [CMM]
10.50/9.00/7.40 CMM
-
Air Flow Rate (High / Mid / Low) [L/S]
175.00/150.00/123.33
-
Liquid Pipe (Φ, mm)
6.35 mm
-
Liquid Pipe (Φ, inch)
1/4"
-
Gas Pipe (Φ, mm)
12.70 mm
-
Gas Pipe (Φ, inch)
1/2"
-
Drain connection size
VP25 (OD 32,ID 25)
-
Indoor (V)
1
-
Outdoor (V)
0.75 ~ 1
-
Type
R410A
-
Control Method
EEV NOT INCLUDED
-
Sound Pressure
39/36/35 dBA
-
Sound Power
55 dBA
-
Panel Net Weight (kg)
11.8 kg
-
Shipping Weight (kg)
13.8 kg
-
Unit Dimension (WxHxD)
575 x 250 x 575 mm
-
Shipping Dimension (WxHxD)
623 x 298 x 653 mm
-
Model Name
PC4SUFMAN
-
Panel Net Weight (kg)
2.7 kg
-
Shipping Weight (kg)
3.9 kg
-
Unit Dimension (WxHxD)
620 x 57 x 620 mm
-
Shipping Dimension (WxHxD)
670 x 120 x 655 mm
-
Drain Pump
Built In
