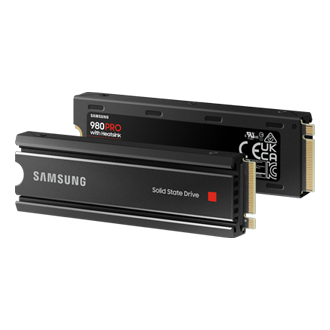

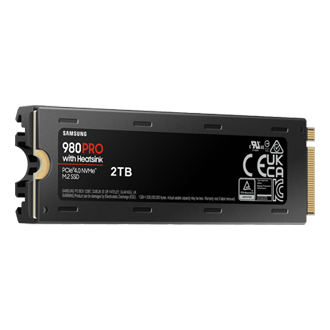

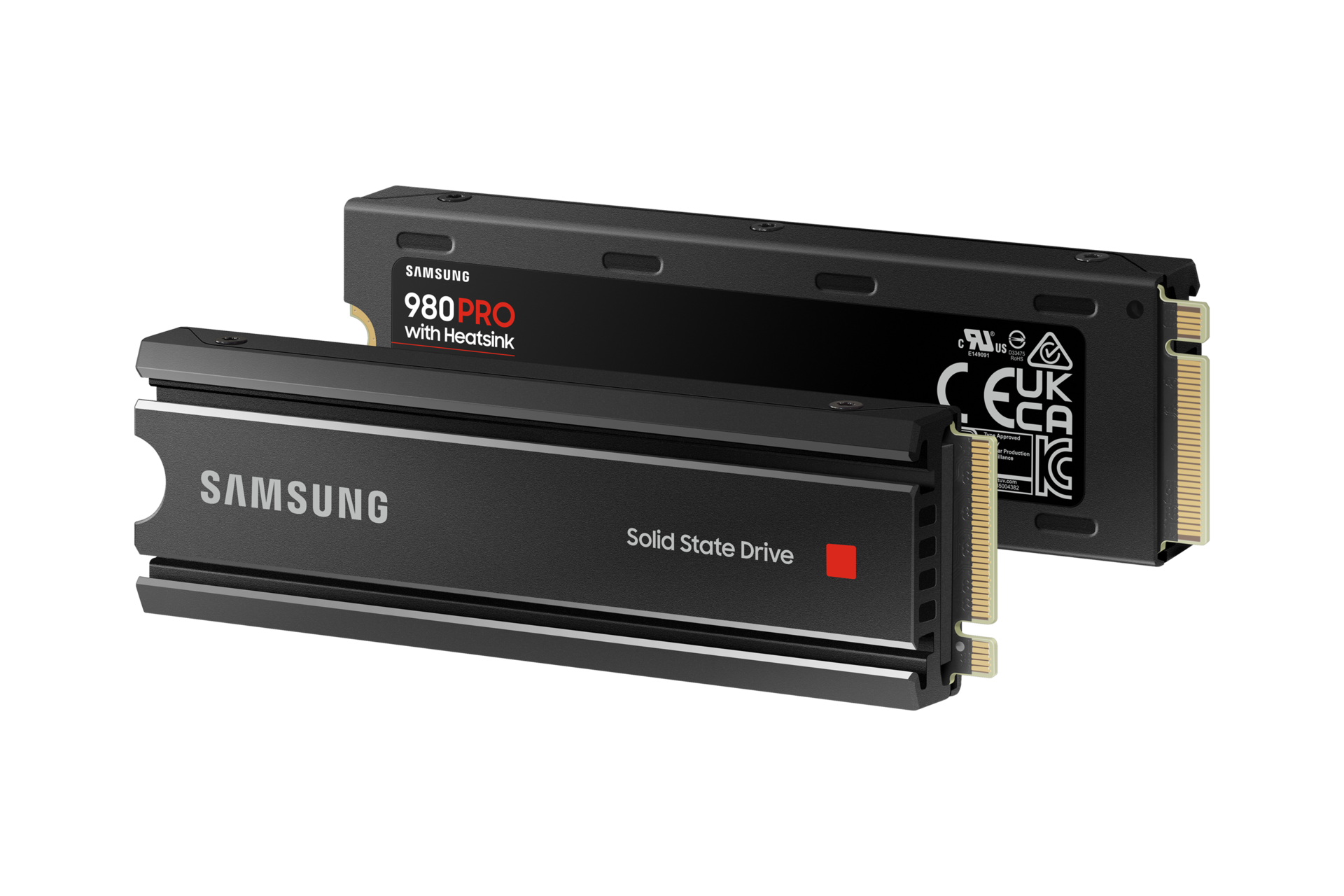

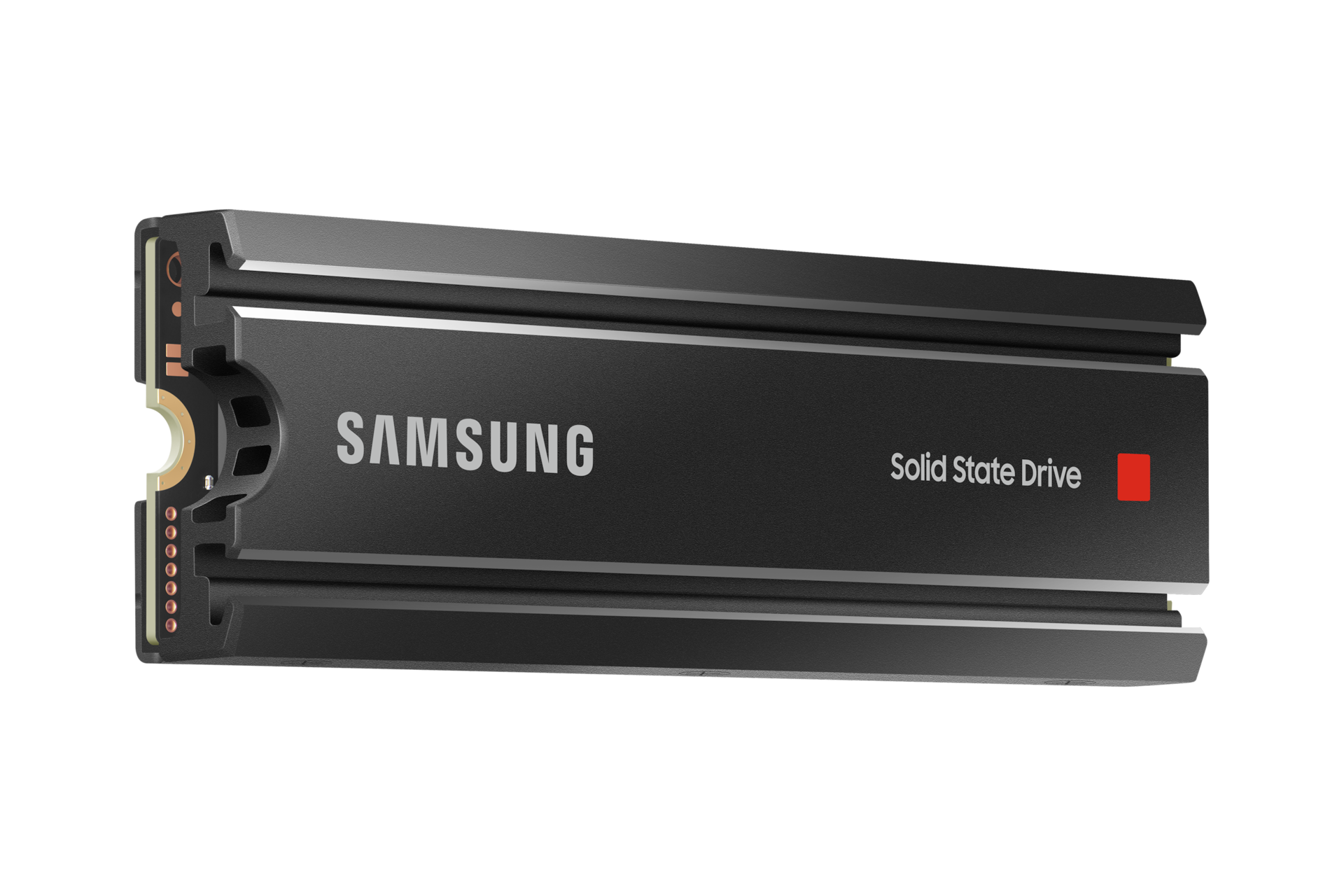

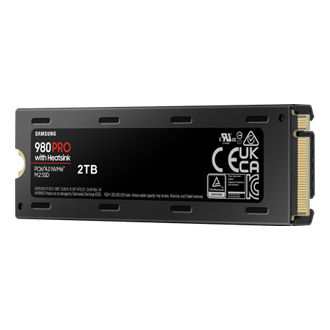

980 PRO with Heatsink NVMe M.2 SSD 2TB
Gallery popup
Please scan the QR Code with your mobile device, and place the product image in desired place.
Features
Next-level SSD performance
Unleash the power of the PCIe® 4.0 NVMe™ SSD 980 PRO for next-level computing. The PCIe® 4.0 delivers 2x the data transfer rate of PCIe® 3.0 while staying backward compatible for total versatility. The added heatsink elevates speed, power efficiency, and thermal control to help maximise gameplay.
*The NVMe Express™ design mark is a registered trademark of NVM Express™, Inc.
Maximum speed
With Samsung’s in-house controller for PCIe® 4.0 SSD, the 980 PRO Series is optimised for speed. It delivers read speeds up to 7,000 MB/s*, 2x faster than PCIe® 3.0 SSDs and 12.7x faster than SATA SSDs**. The 980 PRO series achieves max speeds on PCIe® 4.0 and may vary in other settings***.
*Sequential and random write performance was measured with Intelligent TurboWrite technology being activated. Intelligent TurboWrite operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service centre.
**Test system configuration: AMD Ryzen 9 3900X 12-Core Processor CPU@3.79GHz, DDR4 2666MHz 16GBx2, OS-Windows 10 Pro 64bit, Chipset-ASUS-X570-ROG CROSSHAIR VIII FORMULA. Results are based on a comparison with Samsung PCIe 3.0 NVMe SSDs and SATA SSDs.
***To maximise the performance of the 980 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website.
Smart Thermal Control
Samsung’s nickel-coated controller reliably manages NAND chip heat levels. The 980 PRO's heat spreader label allows thermal control access. The 980 PRO Heatsink uses proven data centre SSD technology to dissipate heat, for continuous high-performance gaming on most consoles and PC systems.
A winning combination
Gamers, techies, and designers can benefit from thermal control, high-performance bandwidth, and sustained performance for heavy-duty applications. Games load fast for more play, less wait. Smart heat management reduces distracting noise and cooling fan work for immersive gaming.
Efficient M.2 SSD

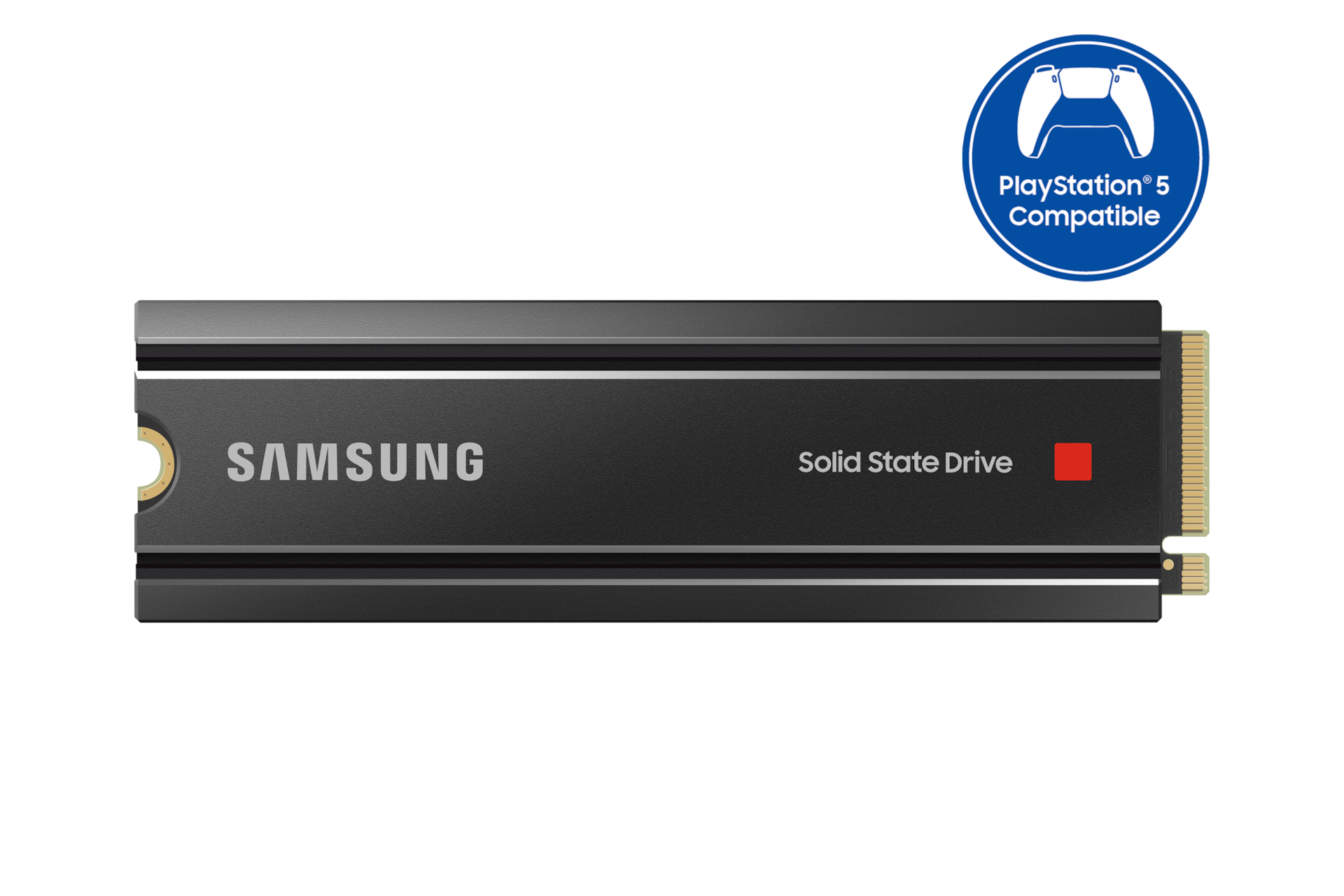

The 980 PRO with Heatsink minimises space limits with a thin 8.6mm body, compatible with PlayStation® 5 plus desktops & laptops meeting PCI-SIG® D8 specs*. The 980 PRO's compact, easy to plug-in M.2 form factor increases board design flexibility for building efficient, high-performance systems.
* PCI-SIG® D8 standard spec: 8.8mm
Samsung Magician software
Unlock the full power of the 980 with Samsung Magician's intuitive yet advanced optimisation tools. Monitor drive health, optimise performance, protect valuable data, and receive important updates with Magician to ensure you can get the best performance out of your SSD.
World's No. 1 Flash Memory Seller
Experience superior performance and reliability that you can only get from the world’s number one brand for flash memory since 2003*. All firmware and components, including Samsung’s world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.
*Source: 2003-2020 HIS Markit data: NAND suppliers’ revenue market share.
*Source: 2003-2020 HIS Markit data: NAND suppliers’ revenue market share.
Specifications
-
Warranty
5-Year Limited Warrantyor 1200 TBW Limited Warranty
-
Weight
Max 30.5g
-
Dimension (WxHxD)
80 x 24 x 8.6 mm (with heatsink)
-
Application
Client PCs, Game Consoles
-
Rated Capacity
2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Form Factor
M.2 (2280)
-
Interface
PCIe Gen 4.0 x4, NVMe 1.3c
-
Dimension (WxHxD)
80 x 24 x 8.6 mm (with heatsink)
-
Weight
Max 30.5g
-
Storage Memory
Samsung V-NAND 3-bit MLC
-
Controller
Samsung in-house Controller
-
Cache Memory
Samsung 2GB Low Power DDR4 SDRAM
-
TRIM Support
Supported
-
S.M.A.R.T Support
Supported
-
GC (Garbage Collection)
Auto Garbage Collection Algorithm
-
Encryption Support
AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
-
WWN Support
Not supported
-
Device Sleep Mode Support
Yes
-
Sequential Read
Up to 7,000 MB/s * Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 5,100 MB/s * Performance may vary based on system hardware & configuration
-
Random Read (4KB, QD32)
Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD32)
Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration
-
Average Power Consumption (system level)
*Average: 6.1 W*Maximum: 7.2 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
-
Power consumption (Idle)
Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
-
Allowable Voltage
3.3 V ± 5 % Allowable voltage
-
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Operating Temperature
0 - 70 ℃ Operating Temperature
-
Shock
1,500 G & 0.5 ms (Half sine)
-
Management SW
Magician Software for SSD management
-
Not Available
-
5-Year Limited Warrantyor 1200 TBW Limited Warranty
Reviews
980 PRO with Heatsink NVMe M.2 SSD 2TB
- The product offers exceptional speed, reliability, and compatibility, with most users reporting seamless installation, fast load times, and ample storage capacity.
- Key strengths include blazing-fast read/write speeds, excellent performance with the PS5 console, and long-lasting durability.
- However, a small number of customers have experienced premature drive failures, expressing frustration with the warranty and support process.
- Overall, the majority of users are highly satisfied and recommend the product as a great storage upgrade, particularly for PS5 owners.
