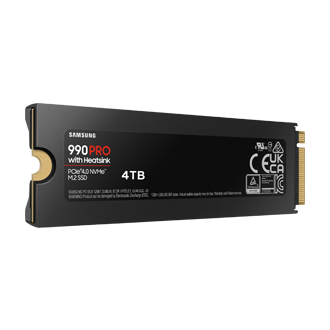

990 PRO with Heatsink PCIe 4.0 M.2 4TB
Gallery popup
Please scan the QR Code with your mobile device, and place the product image in desired place.
Features
Blistering speed, endless victory
Experience long-lasting fast performance of PCIe® 4.0. The in-house controller's smart heat control delivers supreme power efficiency while maintaining speed and performance to help keep you on the top of your game1.
1 PCIe 4.0’s best theoretical sequential read is 8000 MB/s - 990 PRO reaches 7,450 MB/s as of Q3, 2022.
PCIe 4.0 speed maximised
Huge speed boost. Up to 40% and 55% faster random read/write speeds than 980 PRO - up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe® 4.02. Fly high in gaming, video and 3D editing, data analysis, and more.
2 Sequential and random write performance was measured with Intelligent Turbo Write technology being activated. Intelligent Turbo Write operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service center * Test system configuration: AMD Ryzen 7 5800X 8-Core Processor CPU@3.80GHz, DDR4 3600MHz 16GBx2 (PC4-25600 Overclock), OS - Windows 10 Pro 64bit, Chipset - ASRock-X570 Taichi. To maximize the performance of the 990 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website. 4TB to be released in 2023.
Incredible power efficiency
More power-efficient performance. Higher performance usually consumes more power. But, 990 PRO uses less power with over 50% improved performance per Watt over 980 PRO3. This low-power design delivers outstanding PCIe® 4.0 performance possible with optimal power efficiency.
3 980 PRO Sequential Read/Write - 1,129/877 MB/Watt, 990 PRO Sequential Read/Write - 1380/1319 MB/Watt based on internal test result of 1TB capacity model.
Smart thermal solution

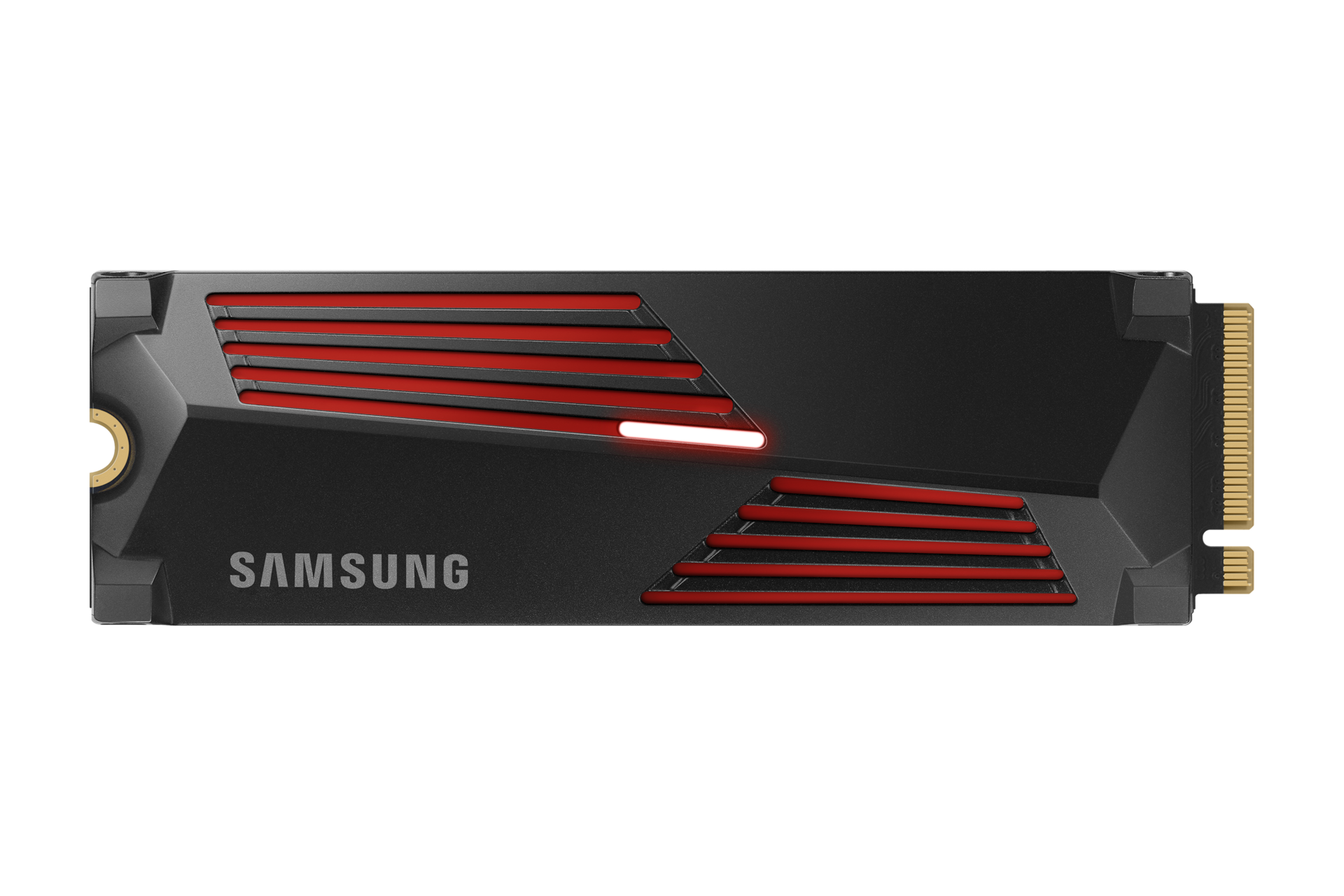

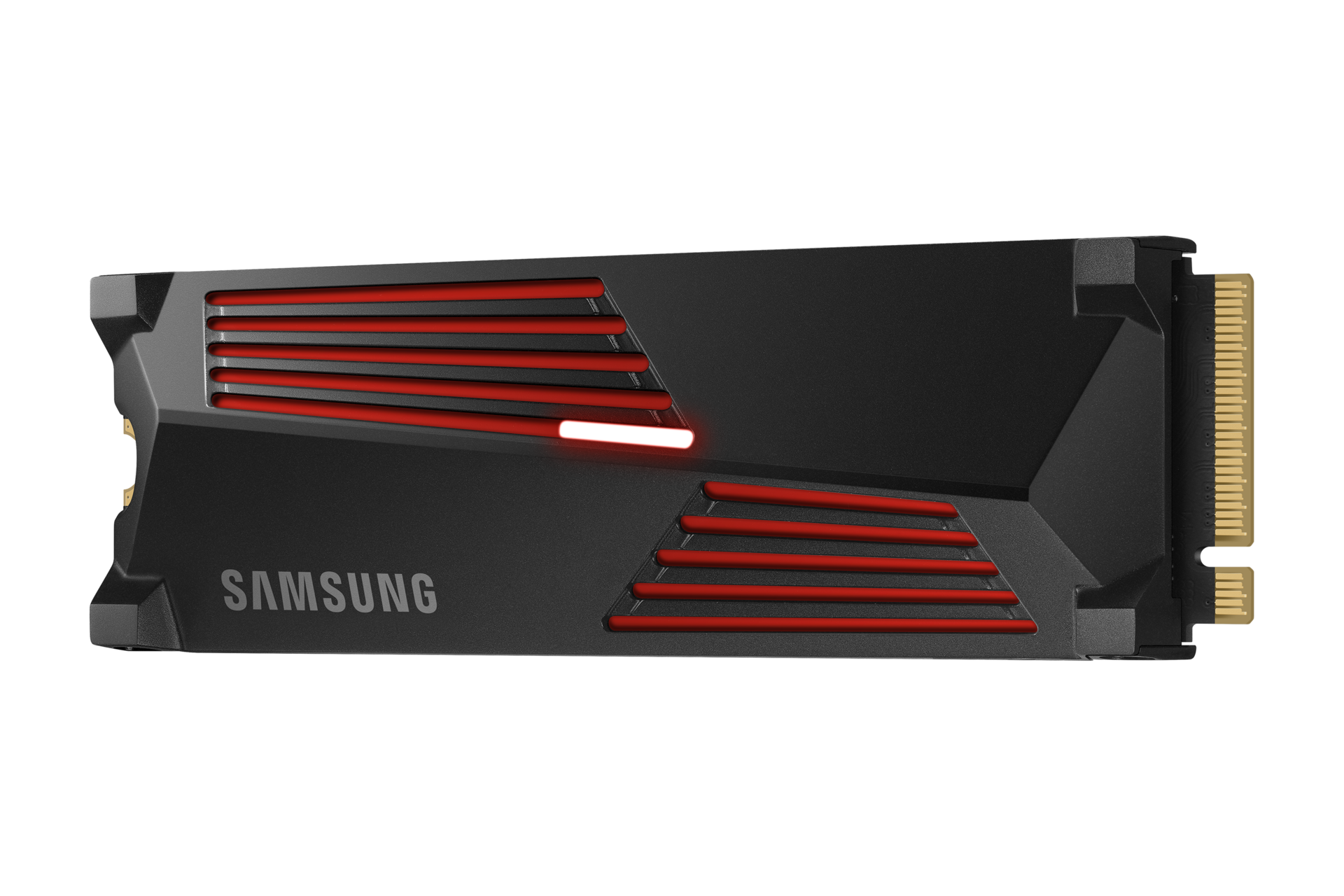

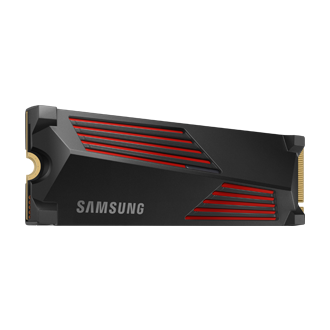

Sink that heat. The slim heatsink helps dissipates heat to prevent performance drops from overheating. Get stable heat control, and minimal fan noise for heavy-graphic gaming. The thin body is compatible with PlayStation® 5, desktops, and laptops meeting the PCI-SIG® D8 standard4.
4 PCI-SIG®D8 standard spec: 8.8mm
4 PCI-SIG®D8 standard spec: 8.8mm
Game like a pro
990 PRO with Heatsink's expanded 4TB capacity empowers you with a random read speed of up to 1,600,000 IOPS. Witness impressive loading times on your PC and PlayStation® 5, as it breathes life into your games5.
5 For M.2 SSD requirements for PlayStation® 5, please visit https://www.playstation.com/support/hardware/ps5-install-m2-ssd/
* The images of PUBG: BATTLEGROUNDS have been authorised for use by KRAFTON, Inc. PUBG: BATTLEGROUNDS is a registered trademark of KRAFTON, Inc. Image simulated for illustrative purposes. Actual usage environment may vary.
Samsung Magician software
Harness the full power of 990 PRO. Samsung Magician software's user-friendly suite of optimisation tools help enhance the performance of your Samsung SSD6. Protect data, get updates, monitor drive health, and set up LED colour combinations7. It's your personal SSD toolkit.
6 Magician software provides a toolkit to manage the 990 PRO for optimal performance. This toolkit supports Integrative Drive health checks, performance benchmarks and optimisations, and encrypted drive and firmware updates.
7 The LED display colour may appear differently from the colour setting due to viewing angles and/or environmental factors.
6 Magician software provides a toolkit to manage the 990 PRO for optimal performance. This toolkit supports Integrative Drive health checks, performance benchmarks and optimisations, and encrypted drive and firmware updates.
7 The LED display colour may appear differently from the colour setting due to viewing angles and/or environmental factors.
World's No. 1 Flash Memory Seller8
Experience superior performance and reliability you only get from the world's No.1 flash memory brand since 2003. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.
8 Source: 2003-Q3 2022 OMDIA data: NAND suppliers' revenue market share.
8 Source: 2003-Q3 2022 OMDIA data: NAND suppliers' revenue market share.
Specifications
-
Interface
PCIe Gen 4.0 x4, NVMe 2.0
-
Sequential Read
Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
-
Warranty
5-year Limited Warrantyor 2400 TBW Limited Warranty
-
Application
Client PCs, Game Consoles
-
Weight
Max 28.0g Weight
-
Dimension (WxHxD)
Max 80.15 x Max 25 x Max 8.88mm (with heatsink)
-
Application
Client PCs, Game Consoles
-
Rated Capacity
4,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Form Factor
M.2 (2280)
-
Interface
PCIe Gen 4.0 x4, NVMe 2.0
-
Dimension (WxHxD)
Max 80.15 x Max 25 x Max 8.88mm (with heatsink)
-
Weight
Max 28.0g Weight
-
Storage Memory
Samsung V-NAND TLC
-
Controller
Samsung in-house Controller
-
Cache Memory
Samsung 4GB Low Power DDR4 SDRAM
-
TRIM Support
Supported
-
S.M.A.R.T Support
Supported
-
GC (Garbage Collection)
Auto Garbage Collection Algorithm
-
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
-
WWN Support
Not supported
-
Device Sleep Mode Support
Yes
-
Sequential Read
Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
-
Random Read (4KB, QD32)
Up to 1,600,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD32)
Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Read (4KB, QD1)
Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD1)
Up to 80,000 IOPS * Performance may vary based on system hardware & configuration
-
Average Power Consumption (system level)
*Average: 6.5 W *Maximum: 8.6 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
-
Power consumption (Idle)
Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration
-
Allowable Voltage
3.3 V ± 5 % Allowable voltage
-
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Operating Temperature
0 - 70 ℃ Operating Temperature
-
Shock
1,500 G & 0.5 ms (Half sine)
-
Installation Kit
Not Available
-
Management SW
Magician Software for SSD management
-
5-year Limited Warrantyor 2400 TBW Limited Warranty
Reviews
990 PRO with Heatsink PCIe 4.0 M.2 4TB
- Customers praise blazing-fast load times, with games loading instantly and file transfers dramatically quicker than previous drives.
- The built-in heatsink maintains optimal temperatures during extended gaming, preventing performance throttling and outperforming aftermarket solutions.
- Installation is simple and plug-and-play compatible with both PS5 and PC systems, requiring minimal setup effort.
- The 4TB capacity provides ample storage space, with many users reporting years of reliable use and zero problems.
- Reviewers express strong confidence in the brand, appreciating included monitoring software and considering it a premium, worthwhile investment.
