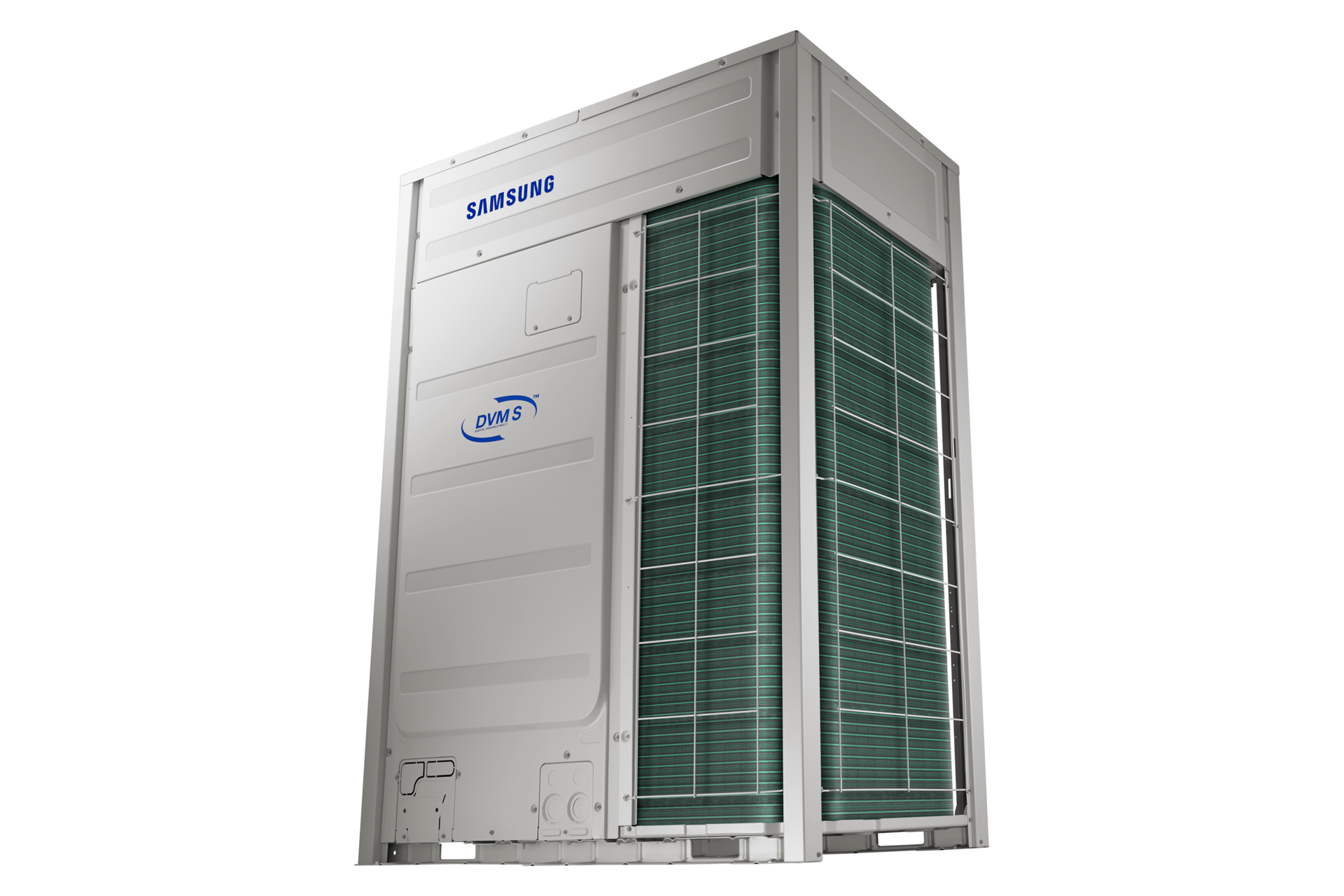

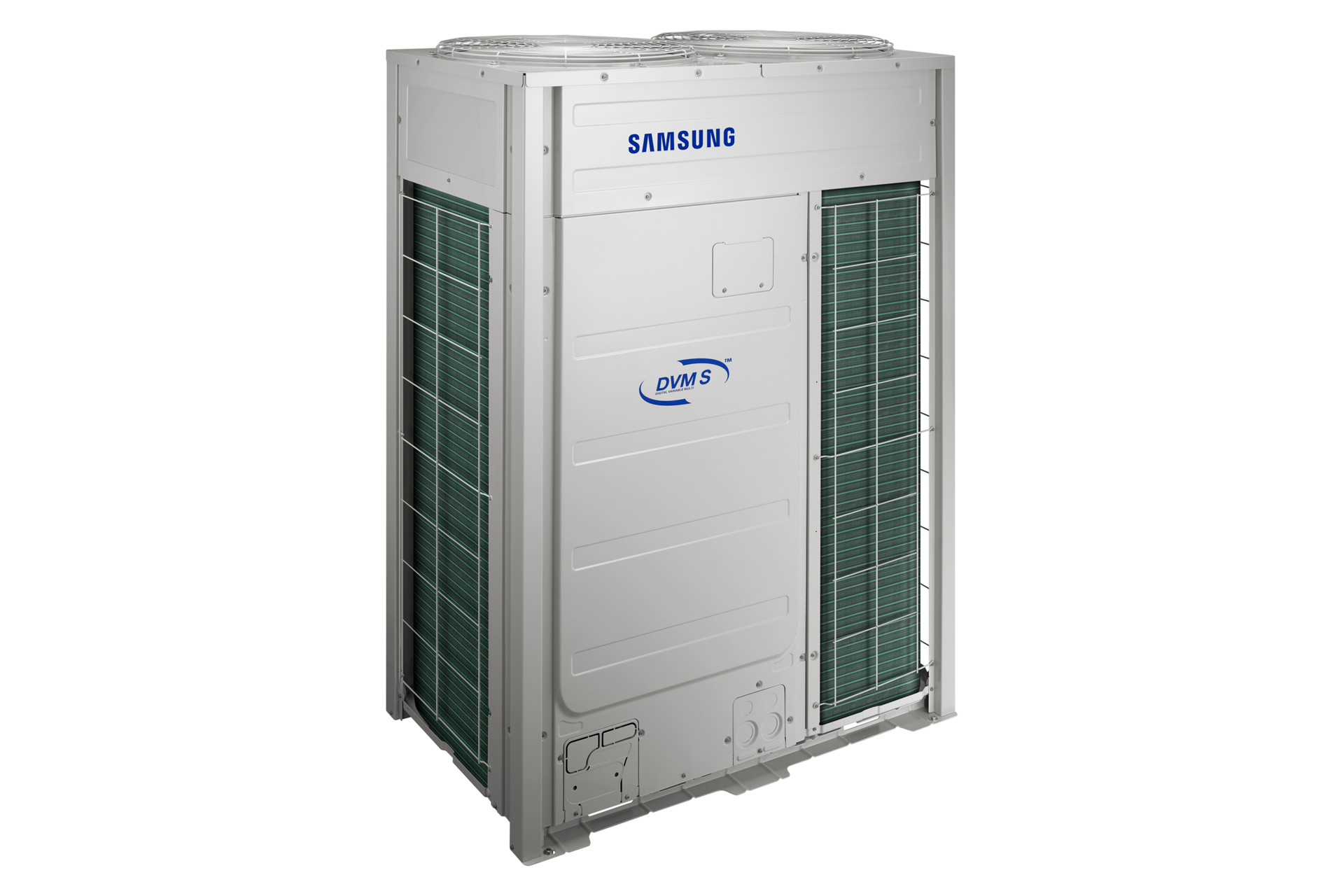

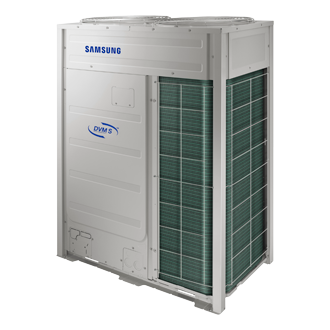

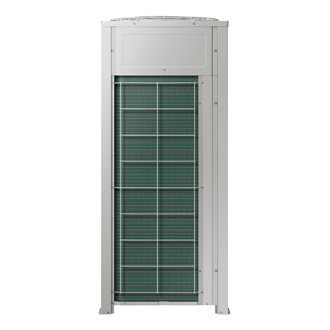

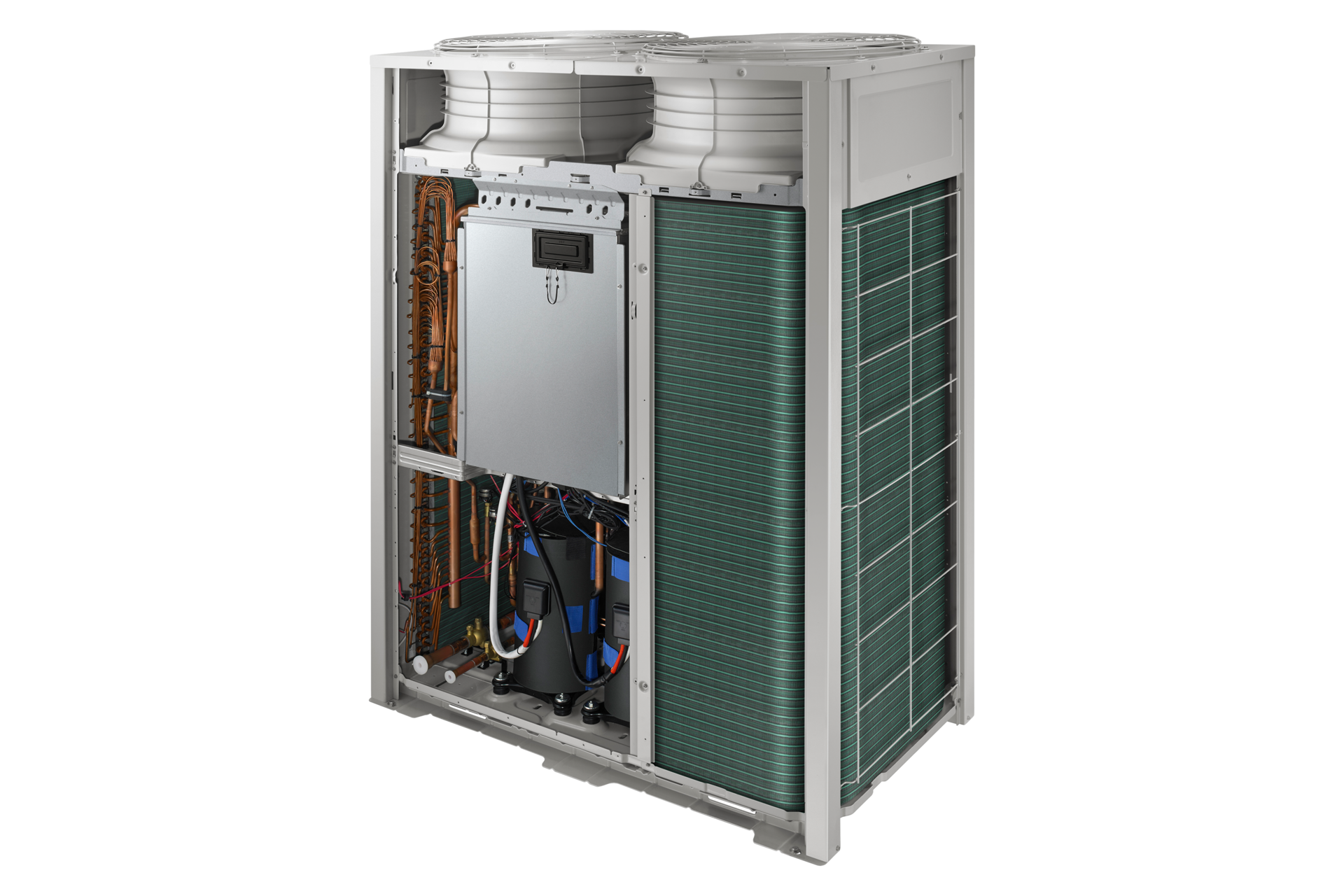

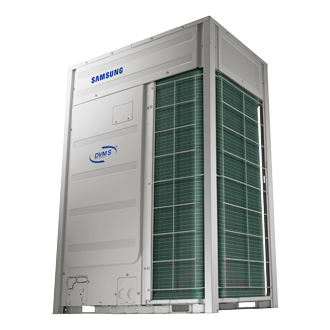

Super DVM S, 72.8kW, Heat Pump, outdoor
AM260KXVAGH/EU
Please scan the QR Code with your mobile device, and place the product image in desired place.
Features
Specifications
-
Type
SUPER DVM (Standard)
-
Mode
HEAT PUMP
-
Type
Scroll Inverter
-
Type
SUPER DVM (Standard)
-
Outdoor Unit
AM260KXVAGH/EU
-
3,4,380-415,50
-
Mode
HEAT PUMP
-
26 HP
-
Cooling (Min / Std / Max)
72.8 kW
-
Heating (Min / Std / Max)
81.9 kW
-
Cooling 1)
18.91 kW
-
Heating 2)
18.00 kW
-
Cooling 1)
30.30 A
-
Heating 2)
28.90 A
-
MCA
60.0 A
-
MFA
75 A
-
EER (Std, Cooling), EER
3.85
-
COP (Std, Heating), COP
4.55
-

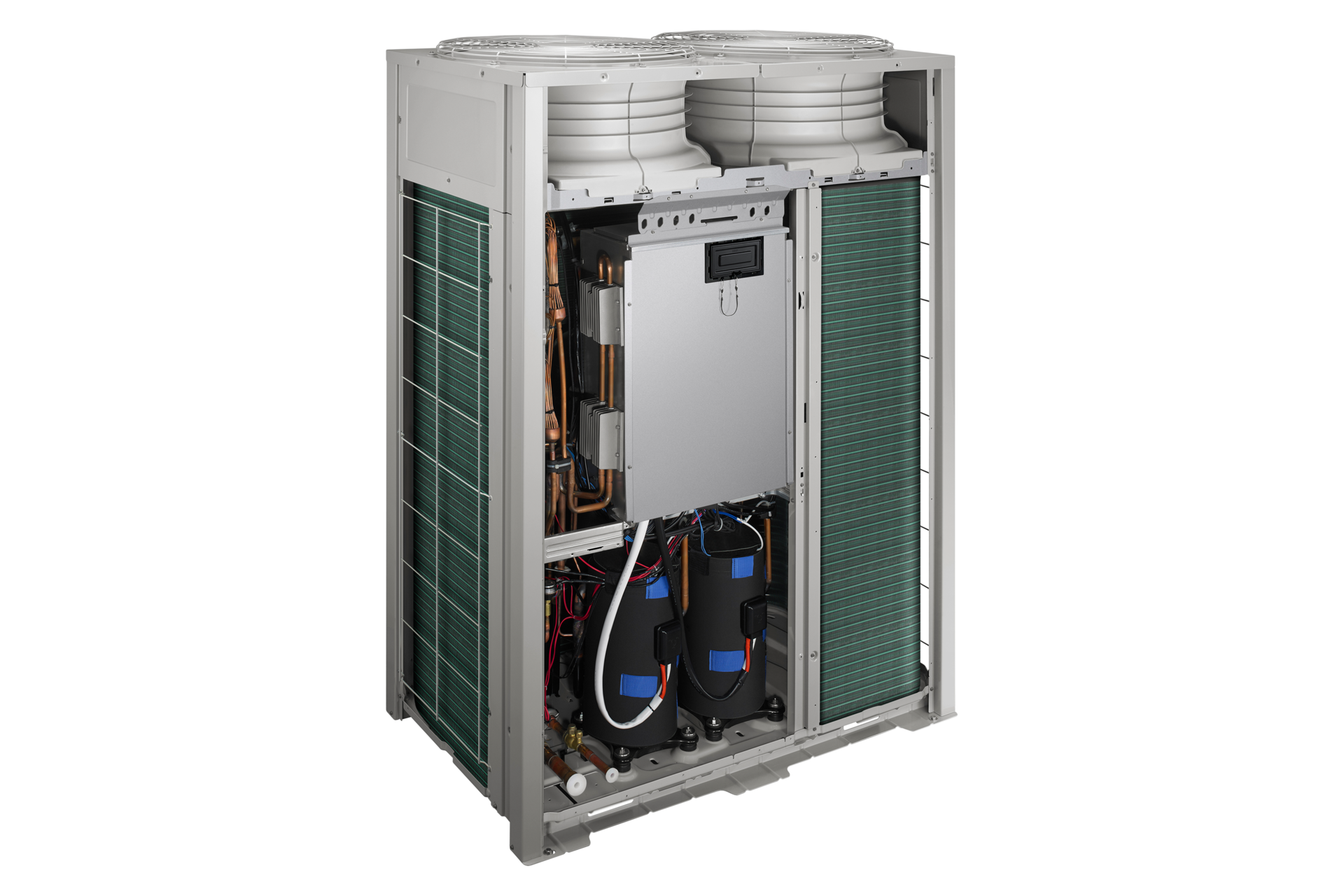

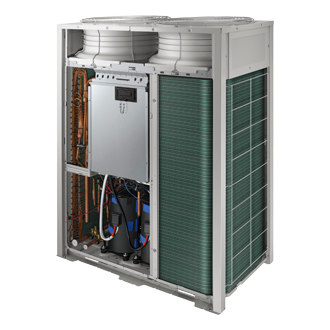

Type
Scroll Inverter
-
Output(kW)
6.39 x 2 kW
-
Model
DS-GB066FAVB x 2
-
Oil (Type)
PVE
-
Oil (Initial Charge) [cc]
1100 X 2 cc
-

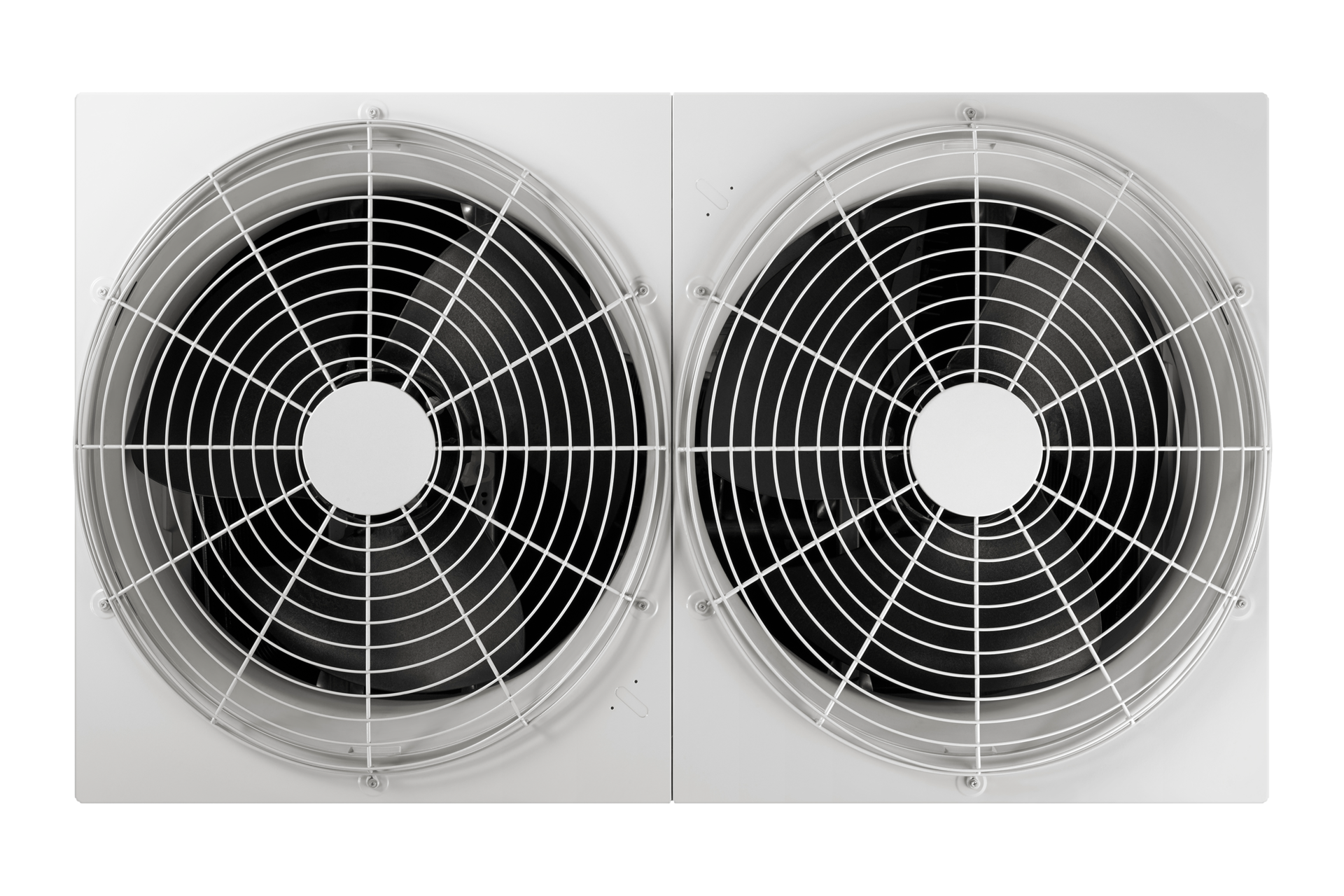

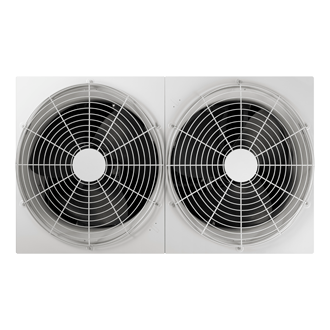

Type
Propeller
-
Motor (Output) [W]
620 x 2 W
-
Air Flow Rate (High / Mid / Low) [CMM]
340 CMM
-
External Static Pressure (Min / Std / Max) [mmAq]
8.0 mmAq
-
Liquid Pipe (Φ, mm)
19.05 mm
-
Liquid Pipe (Φ, inch)
3/4"
-
Gas Pipe (Φ, mm)
34.92 mm
-
Gas Pipe (Φ, inch)
1+3/8"
-
Max. Allowable Piping Length [m]
220 m
-
Max. Allowable Piping Height [m]
50(110)/40 m
-
Type
R410A(Fluorinated greenhouse gas, GWP=2,088) 26.10tCO2e
-
Factory Charging (kg)
12.5 kg
-
Sound Pressure
66 dBA
-
Sound Power
89 dBA
-
Net Weight (kg)
333 kg
-
Shipping Weight (kg)
355 kg
-
Unit Dimension (WxHxD)
1295x1795x765 mm
-
Shipping Dimension (WxHxD)
1363x1987x832 mm
-
Cooling (℃)
-5 ~ 48 ℃
-
Heating (℃)
-25 ~ 24 ℃
