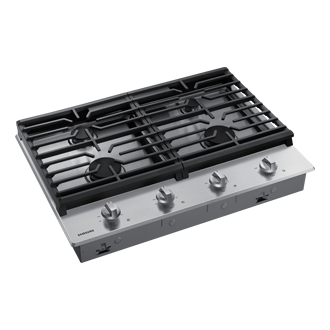

30" 4-Burner Gas Cooktop with Knob Controls
Gallery popup
Please scan the QR Code with your mobile device and you can virtually see how the device will look in your home.
Highlights
Features
Easy to reach controls
Front Controls
Front Controls are easy to reach.
*Images are for illustration and demonstration purposes only. A 36” model with 5 burners is shown. A 30” model comes with 4 burners.
*Images are for illustration and demonstration purposes only. A 36” model with 5 burners is shown. A 30” model comes with 4 burners.
Provides a sleek and smooth design
Continuous Cast Iron Grates
Continuous Cast Iron Grates provides a sleek and smooth design.
*Images are for illustration and demonstration purposes only. A 36” model with 5 burners is shown. A 30” model comes with 4 burners.
Easy cleanup
Easy cleanup
Sealed Burners prevent food from dropping into the burners, for easy cleanup.
*Images are for illustration and demonstration purposes only. A 36” model with 5 burners is shown. A 30” model comes with 4 burners.
*Images are for illustration and demonstration purposes only. A 36” model with 5 burners is shown. A 30” model comes with 4 burners.
Branded In-home Repair Service
More choice and flexibility service repair options.
Samsung Certified Technicians will set up a service time around your available schedule. Our skilled, experienced, and trained technicians will examine and repair your appliance in the comfort and safety of your home. Samsung’s Branded Technicians will arrive at your home with the appropriate PPE equipment, respectfully disinfecting your appliance before and after repairs and ultimately providing you with excellent customer service.
Learn more
To schedule a Branded In-home Repair, contact us via Chat, text WECARE (932 273), or call 1-800-SAMSUNG, to schedule an appointment.
*Samsung Branded In-home service is currently available in Montreal, Toronto, Cambridge, London, Windsor, and Vancouver with plans to expand into Edmonton, Calgary, Ottawa, and Winnipeg later in 2022.
*Samsung Branded In-home service is currently available in Montreal, Toronto, Cambridge, London, Windsor, and Vancouver with plans to expand into Edmonton, Calgary, Ottawa, and Winnipeg later in 2022.
Specifications
-
Total Power
45000 BTU
-
Cooktop
4
-
Installation Type
30 inch built-in gas cooktop
-
Control Type
Knobs (Weighted) - 1pc
-
Total Power
45000 BTU
-
Burner - Left Front
13000 BTU
-
Burner - Left Rear
10000 BTU
-
Burner - Right Front
17000 BTU, Single
-
Burner - Right Rear
5000 BTU, Simmer
-
Burner - Center Front
No
-
Power Supply
120V/60Hz, 1A
-
Grate
Cast Iron (2pcs)
-
Surface
Stainless
-
Simmer/Melt
Yes
-
Number of Burner
4
-
Fuel Type
NG / LP
-
WOK grate
No
-
Griddle
No
-
LP Conversion Kit
Yes
-
WiFi Embedded
No
-
Auto Connectivity (with Hood)
No
-
Package (WxHxD, inch)
34 7/10 x 10 3/5 x 25 3/5
-
Cutout (WxHxD, inch)
28 1/2 x 3 1/4 x 19 5/8
-
Net Size (W x H x D) (inches)
30 x 3 1/4 x 21
-
Net Weight (kg)
27.4 kg (60.5 lbs)
-
Loading Quantity (20/40ft)
168/360/405
