980 PRO 500GB PCIe NVMe 4.0 M.2 Internal SSD (MZ-V8P500B)
Gallery popup
Please scan the QR Code with your mobile device and you can virtually see how the device will look in your home.
Features
Next-level SSD performance
Next-level SSD performance. Unleash the power of the Samsung PCIe 4.0 NVMe SSD 980 PRO for your next-level computing experience. Leveraging the PCIe 4.0 interface, the 980 PRO delivers double the data transfer rate* of PCIe 3.0 while being backward compatible** for PCIe 3.0 for added versatility.
*Based on internal laboratory testing against Samsung PCI3 3.0 ** 980 PRO is backward compatible with PCIe 3.0. Sequential performances (up to): 3500 MB/s for reads, 2700MB/s (250GB), 3400MB/s (500GB), 3450 MB/s (1TB) for writes. Random performances (up to): 560K (250GB), 690K IOPS (500GB/1TB) for reads, 620K (250/500GB), 660K IOPS (1TB) for writes.
Exceptional speed
Powered by Samsung custom Elpis Controller for PCIe 4.0 SSD, the 980 PRO is optimized for speed. It delivers read speeds up to 7,000 MB/s, making it 2 times faster than PCIe 3.0 SSDs and 12.7 times faster than Samsung SATA SSDs. The 980 PRO achieves max speeds on PCIe 4.0 and may vary in other environments*.
* Performance may vary depending on the SSD’s firmware version and the system hardware & system configuration. Performance measurements are based on IOmeter 1.1.0. The write performances were measured with Intelligent TurboWrite technology being activated. The sequential write performances after Intelligent TurboWrite region are: up to 500 MB/s(250GB), 1,000 MB/s(500GB) and 2,000 MB/s(1TB). * Test system configuration: AMD Ryzen 9 3900X 12-Core Processor CPU@3.79GHz, DDR4 2666MHz 16GBx2, OS-Windows 10 Pro 64bit, Chipset-ASUS-X570-ROG CROSSHAIR VIII FORMULA* Results are based on a comparison with Samsung PCIe 3.0 NVMe SSDs and SATA SSDs.* To maximize the performance of the 980 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website.*Sequential and random performance measurements are based on IOmeter1.1.0. Performance may vary based on SSD’s firmware version, system hardware & configuration. Test System: AMD Ryzen 9 3900X 12-Core Processor CPU@3.79GHz, DDR4 2666MHz 16GBx2, OS-Windows 10 Pro 64bit, Chipset-ASUS-X570-ROG CROSSHAIR VIII FORMULAv
A powerful combination
Designed with hardcore gamers and tech-savvy users in mind, the 980 PRO offers high-performance bandwidth and throughput for heavy-duty applications in gaming, graphics, data analytics, and more. It's fast at loading games so you can play more and wait less.
Efficient M.2 SSD

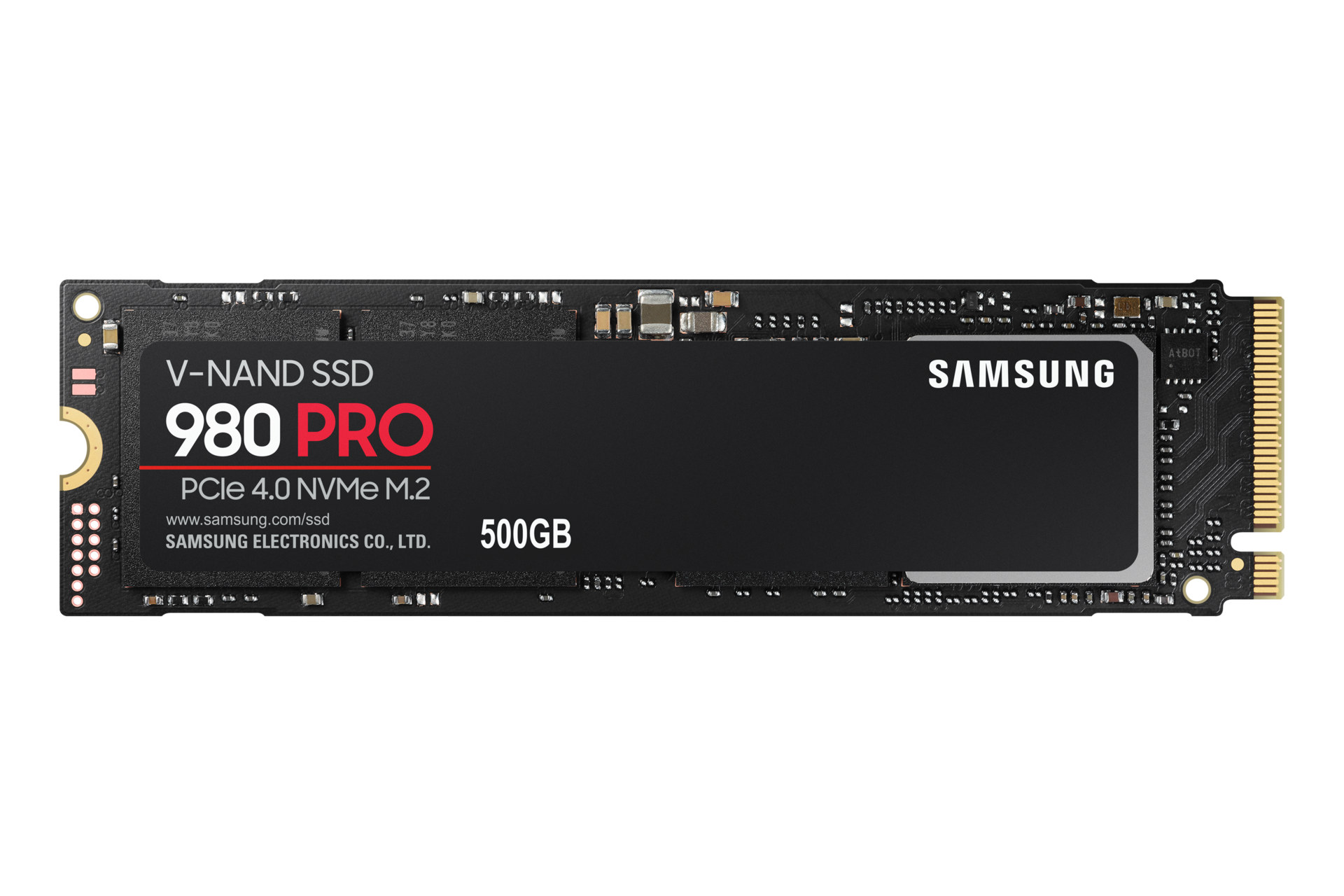

The 980 PRO comes in a compact M.2 2280 form factor, which can be easily plugged into desktops and laptops for board design flexibility. The drive is suitable for helping build high-performance computing systems due to its strong performance and power efficiency.
Reliable thermal control
High-performance SSDs usually require high-performance thermal control. To help ensure stable performance, the 980 PRO uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.
Smart thermal solution
Embedded with Samsung's cutting-edge thermal control algorithm the 980 PRO helps manages heat on its own to deliver durable and reliable performance. To help reduce minimize performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology is designed to help maintainmaintains the 980 PRO's temperature at optimal levels.
Samsung Magician software
Unlock the full power of the 980 PRO with Samsung Magician's intuitive yet advanced optimization tools. Help monitor drive health, optimize performance, better protect valuable data, and receive important updates with Magician to help ensure you're always getting high-end performance out of your SSD.
World's No. 1 Flash Memory
Experience superb performance and reliability from the world's number one brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.
*Source: 2003-1H.2022 OMDIA data: NAND suppliers' revenue market share.
*Source: 2003-1H.2022 OMDIA data: NAND suppliers' revenue market share.
Specifications
-
Application
Client PCs
-
Interface
PCIe Gen 4.0 x4, NVMe 1.3c
-
Dimension (WxHxD)
80.15 x 22.15 x 2.38 (mm)
-
Weight
Max 9.0 g Weight
-
Sequential Read
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 5,000 MB/s * Performance may vary based on system hardware & configuration
-
Warranty
5-Year Limited Warrantyor 300 TBW Limited Warranty
-
Application
Client PCs
-
Capacity
500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Form Factor
M.2 (2280)
-
Interface
PCIe Gen 4.0 x4, NVMe 1.3c
-
Dimension (WxHxD)
80.15 x 22.15 x 2.38 (mm)
-
Weight
Max 9.0 g Weight
-
Storage Memory
Samsung V-NAND 3-bit MLC
-
Controller
Samsung Elpis Controller
-
Cache Memory
Samsung 512MB Low Power DDR4 SDRAM
-
TRIM Support
Supported
-
S.M.A.R.T Support
Supported
-
GC (Garbage Collection)
Auto Garbage Collection Algorithm
-
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
-
WWN Support
Not supported
-
Device Sleep Mode Support
Yes
-
Sequential Read
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 5,000 MB/s * Performance may vary based on system hardware & configuration
-
Random Read (4KB, QD32)
Up to 800,000 IOPS* Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD32)
Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Read (4KB, QD1)
Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD1)
Up to 60,000 IOPS * Performance may vary based on system hardware & configuration
-
Average Power Consumption (system level)
*Average: 5.9 W *Maximum: 7.4 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
-
Power consumption (Idle)
Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
-
Allowable Voltage
3.3 V ± 5 % Allowable voltage
-
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Operating Temperature
0 - 70 ℃ Operating Temperature
-
Shock
1,500 G & 0.5 ms (Half sine)
-
Installation Kit
Not Available
-
Management SW
Magician Software for SSD management
-
5-Year Limited Warrantyor 300 TBW Limited Warranty
