Gear IconX (2018) - Charge the Case (SM-R140)

Last Update Date : Feb 09. 2019
Gear IconX (2018) - Charge the Case (SM-R140)

Running out of battery is never fun. Luckily, your Gear IconX (2018) has plenty of backup battery in the charging case. The charging case has a built-in battery which you can use to charge the earbuds on the go. Explore different ways to charge the case below.

Available screens and settings may vary by provider, phone, or earbuds.

Charge via ComputerClick to Expand

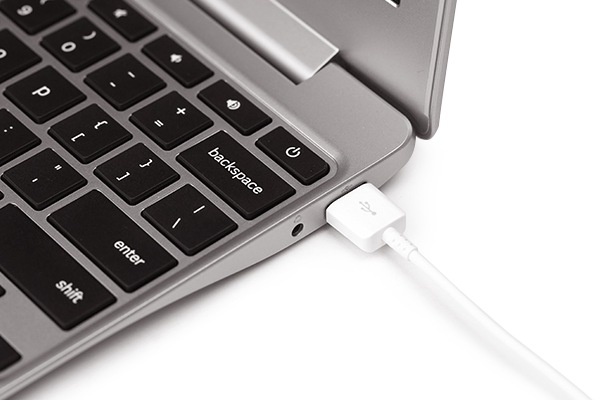

1 Connect the USB cable (included) to the USB port of the computer.
Charge via Computer 1
2 Plug the other end of the USB cable to the charging case.
Charge via Computer 2
3 After fully charging, disconnect the charging case from the charger. First, unplug the USB cable from the charging case, and then unplug the USB cable from the computer.

Charge via Travel AdapterClick to Expand
1 Connect the USB cable to the travel adapter (not included).
2 Plug the travel adapter into a power outlet.
Charge via Travel Adapter
3 Connect the other end of the USB cable to the charging case.
4 After fully charging, first, unplug the charger from the charging case, and then unplug it from the power outlet.

To save energy, unplug the charger when not in use. Use only Samsung-approved chargers, batteries, and cables. Travel adapter is sold separately.

Indicator LightClick to Expand

The charging case has its own indicator light to show the status of the case. To check the battery status of the charging case, insert the earbuds in the charging case and then close it. Check out this chart for a breakdown on what each light means:


COLOR STATUS
Red Charging or below 30% battery
Green Fully charged or above 60% battery
Yellow Between 30% and 60% battery
Flashing Red Charging disabled or error due to abnormal temperatures or low charging case battery
Blue Updating software
Red > Green > Blue (alternately) In pairing mode
