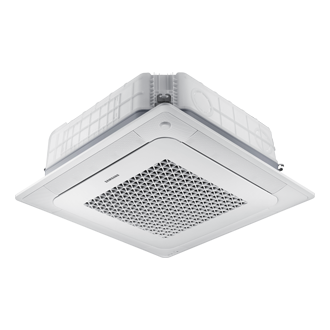

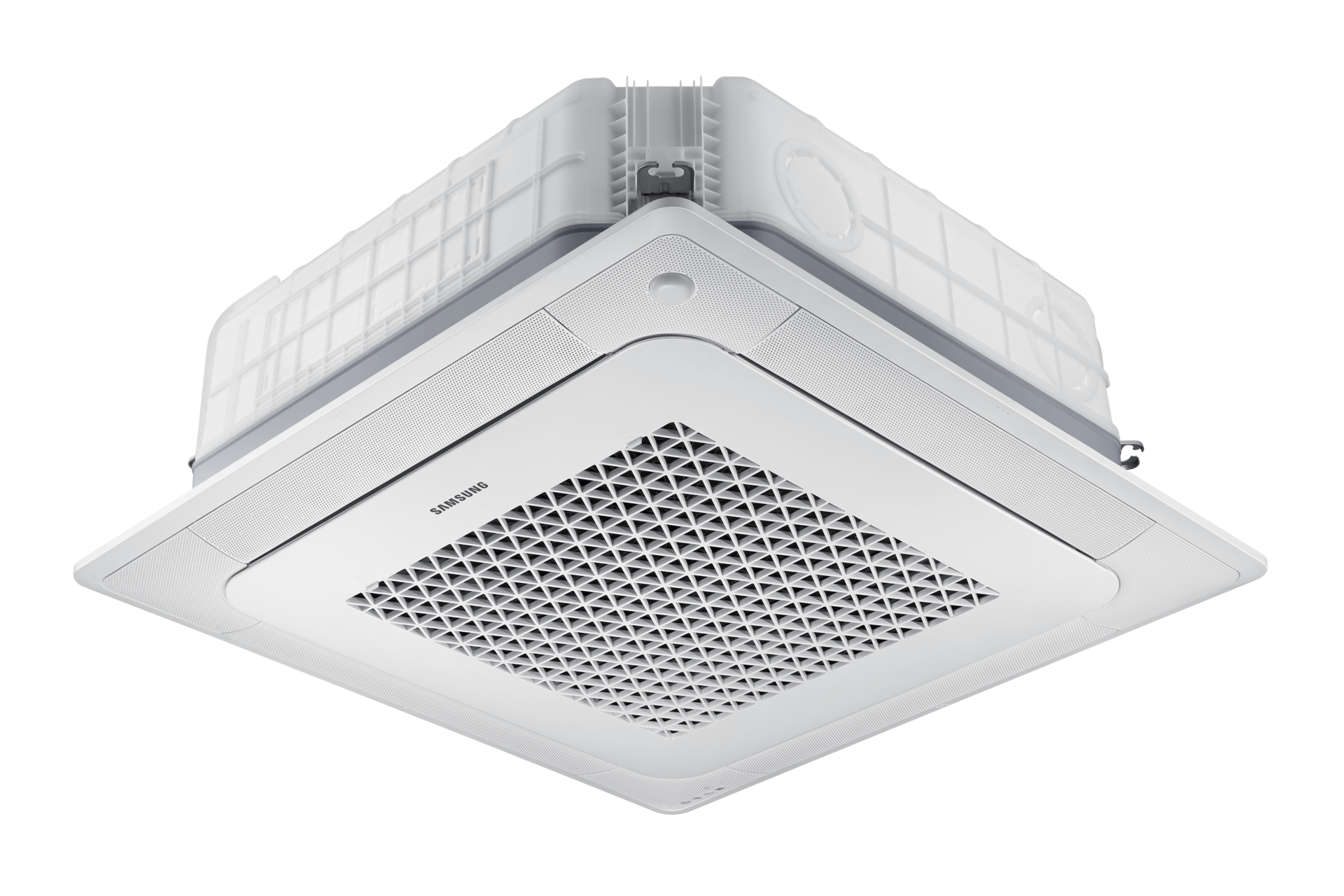

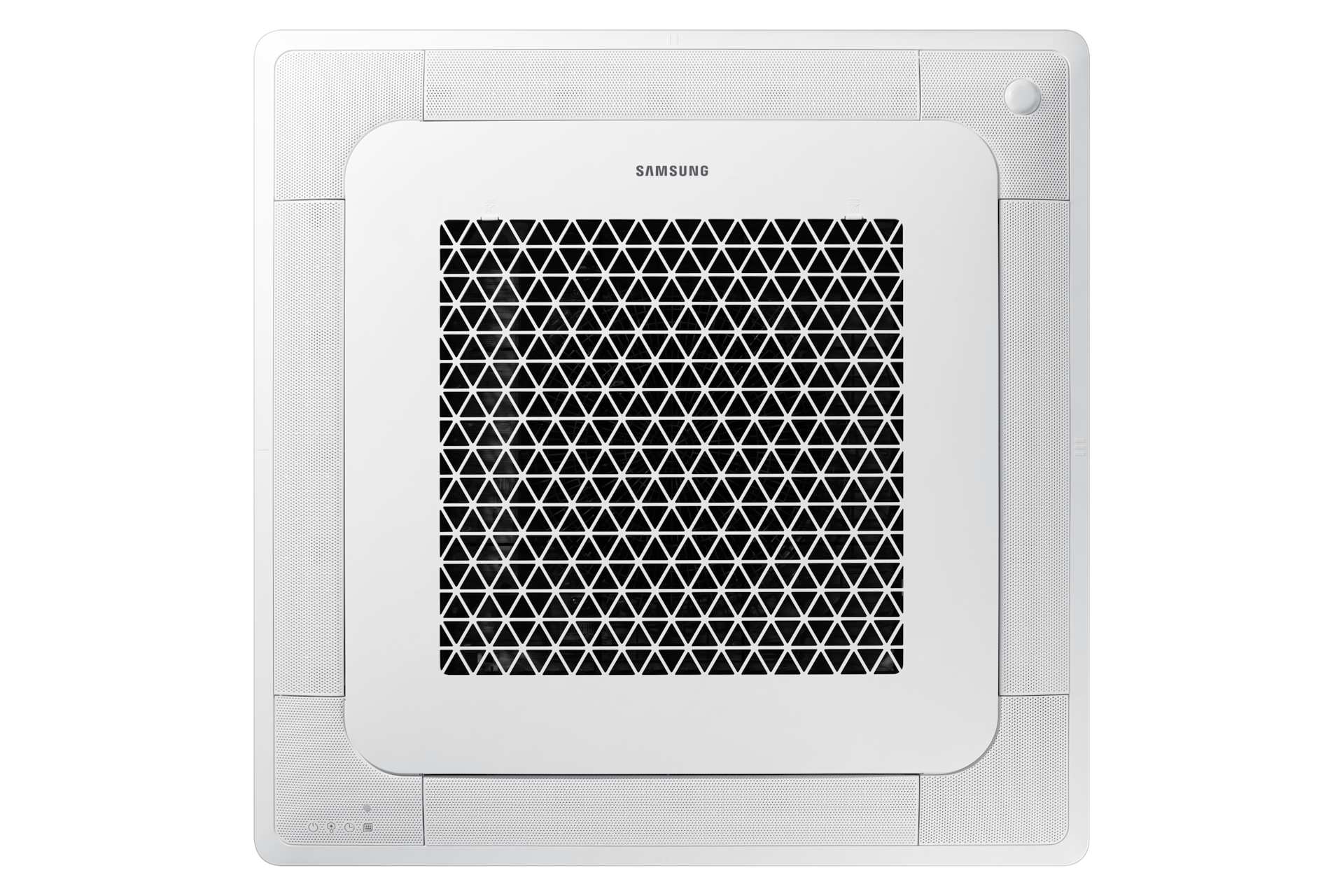

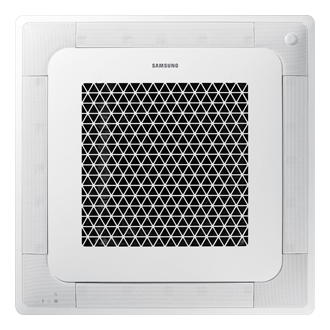

10.0kW 4-Way Cassette Indoor, Wind-Free* Cooling Mode
AC100TN4DKG/SA
Please scan the QR Code with your mobile device, and place the product image in desired place.
Highlights
Features
Seamless blend of style and utility
4-Way Cassette
Samsung’s WindFree™ 4-Way Cassette is the latest in air conditioning innovation. With its specialised blades, adjustable operation and seamless blend of style and utility, the 4-Way Cassette can sustain cooling comfort in a plethora of environments.
Stay comfortably cool without feeling cold
WindFree™ Technology
The WindFree™ 4-Way Cassette pushes air out through 15,700 micro holes in the panel, producing a dispersed and gentle flow called “still air”. The uniform air distribution effortlessly keeps a room cool while avoiding the conventional discomfort of cold drafts*.
*ASHRAE (American Society of Heating, Refrigeration, and Air-Conditioning Engineers) defines ‘Still Air’ as air currents at speeds below 0.15m/a which lacks the presence of cold drafts. The device provides cooling below this speed in WindFree Cooling mode.
*ASHRAE (American Society of Heating, Refrigeration, and Air-Conditioning Engineers) defines ‘Still Air’ as air currents at speeds below 0.15m/a which lacks the presence of cold drafts. The device provides cooling below this speed in WindFree Cooling mode.
Wide cooling range
The large, optimised blades enable a wide cooling range, resulting in good air circulation. In this way, a room can be cooled fast and with limited dead zones.
*Comparing WindFree 4-Way Cassette (840*840mm) to standard 4-Way Cassette (840*840mm)
*Comparing WindFree 4-Way Cassette (840*840mm) to standard 4-Way Cassette (840*840mm)
An air conditioner and an air purifier rolled into one unit*
Air Purification Panel (on select models)*
Select Samsung WindFree™ 4-Way Cassette models include a Purifying Panel* that keeps the indoor air fresh and clean. It consists of 2 steps of filter – a PreFilter and a PM1.0 Filter. This 2-step filtration system is designed to ensure that you can breathe in pure, fresh air all day long.
*Air purifying panel (model PC4NUCEAN) included only in the following products: F-AC071TN4DKGP, F-AC100TN4DKGP, F-AC120TN4DKGP, F-AC140TN4DKGP.
*Air purifying panel (model PC4NUCEAN) included only in the following products: F-AC071TN4DKGP, F-AC100TN4DKGP, F-AC120TN4DKGP, F-AC140TN4DKGP.
Hello R32 Refrigerant!
Low GWP (Global Warming Potential) refrigerant
Samsung has added the new eco-friendly R32 refrigerant to its air conditioning range. R32 Refrigerant has a low Global Warming Potential (GWP)* and a zero Ozone Depletion Potential (ODP) effect - which helps to protect the ozone layer!
*Comparing to conventional refrigerant R410A .
** Image simulated for illustrative purposes only.
*Comparing to conventional refrigerant R410A .
** Image simulated for illustrative purposes only.
Enjoy Smart Home with an App
WiFi kit (MIM-H04AN), sold separately
Samsung SmartThings App* lets you centrally control your Samsung air conditioning, TV, appliances and other smart devices. Control your comfort from virtually anywhere.
You can easily check the list of connected compatible devices, name and status with the app.
*WiFi kit is sold separately.
**Available on iPhone and Android devices. A network connection is required. Samsung applications account is necessary.
*WiFi kit is sold separately.
**Available on iPhone and Android devices. A network connection is required. Samsung applications account is necessary.
Specifications
-
Indoor Unit
AC100TN4DKG/SA
-
Outdoor Unit
AC100TXAPKG/SA
-
Type
R32
-
Cooling (Min / Std / Max)
4.3 / 10.0 / 12.0 kW
-
Heating (Min / Std / Max)
3.6 / 11.2 / 15.5 kW
-
MCA
25.5 A
-
MFA
30.0 A
-
Sound Pressure @ 1.5m (H/L)
51 / 53 dBA
-
Outdoor @ 1m (Cool/ Heat)
68 dBA
-
Unit Dimension (WxHxD)
840 x 288 x 840 mm
-
Shipping Dimension (WxHxD)
898 x 357 x 898 mm
-
Net Weight (kg)
20.0 kg
-
Shipping Weight (kg)
24.0 kg
-
Outdoor (V)
0.75mm2 ↑
-
Liquid Pipe (Φ, mm)
9.52 mm
-
Gas Pipe (Φ, mm)
15.88 mm
-
Max. Allowable Piping Length [m]
85 m
-
Max. Allowable Piping Height [m]
30 m
-
Cooling (℃)
-15~50 ℃
-
Heating (℃)
-20~24 ℃
-
Type
10.0kW-1Φ-4Way CST
-
WiFi Kit
Yes
-
SmartThings App Support
Yes
