FJM NASA, 1 Way Cassette WindFree™ Indoor Unit, 2.6kW
AJ026TN1DKH/EA
Please scan the QR Code with your mobile device, and place the product image in desired place.
Highlights
Features
Control your Space
Flexible Systems
Samsung Free Joint Multi (FJM) Air Conditioning systems are designed to be flexible – allowing you to heat or cool multiple areas in your home from the one air conditioning system. The space-saving FJM System consists of three main components; an outdoor unit; a number of compatible indoor unit(s); and controllers.*
The flexibility of our FJM systems means that you can have up to 5 indoor units connected to a singular outdoor unit. They are compatible with a variety of indoor types, so you can choose the combination that is optimal for you. You can also set different temperatures on each indoor unit, giving you ultimate control.**
*Excluding optional accessories **The system must run in either cooling or heating mode but not both modes at the same time.

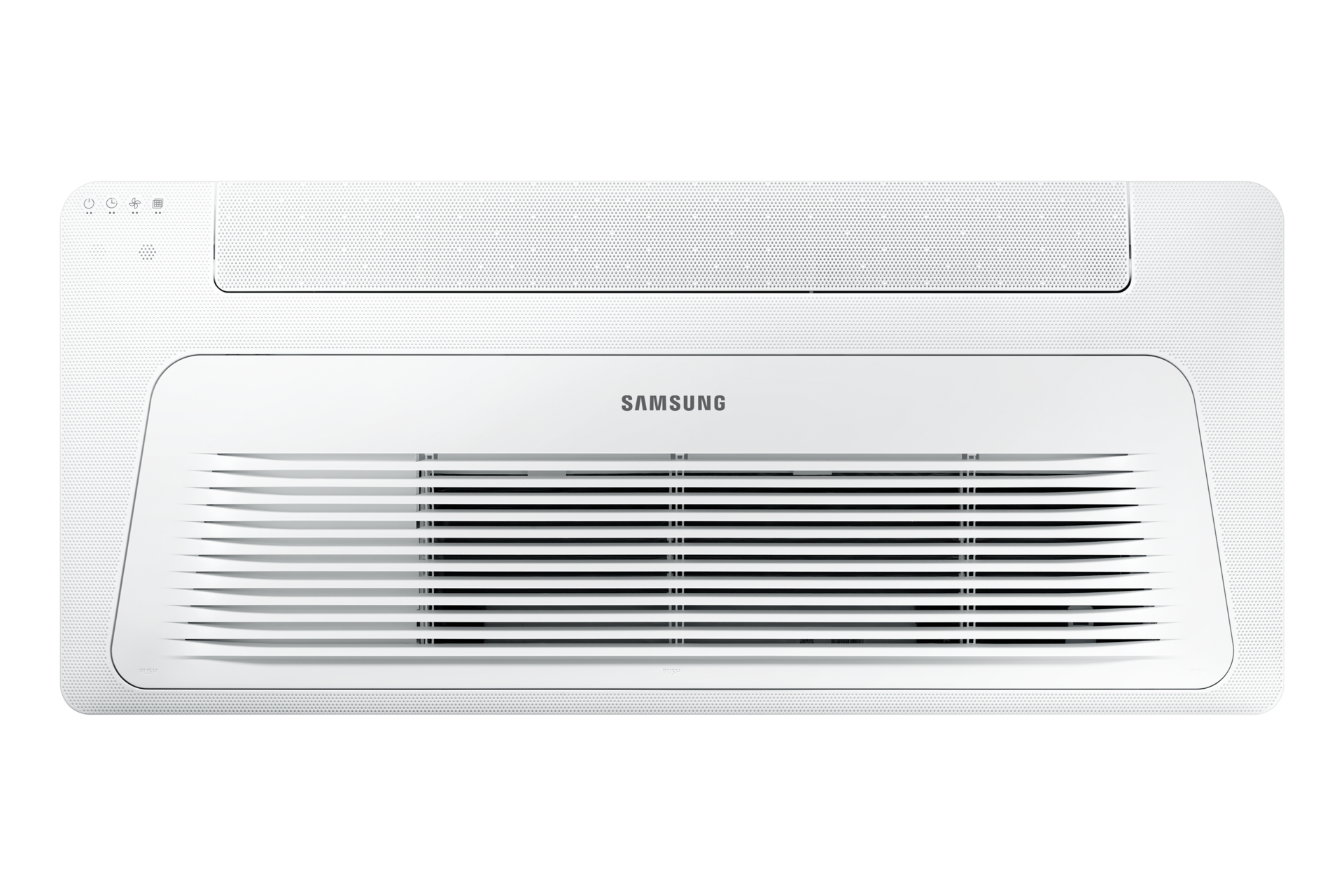

1 Way WindFree™ Cassette
Fits into small ceiling spaces
The 1 Way WindFree™ Cassette is designed to complement your home. With an extremely slim design (only 135mm in height), it can be installed into small ceiling spaces. It provides a suitable and effective solution for cooling and heating a wide range of locations where space is limited. In addition, its elegant and compact design means it blends discretely into a range of interior styles.
*Illustration indicative only, actual effect will vary
Cool down fast, without the cold blast
Stay comfortably cool with WindFree™ Cooling
WindFree™ is designed to gently and quietly disperse are through 10,000 micro air holes, creating a “still air” environment and preventing the unpleasant feeling of cold wind on your skin. The advanced airflow structure also means it cools a wider and larger area more evenly.
*Creates a ‘Still Air’ environment. ASHRAE defines “Still Air” as air currents at speeds below 0.15m/s which lacks the presence of cold drafts. The device provides cooling at or below this speed in WindFree™ Cooling mode. *Illustration indicative only, actual effect will vary
Cools Every Corner Evenly
Long Wind and Auto Swing Functions
Create a comfortable environment with an even temperature in every corner of the room. The 1 Way WindFree™ Cassette has a 100mm big blade than can deliver cool air over a long distance, reaching up to 8 meters.* The blade has a wide operating angle, so it helps to cool the space rapidly and evenly with minimal hot spots or cold spots.
Combined with the Auto Swing Function automatically directs cool air with both left-right and up-down functionality.
*Based on internal testing on a 7.1kW model. Horizontal wind range: sitting height = 0.6m, wind speed = 0.3m/s. Results may vary depending on environmental factors and individual use. *Illustration indicative only, actual effect will vary.
*Based on internal testing on a 7.1kW model. Horizontal wind range: sitting height = 0.6m, wind speed = 0.3m/s. Results may vary depending on environmental factors and individual use. *Illustration indicative only, actual effect will vary.
Automatic Temperature Control
Smart Comfort Operation
The 1 Way WindFree™ Cassette continually monitors the temperature and relative humidity while considering the room conditions. It then automatically switches between operating modes to keep everyone feeling comfortable without needing to take manual control*.
* Available in Auto and WindFree™ mode.
Experience Ultimate Comfort
Powerful, Reliable Performance
The FJM NASA air conditioning system delivers a balanced, reliable performance. The outdoor unit provides greater efficiency and low levels of vibration for a smoother and quieter all-round performance with a twin rotary BLDC compressor. The smart compressor design and premium moving parts of the Samsung FJM air conditioning system delivers a balanced, reliable performance.
All round simpler & intuitive control
Controller (model MWR-WG00JN), sold separately
Intuitively control performance with our controller and know where the air is flowing at all times. The MWR-WG00JN Controller* offers functionality control - the display allows you to set an on/off countdown timer, turn on/off, and view the filter cleaning alert indicator. Other controller options available.
* Controller (model MWR-WG00JN) is sold separately
* Controller (model MWR-WG00JN) is sold separately
Cool your home from anywhere
Wi-Fi and the SmartThings app
Connect your Samsung AC to your WiFi network using Wi-Fi kit MIM-H04AN, (sold separately). Control your home air conditioner from anywhere, at any time using the Samsung SmartThings App. You can control and monitor the air conditioner remotely with just a touch. The Wi-Fi kit helps you to centrally control your Samsung TV, appliances and other compatible smart devices. All you need to do is download the Samsung SmartThings App* to easily check the list of connected compatible devices, name and status.
*Each SmartThings compatible device requires a network connection. Feature performance may vary based on distance and network quality. All devices should be registered with a single Samsung Account. Compatible devices and available features depend on country, region and carrier. Check compatible devices and available features at Samsung SmartThings App search or in the SmartThings app. A Wi-Fi connection and compatible phone is required.
*Each SmartThings compatible device requires a network connection. Feature performance may vary based on distance and network quality. All devices should be registered with a single Samsung Account. Compatible devices and available features depend on country, region and carrier. Check compatible devices and available features at Samsung SmartThings App search or in the SmartThings app. A Wi-Fi connection and compatible phone is required.
Thoughtful Design
MEPS Compliant - Air Conditioners sold in Australia are required to meet Minimum Energy Performance Standards (MEPS) set by the Government.
Rest assured with Samsung Quality
5 Year Parts and Labour Warranty
Peace of mind knowing we have you covered with Samsung's 5 year parts and labour warranty for residential applications. For full terms and conditions visitSamsung Warranty
`This is in addition to the rights of consumers under consumer guarantees pursuant to the Australian Consumer Law.
`This is in addition to the rights of consumers under consumer guarantees pursuant to the Australian Consumer Law.
Specifications
-
Rated Capacity (Cooling)
2.6kW
-
Rated Capacity (Heating)
2.9kW
-
Sound Pressure (Indoor)
32 / 29 / 26dBA
-
Unit Dimension (WxHxD)
970 x 135 x 410mm
-
Type
Wind-Free Slim 1-way
-
Indoor Unit
AJ026TN1DKH/EA
-
1,2,220-240,50/60
-
Mode
HP
-
Cooling (Min / Std / Max)
2.6 kW
-
Cooling [Btu/h]
8,900 Btu/h
-
Heating (Min / Std / Max)
2.9 kW
-
Heating [Btu/h]
9,900 Btu/h
-
Cooling 1) [W]
30 W
-
Heating 2) [W]
30 W
-
Cooling 1)
0.3 A
-
Heating 2)
0.3 A
-
Type
Crossflow Fan
-
Motor (Output) [W]
27 x 1 W
-
Air Flow Rate (High / Mid / Low) [CMM]
7.3/6.5/5.8 CMM
-
Air Flow Rate (High / Mid / Low) [L/S]
122/108/97
-
Liquid Pipe (Φ, mm)
6.35 mm
-
Liquid Pipe (Φ, inch)
1/4"
-
Gas Pipe (Φ, mm)
9.52 mm
-
Gas Pipe (Φ, inch)
3/8"
-
Drain connection size
VP20 (OD 25,ID 20)
-
Indoor (V)
1.5 ~ 2.5
-
Outdoor (V)
0.75 ~ 1.50
-
Type
R410A
-
Control Method
EEV NOT INCLUDED
-
Sound Pressure
32 / 29 / 26 dBA
-
Sound Power
50 dBA
-
Net Weight (kg)
9.5 kg
-
Shipping Weight (kg)
12.5 kg
-
Unit Dimension (WxHxD)
970 x 135 x 410 mm
-
Shipping Dimension (WxHxD)
1173 x 231 x 487 mm
-
Panel model
PC1NWFMAN
-
Panel Net Weight (kg)
4.3 kg
-
Shipping Weight (kg)
6.3 kg
-
Unit Dimension (WxHxD)
1198 x 35 x 500 mm
-
Shipping Dimension (WxHxD)
1262 x 122 x 566 mm
-
Drain Pump
Built in
-
Sound Pressure Level (Indoor, Low), dBA
750/24
-
Sound Pressure Level (Indoor, Quiet Mode), dBA
Option
-
WiFi Kit
Yes
-
SmartThings App Support
Yes
