Samsung washing machine won't fill - NF or 4E code

Last Update date : Oct 01. 2020
Samsung Washing Machine

If the washing machine is not filling up with enough water, the 4E or NF (No Fill) error code will be displayed.

Please note: This article is only relevant to washing machines that displays NF or 4E error code (All front loaders and certain top loaders). In most cases, this issue is related to one of the following:

For a full list of error codes, please refer to our page titled Samsung Washing Machine Error Codes

  • Ensure that the door is tightly closed.
  • Ensure the washer is plugged in and powered on. If it does not power on, check the fuse and/or reset the circuit breaker (in the home's electrical panel).
  • Make sure the source water tap is completely turned on.
  • Check the water pressure.
  • Check that there are no kinks in the water hose connected to the washing machine and that it is not clogged.
  • Clean the mesh filters of water hose.
  • Verify the debris filter is not clogged. To clean the debris filter, follow the steps given below:

Please note:

●    Top Loader washing machines do not have external debris filter access. Also some washing machine may have different filter access than shown on the screenshots below.



●    If you're running a cycle with hot water temperature settings, the water in the washer may be very hot. Allow enough time for the water to cool down before performing this procedure to avoid possible injury. Unplug the machine before performing any of the steps below.

1 Open the debris filter access cover by pressing down on the tab and pulling/folding the cover down. If the debris filter cover does not have a tab, open the debris filter access cover by inserting a coin or a key into the slot above the access panel and gently prying it open.
Open debris filter
2 Locate the black rubber drain hose (or emergency drain hose), and if attached, release it from its holder.
Drain hose
3 Place a towel on the floor to prevent water damage to the floor as well.
4 Remove the white drain plug from the emergency drain hose, and then drain the water in a suitable container.
Clean debris filter
5 After water stops draining from the auxiliary drain hose, remove the debris filter by turning it counter clockwise and pulling it out.
Clean debris filter
6 Inspect and clean the filter, and then reinstall by pushing it in and turning it clockwise until secured.
Clean debris filter
7 Reinstall the emergency drain hose cap and secure the hose in its holder.
Clean debris filter
8 Reinstall the access panel by placing it into the holes at the bottom of the access panel opening and pushing/folding it into the top.
Clean debris filter

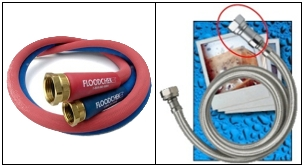

●    Verify that flood safe/check hoses are not installed. If flood safe hoses are installed, replace with standard supply hoses.

Please note: Stainless Steel braided hoses are recommended

Stainless braided hoses

●  Verify the inlet hose filters, at the back of the washing machine, are clean.

Please note: Shut off the hot & cold water supply before cleaning the inlet hose filters. Take extra care when removing the HOT water connection to avoid possible injury.

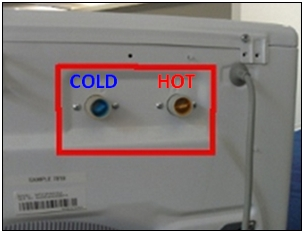

Front load inlet hose filters

           Front load inlet hose filters

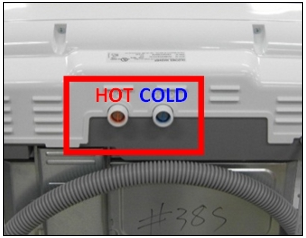

Top load inlet hose filters

           Top Load Inlet Hose Filters

●    Verify the hot and cold water supply hoses are not kinked, and both water supply valves are completely open.

Hot and cold water supply hoses

Important:

●    Water pressure at home must be between 205 kPa and 830 kPa for the unit to operate properly.

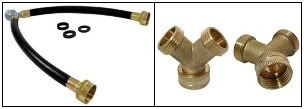

●    When only cold water is connected to the washer, a splitter must be used to ensure that both of the washer's inlet supply valves are supplied with water.

Splitter

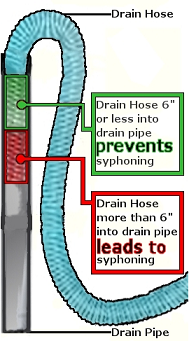

●    Verify the drain hose is not inserted too far into the home's drain pipe forming a vacuum or syphon. The pressure formed from the vacuum can cause the pressure sensor to "think" the tub has reached the correct water level. When that happens the water valves close, preventing anymore water from entering the unit.

Drain hose

If the laundry is wet at the end of the cycle, the unit is operating normally. Samsung washers use 48 litres of water per cycle (compared to conventional top loaders which can use around 170 litres). 48 litres is the total amount of water used throughout an entire wash cycle. The initial fill does not add 48 litres. During the initial fill, the machine may not appear to have enough water, but this is normal. Your washer adds water after the initial fill to properly mix the detergent.



Initial fill level:

Water level

Operating level:

Operating level

If require more information, you can download the user manual specific to your model from our Manuals & Downloads page. Otherwise, please get in touch with our Samsung Care experts on 1300 362 603 (Toll Free in Australia) or contact our Chat Support team.
