Change Picture Size on a Samsung TV

Last modified : Oct 23. 2019

Most Samsung TVs will allow several different options for changing the Picture Size. Depending on the TV and input signal, you may be able to change the Picture Size to:

  • 16:9 Standard Display the picture in widescreen aspect ratio.
  • Custom Customise the aspect ratio manually.
  • 4:3 Display the picture in Standard (low definition) aspect ratio. Suitable for VHS and standard definition broadcast.
  • Fit to Screen The full image will be displayed. No part of the image will be cut off.

Note: The availability of this function depends on the Picture Size Settings.

  • Zoom and Position Adjust the picture size and/or position.

Note: This function is only available if the Picture Size is set to Custom. To change the picture position on analogue channels, enlarge the picture first, and then change the position.

Please see the table at the bottom of the page for information on Picture Size availability depending on Input Source.

Warning: Do not watch your TV in 4:3 mode for extended periods of time. This can cause black bars to "burn in" to the screen and appear as temporary or permanent after-images on the display.

Adjusting the picture size and/or position

When the Picture Size is set to Custom, you'll be able to adjust the screen zoom and position. To change the position on the display on analog channels, enlarge the image first and then change the position.

  • Settings > Picture > Picture Size > Zoom/Position
1 Press the Menu button on you remote control and then select Settings .

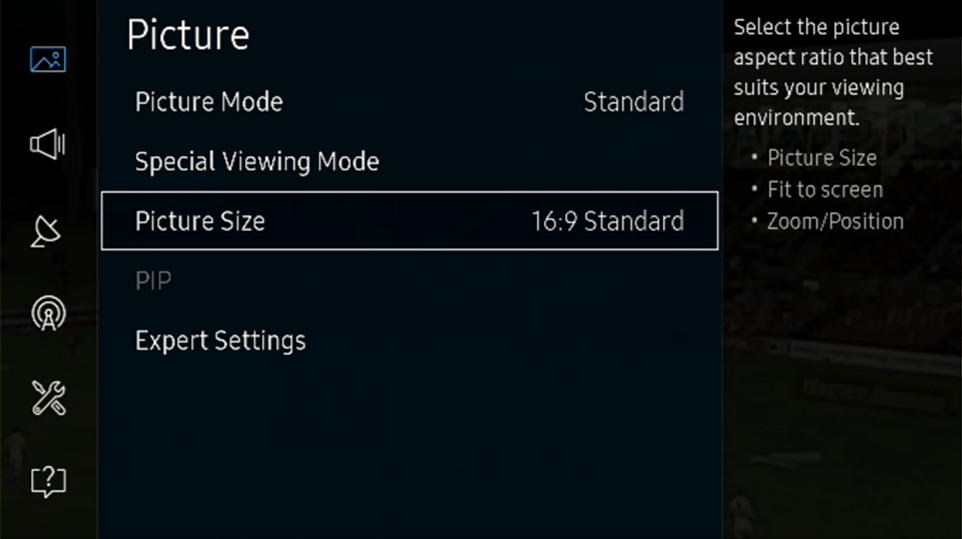

Samsung TV Settings
2 The Settings menu will already be on the Picture menu. Select Picture Size Settings .

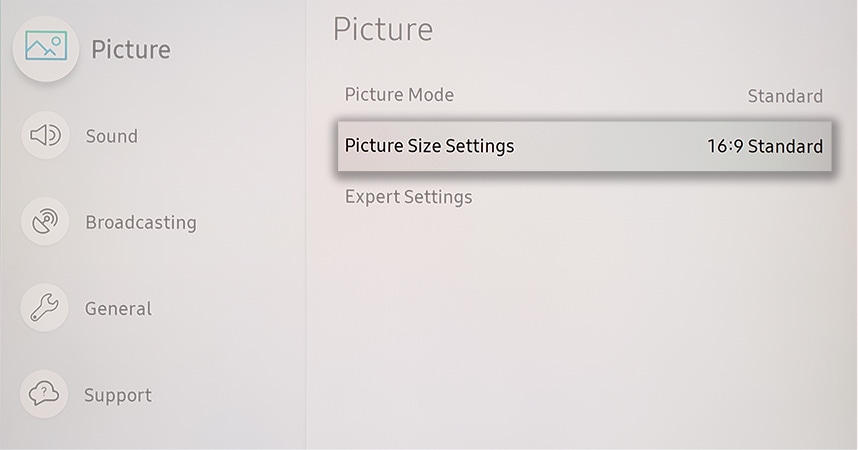

Picture Size Settings
3 Once you are on the Picture Size Settings page, select Picture Size and choose Custom .

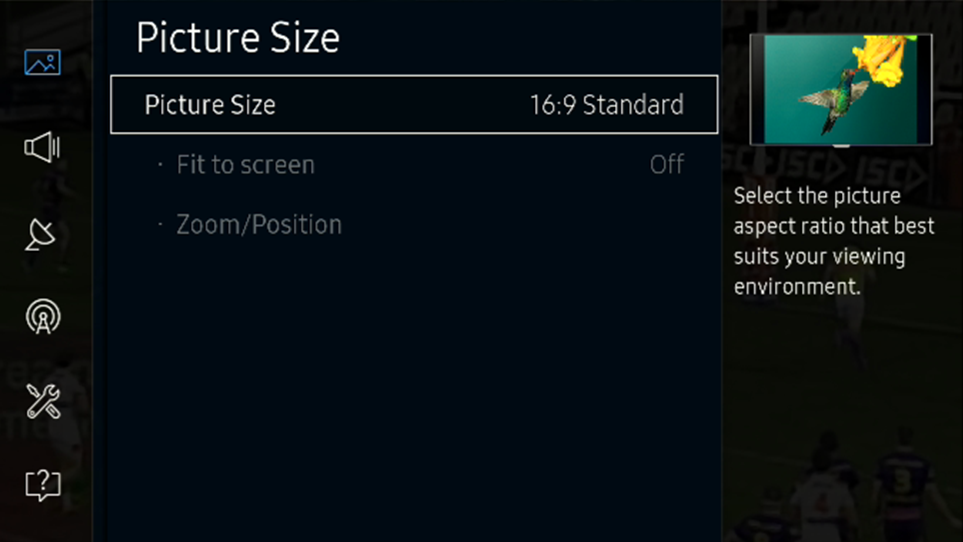

Picture size settings
4 After the Picture Size has been set to Custom , Zoom and Position will now become available. Highlight Zoom and Position and press enter on your remote control.

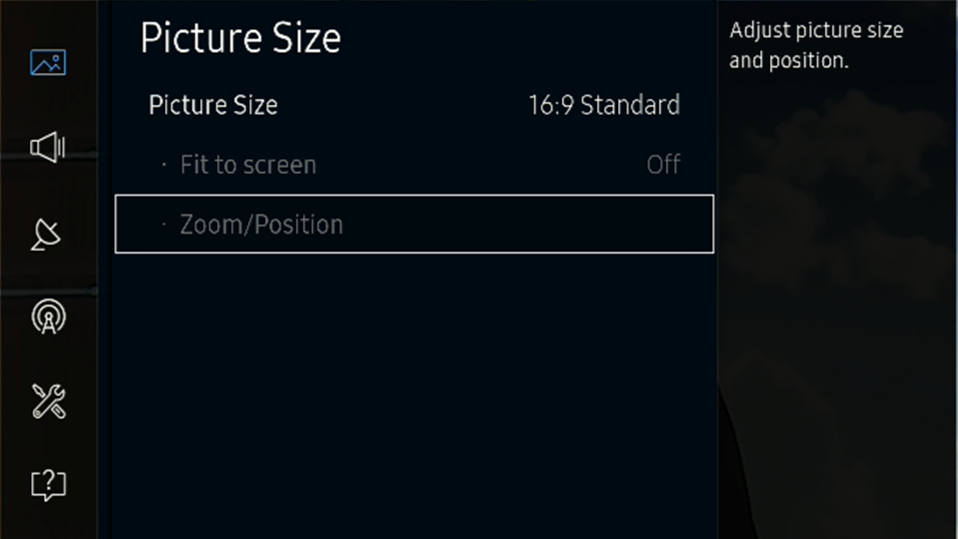

Picture size settings
5 On the Zoom/Position page, you will now be able to zoom your screen in or out and position the screen that best suits you. Once you have finished, press the Close button on the screen to save your settings. If you choose Reset , none of the adjustments will be saved.
Zoom/Position

Changing the Picture Size:

1 Press the Menu button on you remote control and then select Settings .
Samsung TV Settings
2 Select Picture Size Settings to choose the aspect ratio of your preference.
Picture Size Settings
3 Select from the available options

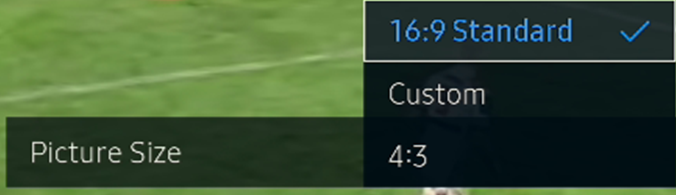

Choice of Picture Sizes

If 4:3 is missing - see the table at the bottom of the page for information on Picture Size and Input Sources.

Changing the picture size automatically:

The TV will automatically recognise the aspect ratio of the broadcast or input. Follow the menu path below to turn Auto Wide on:

  • Settings > Picture > Picture Size > Auto Wide



Please note: Auto Wide is not available on all TV models.

Changing the picture size to 4:3 or Screen Fit Mode:

Depending on the specific TV model, you may be able to set the display to 4:3 or Screen Fit mode:

  • Settings > Picture > Picture Size > 4:3 Screen Size

Please Note: Depending on the specific TV model, 4:3 mode may not be available when an external device is connected to the TV via a Component connector or an HDMI connector.

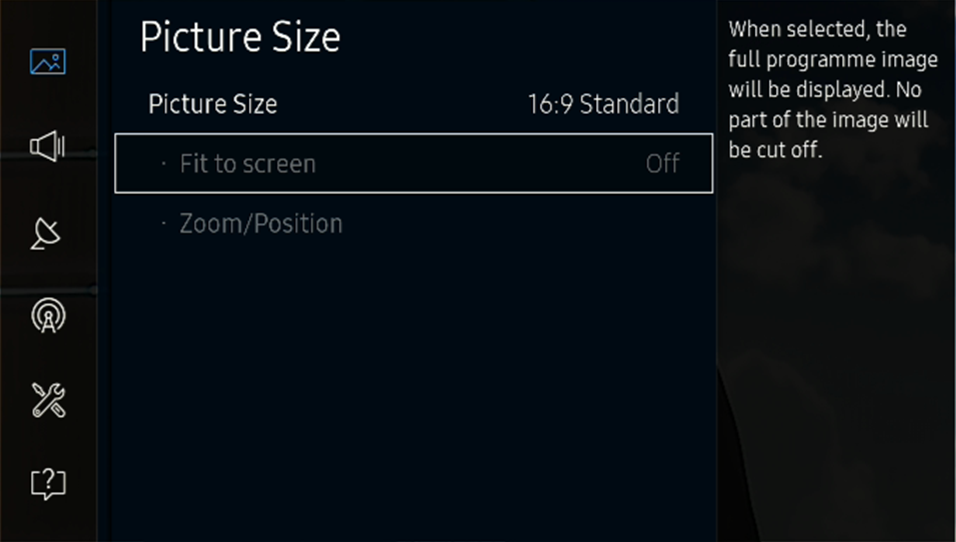

Changing the picture size to Fit To Screen

You'll need to adjust Picture Size settings to enable Fit to Screen Mode.

  • Settings > Picture > Picture Size > Fit to screen

Picture Size and Input Signals

The available Picture Size on your Samsung TV largely depends on the input or source you have selected. The table below lists the available picture size for each of the inputs available. Make sure the TV is on the appropriate Source before trying to change the Picture Size.

Picture Sizes and Input Signals

Input Signal

Picture Size

Component (Red/Blue/Green cables)

16:9 Standard, Custom, 4:3

Digital Channels (720p)

16:9 Standard, Custom, 4:3

Digital Channels (1080i, 1080p)

16:9 Standard, Custom, 4:3

Digital Channels (3840 x 2160p @ 24/30 Hz)

16:9 Standard, Custom

Digital Channels (3840 x 2160p @ 50/60 Hz)

16:9 Standard, Custom

Digital Channels (4096 x 2160p)

16:9 Standard, Custom

HDMI (720p)

16:9 Standard, Custom, 4:3

HDMI (1080i, 1080p)

16:9 Standard, Custom, 4:3

HDMI (3840 x 2160p)

16:9 Standard, Custom

HDMI (4096 x 2160p)

16:9 Standard, Custom

USB (720p)

16:9 Standard, Custom, 4:3

USB (1080i/p @ 60 Hz)

16:9 Standard, Custom, 4:3

USB (3840 x 2160p @ 24/30 Hz)

16:9 Standard, Custom

USB (3840 x 2160p @ 60 Hz)

USB (4096 x 2160p @ 24/30/60 Hz)

16:9 Standard, Custom
