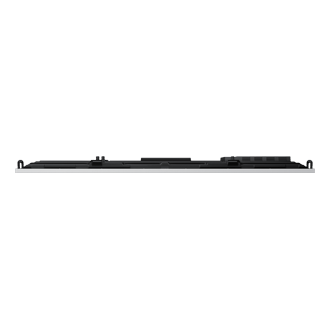

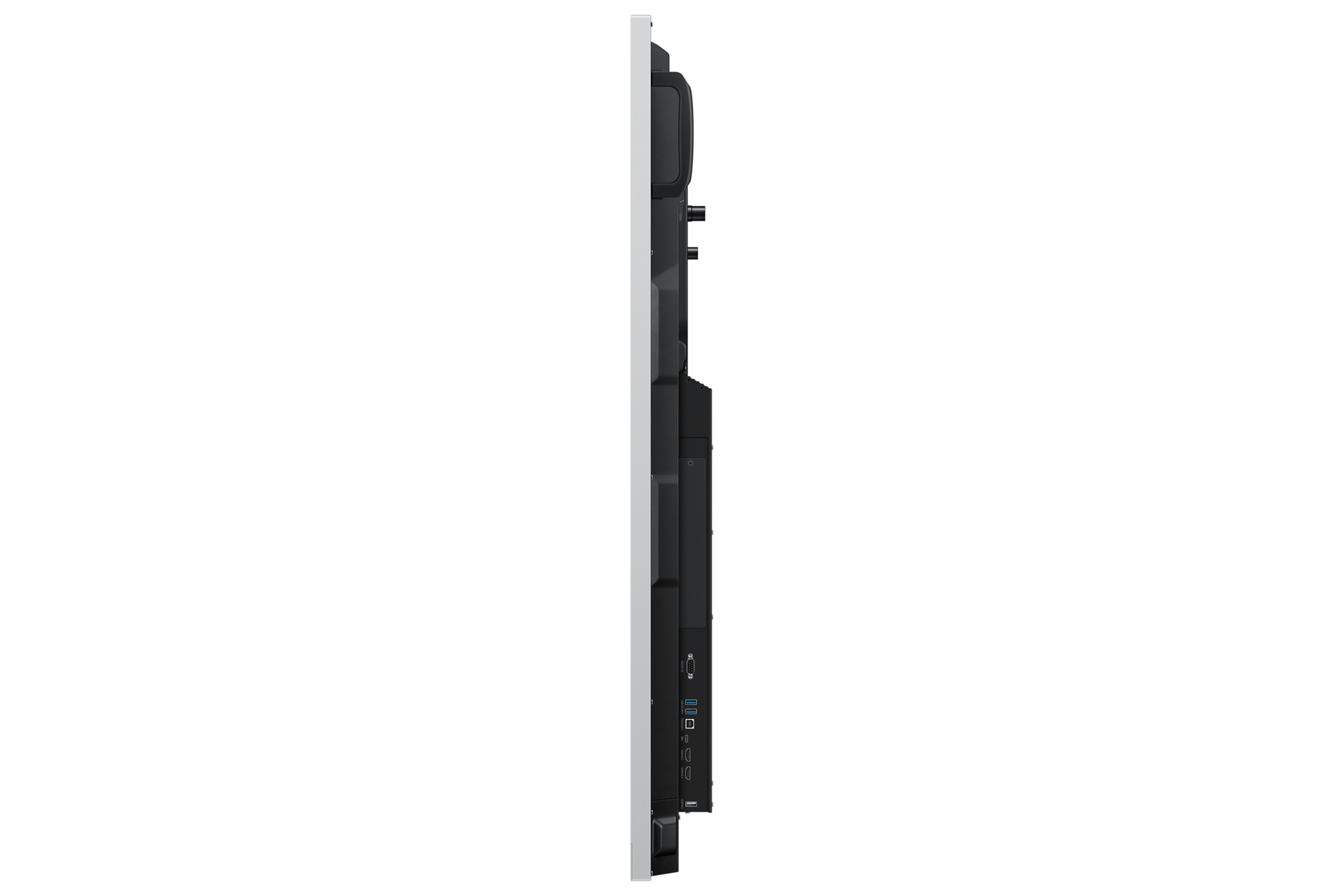

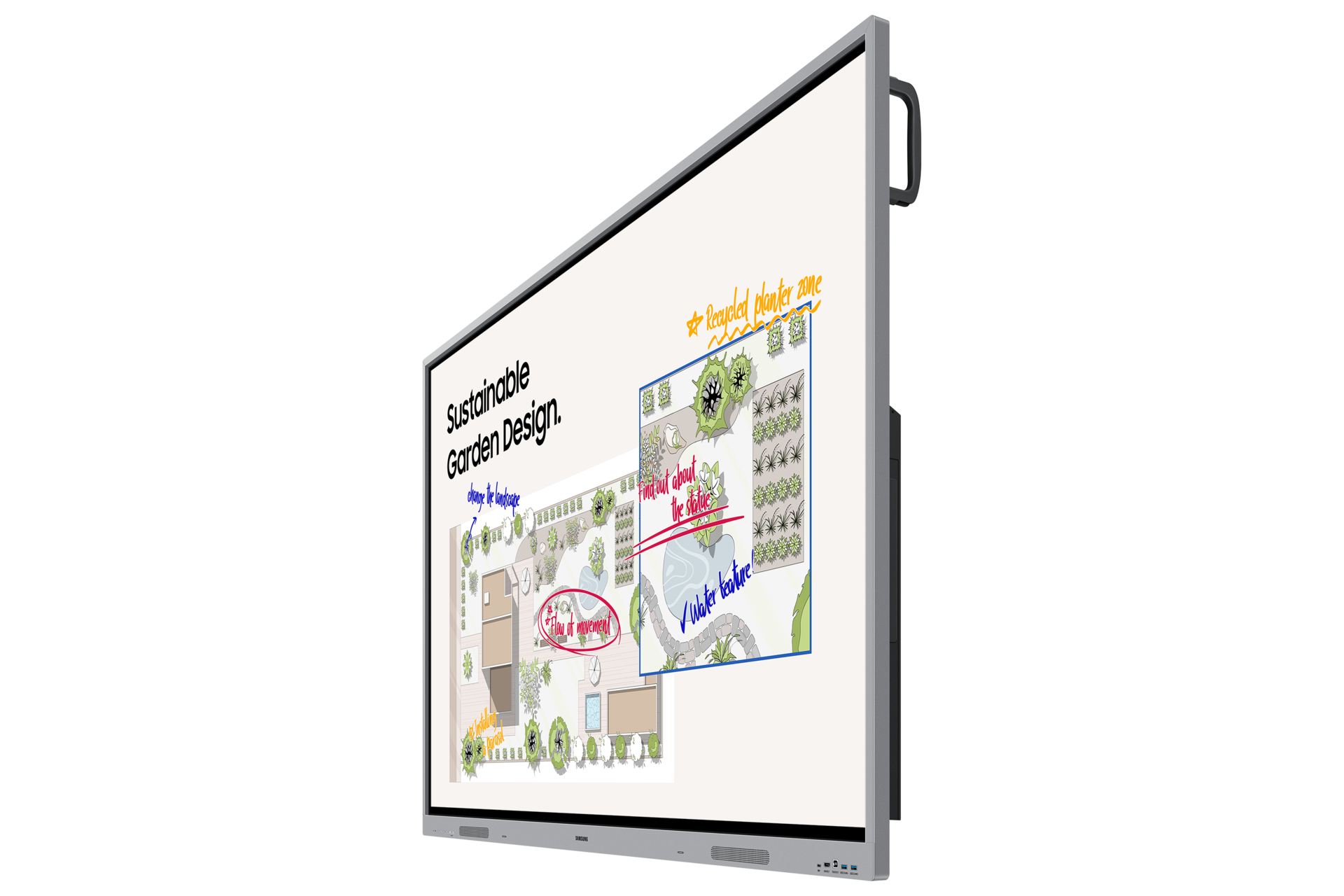

65 Inch Interactive Display WEFX
Gallery popup
Please scan the QR Code with your mobile device, and place the product image in desired place.
Features
Unlimited learning possibilities
Stripped of unnecessary complexity, packed with just what you need. Samsung’s OS-free interactive display offers a simple, seamless way to collaborate. Connect your device to instantly work in a familiar environment — no software installation or no training required.
Key features at a glance
Plug and Play
Simply interactive. Instantly ready.
Simply connect your laptop via HDMI or USB Type-C, and the display shows your screen instantly — no need to select the input source manually. Skip the setup and start presenting, writing, and collaborating right away.

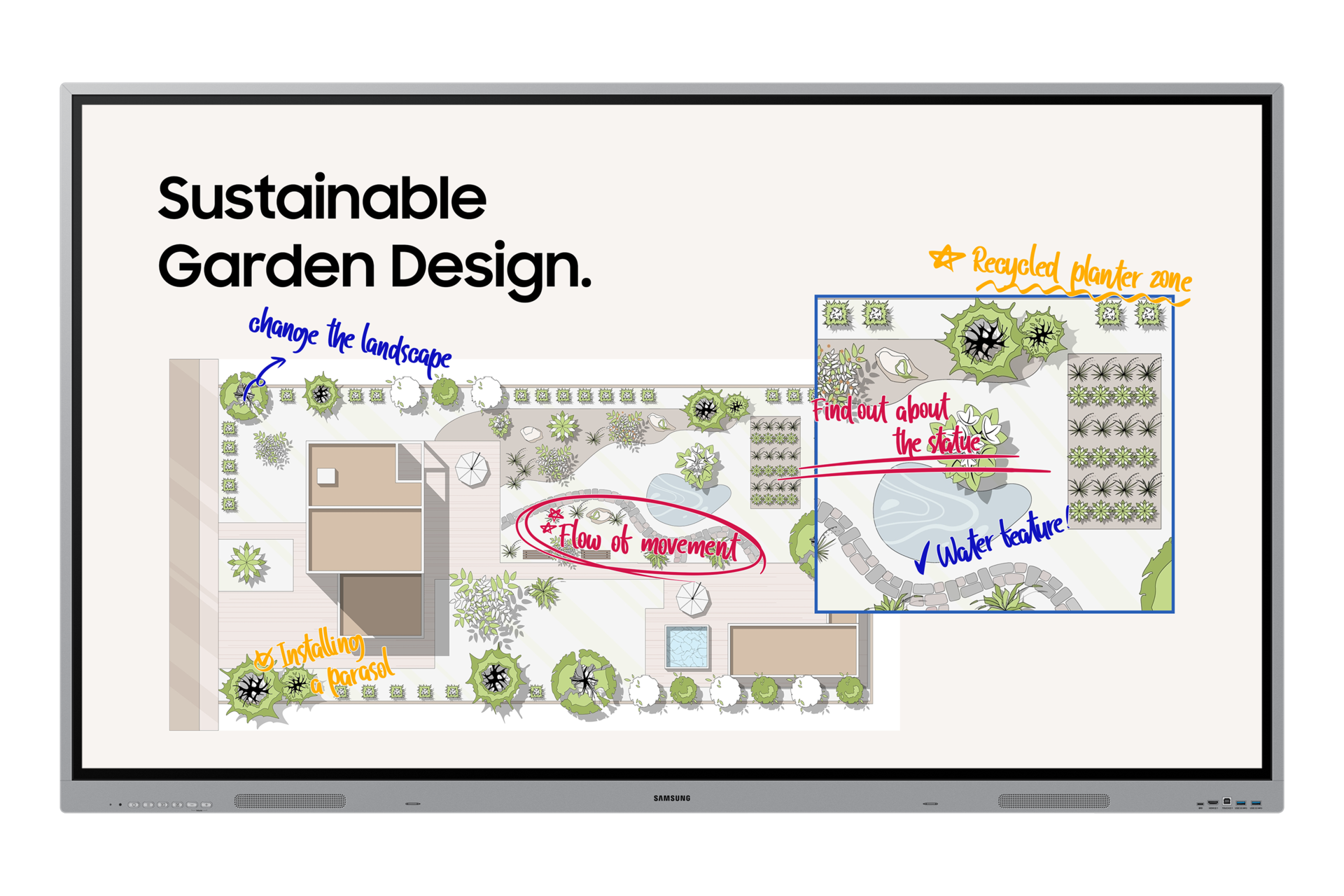

Annotation On
Take notes instantly, anywhere on the screen
Through the easily accessible Annotation function, users can quickly write on the screen at any time even while watching a video or browsing online. This feature enriches the learning experience and makes real-time collaboration seamless.
Up to 40 multi-touch
Smooth, responsive multi-touch
Support for up to 40 simultaneous touchpoints lets multiple users write and draw together on the display. Ideal for classrooms and group activities, it enables collaborative work that feels natural and engaging.
Home UI
Simplify control with a dedicated home screen
The Home UI brings frequently used settings and sources together in a single, easy-to-access screen. Whether adjusting display inputs or managing device settings, users can navigate key tools more quickly — without digging through multiple menus.

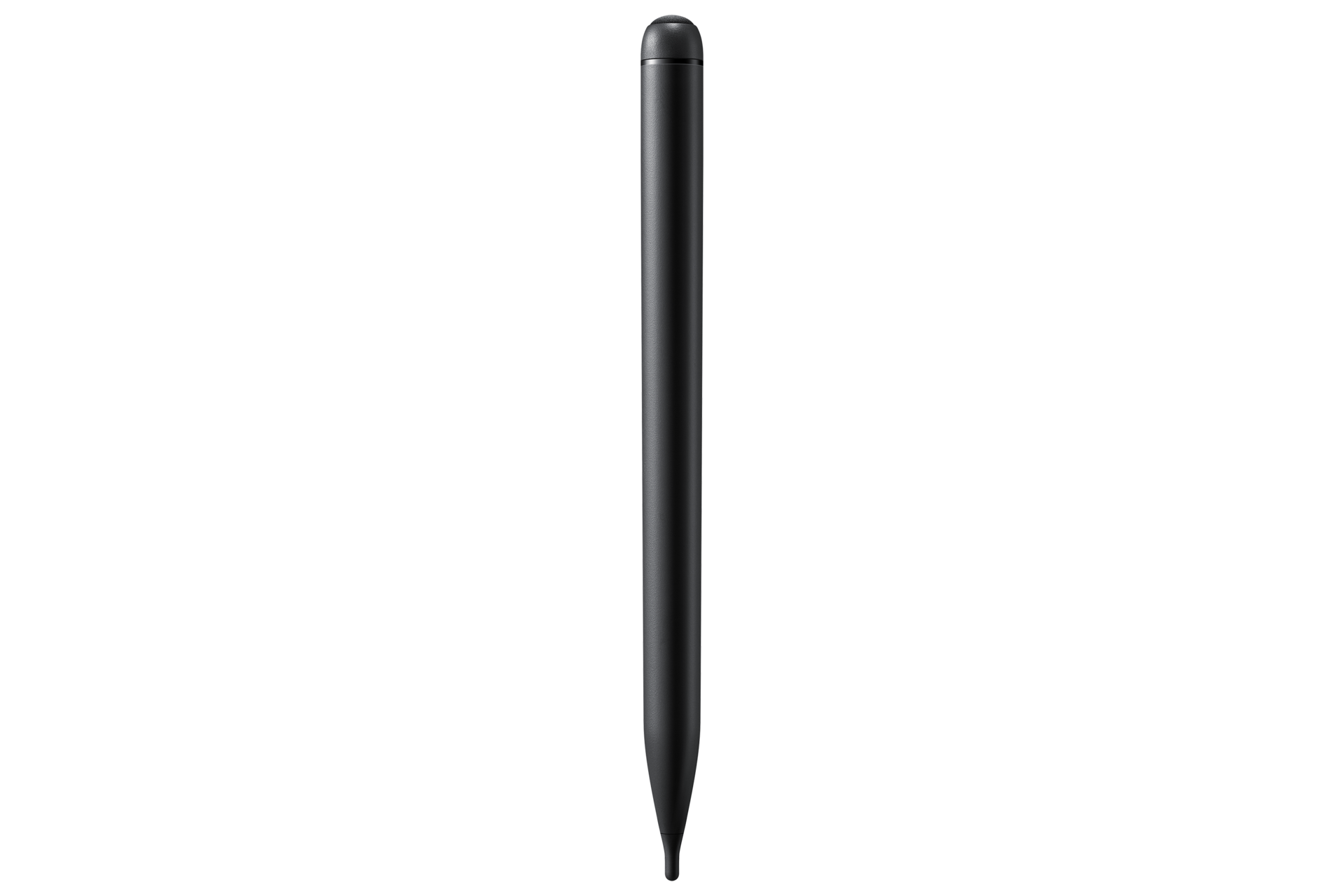

Dual Pen
Switch pens without changing settings
With dual-pen functionality and a double-sided nib, users can switch between two colours or tools instantly. No need to change settings — just flip the pen and keep the flow going.
Quick Access Controls
Front panel controls for intuitive navigation
The WEFX features physical buttons on its front panel, enabling quick access to frequently used functions. This intuitive control allows users to operate the display more efficiently, enhancing the overall user experience.
3-in-1 USB-C Port
Convenient connectivity with USB-C
The 3-in-1 USB-C port supports data transfer, touch control, and device charging (up to 65W). Teachers can seamlessly conduct interactive lessons by connecting their devices with just one cable.
OPS (Open Pluggable Specification)
Use your favorite OS for the learning
With the OPS slot, WEFX can function like a Windows PC without the need for an external device. Teachers can use the software and workflows they are familiar with from a standard computer directly on the display.
Specifications
-
Diagonal Size
65"
-
Panel Type
ADS
-
Resolution
3,840 x 2,160
-
Pixel Pitch (HxV)
0.372 x 0.372 mm
-
Brightness (Typ)
350 nit
-
Contrast Ratio
1,200:1
-
Viewing Angle (Horizontal/Vertical)
178/178
-
Response Time
8ms
-
Colour Gamut
72% (NTSC)
-
Glass Haze
25%
-
H-Scanning Frequency
135 kHz
-
Maximum Pixel Frequency
78 MHz
-
V-Scanning Frequency
60 Hz
-
Operation Time Support
12/7
-
HDMI In
3
-
Version of HDMI
2
-
Version of HDCP
2.2
-
USB
7 (3.0 x4 , 2.0x1, USB C x 2)
-
IR In
Yes
-
Audio In
1
-
Audio Out
Stereo Mini Jack
-
RS232 In
Yes
-
Power Supply
AC100-240V 50/60Hz
-
Power Consumption (On Mode)
350 W
-
Power Consumption (Sleep Mode)
0.5 W
-
Set Dimension (WxHxD)
1491 x 898 x 99 mm
-
Package Dimension (WxHxD)
1628 x 1014 x 185 mm
-
Set Weight
30.5 kg
-
Package Weight
38 kg
-
Temperature
0 - 40 ℃
-
Humidity
10 - 80% (Non-Condensing)
-

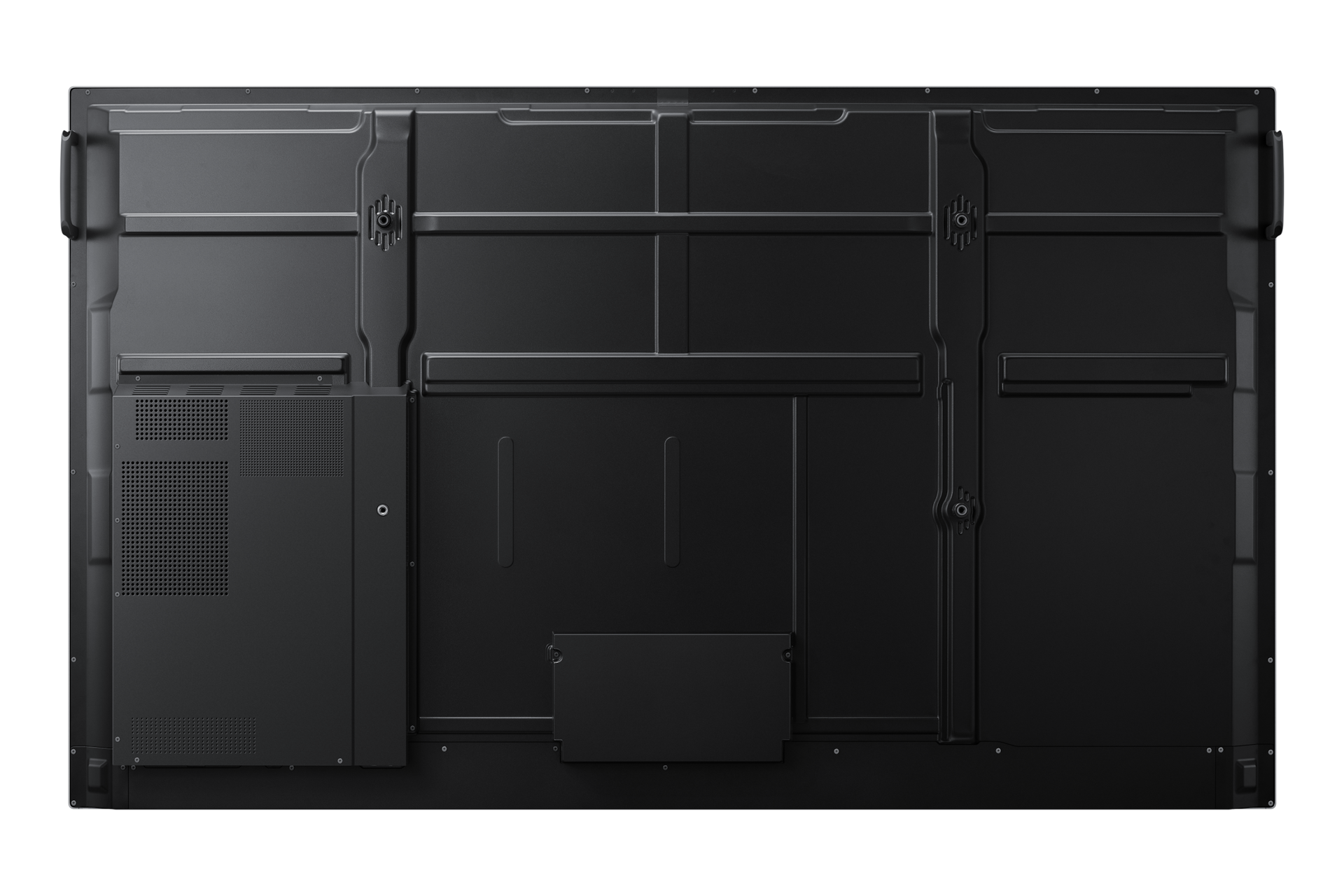

VESA Mount
600 x 400 mm
-
Bezel Width
16.6mm(U), 16.6mm(L/R), 45.0mm(B)
-
Bezel Color
Pantone 10452C
-
Frame Material
Non-Glossy
-
Touch
Yes
-
Flash Memory Size
32GB
-
Touch Technology
IR
-
EMC
Part 15, Subpart B Class A KS C9832, KS C9835 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 J55032 , VCCI-CISPR32 JIS C61000-3-2 GB9254-2021 GB17625.1-2012 CNS13438 (ITE EMI) Class A / AS/NZS CISPR 32 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020
-
Safety
IEC 62368-1 Edtion 3&IEC 60950-1 UL62368-1 edition 3 GB4943.1-2022 PSB+ IEC 62368-1 NOM-019 K 62368 IRAM+ IEC 62368-1 EAC+ IEC 62368-1 INMETRO+ IEC 62368-1 SASO+ IEC 62368-1 BSMI+ IEC 62368-1 IEC 62368-1/AS/NZS 62368-1 IEC60950-1 / IS13252
