Charging your smartphone or tablet

Charging your smartphone or tablet

There are now a range of options that allow you to charge your smartphone and tablet in whichever way you find the easiest. Charging with a cable is often the fastest and simplest and with Adaptive Fast Charging you can get the power needed to last the entire day in only a few moments.



Many new devices also support wireless charging, keeping your workspace clear from cables and your device accessible when it needs a boost. Now, with the launch of the S10 you can also share your battery wirelessly with your friends through the innovative PowerShare feature, making sure that you have the power you need wherever you are.

Wired chargingClick to Expand
charger

Your device will come with a wired charger in its box. Usually you will have to connect the charging cable to the provided USB plug. For the best performance and fastest charging times, make sure to use the original charger or an official Samsung replacement.

1 Plug your charging cable into the USB plug
2 Plug the charger into a wall socket

Please note: you can charge your device through the USB ports on a laptop or PC. If charging this way, your device will charge more slowly than usual. For the fastest charging times, make sure to charge with a wall socket

3 Connect the charger to your device's charging port. Charging ports are usually located on the bottom of the device
4 Once your device is charging there will be a lightning symbol on the battery icon at the top of the screen
5 When your device is fully charged the lightning symbol will disappear and the battery icon will appear full
6 Disconnect the charger from your device before unplugging your charger from the socket
What are the different types of USB cables and ports?Click to Expand

The cables and ports used with your smartphone and tablet will be either micro-USB or USB-C on one end, with a USB-A type on the other.



Some of the cables that come with older models will not have the USB-A on the end, but rather just the plug. These plugs will usually have a much lower amperage.

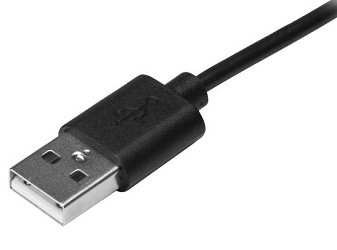

USB-A



USB-A is most commonly used with computers or power outlets. When charging, you will connect the USB-A side into the USB-plug or into a laptop or computer.



USB-A cables will only go into the port one way. You can usually tell which way up they should be by the USB symbol printed on the top. Make sure that the cable is inserted in the correct way so as not to damage the cable or device.

USB-A

Micro-USB



Micro-USB used to be the most common USB port and is still found on many older models. Like USB-A cables, Micro-USB will only go into a port if it's the correct way round. Be careful to match the shape of the port with the Micro-USB cable to avoid causing any damage.

Micro-USB

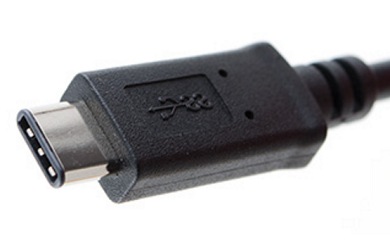

USB-C



USB-C is the most recent USB development and new Samsung devices come with USB-C ports. USB-C cables allow high speed data transfers and a higher power flow, allowing your phone to charge more quickly. USB-C cables are also reversible and can be plugged in either way round.

USB-C
Using a USB-C connectorClick to Expand

Some devices will come with a USB-C connector or adapter in the box. This allows you to use older, Micro-USB cables with devices with USB-C ports. If possible, you should always try and use a USB-C cable as they allow for faster charging and data transfers.

Video Alternative Text
Fast ChargingClick to Expand

Adaptive Fast Charging is a built-in feature which allows the battery to charge much faster. To use it, you will need to connect your compatible device to a charger that supports fast charging. Fast charging cables and plugs are provided in the box for supported devices.



You can turn Adaptive Fast Charging on and off in your settings.

Please note: Adaptive Fast Charging is only available on certain devices. The feature launched on the S8 and has been included in most devices since. For more information about your device and its specifications visit Samsung Support

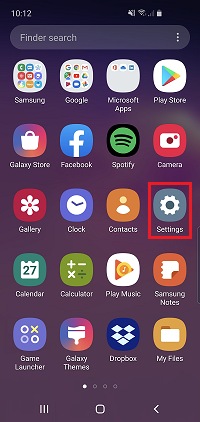

1 Open your Settings
Open your settings

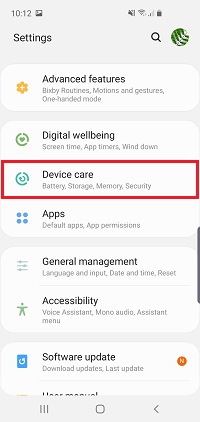

2 Tap Device Care or Device Maintenance
Tap Device Care

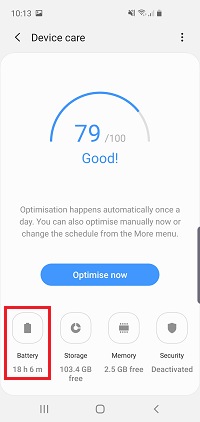

3 Tap Battery
Tap Battery

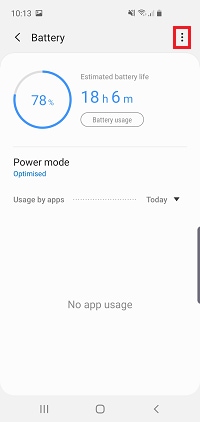

4 Tap the options icon. It will appear as three dots in the upper right corner
Tap the options icon

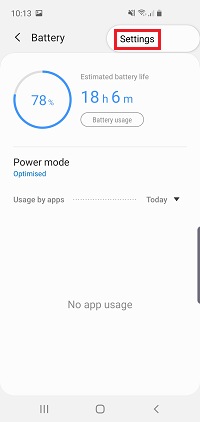

5 Tap Settings or Advanced Settings
Tap Settings

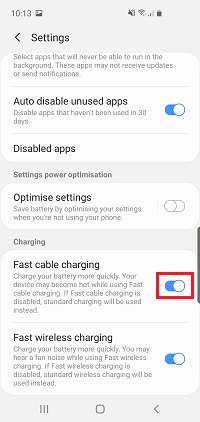

6 Tap Fast cable charging to turn the feature on or off
Tap fast cable charging
Wireless ChargingClick to Expand

To charge your device wirelessly, you will need a wireless charger and a compatible device. Lay the back of your device onto the wireless charger in order for charging to begin. Depending on your devices, the charging coils can be in different places. Try moving your device around on the wireless charger to establish the strongest connection.



If you're having trouble wirelessly charging it's recommended to remove any cases and covers from your device.

Please note: not all devices have the wireless charging feature. For more inforation about your device and its specifications visit Samsung Support

wireless charger
Video Alternative Text
Wireless PowerShareClick to Expand
Video Alternative Text

Wireless PowerShare allows you to charge another compatible device wirelessly using your device's battery.



You can charge both devices simultaneously by plugging in your PowerShare compatible smartphone and then placing the other device on its back, or transfer battery power from your smartphone by placing them together.

Please Note:

  • some features may not be available when sharing power
  • PowerSharing will stop if your remaining battery power drops too low
  • the device you are using to charge the other device does not need to be plugged in, but it should have at least 30% charge
  • if you have a cover or accessory on the device, it may affect wireless charging effectiveness. Remove covers for optimum performance

What devices can I use with Wireless PowerShare?



Wireless PowerShare was a feature introduced with the Samsung Galaxy S10 series. If you have the feature on your smartphone you can PowerShare with a range of devices including:



  • smartphones that support wireless charging (Qi Standard)
  • Samsung wearables: Galaxy Watch, Galaxy Watch Active, Gear S3, Gear Sport, Galaxy Buds



Using Wireless PowerShare



1 Pull down the notification panel and tap Wireless PowerShare
2 Place the wireless charging compatible device you wish to charge back to back on your smartphone
Wireless PowerShare

Please note: the location of the charging coil can differ by model and manufacturer. You may need to move your device around to find the optimum position

Can I use my smartphone or tablet while it's charging?Click to Expand

Yes, you can make full use of your phone or tablet while it's being charged. However, it will take longer to charge as you will be draining the battery while it is charging.

Rechargeable battery packsClick to Expand

Rechargeable battery packs, sometimes called 'portable chargers', allow you to charge your battery when you're out and about and don't have access to a power socket.



This is particularly helpful if you're travelling and don't know when you'll next have access to a power socket, or if you're out doing a lot of battery-hungry things like playing games or recording a lot of video.



Battery packs usually offer wired charging so you can connect them to your phone or tablet using a USB cable, but there are also wireless battery packs available.

What are rechargeable battery packs and where can I get one for my Samsung smartphone?

How many charges does a battery pack contain?

Rechargeable Battery Packs come in different sizes and capacities. Capacity is measured in mAH (milliamp hours). The higher the number, the more battery power it contains.

Batteries in smartphones are also measured in mAH. Find out the battery size of your specific device with Samsung Support. The number of charges will vary depending on the battery size of the device you want to charge and the capacity of the battery pack.

Samsung Rechargeable Battery Packs can be purchased here.

Troubleshooting - charging slowly or not at allClick to Expand

The most common reasons for slow charging are:


  • Using the phone or tablet while it's charging. Draining the battery while trying to charge it will increase the charging time.
  • Using the wrong amperage plug or a poor quality one. If you are using an older USB plug or one that did not come with your device, your phone or tablet will charge slowly. We always recommend using the official Samsung charger that came in the box, or an official Samsung replacement.
  • The charging port or cable is damaged. If your charger is damaged, stop using it immediately.
  • Charging via a laptop or PC. Charging is most efficient when done via a power socket.
  • A case or cover is blocking the flow if the device is charging wirelessly.
  • Fast charging is turned off.



Find out more about the causes and solutions for slow charging.

Troubleshooting - not charging and waterdrop icon is displayedClick to Expand

Your device will not charge if it detects water or moisture in the USB port. This is a preventative measure to protect the device from damage and corrosion. If your device has detected water in the charging port, it will sometimes display a waterdrop icon on the screen above the charging port. If you see the waterdrop icon, make sure that your device is turned off while it dries.



Most moisture will evaporate by itself within a few hours, but you can also try blowing on the port or exposing it to cool, dry air. If the waterdrop icon has still not disappeared but you are sure the charging port is dry, try turning your device off and on again.



If the icon remains after this, please contact Samsung Support.

If you're experiencing unusual behaviour on Samsung mobiles, tablets or wearables, you can send us an error report or ask us a question in the Samsung Members app.



This allows us to take a closer look at what is happening. The data is anonymised and only held for the duration of the investigation. Find out more about sending an error report through the Samsung Members app.
